Inside Mirror

INSIDE MIRROR

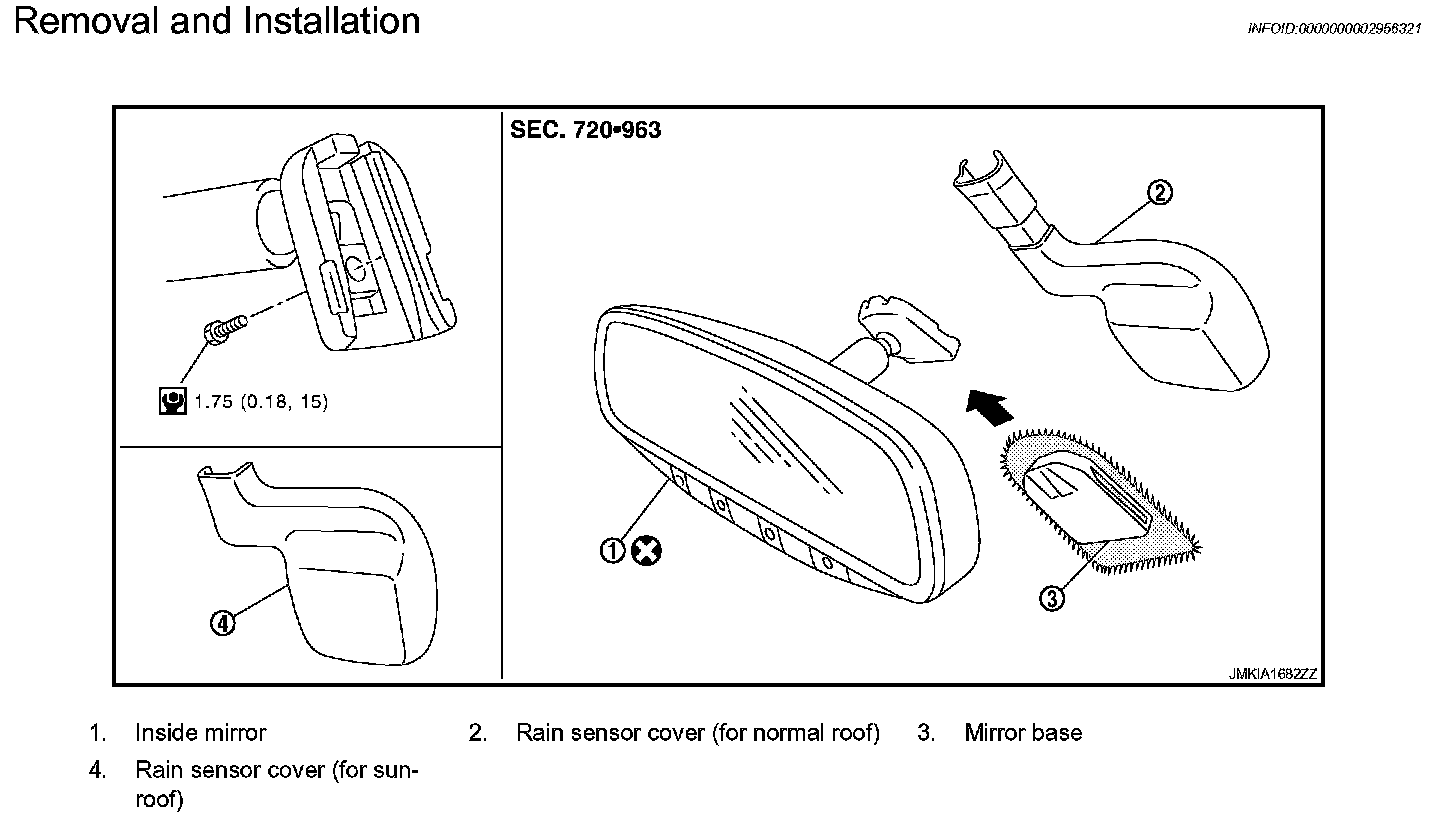

Removal and Installation






CAUTION: Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket.

REMOVAL
1. Remove rain sensor cover.
2. Remove screw of mirror base.
3. Slide the mirror upward to remove.
4. Disconnect the connector.

INSTALLATION
Install in the reverse order of removal.
