Door Mirror

DOOR MIRROR

Automatic Drive Positioner Interlocking Door Mirror
Automatic drive positioner interlocking door mirror.

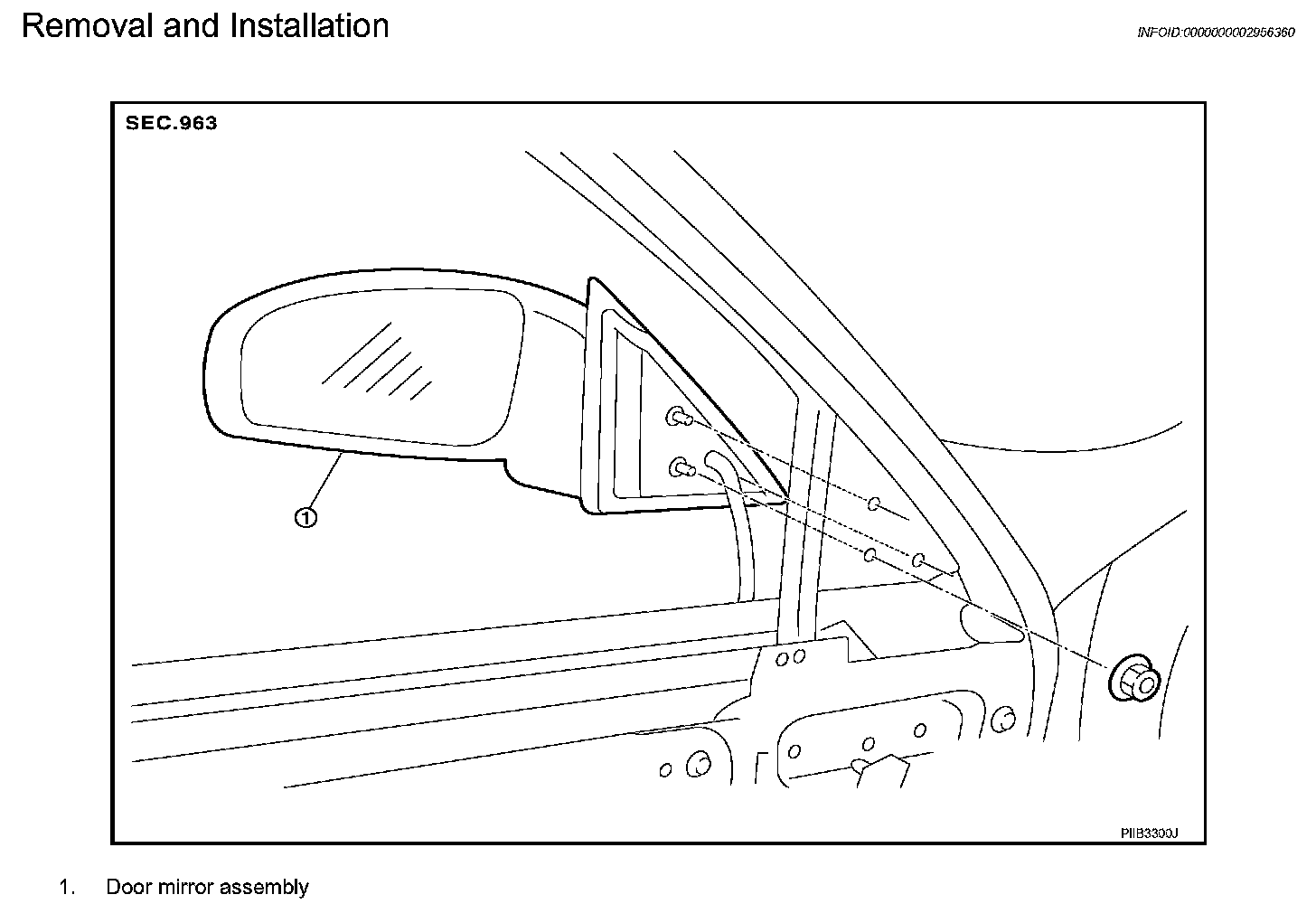

Removal and Installation






CAUTION: Be careful not to damage the mirror bodies.

REMOVAL
1. Remove the front door finisher.
2. Remove the front door sash cover inner.
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION
Install in the reverse order of removal.
