Climate Controlled Seat
CLIMATE CONTROLLED SEATTrouble Diagnosis Symptom Chart
NOTE: Make sure other systems using the signal of the following systems operate normally.

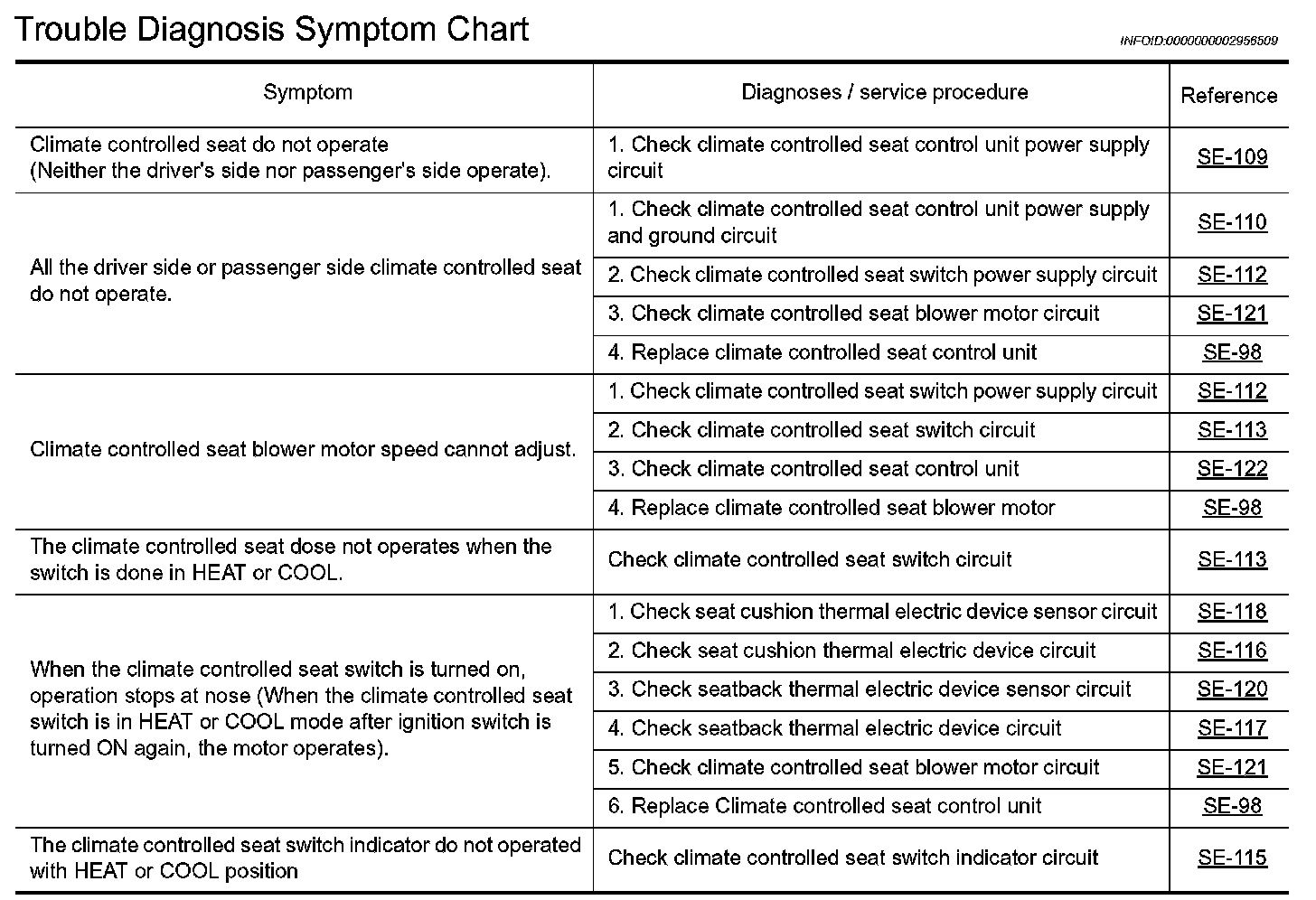

Trouble Diagnosis Symptom Chart:
NOTE:
- The climate controlled seat blower keep low speed for approximately 60 seconds turning the switch.
- The climate controlled seat system is downed when the temperature sensor set as the seat cushion and the seatback's thermal electric device machine detects 20 °C (68 °F) or more of mutual differences of temperature.
