Check Climate Controlled Seat Control Unit Power Supply and Ground Circuit
CLIMATE CONTROLLED SEATCheck Climate Controlled Seat Control Unit Power Supply And Ground Circuit

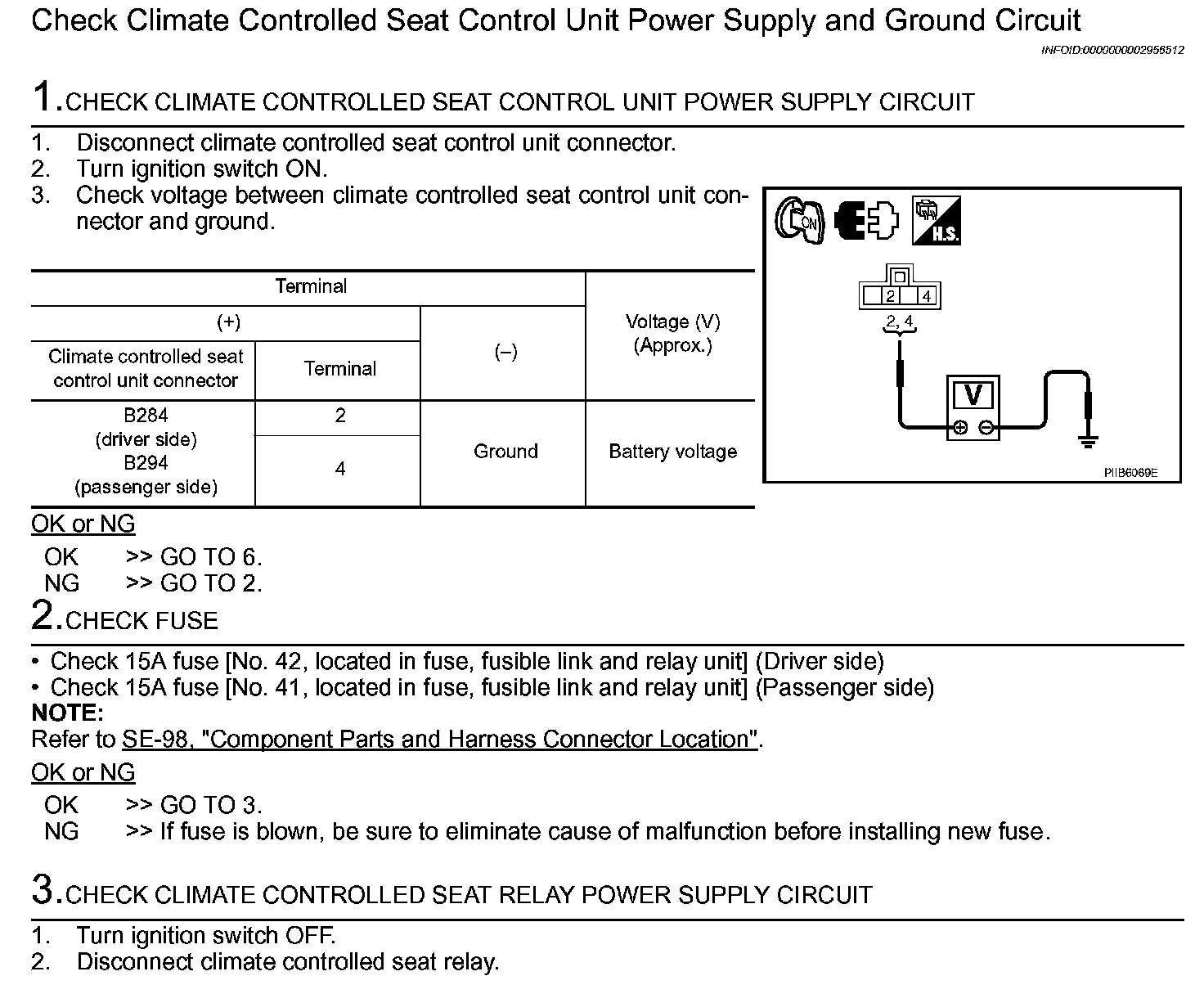

Step 1-3:

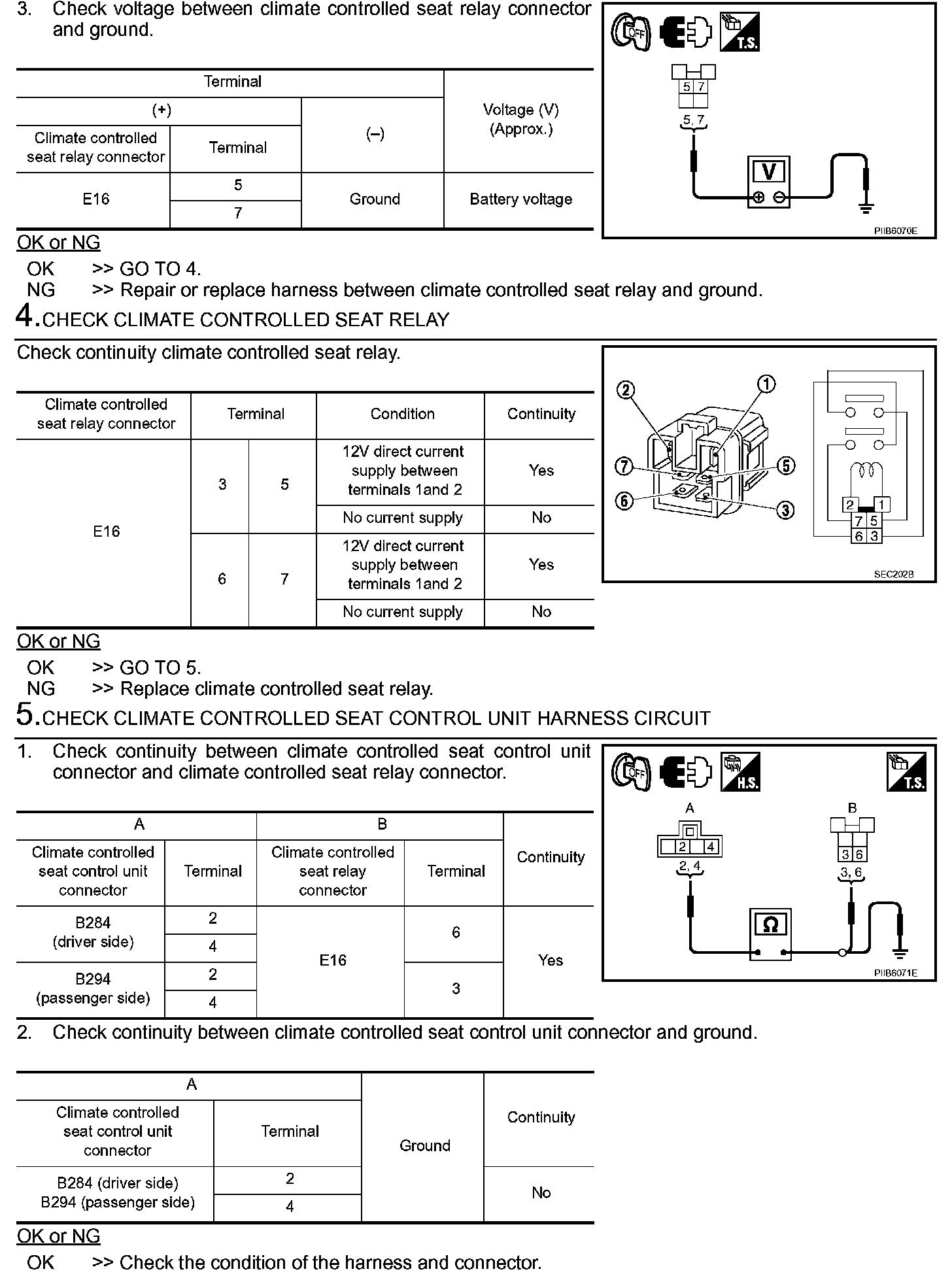

Step 3 (Continued)-5:

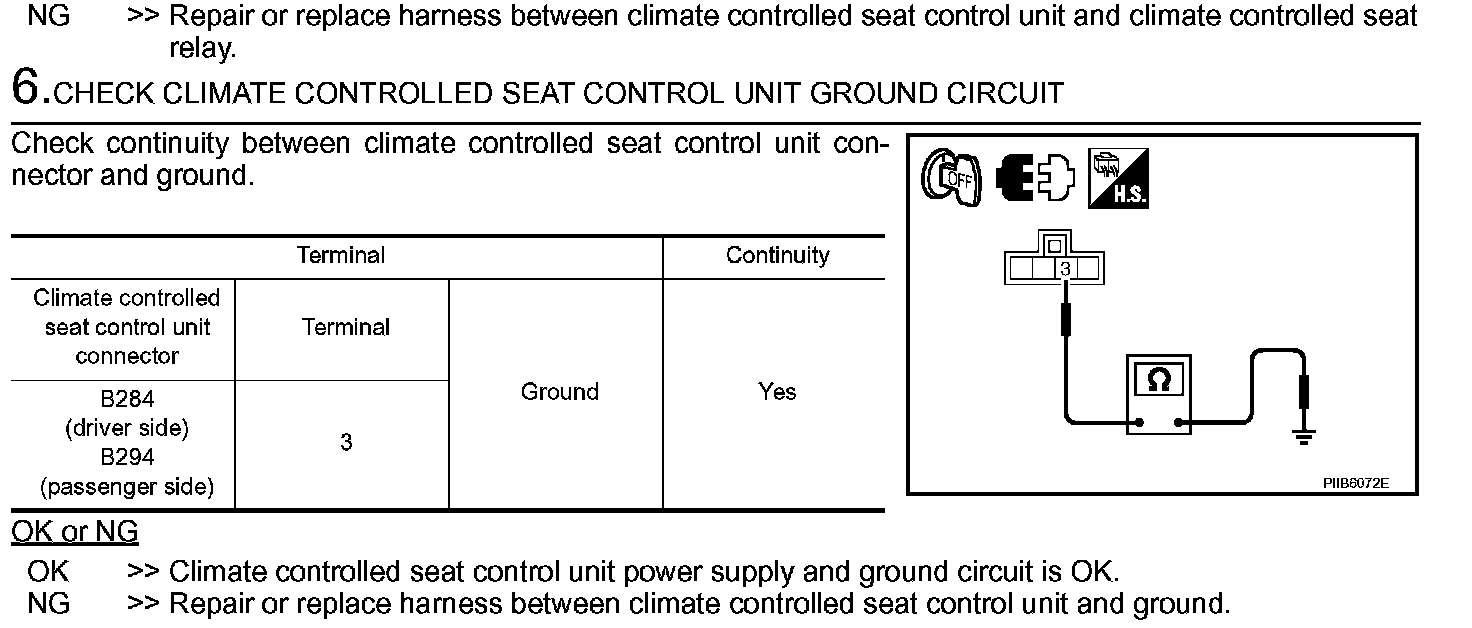

Step 5 (Continued)-6:
Check Climate Controlled Seat Control Unit Power Supply And Ground Circuit
