Check Climate Controlled Seat Control Unit Power Supply Circuit
Check Climate Controlled Seat Control Unit Power Supply Circuit
CLIMATE CONTROLLED SEAT
Check Climate Controlled Seat Control Unit Power Supply Circuit

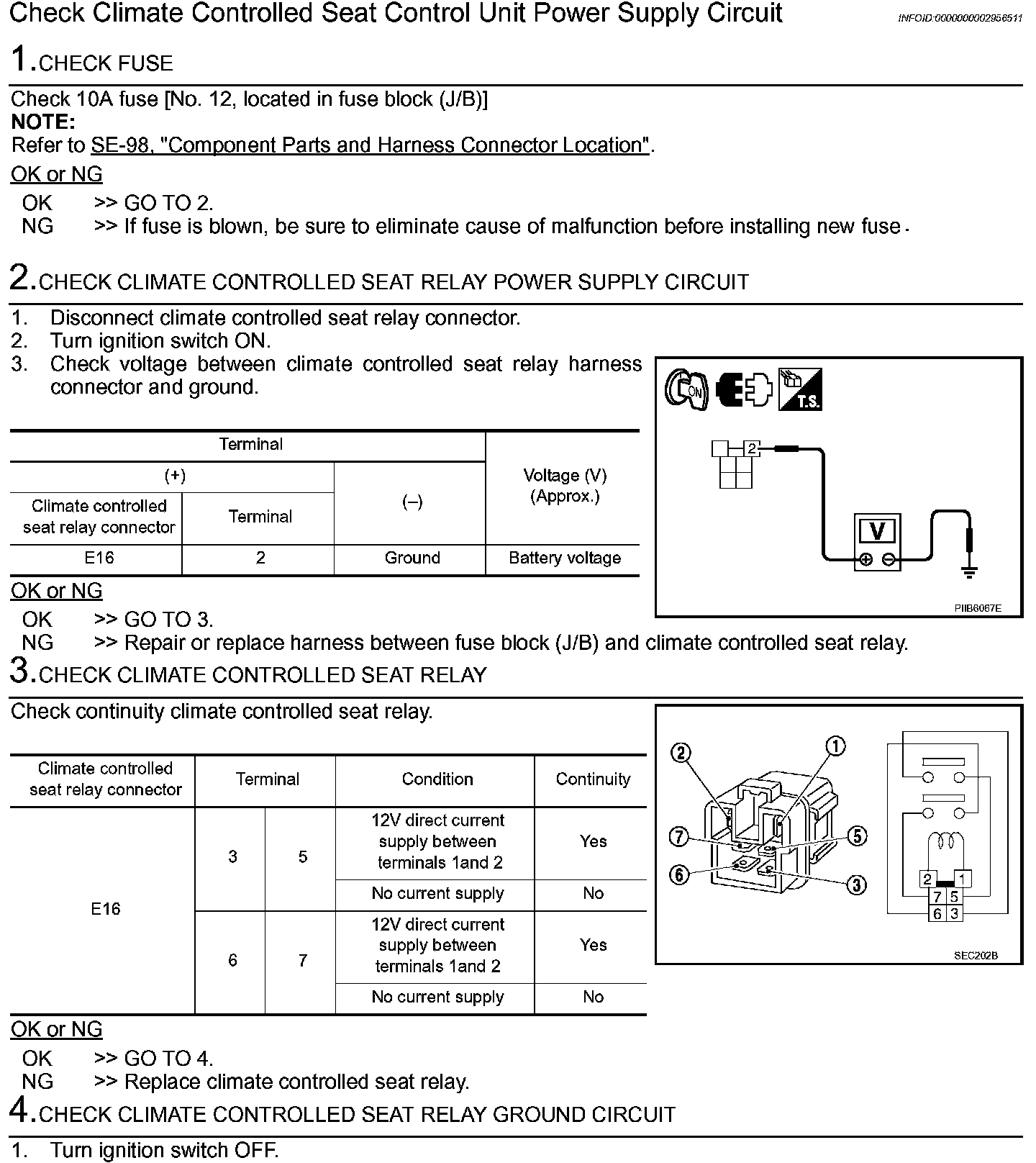

Step 1-4:

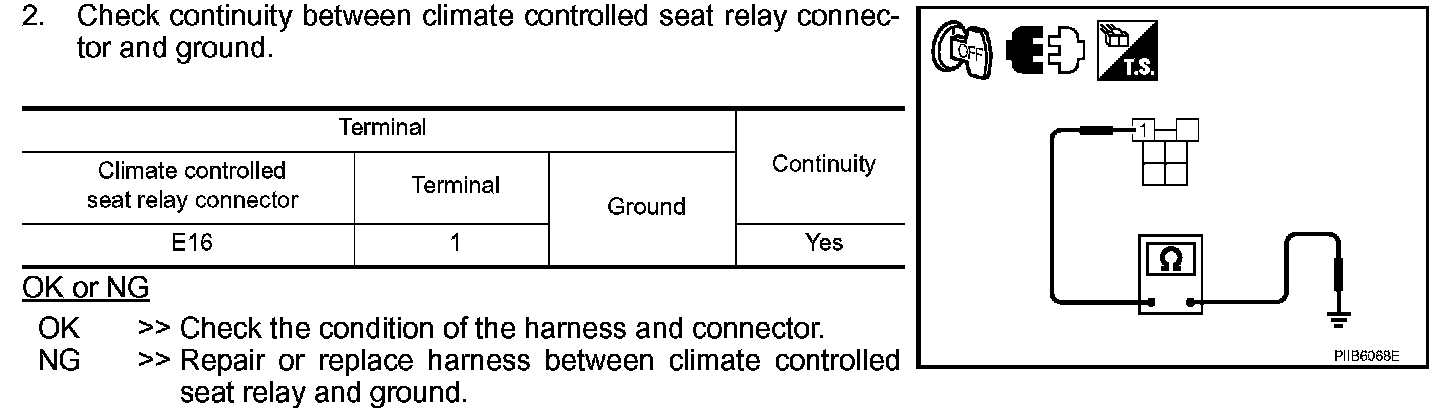

Step 4 (Continued):
