Check Seatback Thermal Electric Device Sensor Circuit
Check Seatback Thermal Electric Device Sensor Circuit
CLIMATE CONTROLLED SEAT
Check Seatback Thermal Electric Device Sensor Circuit

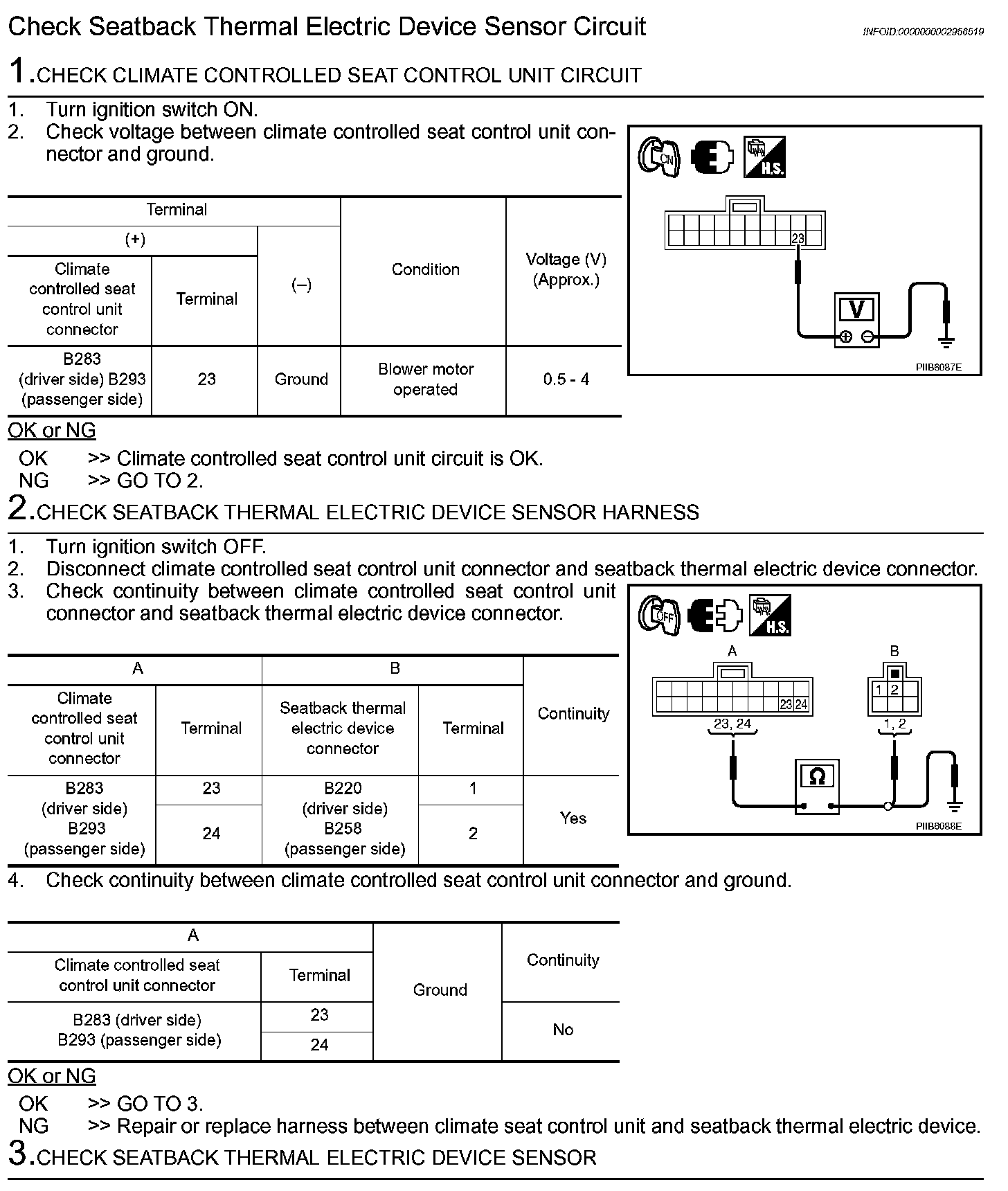

Step 1-3:

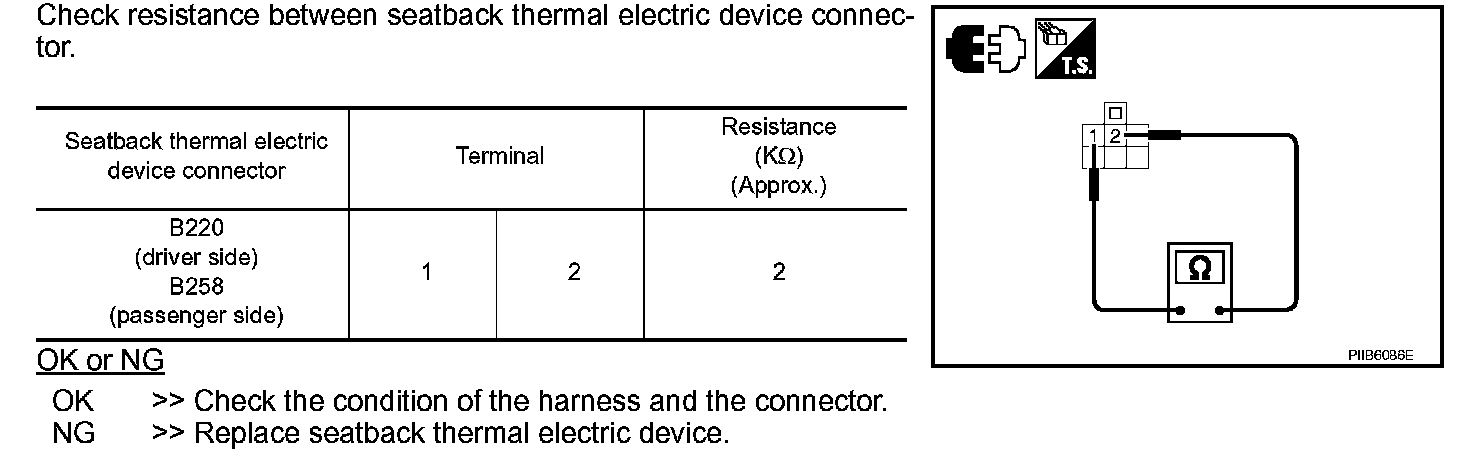

Step 3 (Continued):
