Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Check Rear Power Seat Switch Circuit

Check Rear Power Seat Switch Circuit

Check Rear Power Seat Switch Circuit

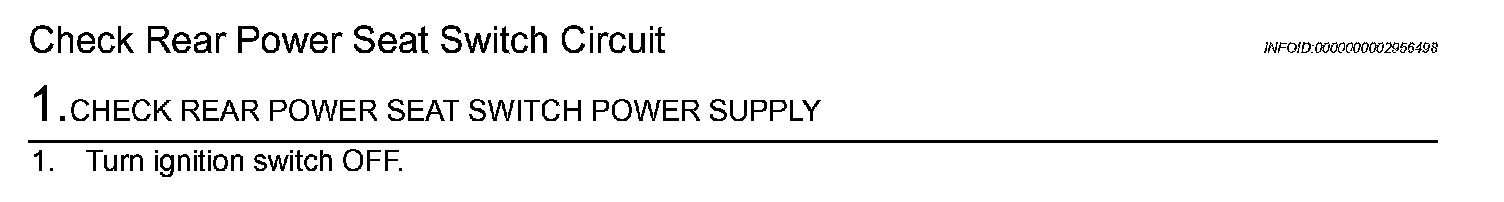

Step 1:

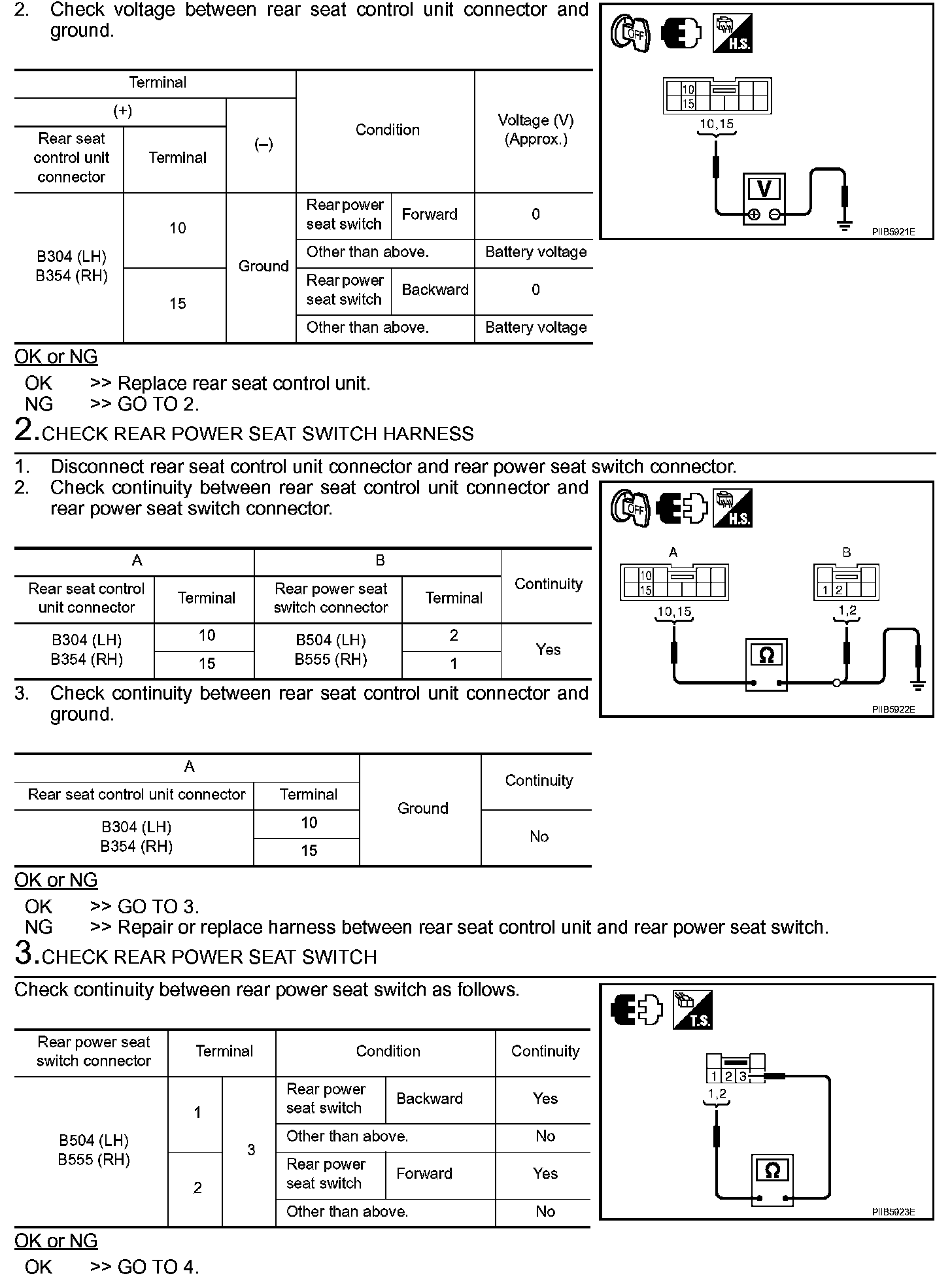

Step 1 (Continued)-3:

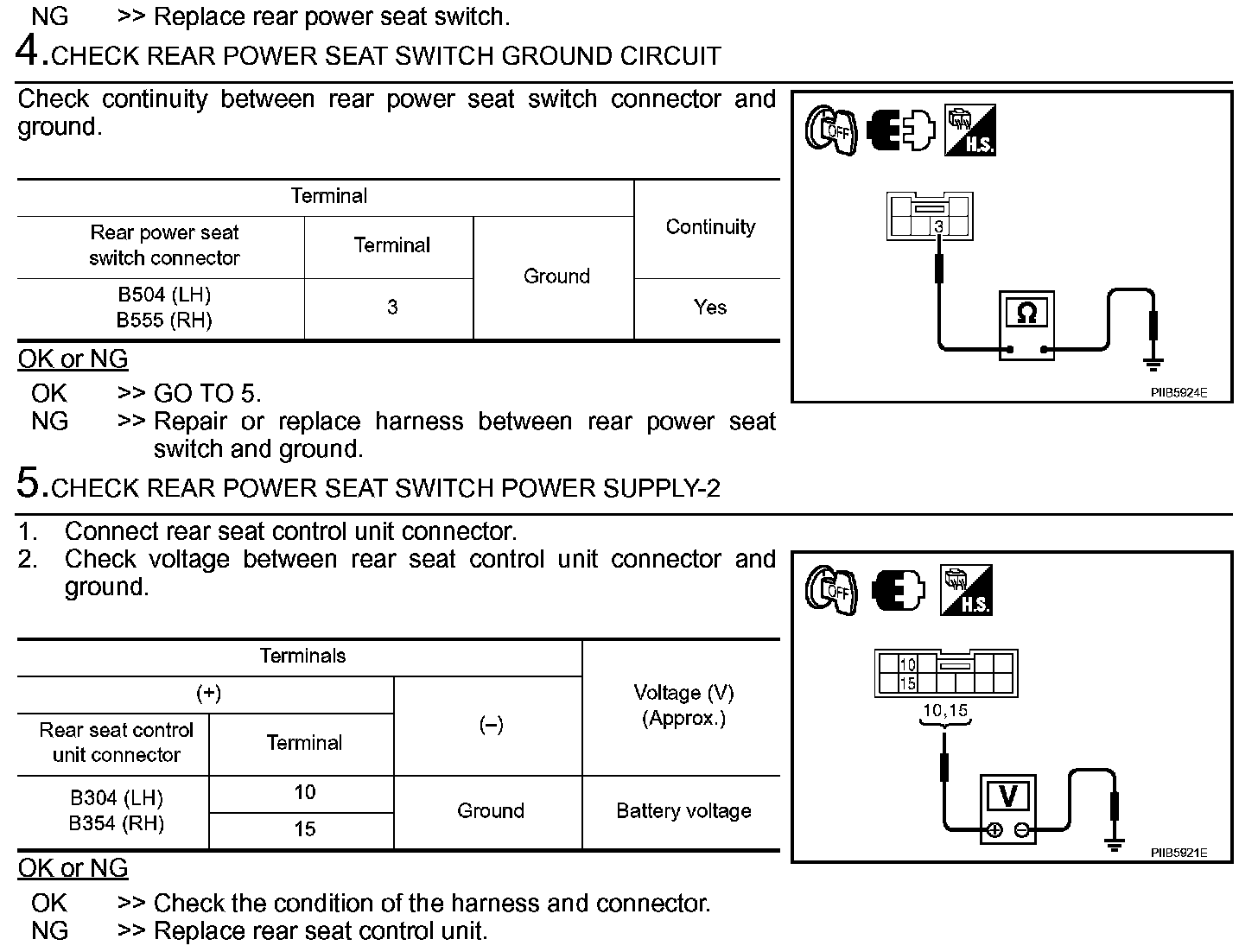

Step 3 (Continued)-5:
