Climate Controlled Seat

CLIMATE CONTROLLED SEAT

Terminal and Reference Value for Climate Controlled Seat Control Unit

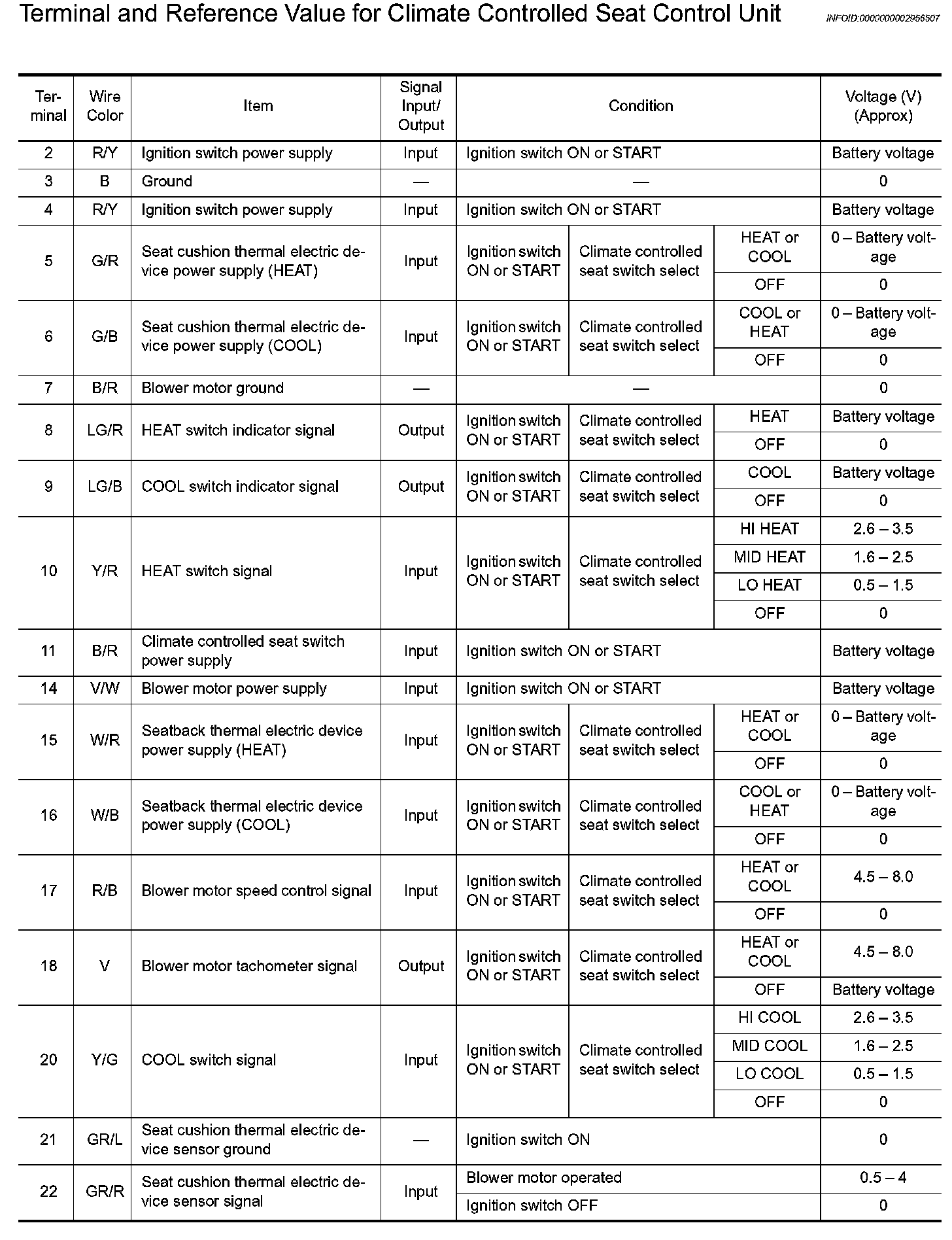

Terminal And Reference Value For Climate Controlled Seat Control Unit (Part 1):

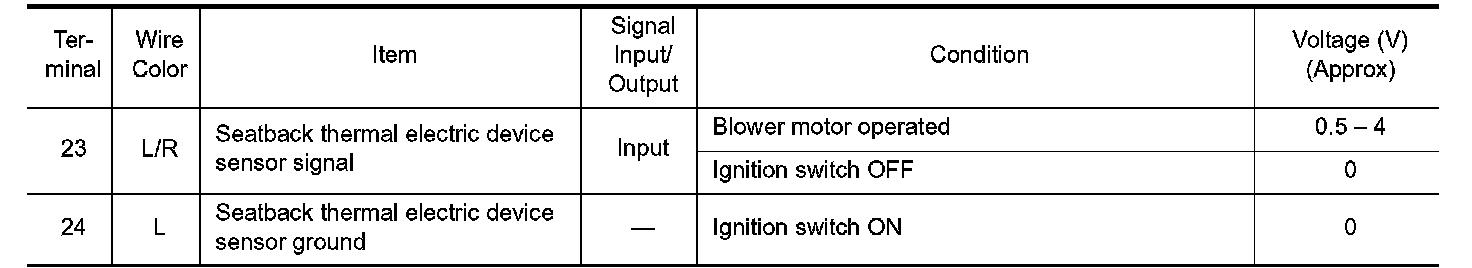

Terminal And Reference Value For Climate Controlled Seat Control Unit (Part 2):
