SE-SEAT / Passenger Seat
SE-SEAT / Passenger Seat
POWER SEAT (PASSENGER SIDE)
Wiring Diagram - SEAT -

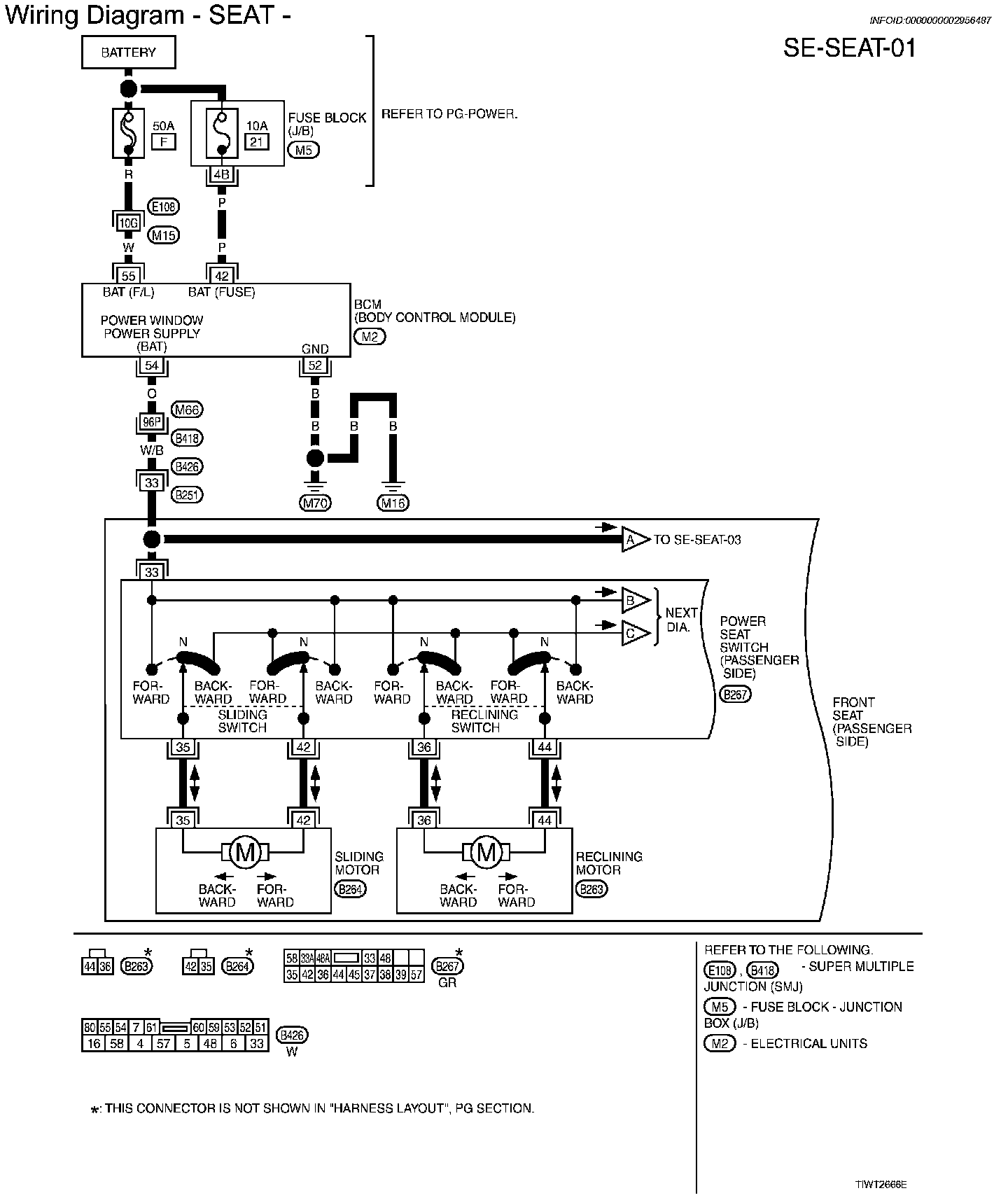

Wiring Diagram - Seat - Part 1:

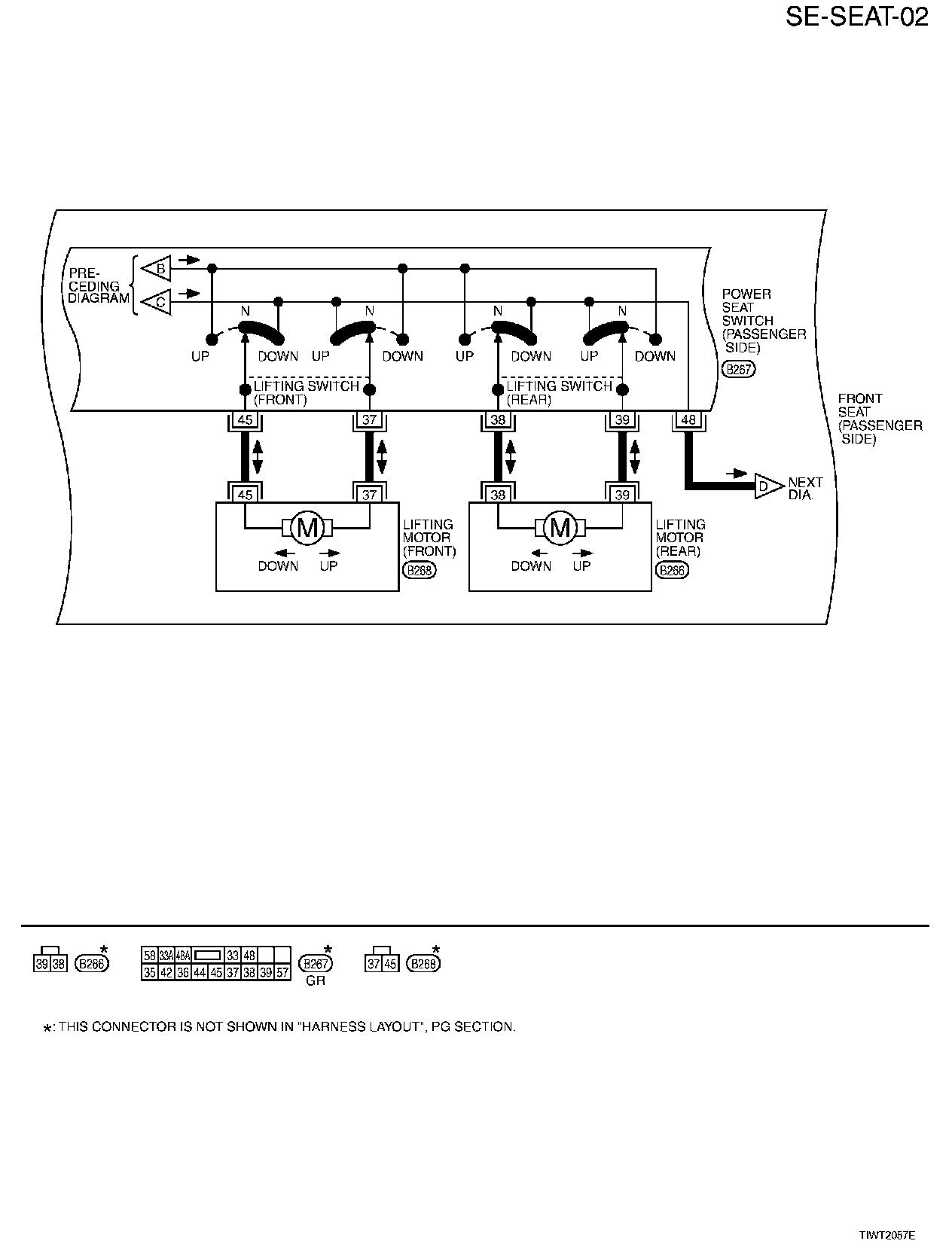

Wiring Diagram - Seat - Part 2:

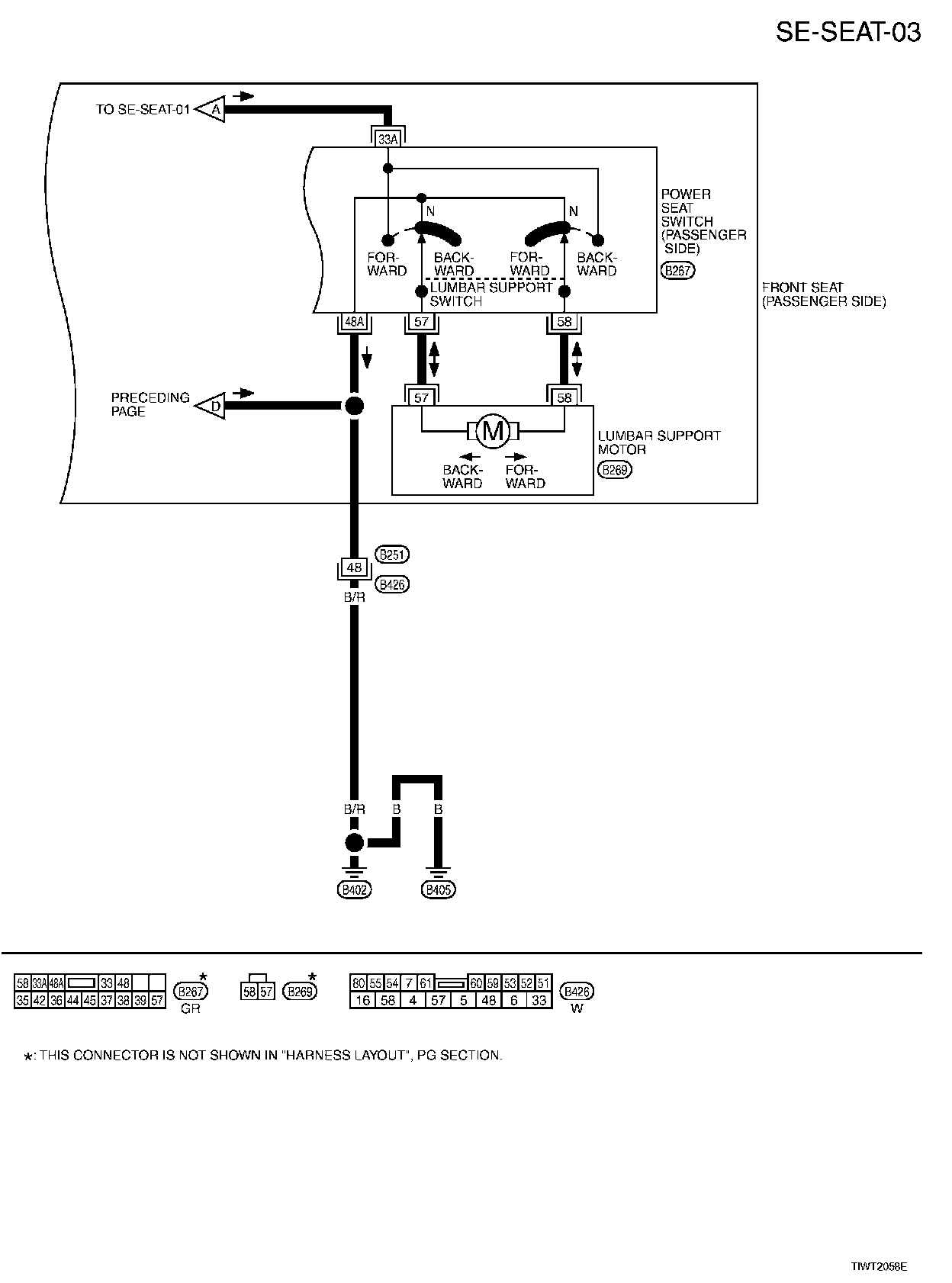

Wiring Diagram - Seat - Part 3:
