SE-C/SEAT

CLIMATE CONTROLLED SEAT

Wiring Diagram - C/SEAT -

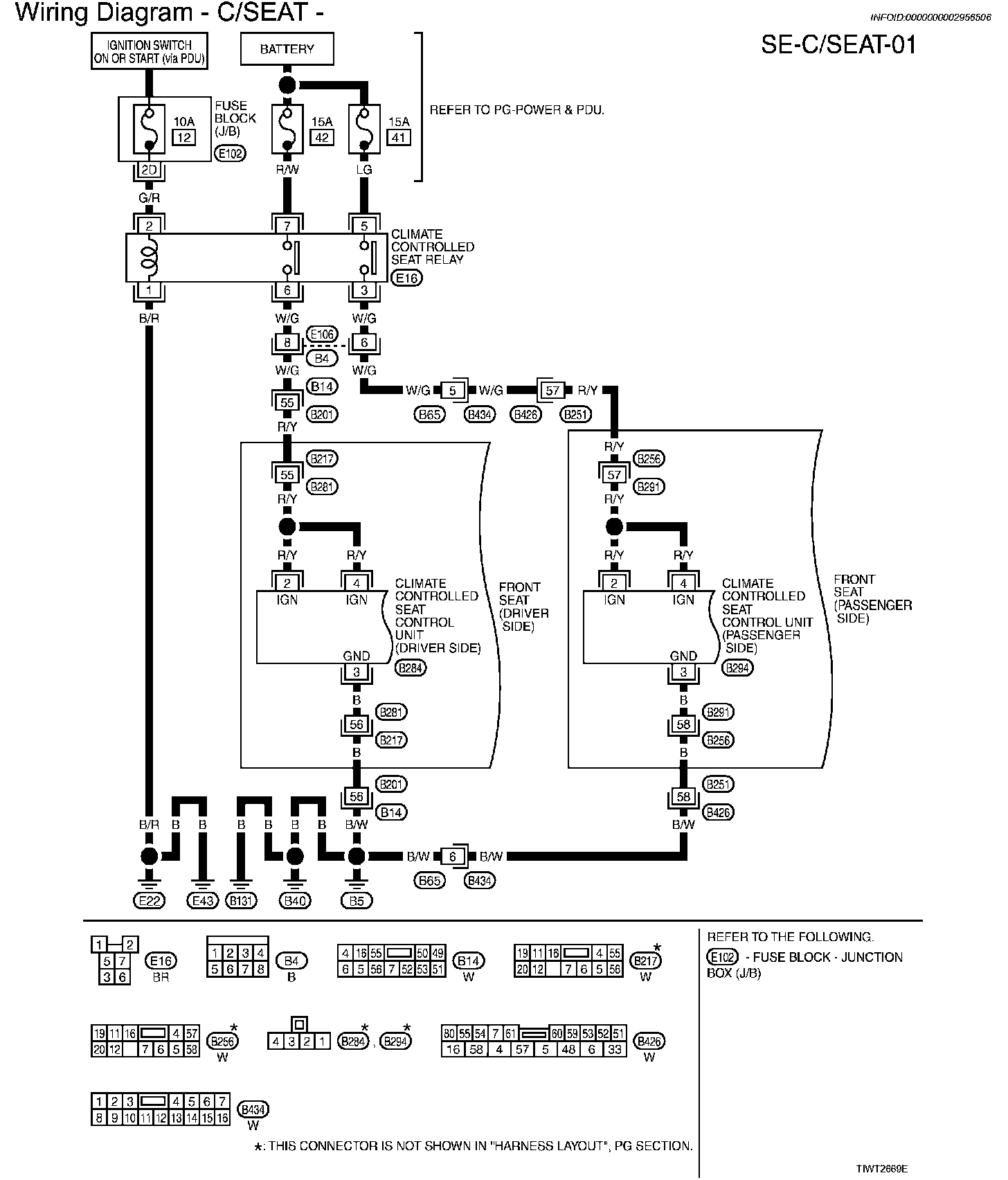

Wiring Diagram - C/SEAT - Part 1:

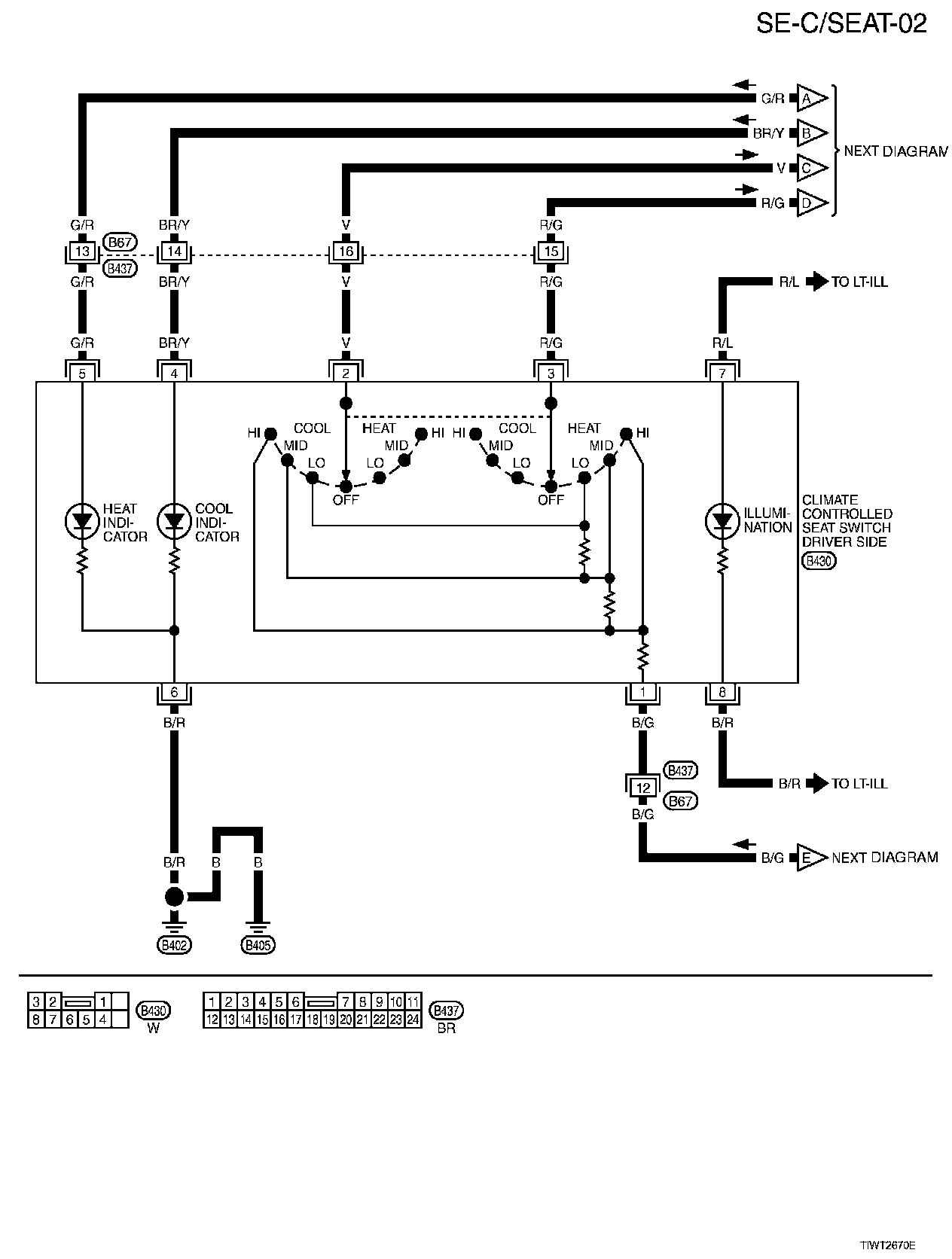

Wiring Diagram - C/SEAT - Part 2:

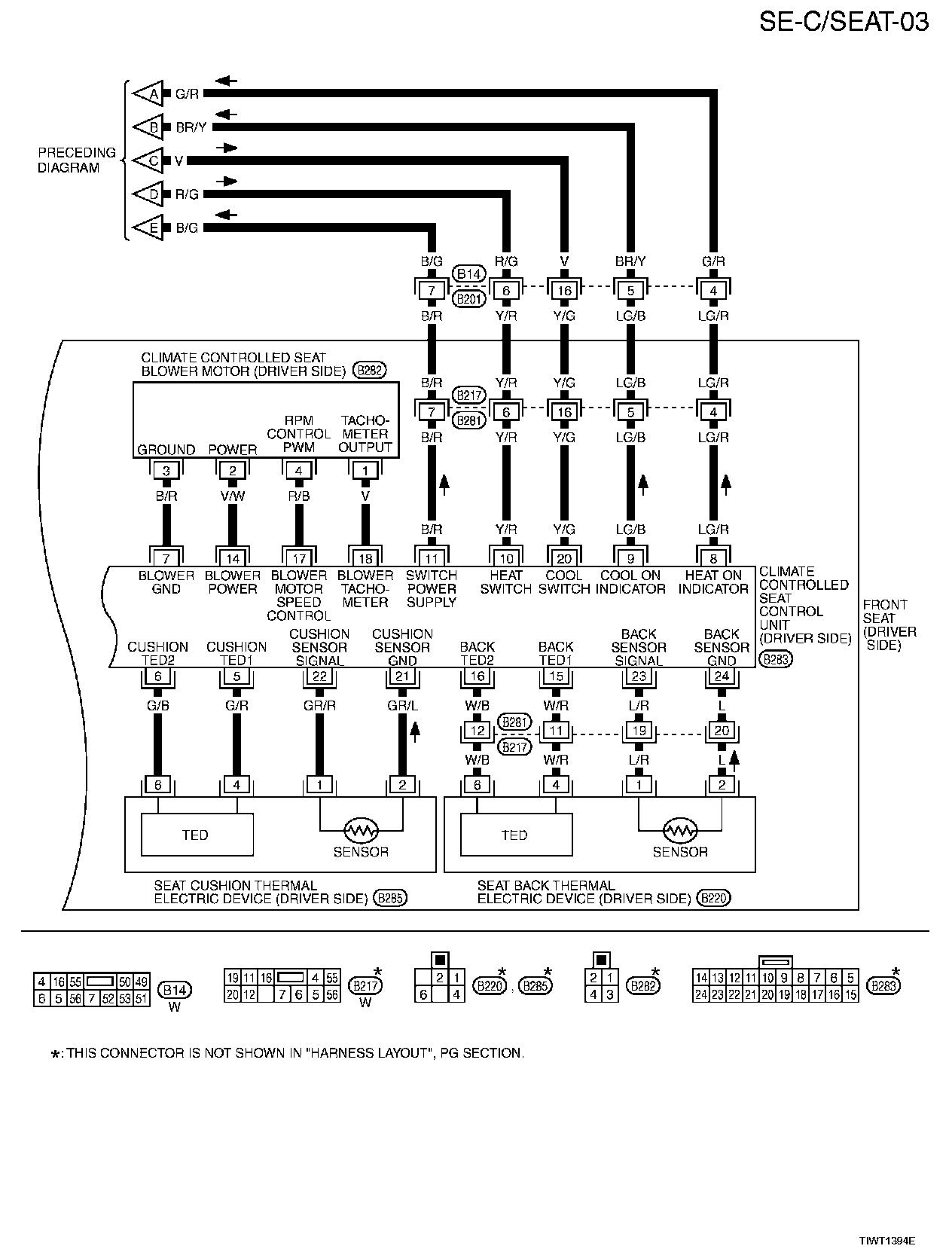

Wiring Diagram - C/SEAT - Part 3:

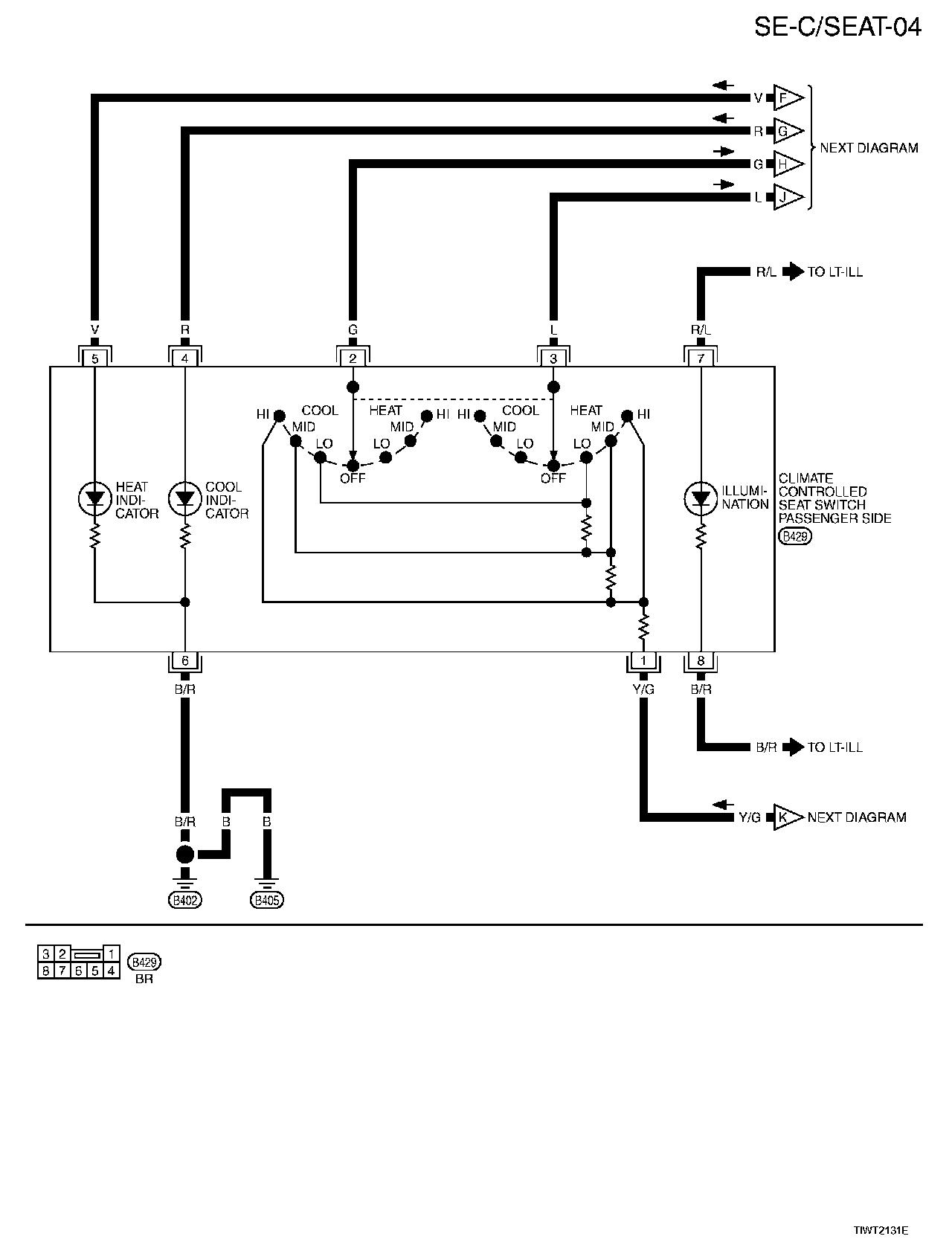

Wiring Diagram - C/SEAT - Part 4:

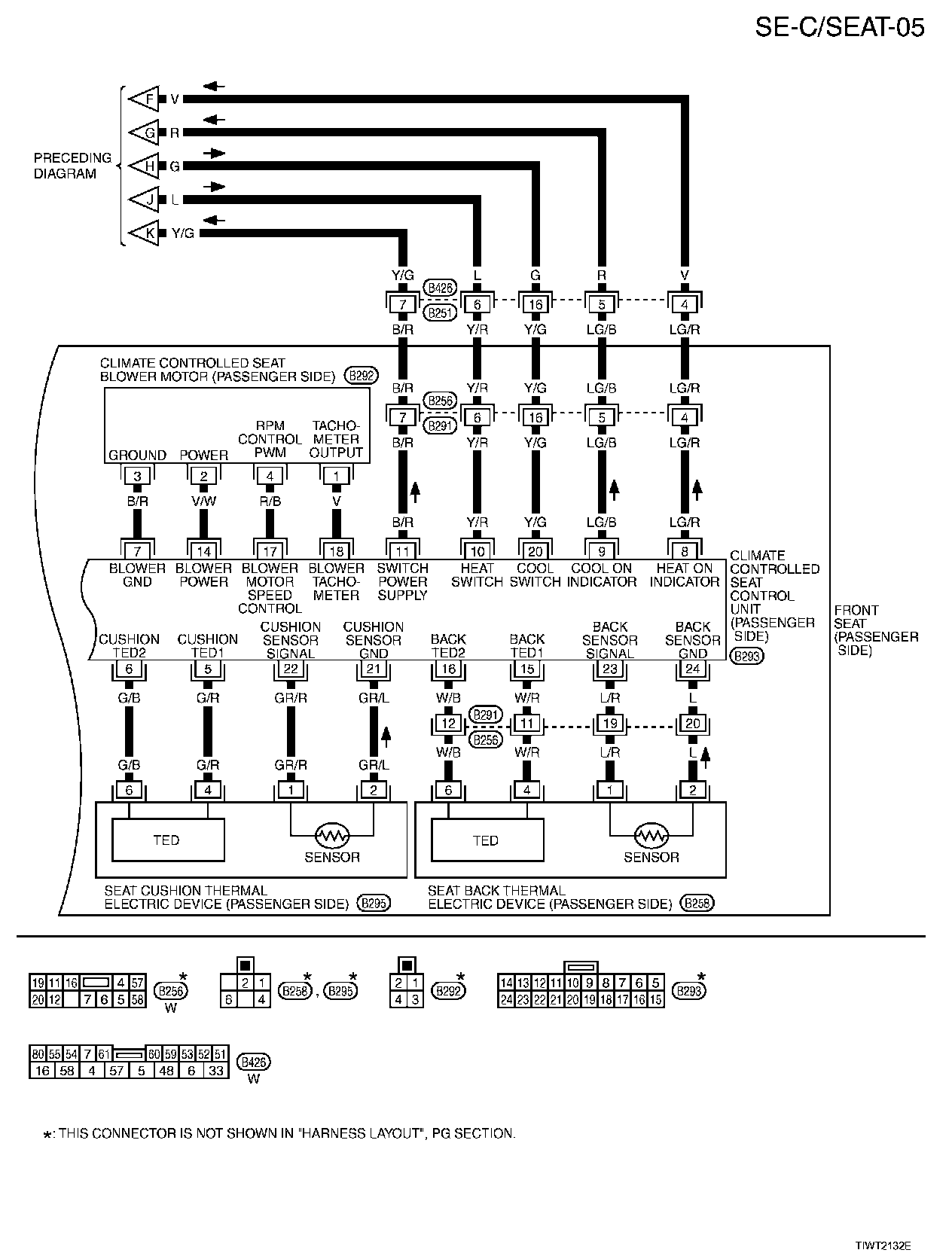

Wiring Diagram - C/SEAT - Part 5:
