Removal and Installation of Glove Box

GLOVE BOX

GLOVE BOX : Removal and Installation

REMOVAL
1. Remove glove box.

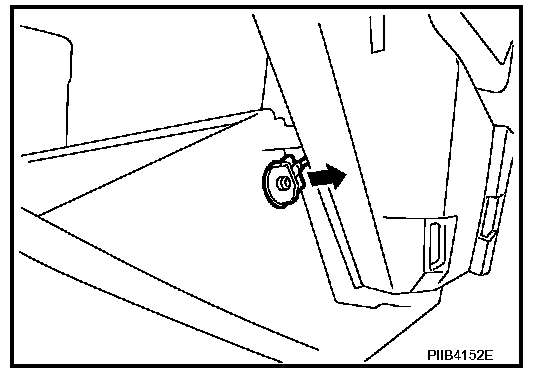

- Remove damper pin to left side.




- Pull up glove box.

2. Remove instrument passenger lower cover.
- Pull downward, disengaged pawls.
- Pull back instrument passenger lower cover.
- Disconnect harness connector.

3. Remove instrument side finisher RH.
- Insert a remover into lower space.
- Pull the instrument side finisher RH crosswise.

4. Remove glove box cover fixing screws with power tool.

INSTALLATION
Install in the reverse order of removal.
