Removal and Installation

Removal and Installation of Combination Meter

REMOVAL
1. Remove cluster lid A.

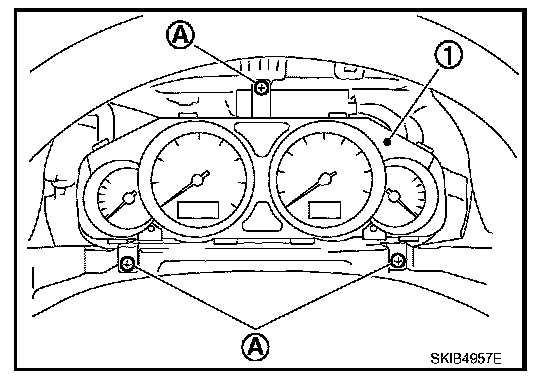

2. Remove the screws (A) using power tools, and pull out combination meter (1).
3. Disconnect connector, and remove combination meter (1).

INSTALLATION
Installation is the reverse order of removal.
