Electrical Component Inspection

Electrical Component Inspection

Check Fuel Level Sensor Unit and Fuel Pump (Main)

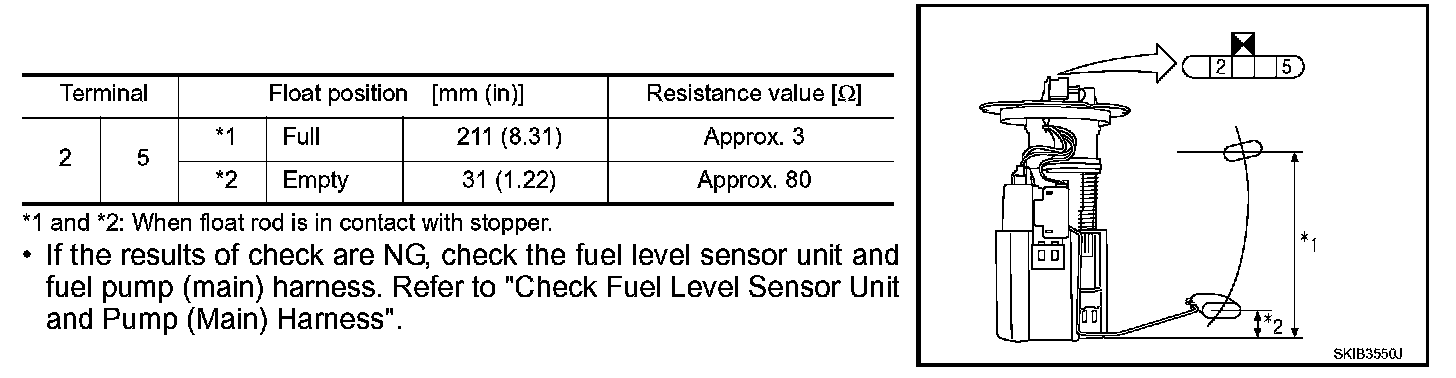

Check resistance between terminals 2 and 5.






Check Fuel Level Sensor Unit and Pump (Main) Harness

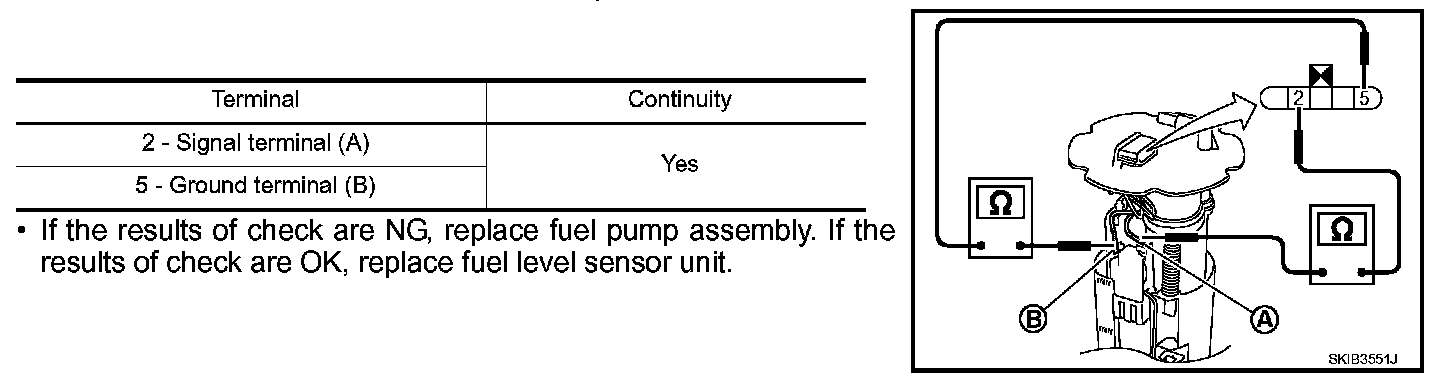

Check continuity at following terminals.






Check Fuel Level Sensor Unit (Sub)

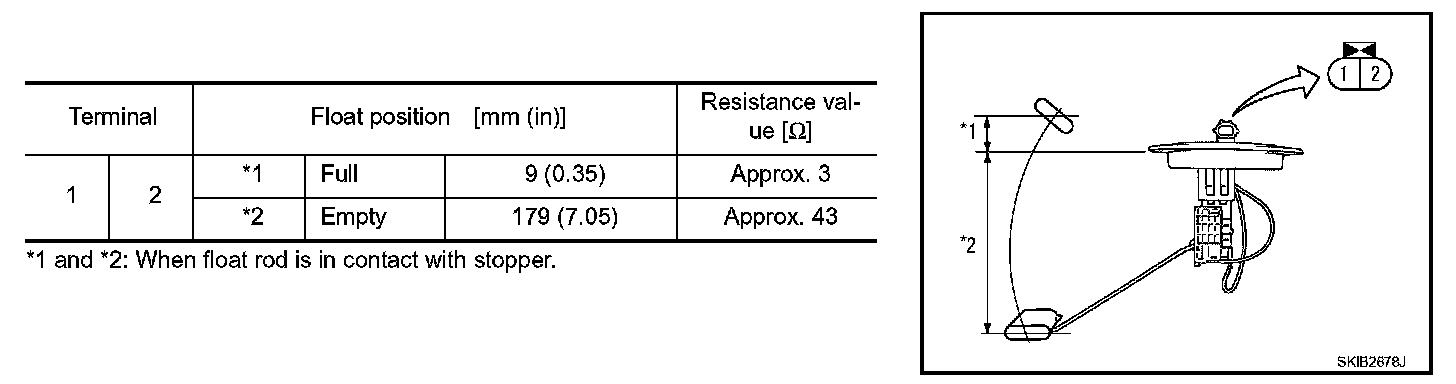

Check resistance between terminals 1 and 2.
