Instrument Panel, Gauges and Warning Indicators: Service and Repair

Removal and Installation of Unified Meter and A/C Amp

REMOVAL
1. Remove the AV control unit. Refer to the following.
- (Without mobile entertainment system)
- (With mobile entertainment system)

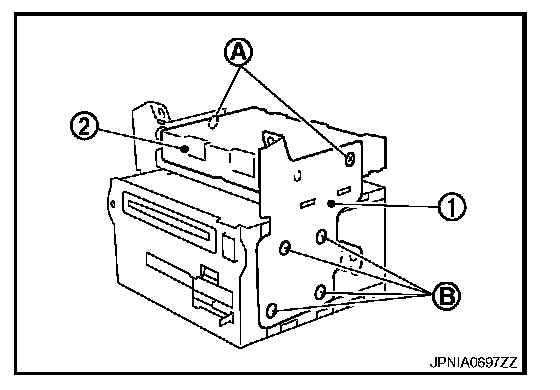

2. Remove the screws (A) 2.
3. Remove the screws (B) 8 and remove the bracket (1).
4. Remove unified meter and A/C amp. (2).

INSTALLATION
Installation is the reverse order of removal.

CAUTION: Unified meter and A/C amp. screws are different from other screws. Never confuse them when installing.
