Pinout Values and Diagnostic Parameters

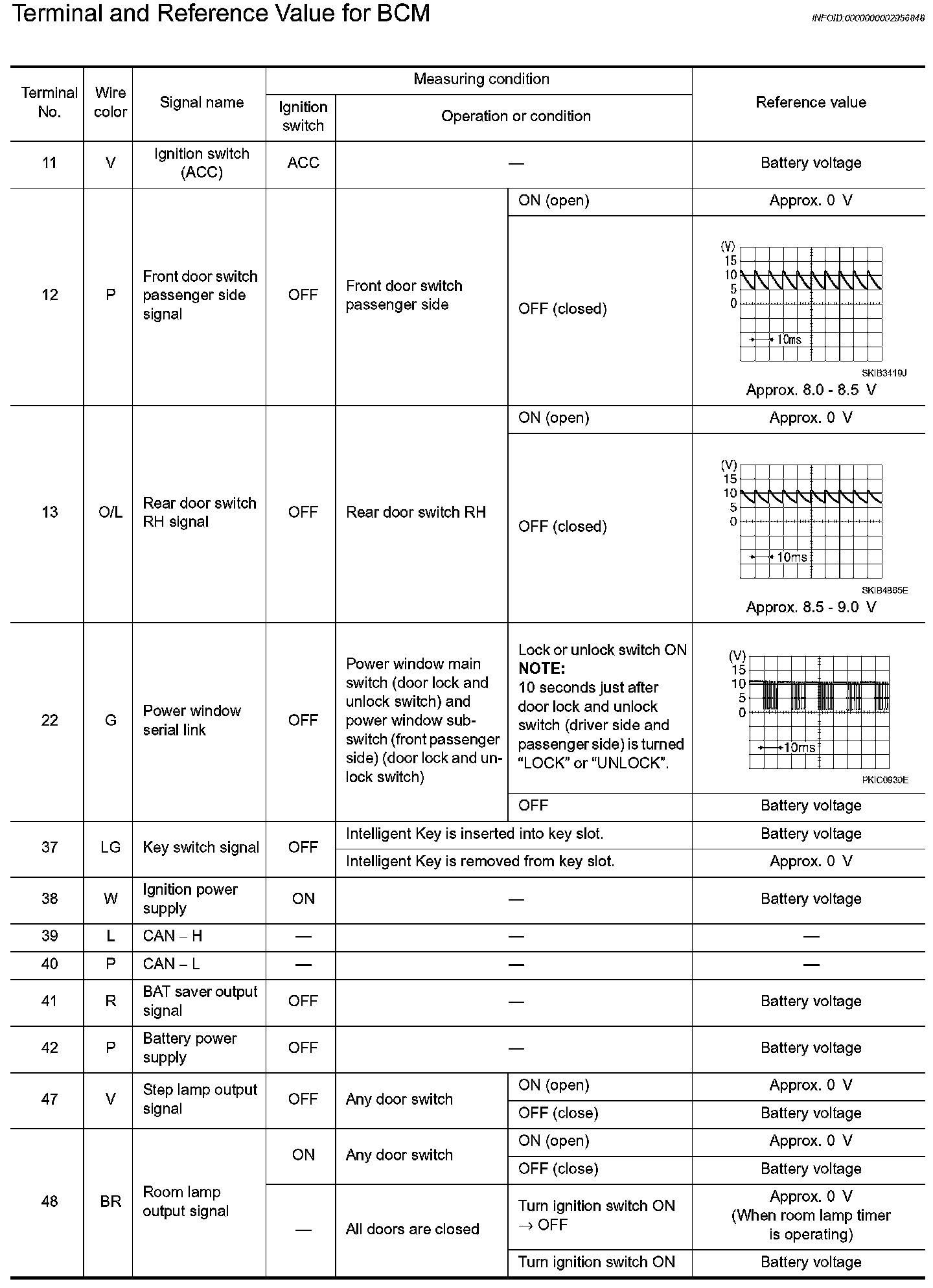

Terminal And Reference Value For BCM (Part 1):

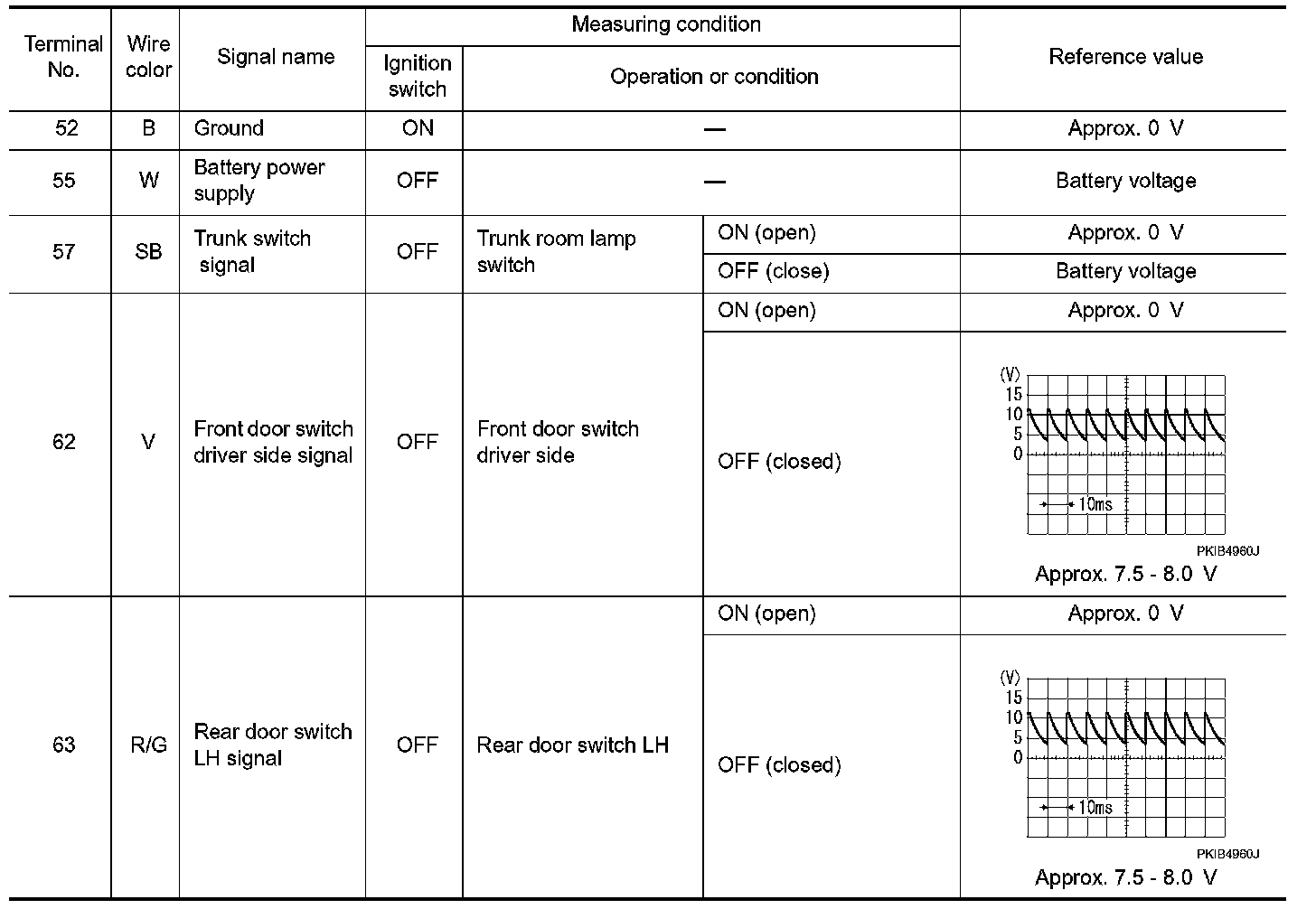

Terminal And Reference Value For BCM (Part 2):
