Fog/Driving Lamp: Service and Repair
STANDARD TYPESTANDARD TYPE : Removal and Installation

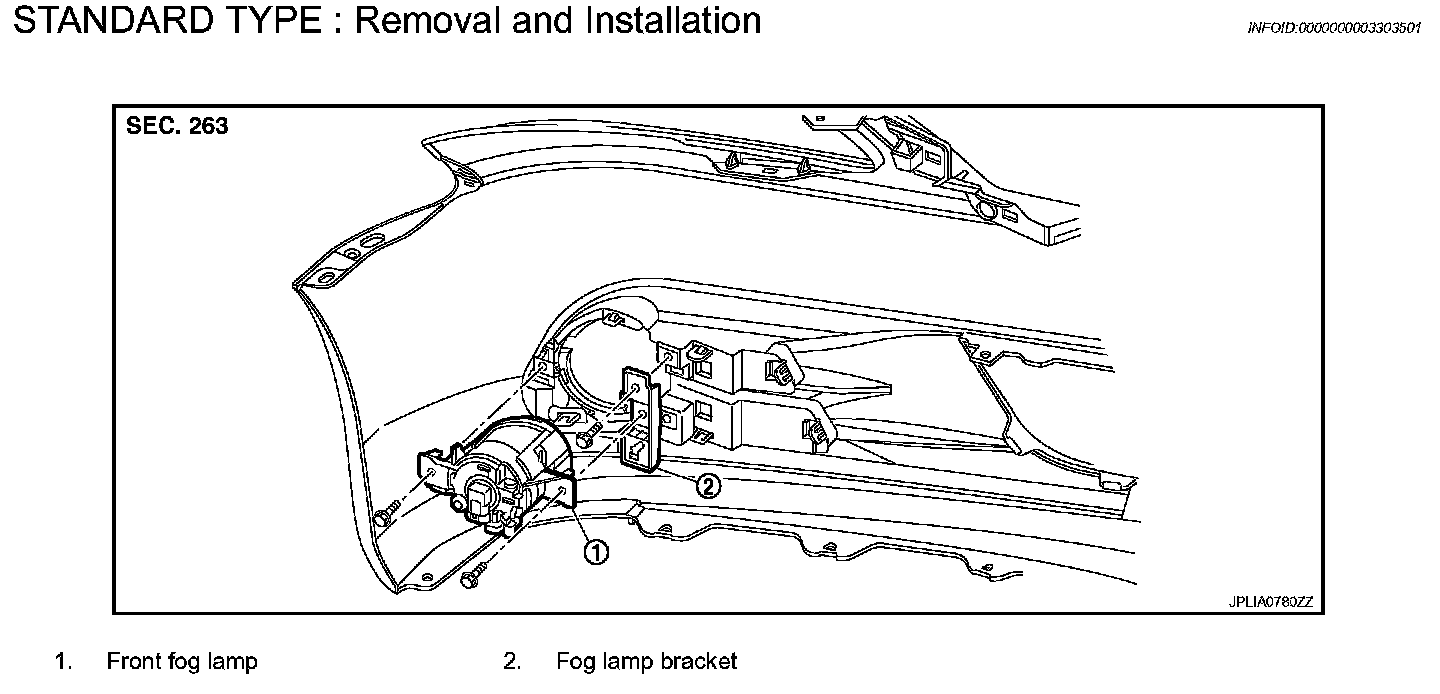

LT-177 Exploded View:
REMOVAL
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Remove fender protector (front).
2. Remove front fog lamp connector.
3. Remove screws and remove front fog lamp.
INSTALLATION
Installation is the reverse order of removal.
SPORTS TYPE
SPORTS TYPE : Removal and Installation

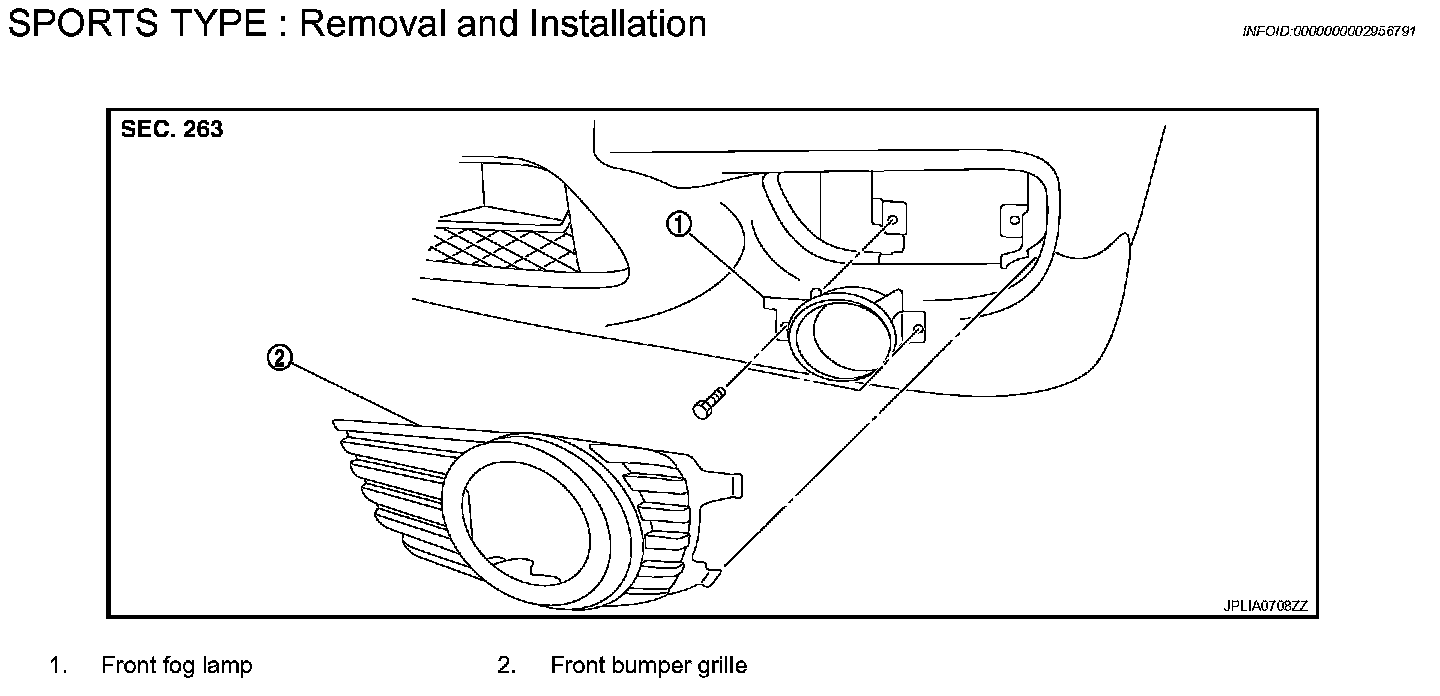

LT-177 Exploded View:
REMOVAL
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Remove front bumper grille.
2. Remove screws and remove front fog lamp.
INSTALLATION
Installation is the reverse order of removal.
