Headlamp High Beam Does Not Illuminate (Both Sides)

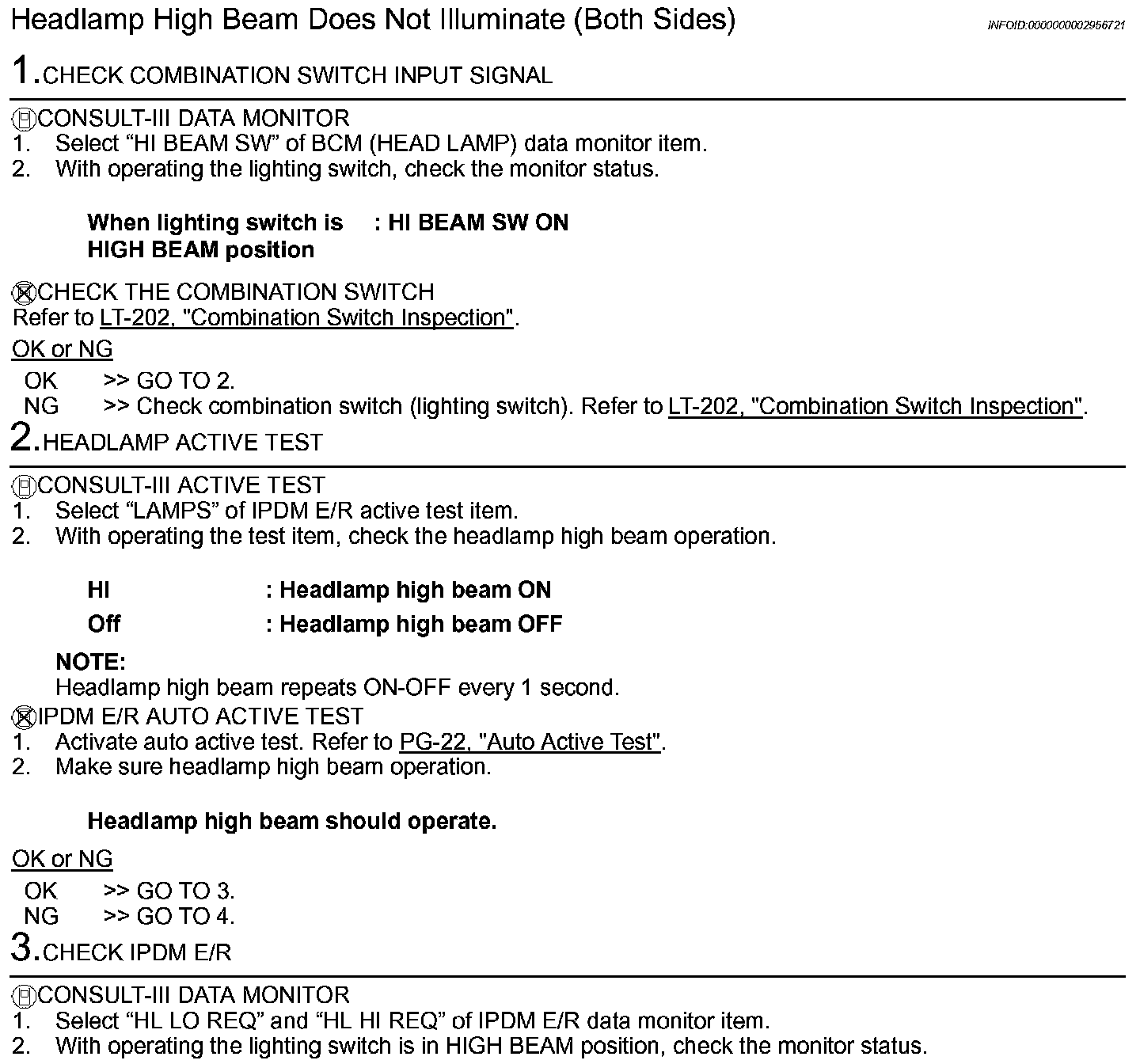

Step 1-3:

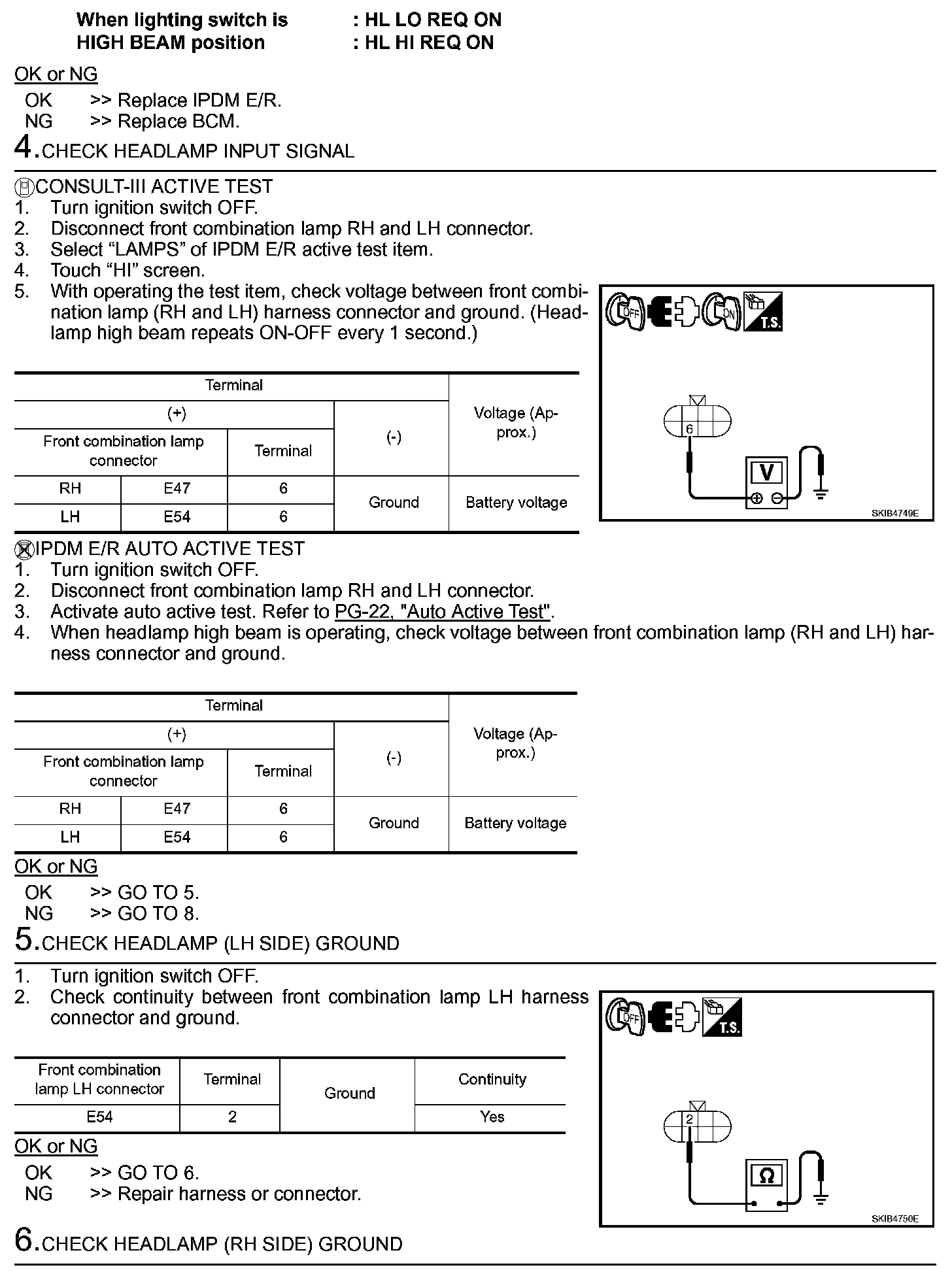

Step 3 (Continued)-6:

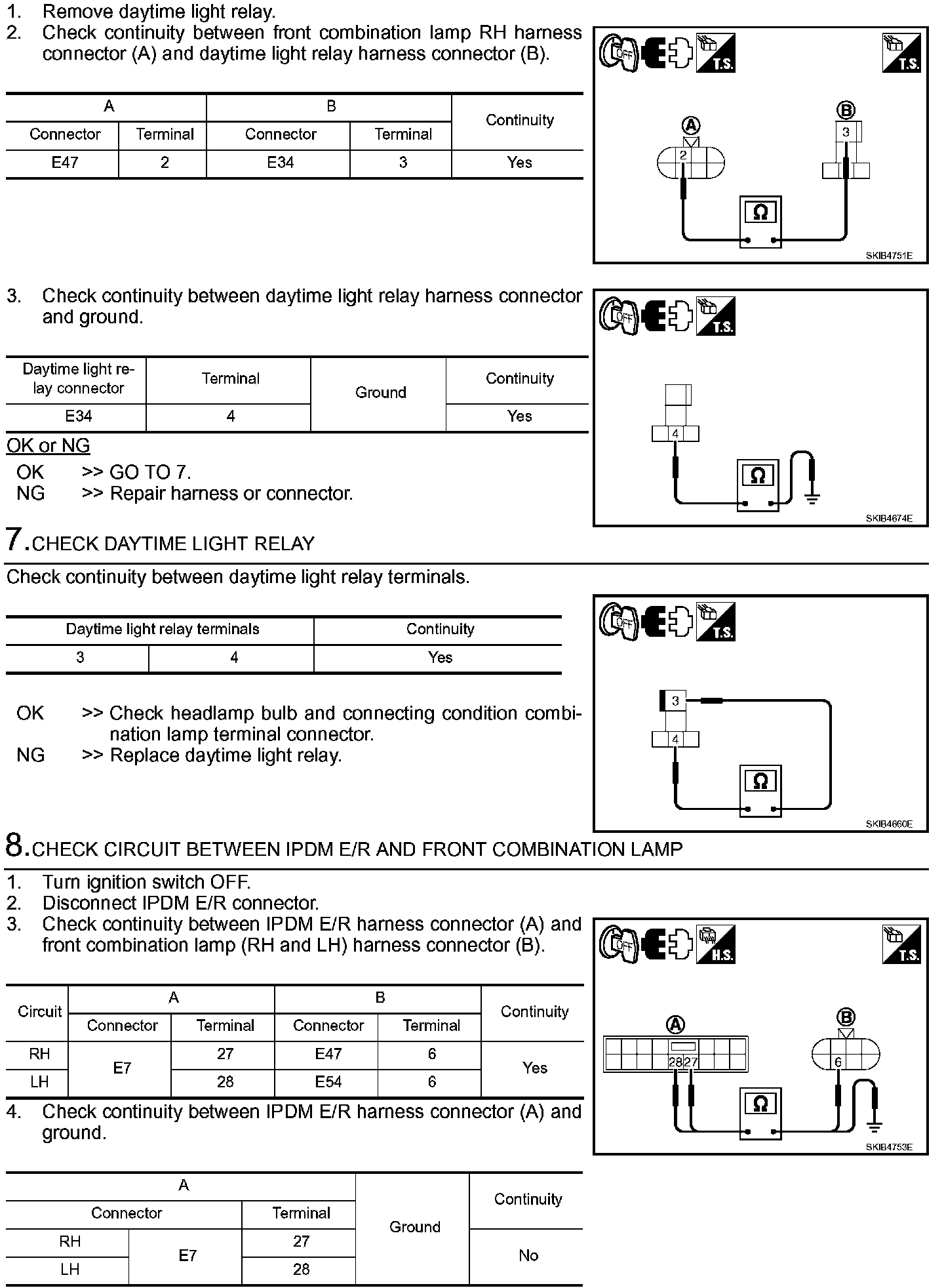

Step 6 (Continued)-8:

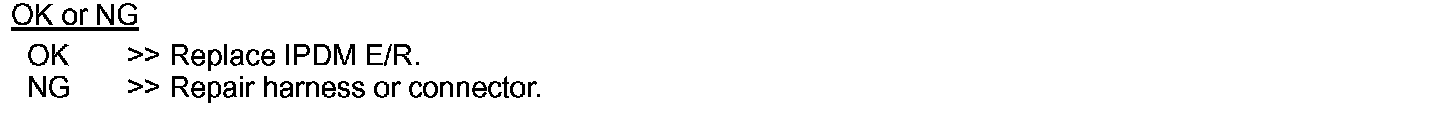

Step 8 (Continued):
