Headlamp Low Beam Does Not Illuminate (Both Sides)

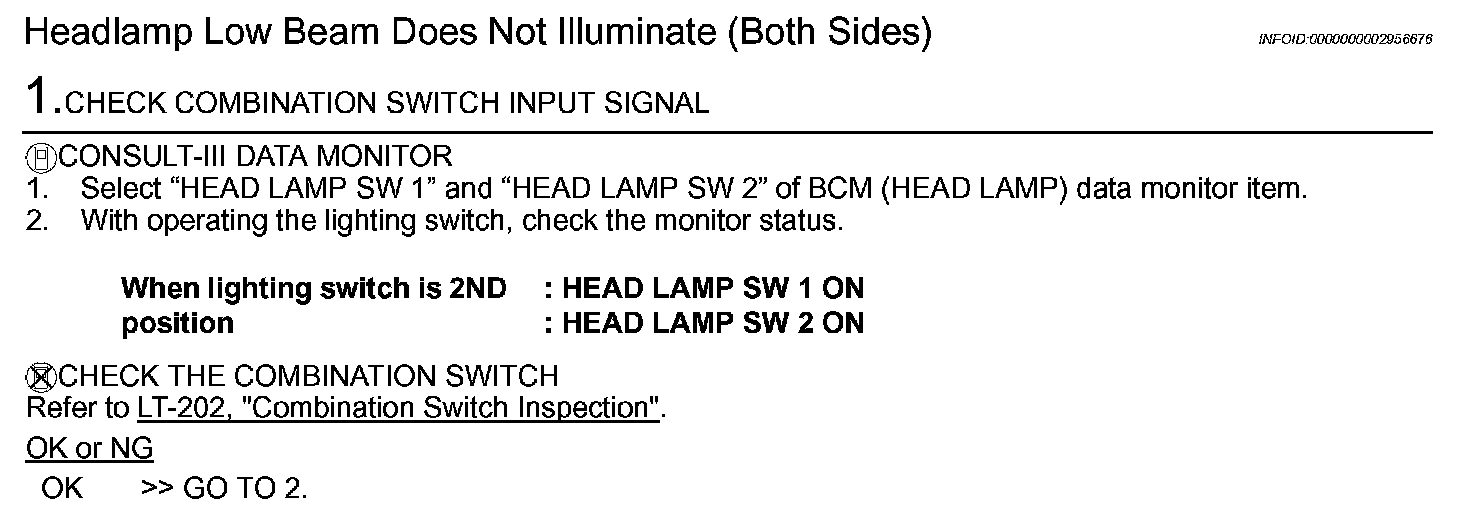

Step 1:

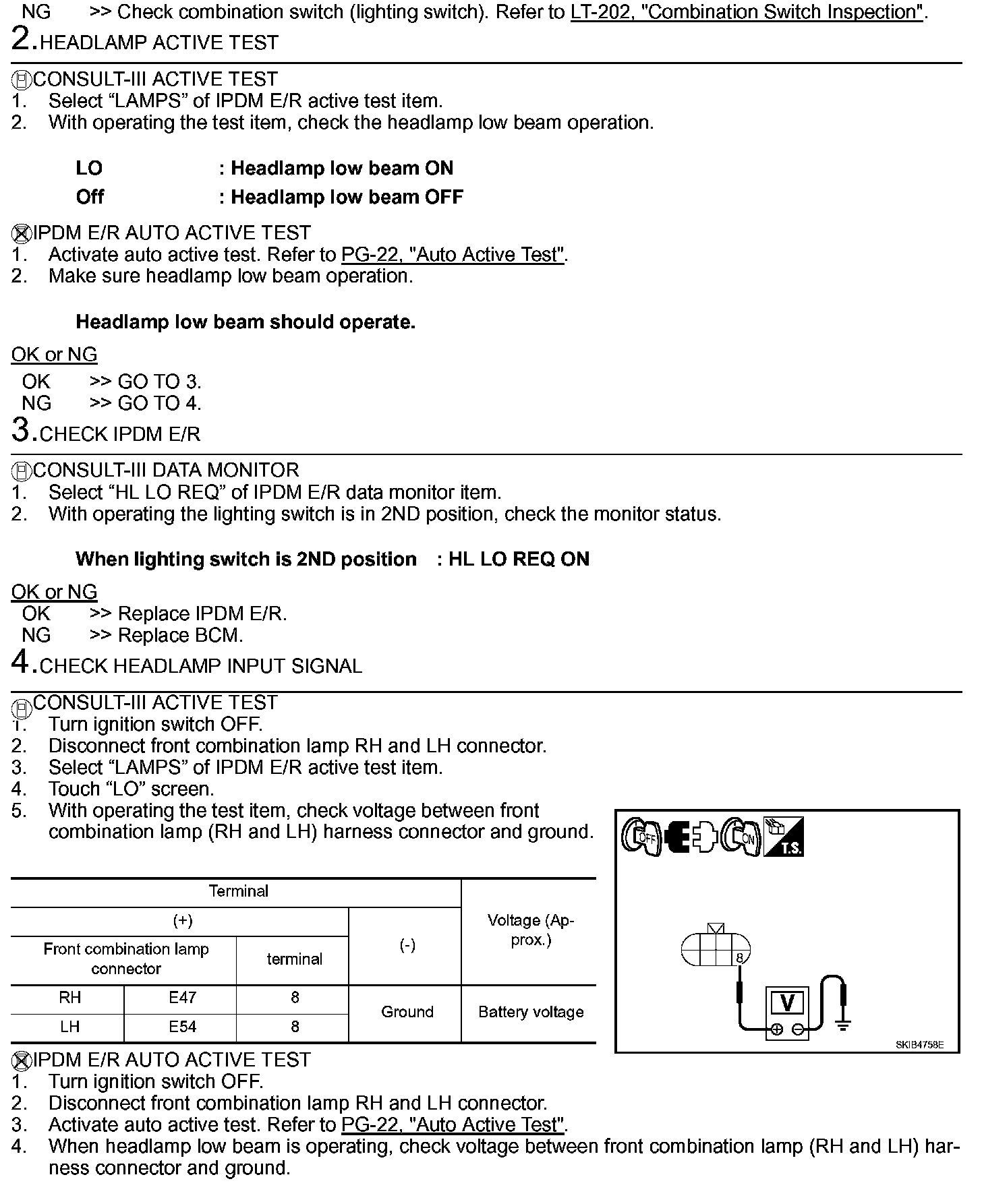

Step 1 (Continued)-4:

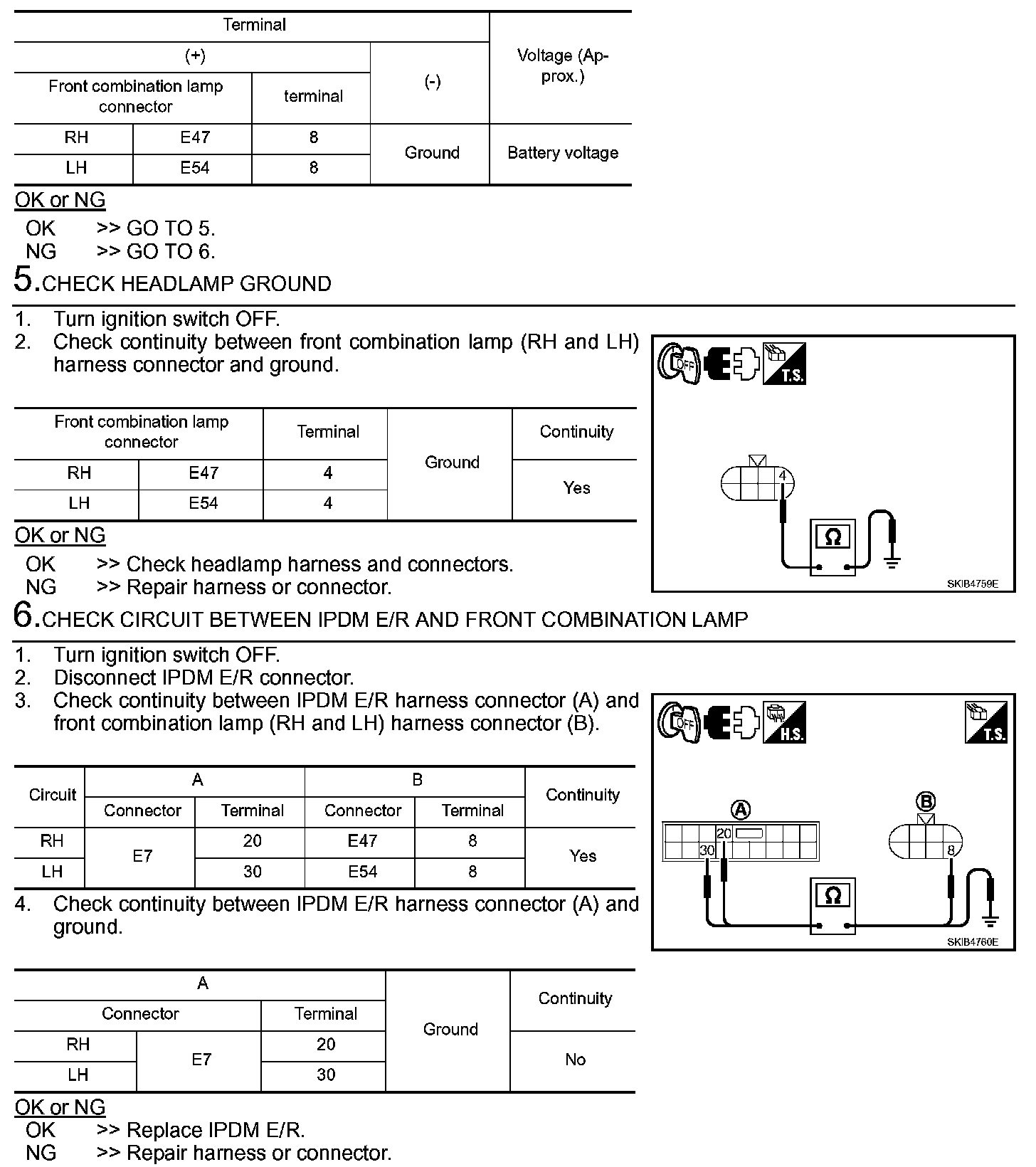

Step 4 (Continued)-6:
