Headlamp (For USA) - Conventional Type

Removal and Installation

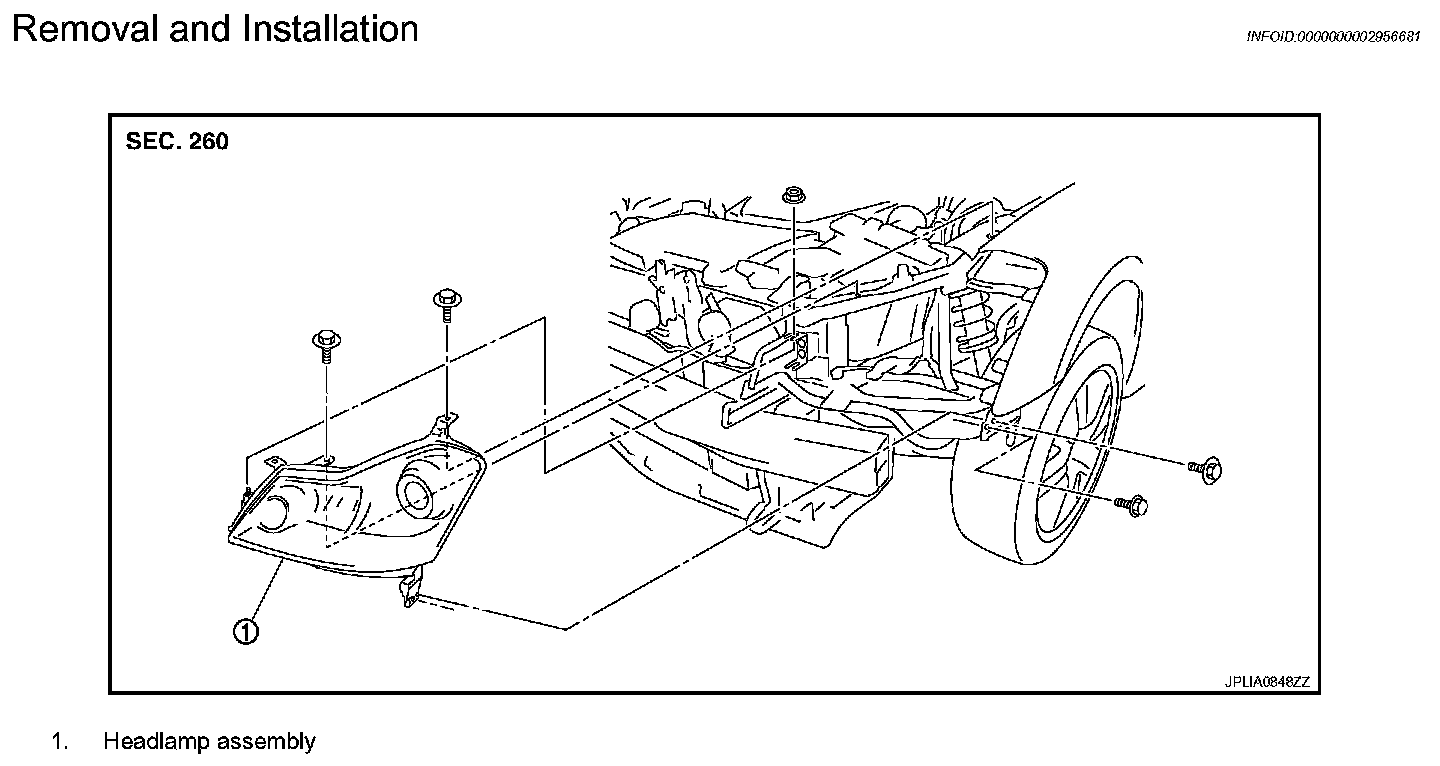

LT-32 Exploded View:

REMOVAL

CAUTION: Disconnect the battery negative terminal or remove the fuse.

1. Remove front bumper.
2. Remove front bumper retainer (upper).
3. Remove front bumper clips.
4. Remove headlamp mounting bolts and nuts.
5. Remove plastic bumper bracket, then pull headlamp toward vehicle front, disconnect connector, and remove headlamp.

INSTALLATION
Note the following, and installation is the reverse order of removal.

NOTE: After installation, perform aiming adjustment. Refer to LT-30, "Aiming Adjustment". Headlamp (For USA) - Conventional Type
