Check Encoder Circuit (Passenger Side)

AUTOMATIC DRIVE POSITIONER

Check Encoder Circuit (Passenger Side)

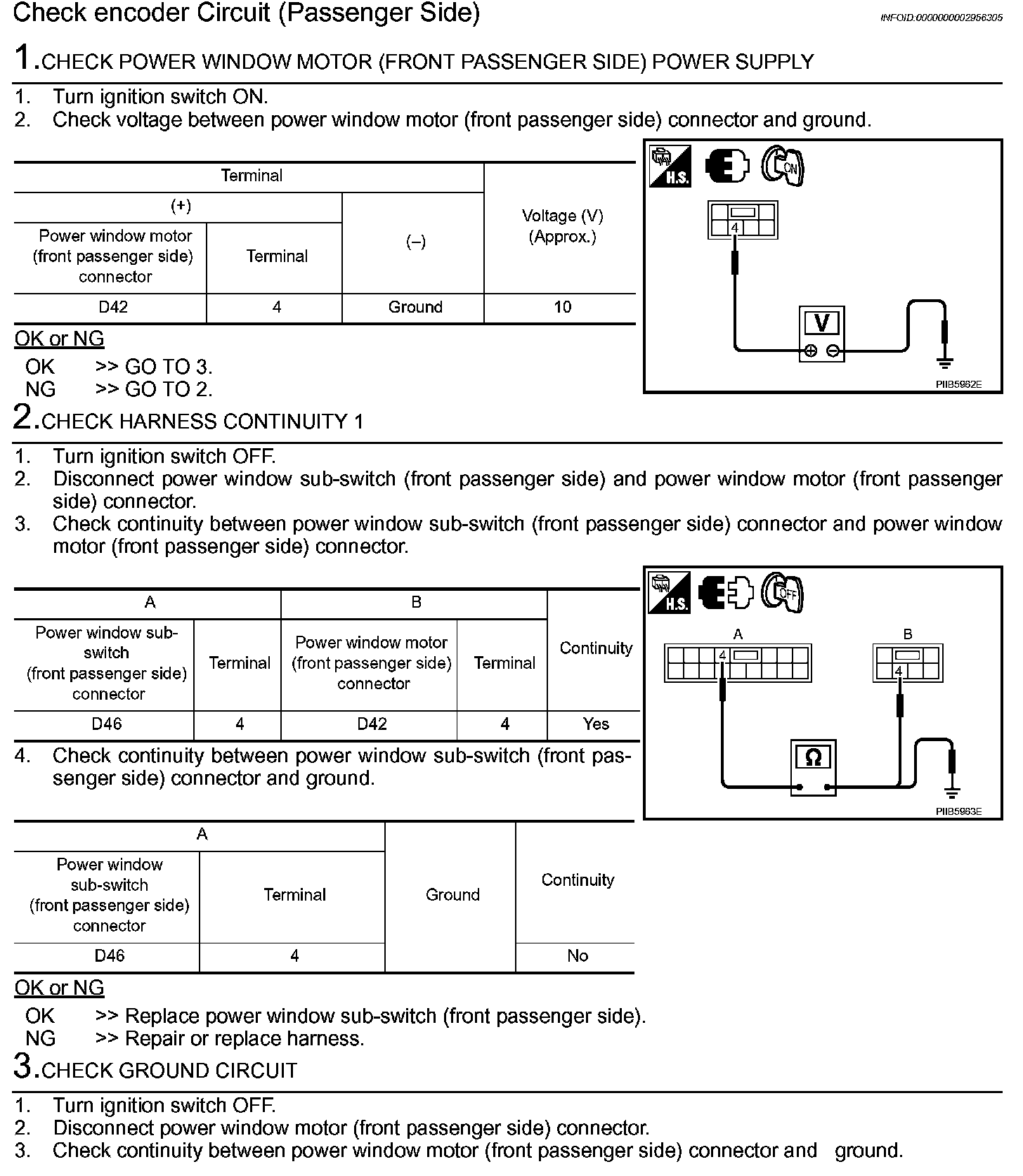

Step 1-3:

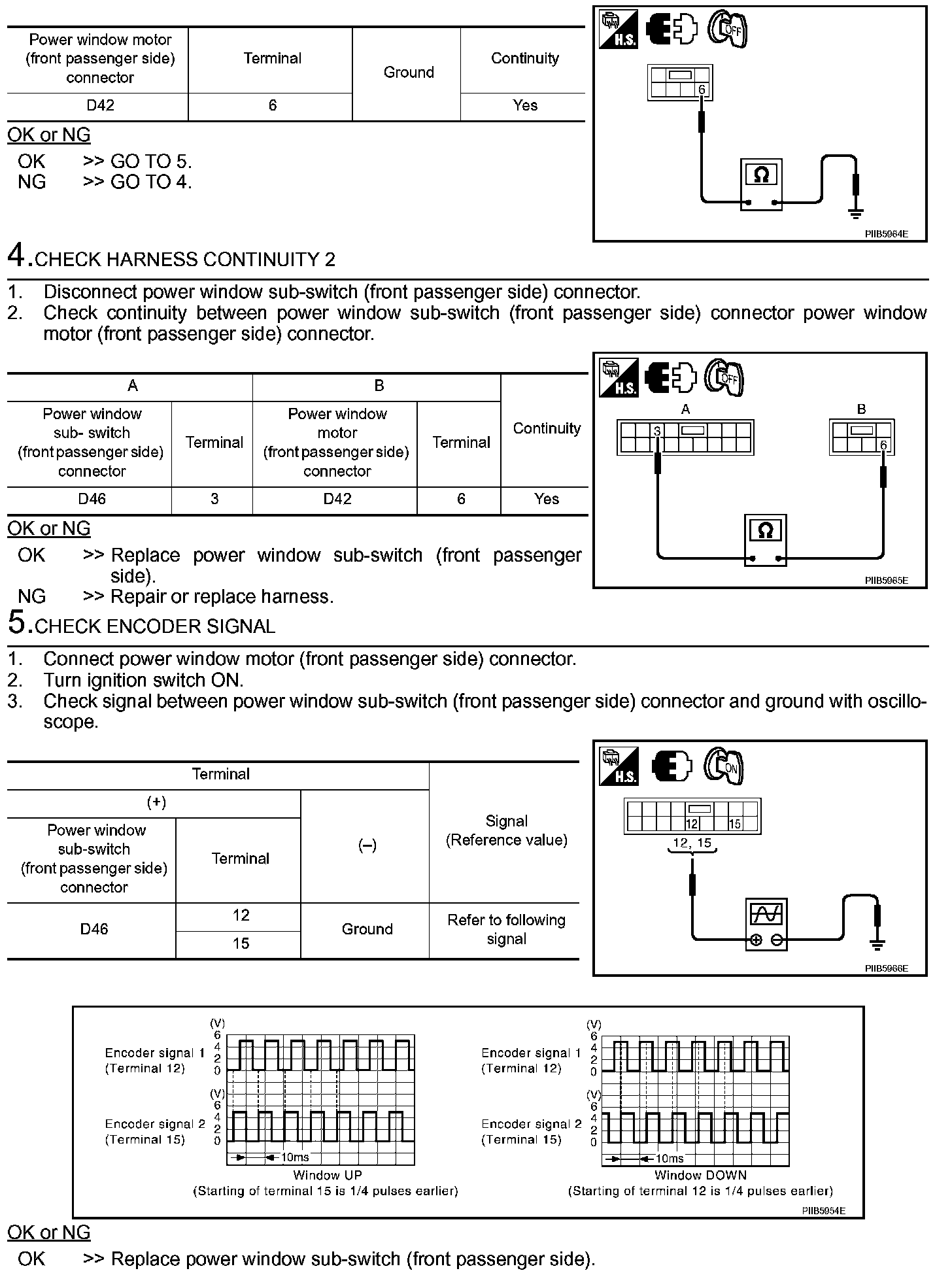

Step 3 (Continued)-5:

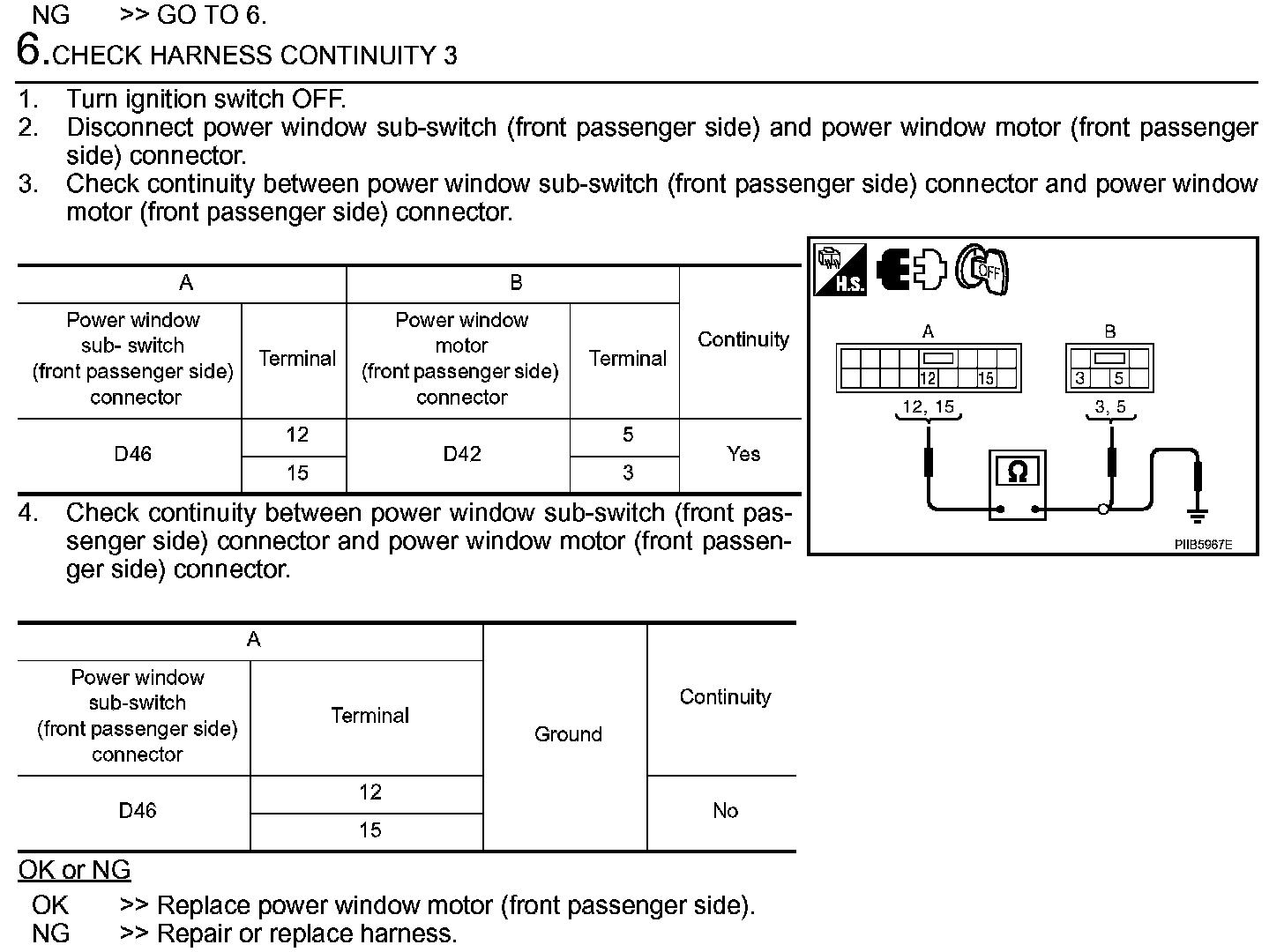

Step 5 (Continued)-6:
