Check Encoder Circuit (Rear LH or RH)

AUTOMATIC DRIVE POSITIONER

Check Encoder Circuit (Rear LH or RH)

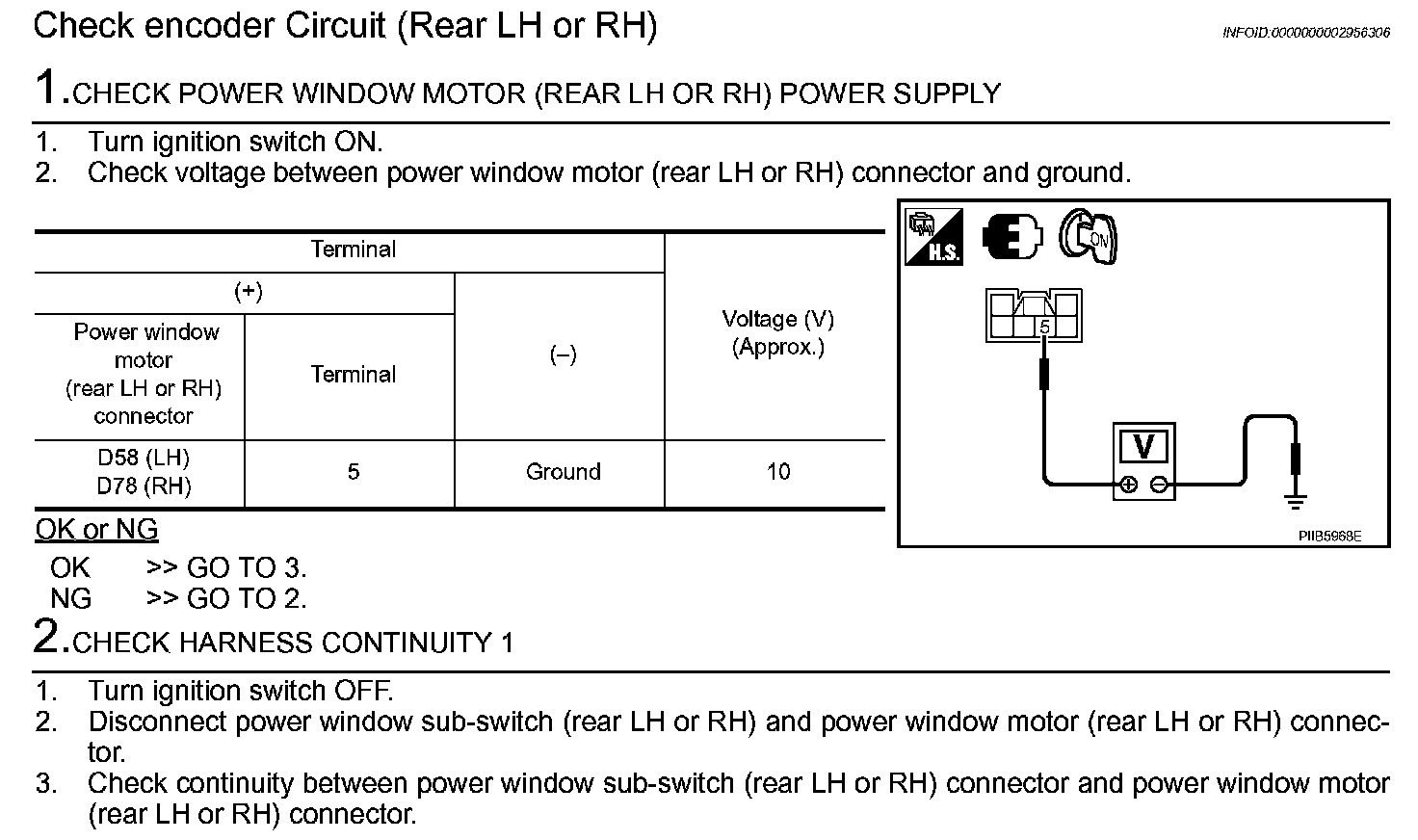

Step 1-2:

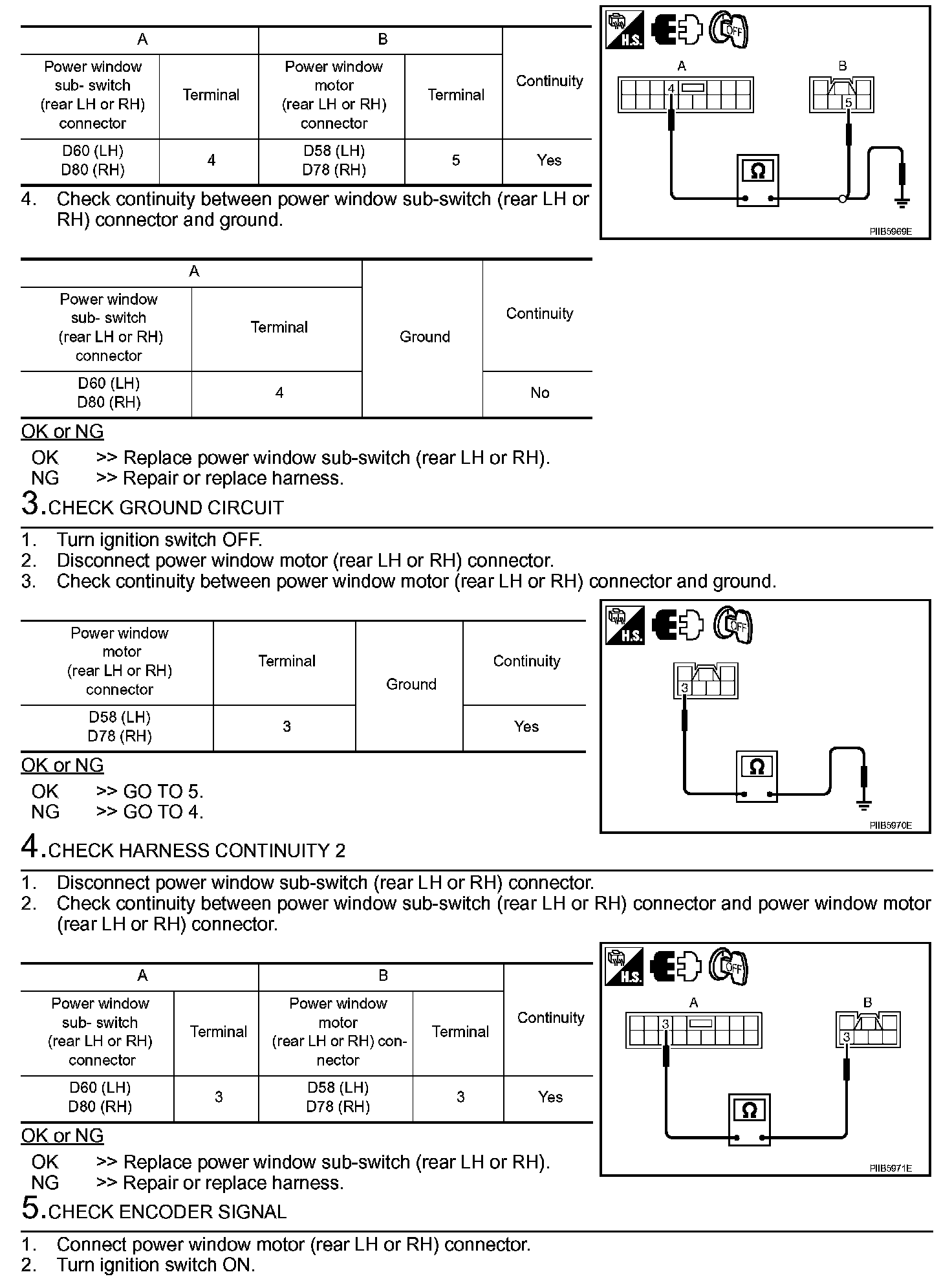

Step 2 (Continued)-5:

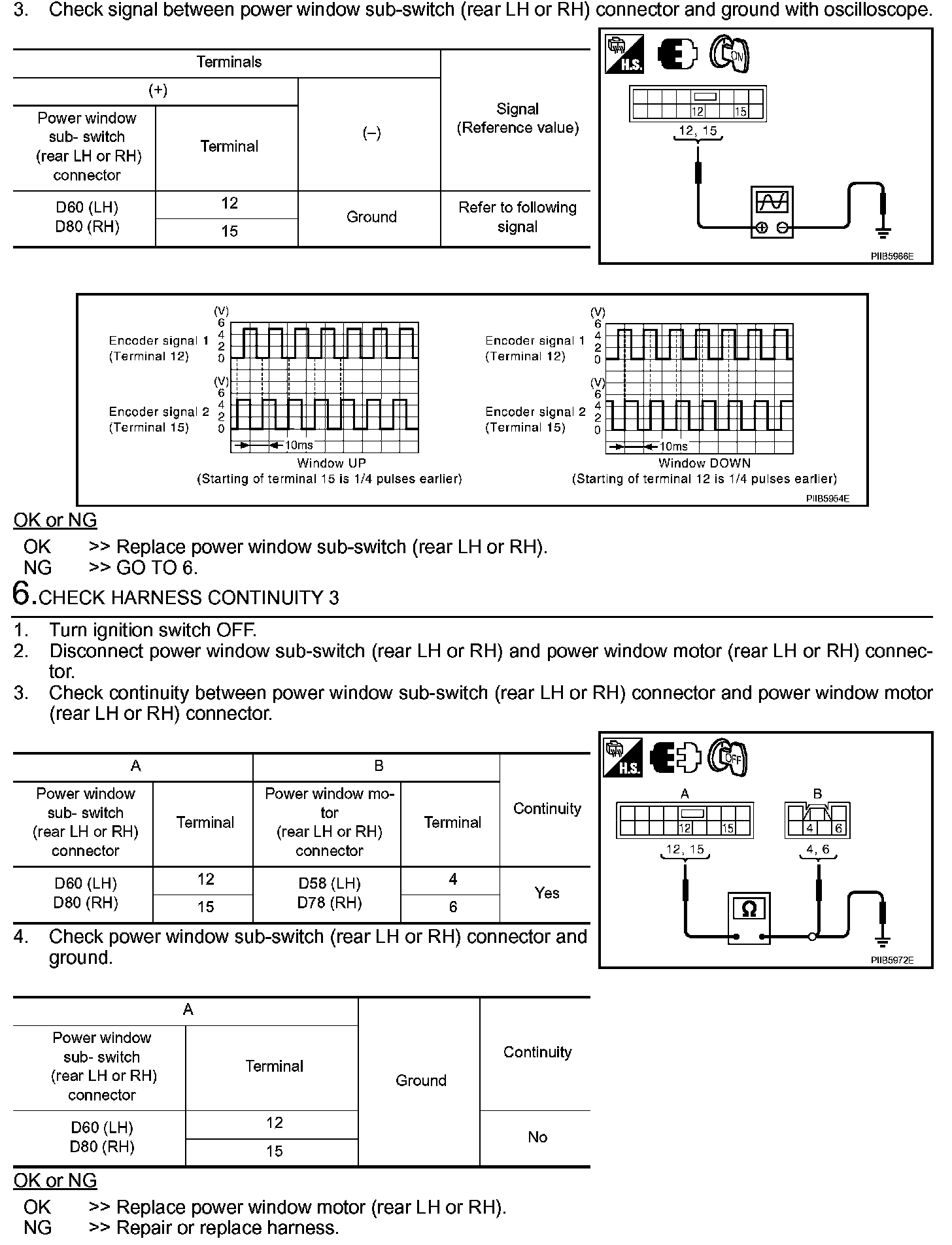

Step 5 (Continued)-6:
