Check Power Window Sub-Switch (Front Passenger Side) Power Supply and Ground Circuit

AUTOMATIC DRIVE POSITIONER

Check Power Window Sub-switch (Front Passenger Side) Power Supply And Ground Circuit

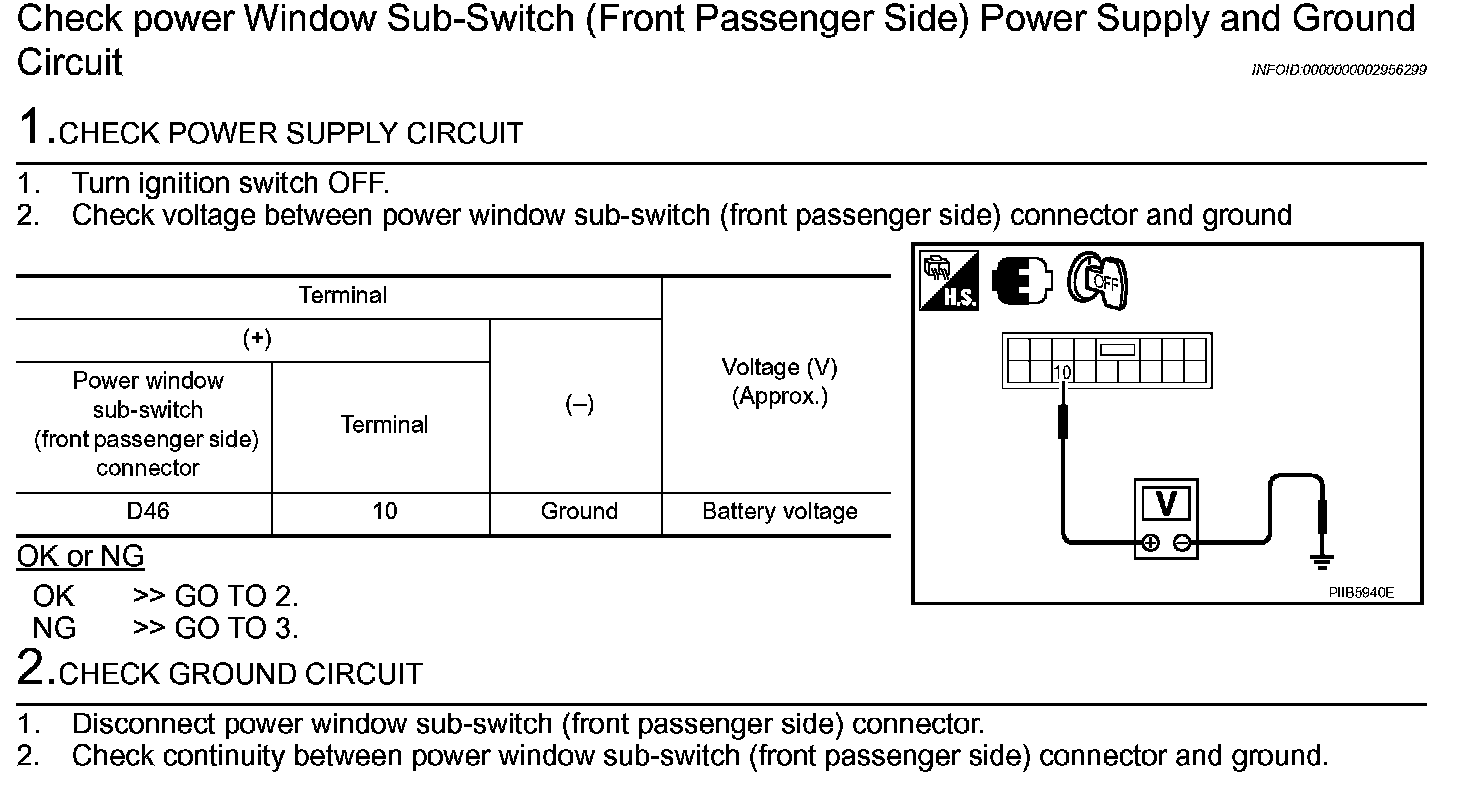

Step 1-2:

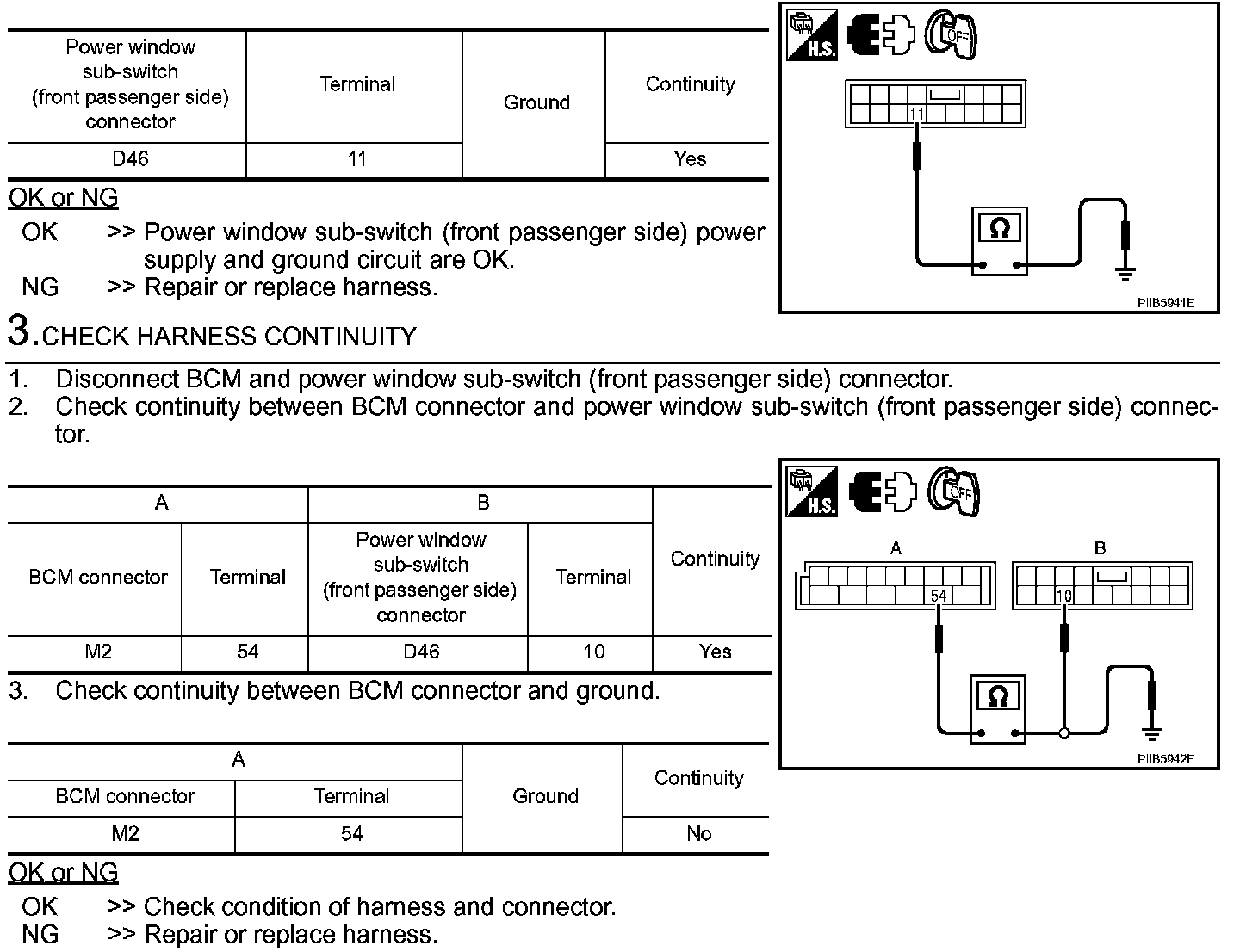

Step 2 (Continued)-3:
