GW-WINDOW

POWER WINDOW SYSTEM

Wiring Diagram - WINDOW -

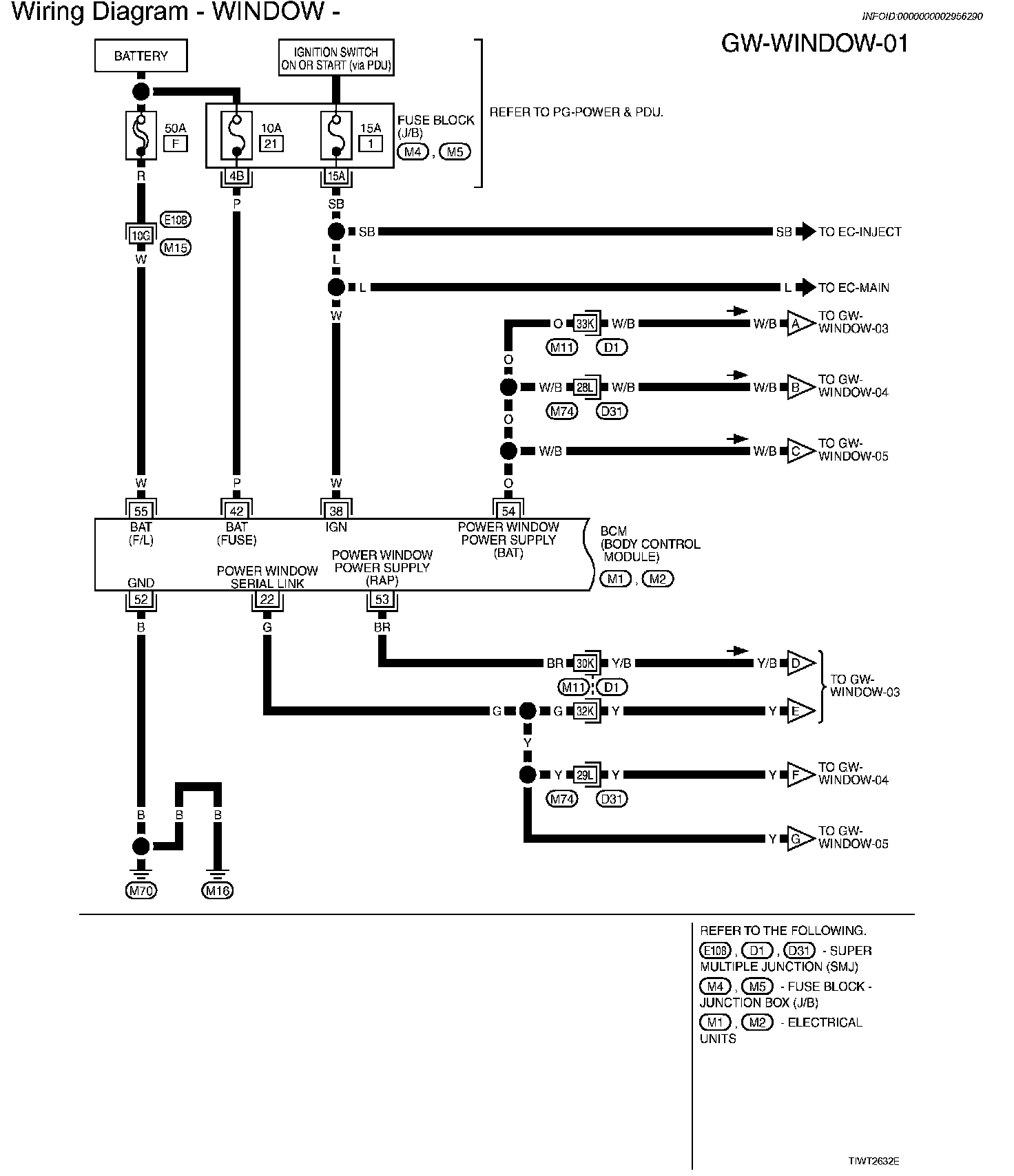

Wiring Diagram - Window - Part 1:

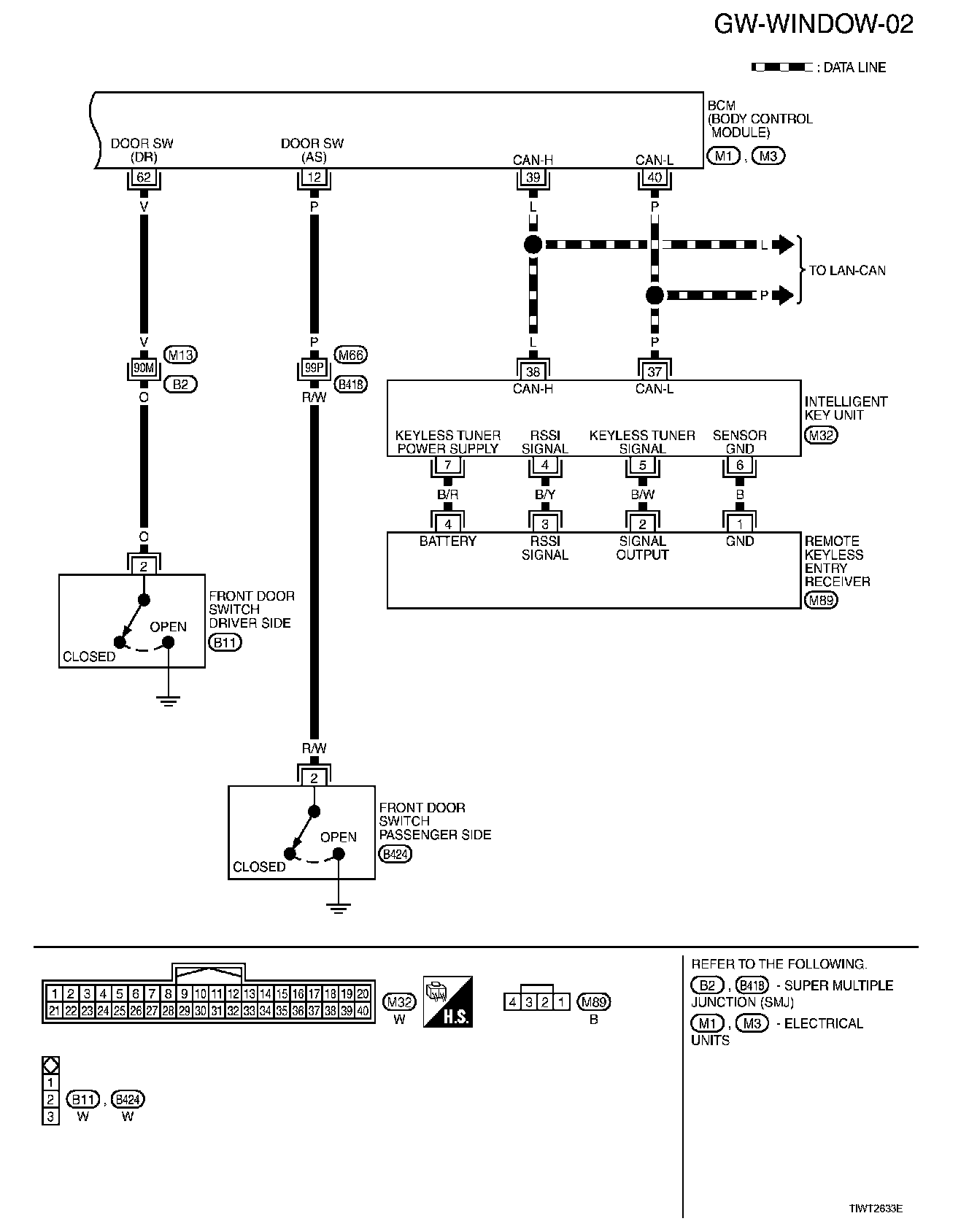

Wiring Diagram - Window - Part 2:

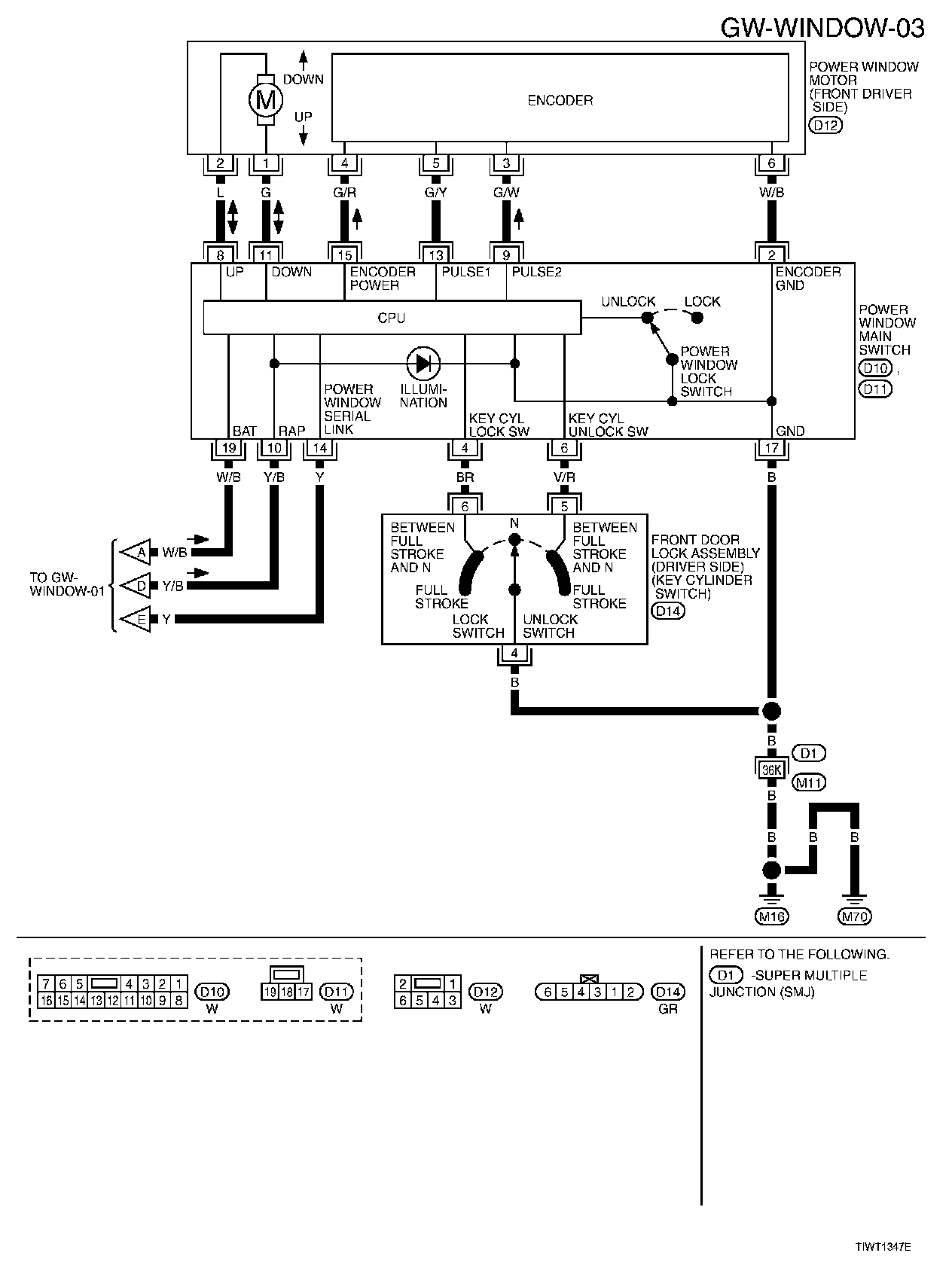

Wiring Diagram - Window - Part 3:

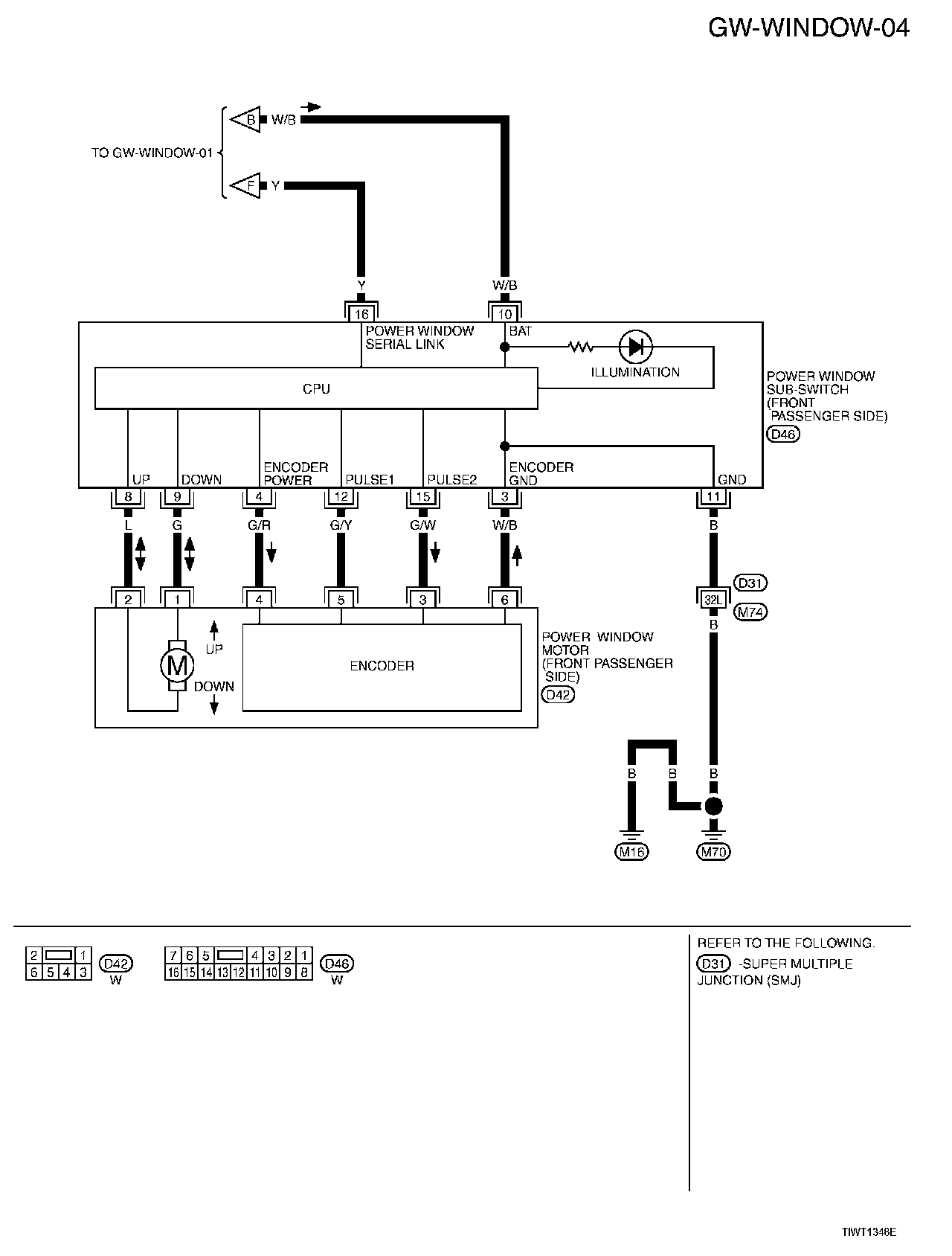

Wiring Diagram - Window - Part 4:

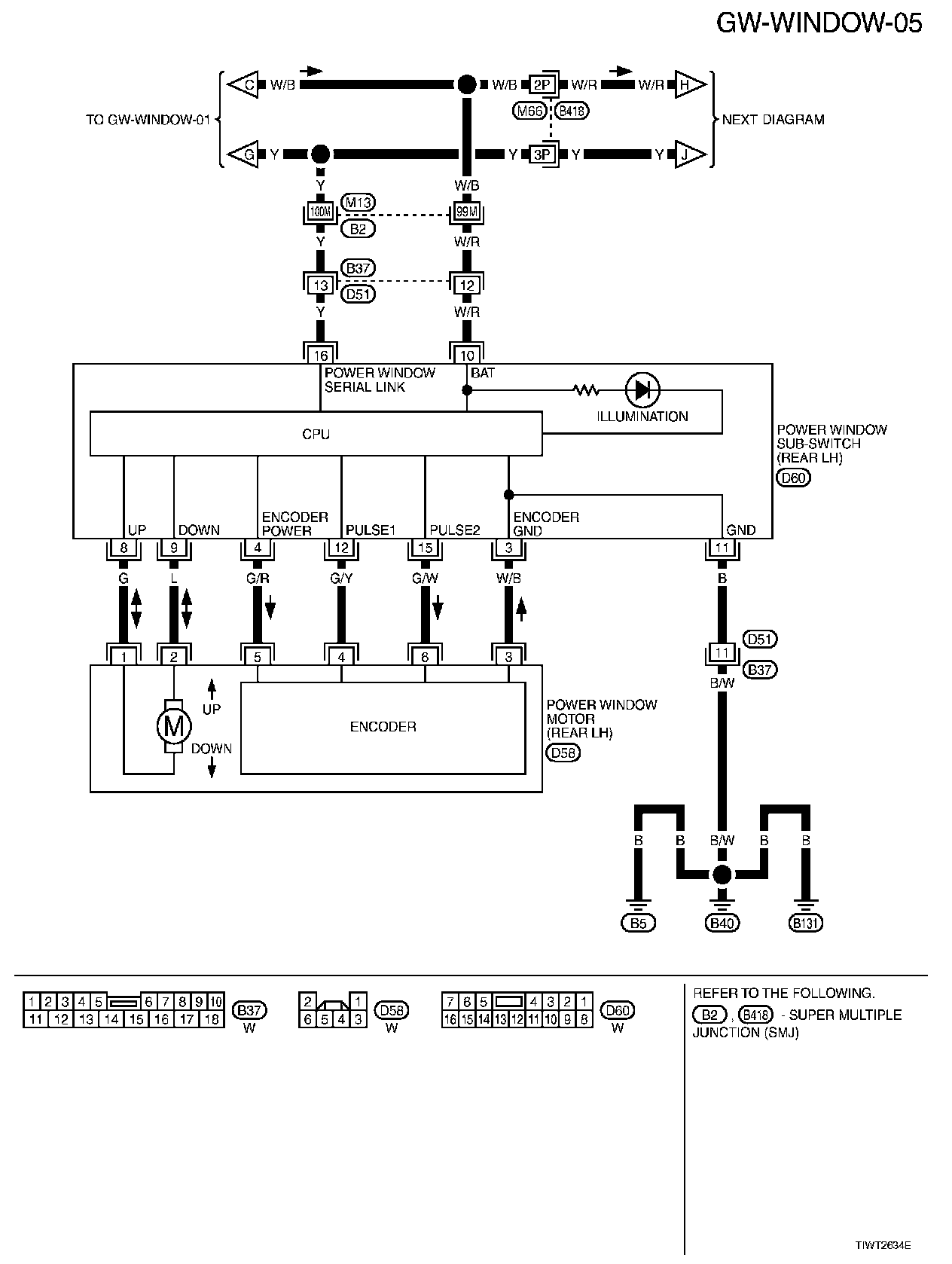

Wiring Diagram - Window - Part 5:

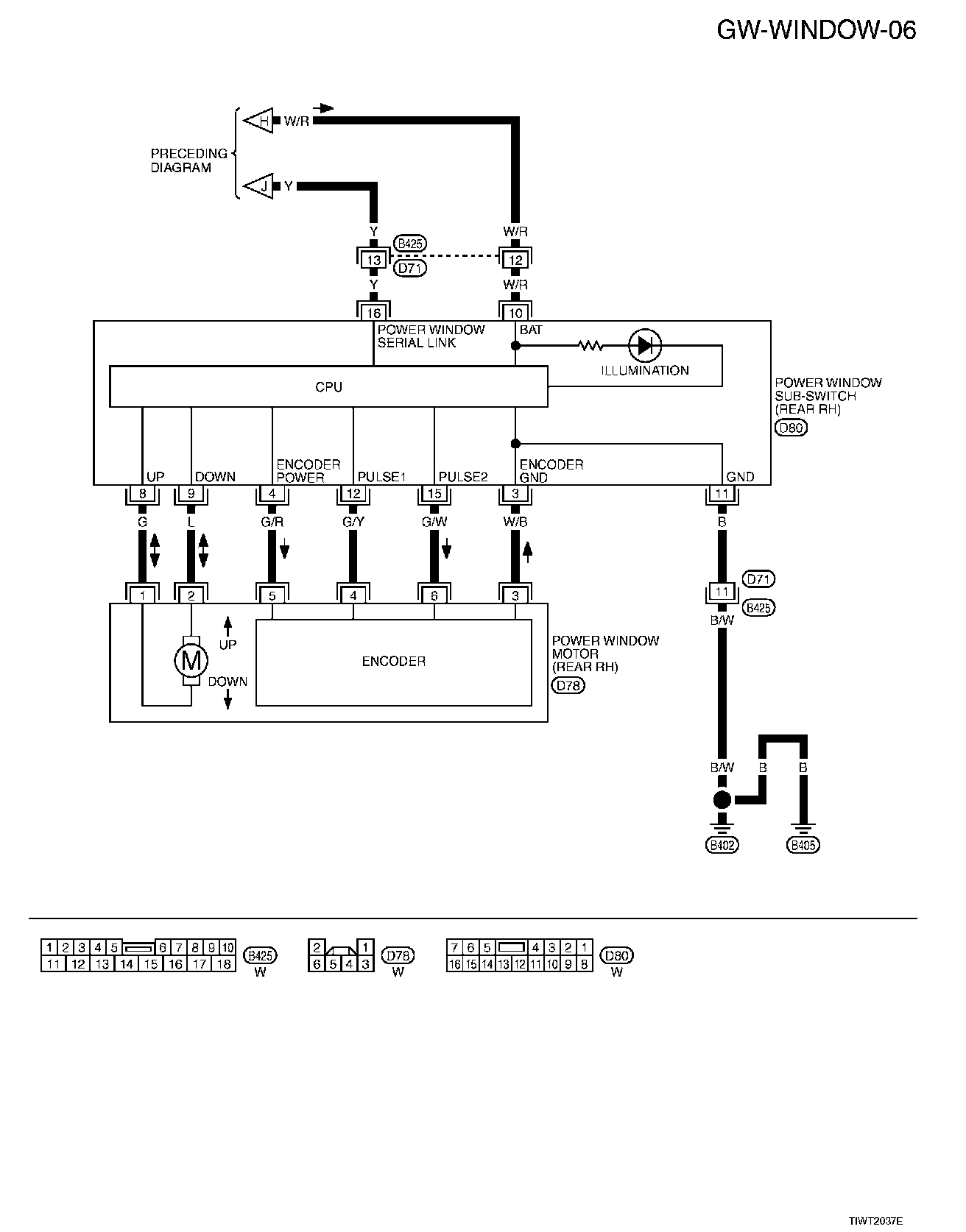

Wiring Diagram - Window - Part 6:
