Bose Audio 2ch System

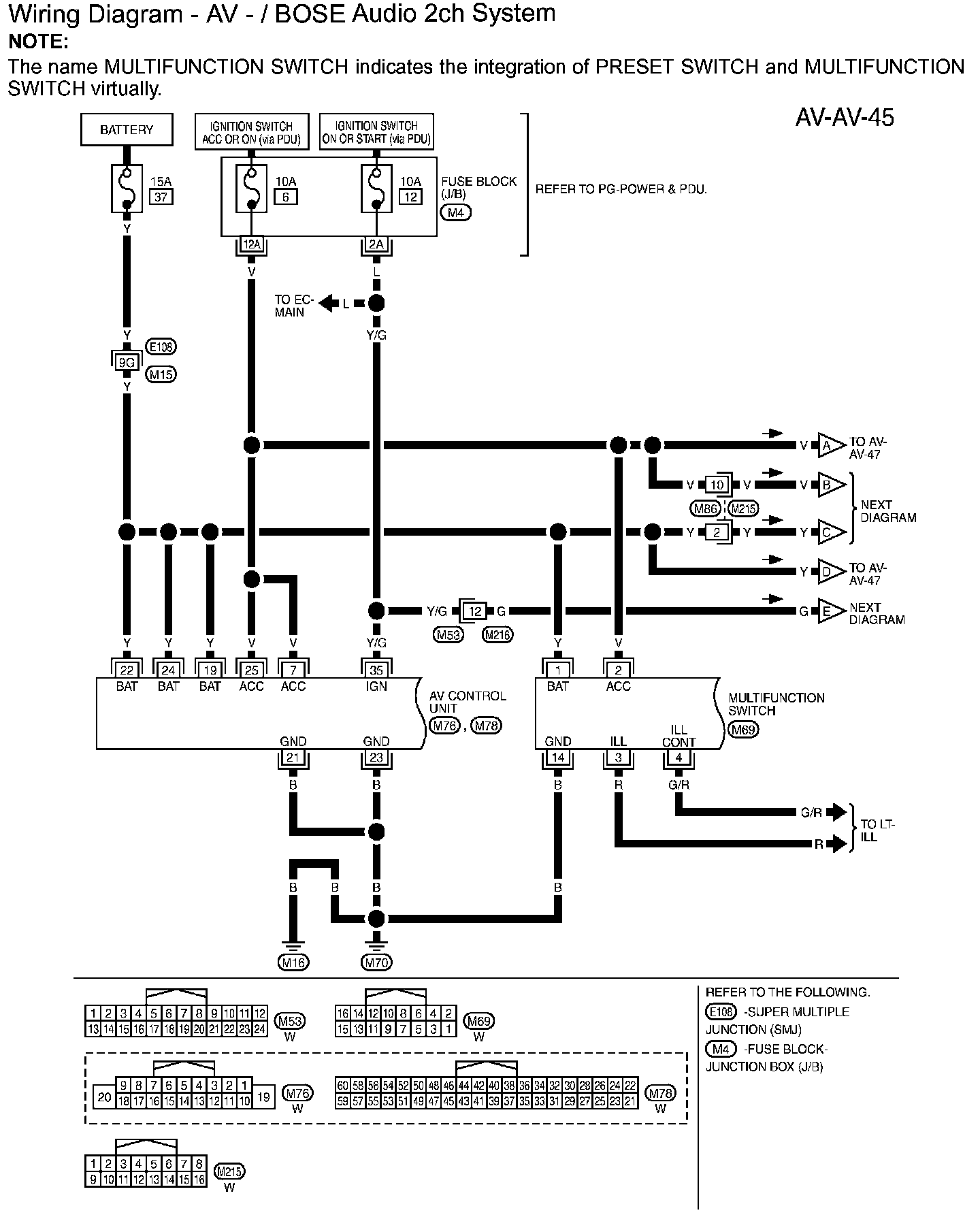

AV-AV-45:

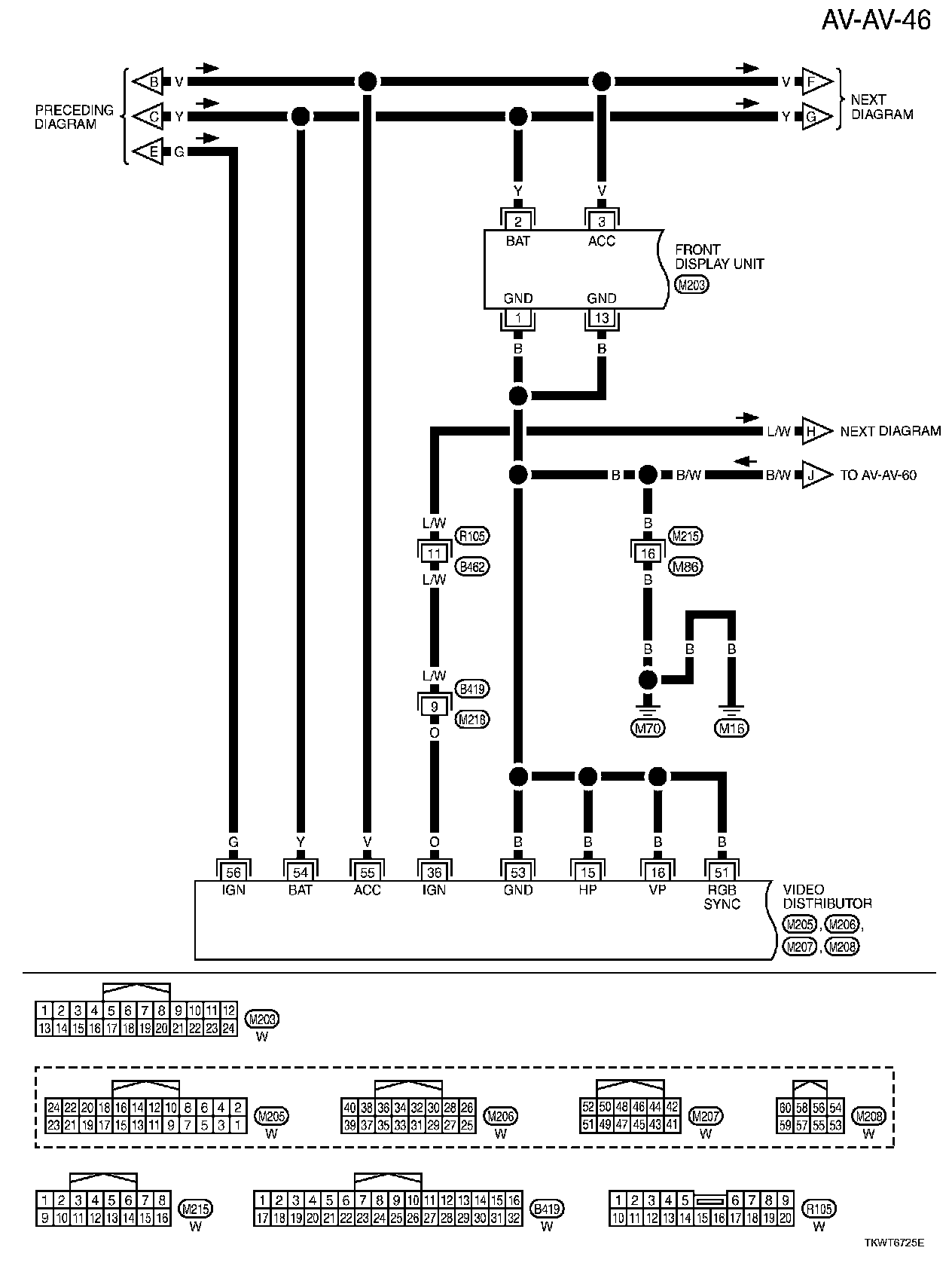

AV-AV-46:

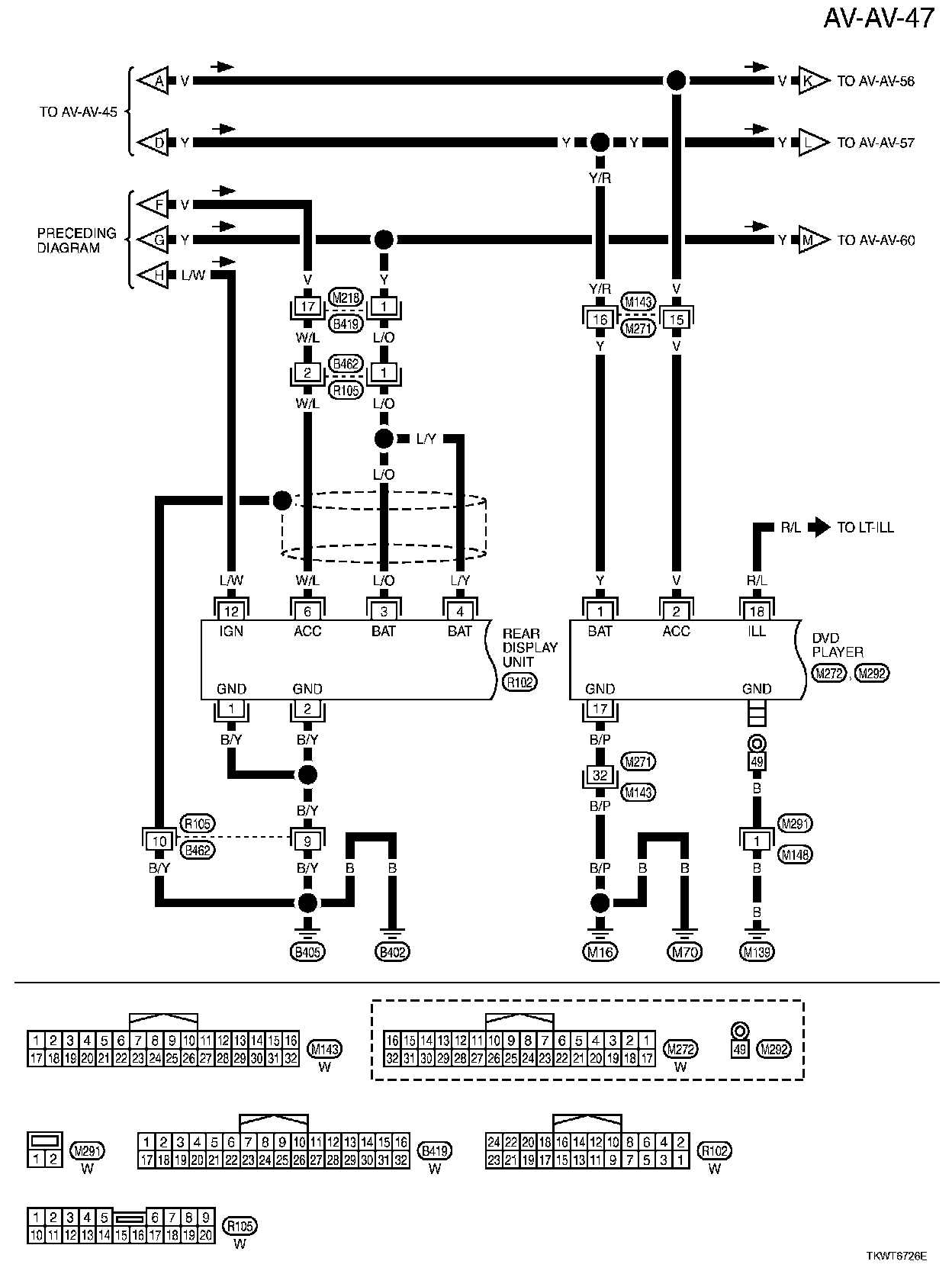

AV-AV-47:

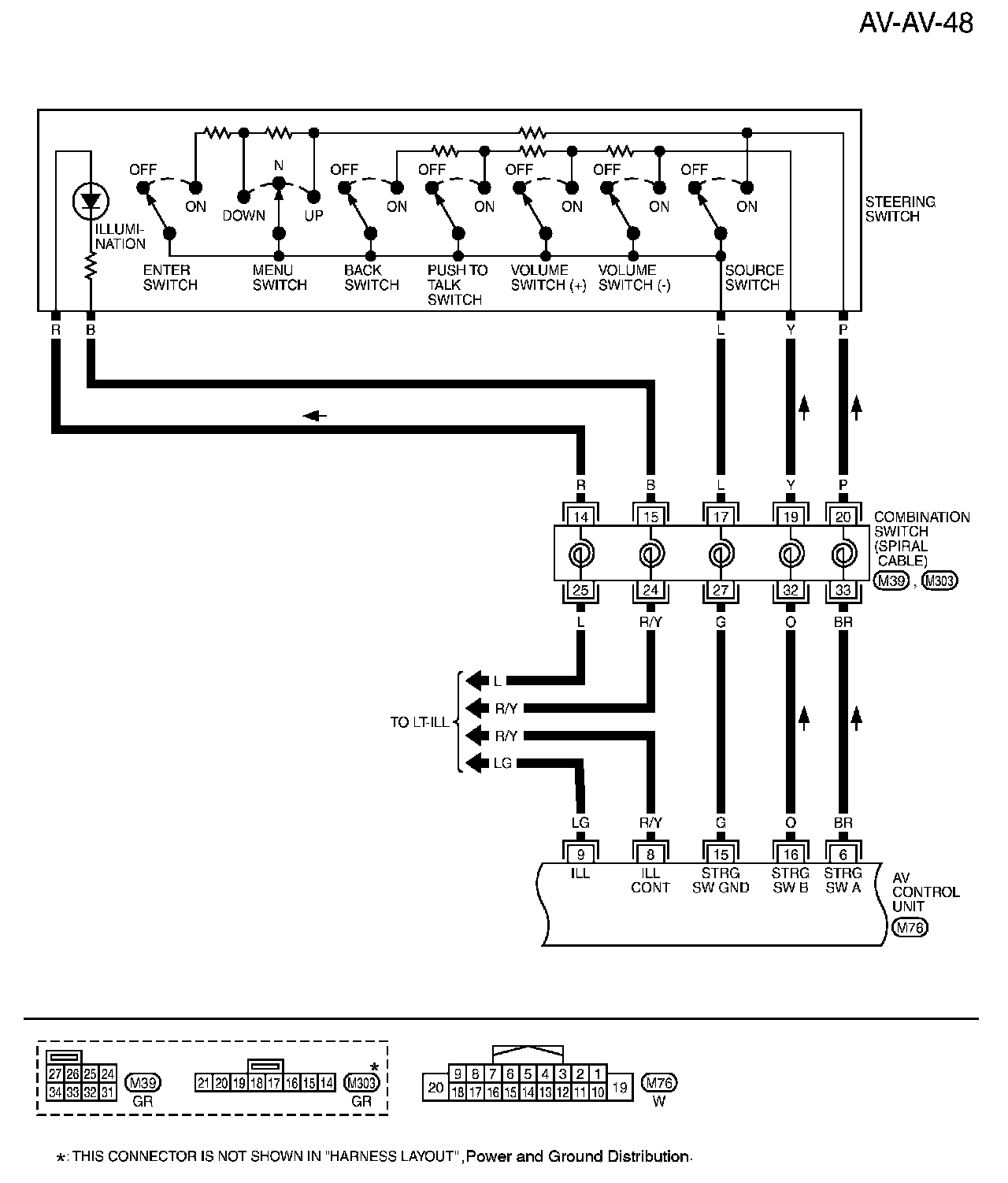

AV-AV-48:

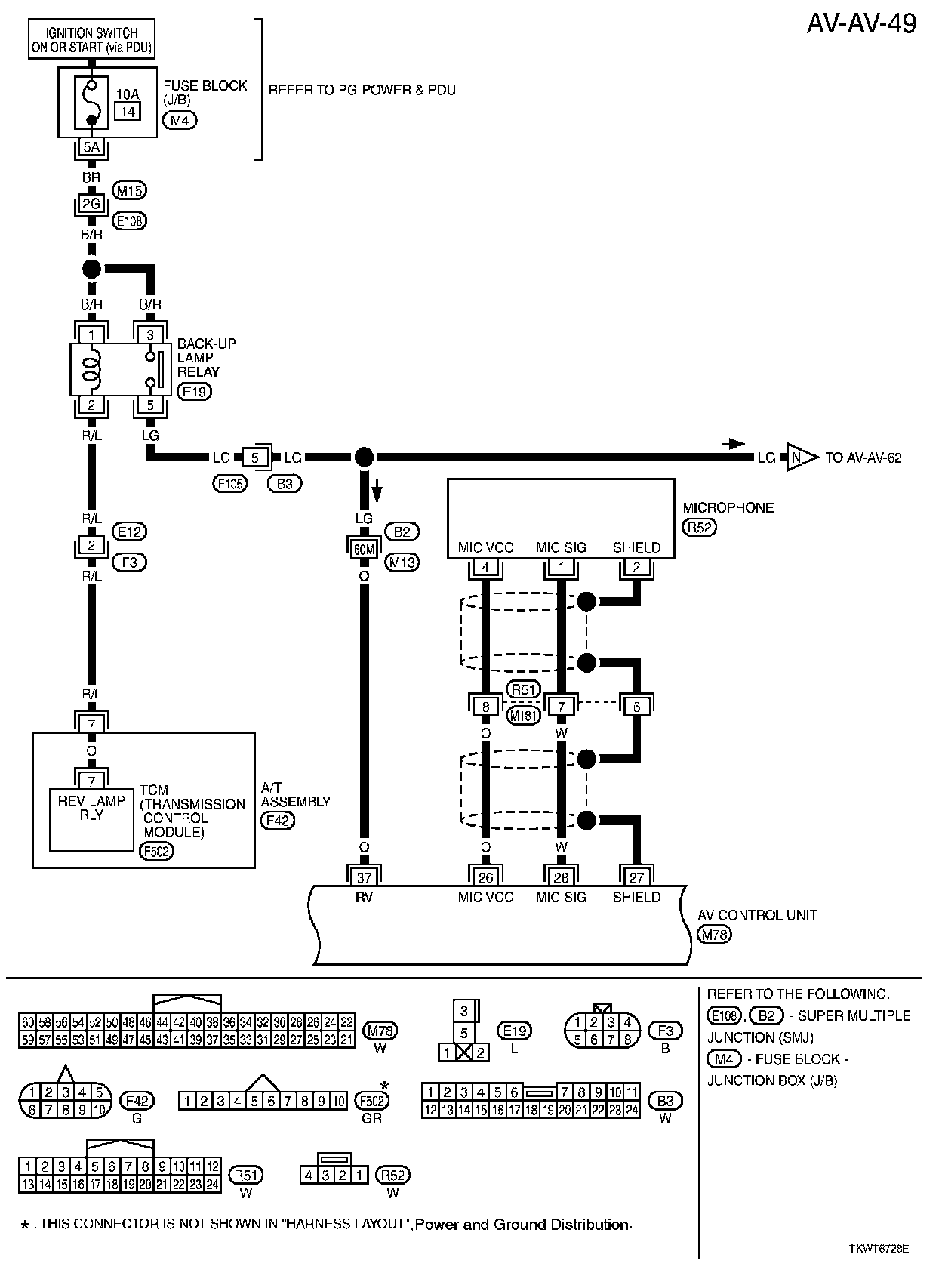

AV-AV-49:

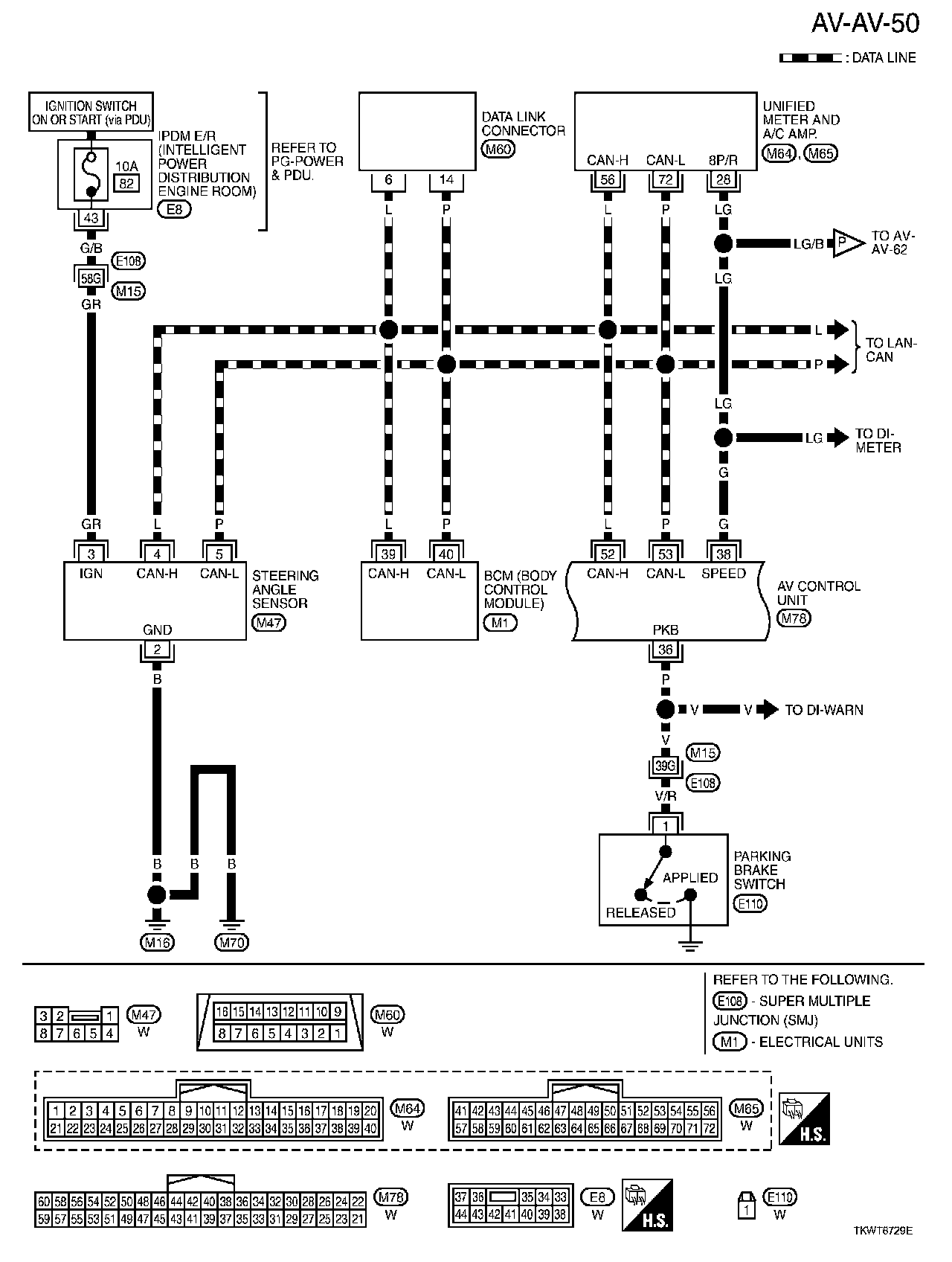

AV-AV-50:

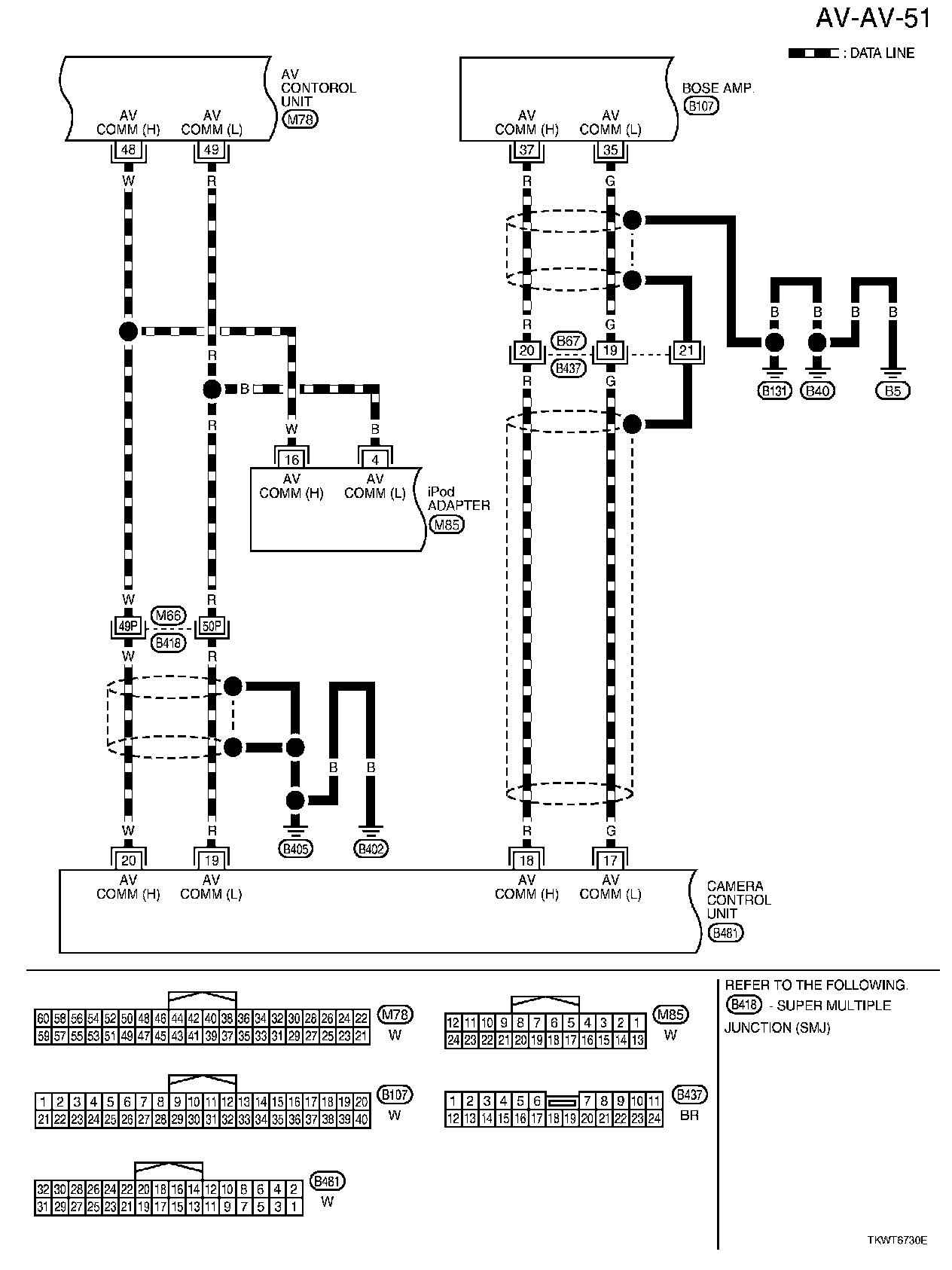

AV-AV-51:

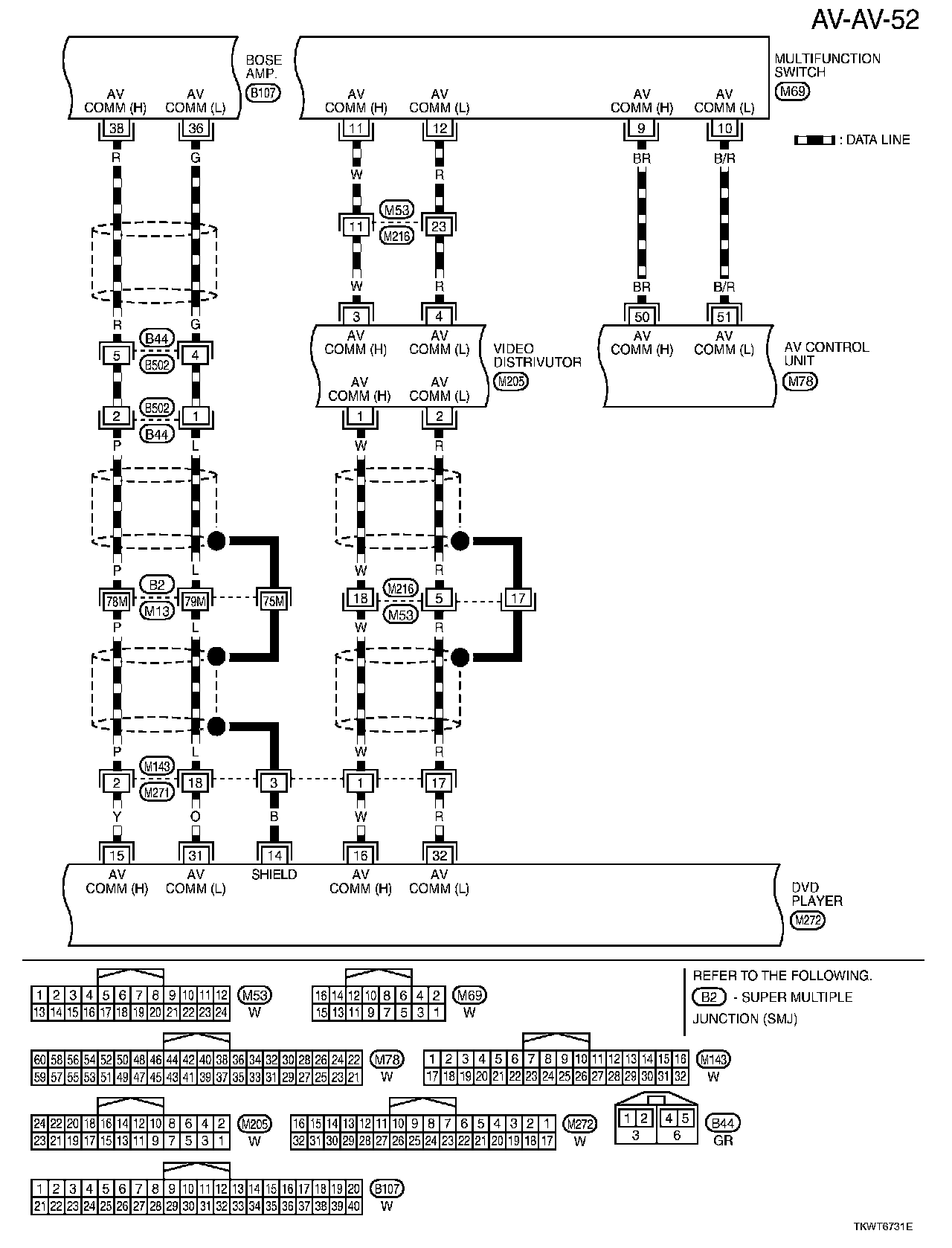

AV-AV-52:

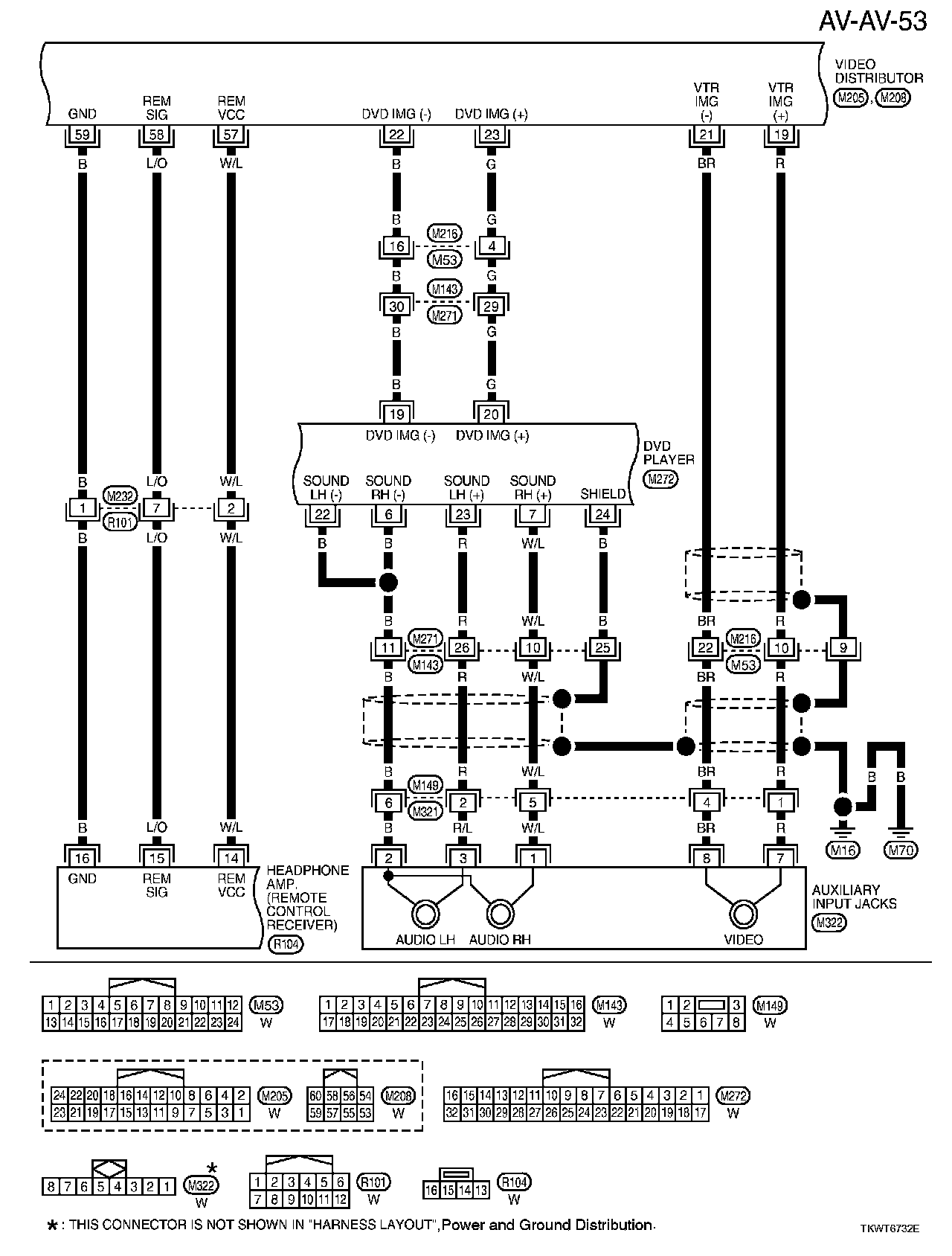

AV-AV-53:

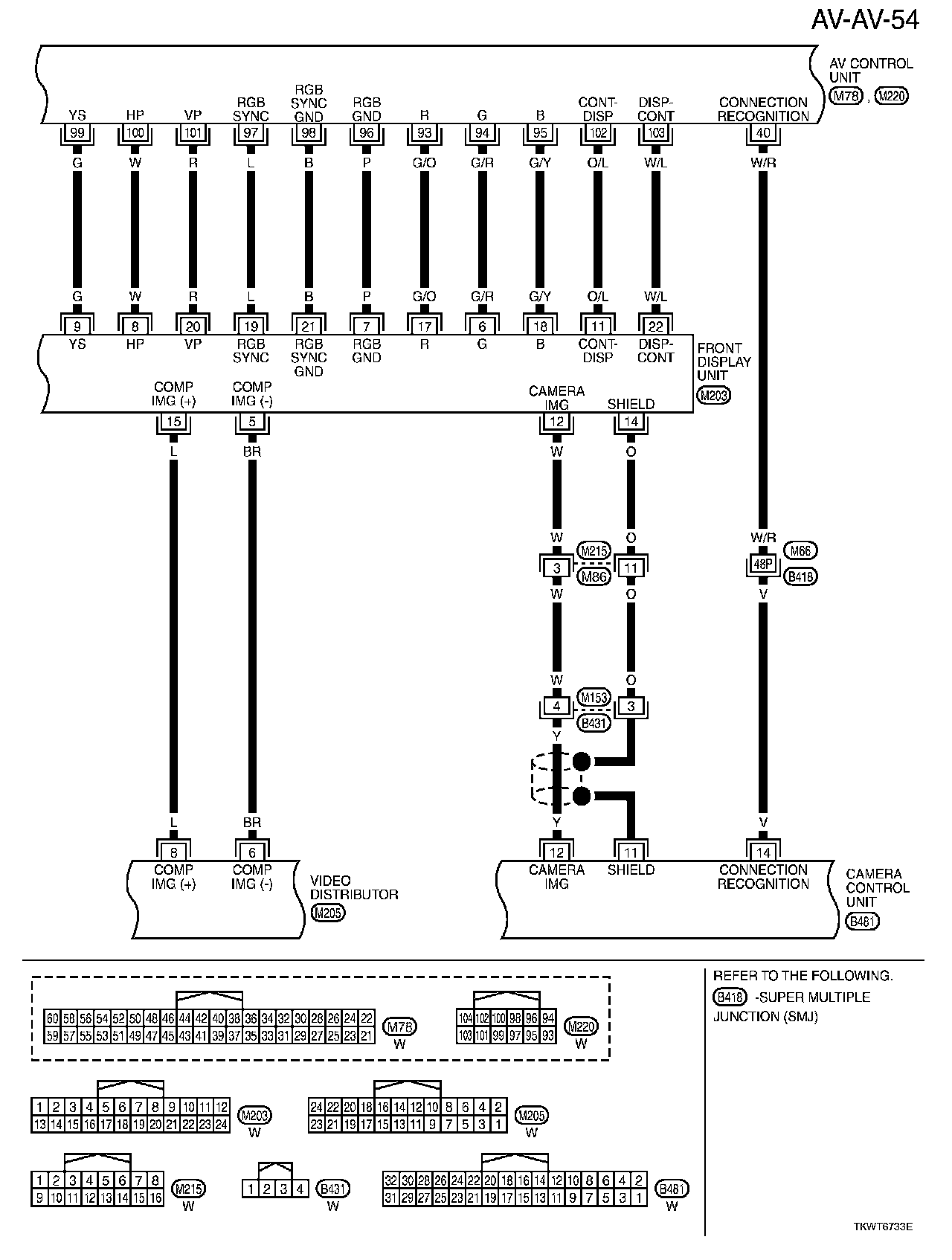

AV-AV-54:

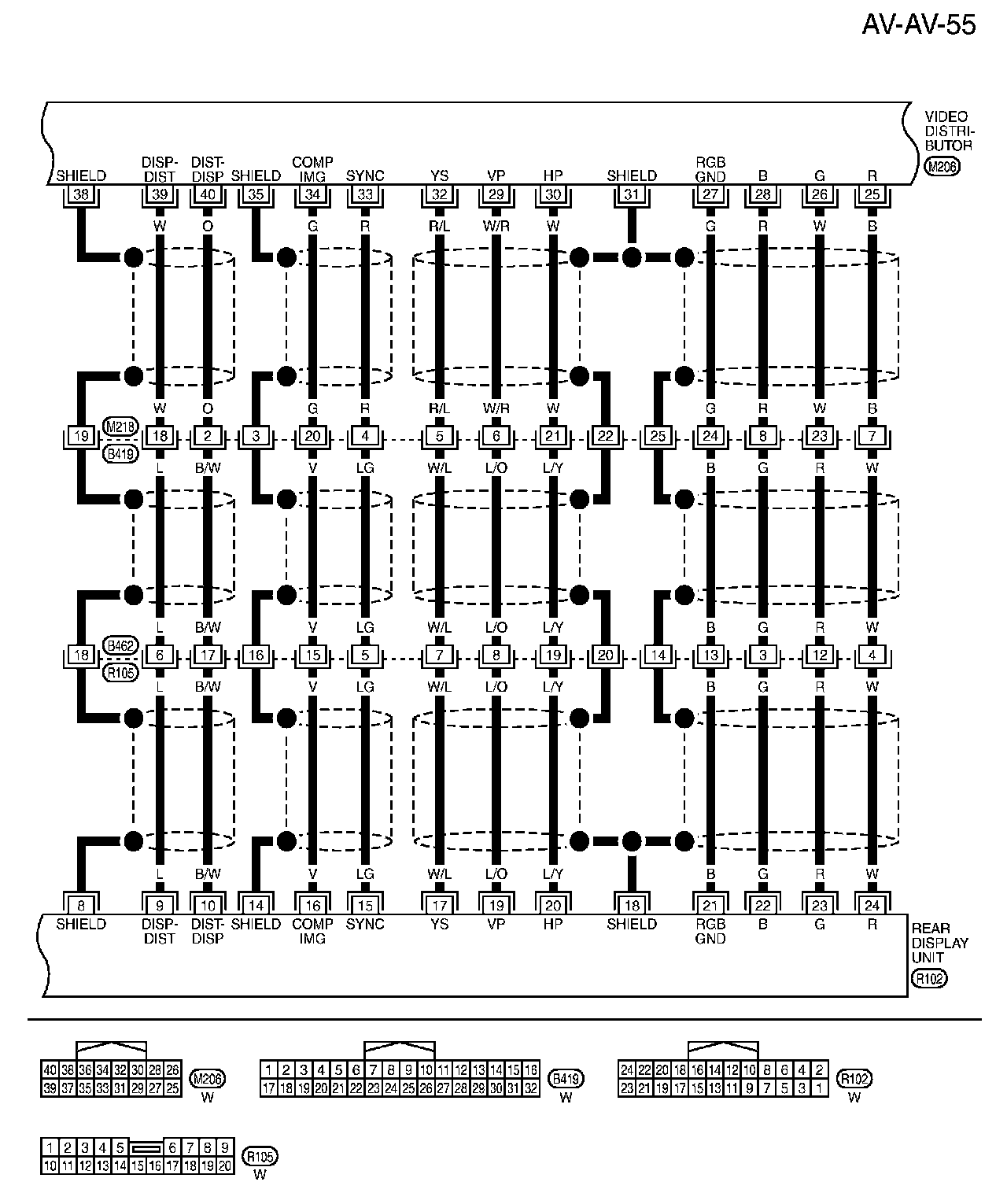

AV-AV-55:

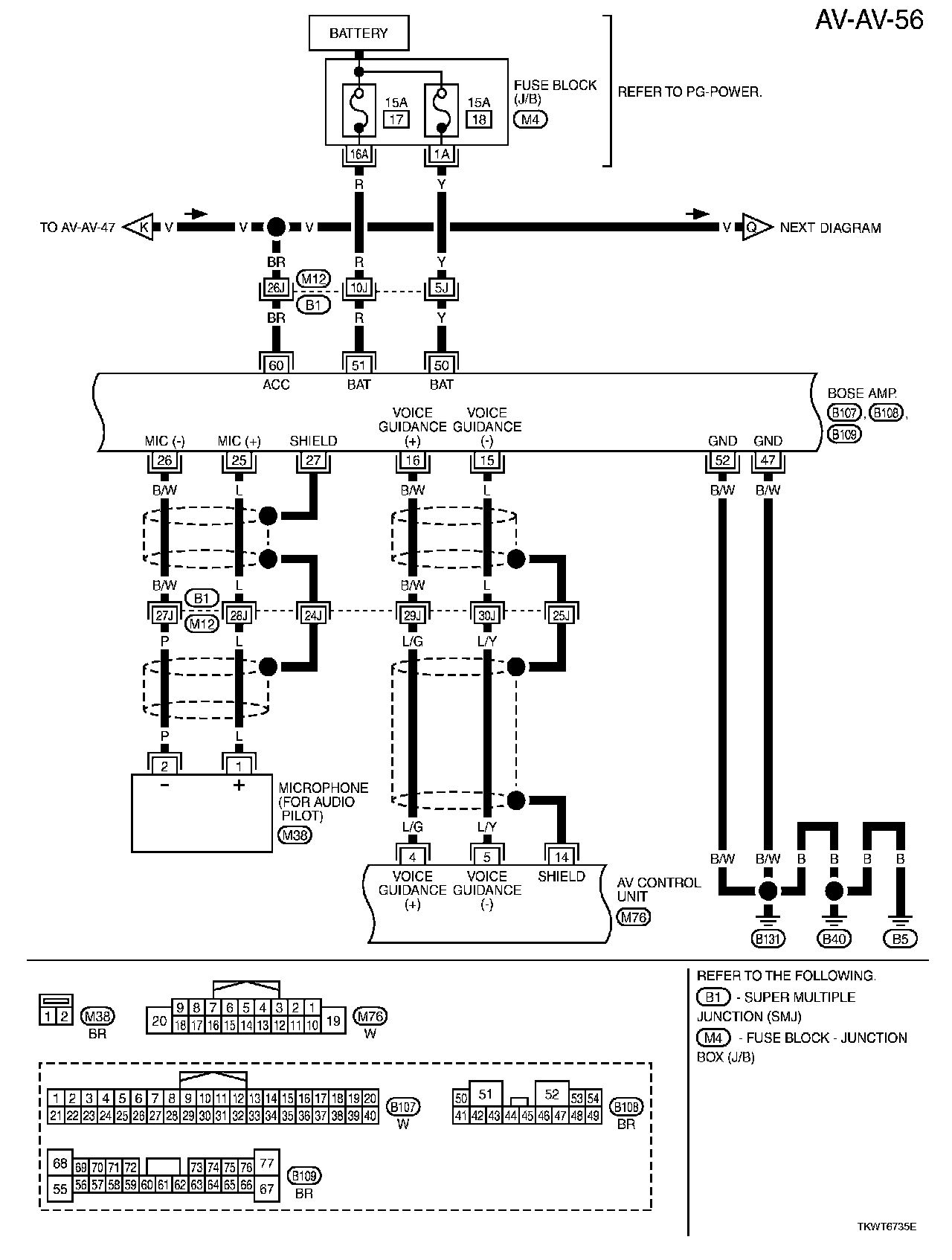

AV-AV-56:

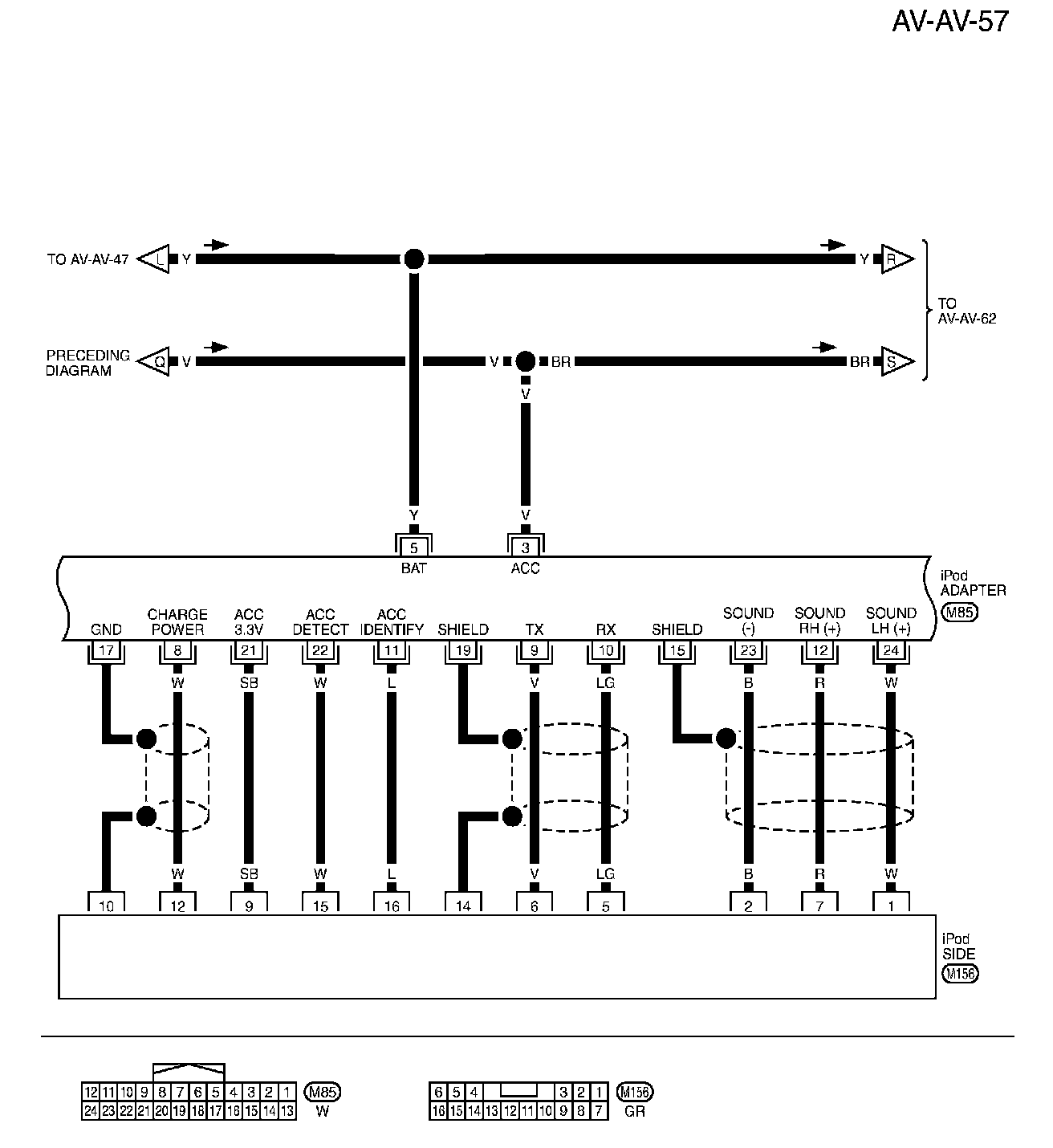

AV-AV-57:

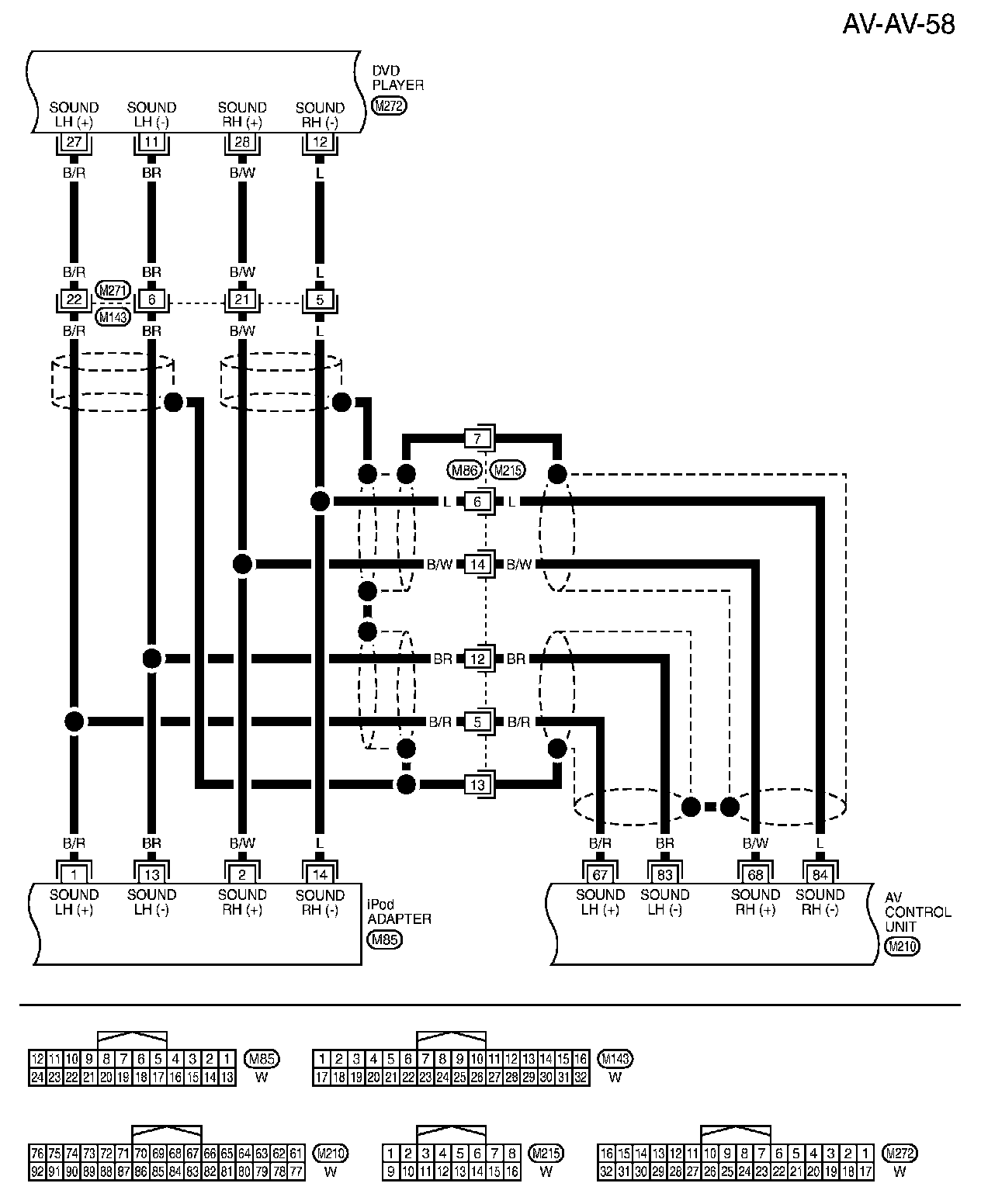

AV-AV-58:

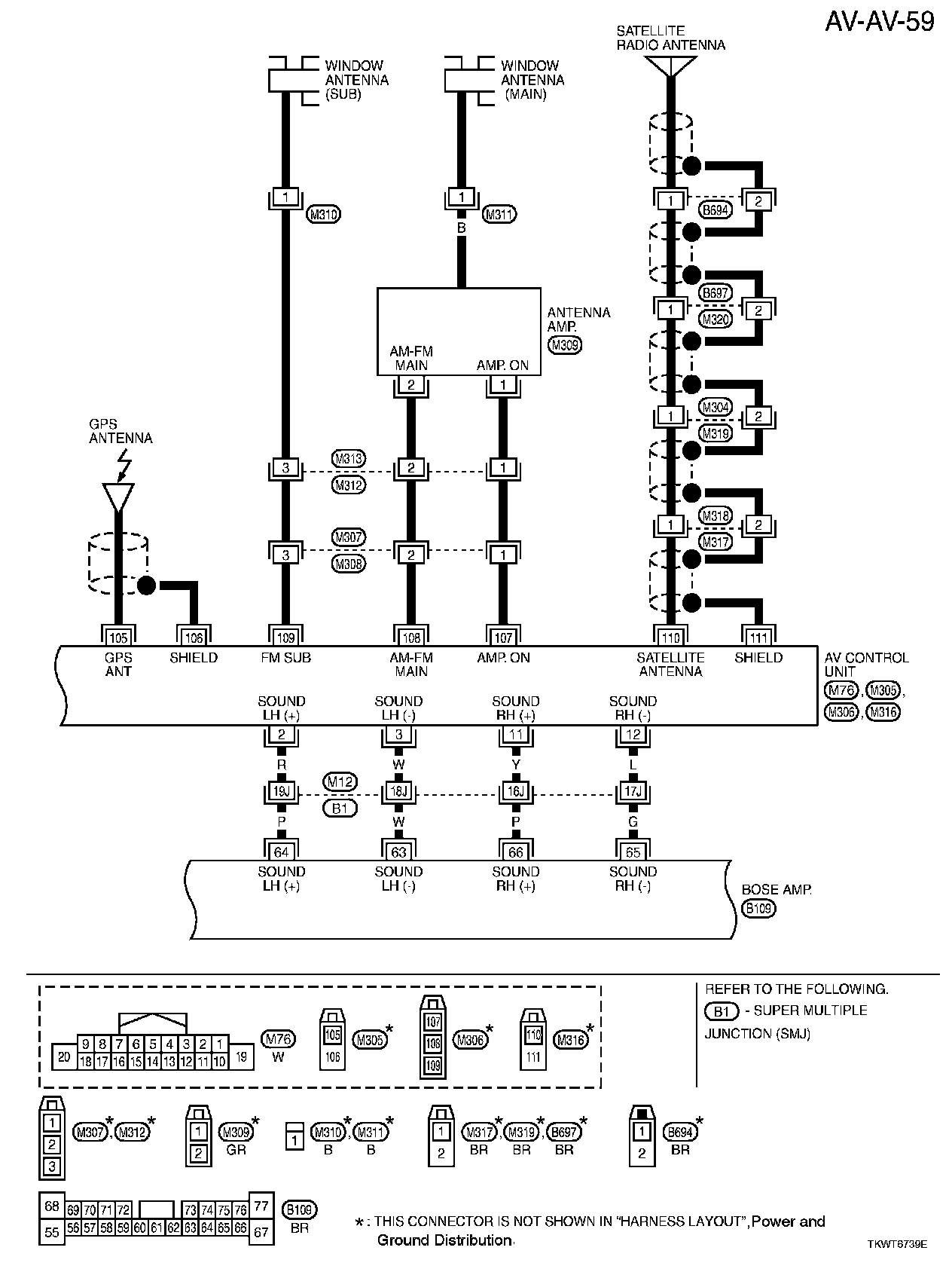

AV-AV-59:

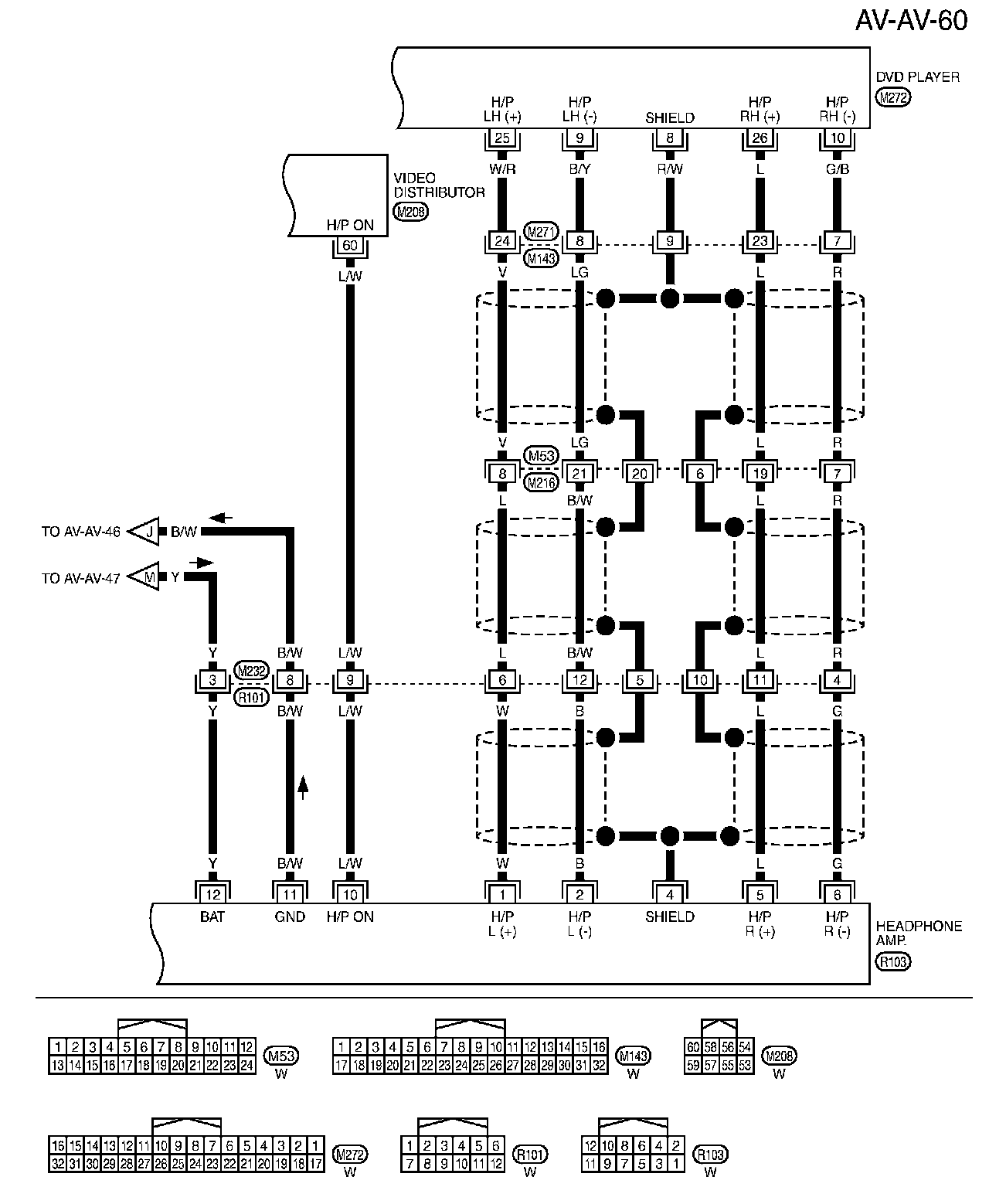

AV-AV-60:

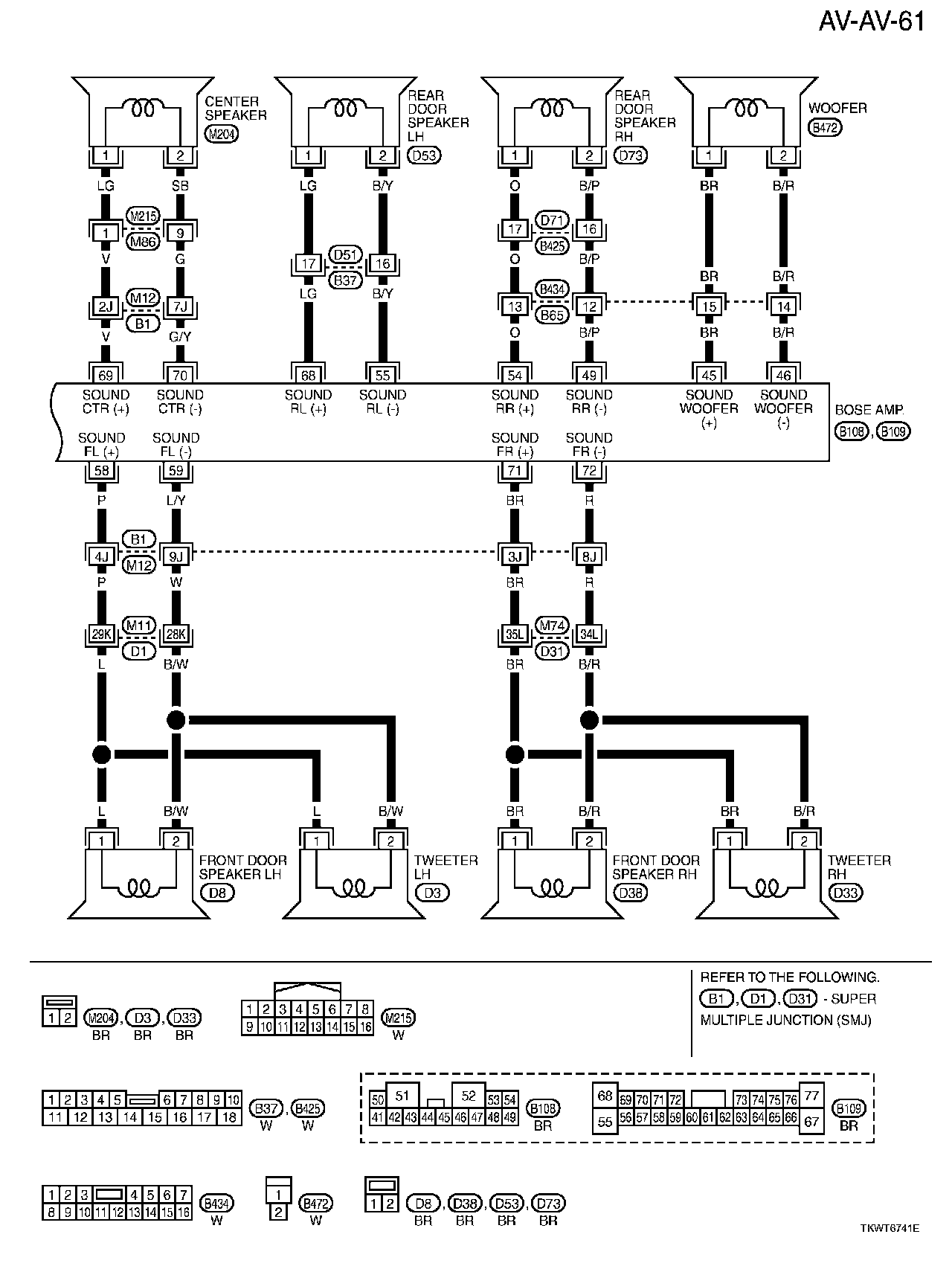

AV-AV-61:

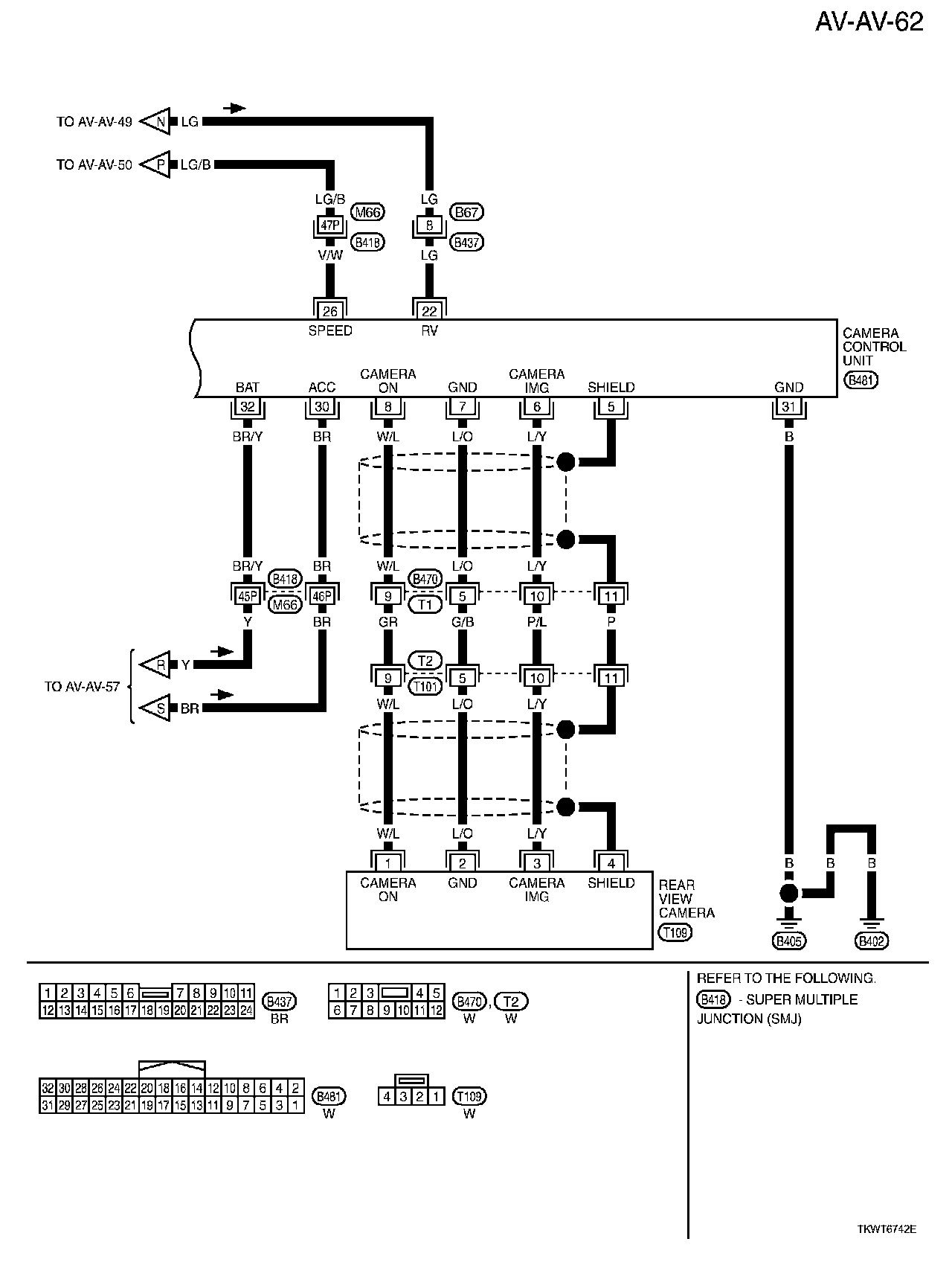

AV-AV-62:
