Bose Audio 2ch System

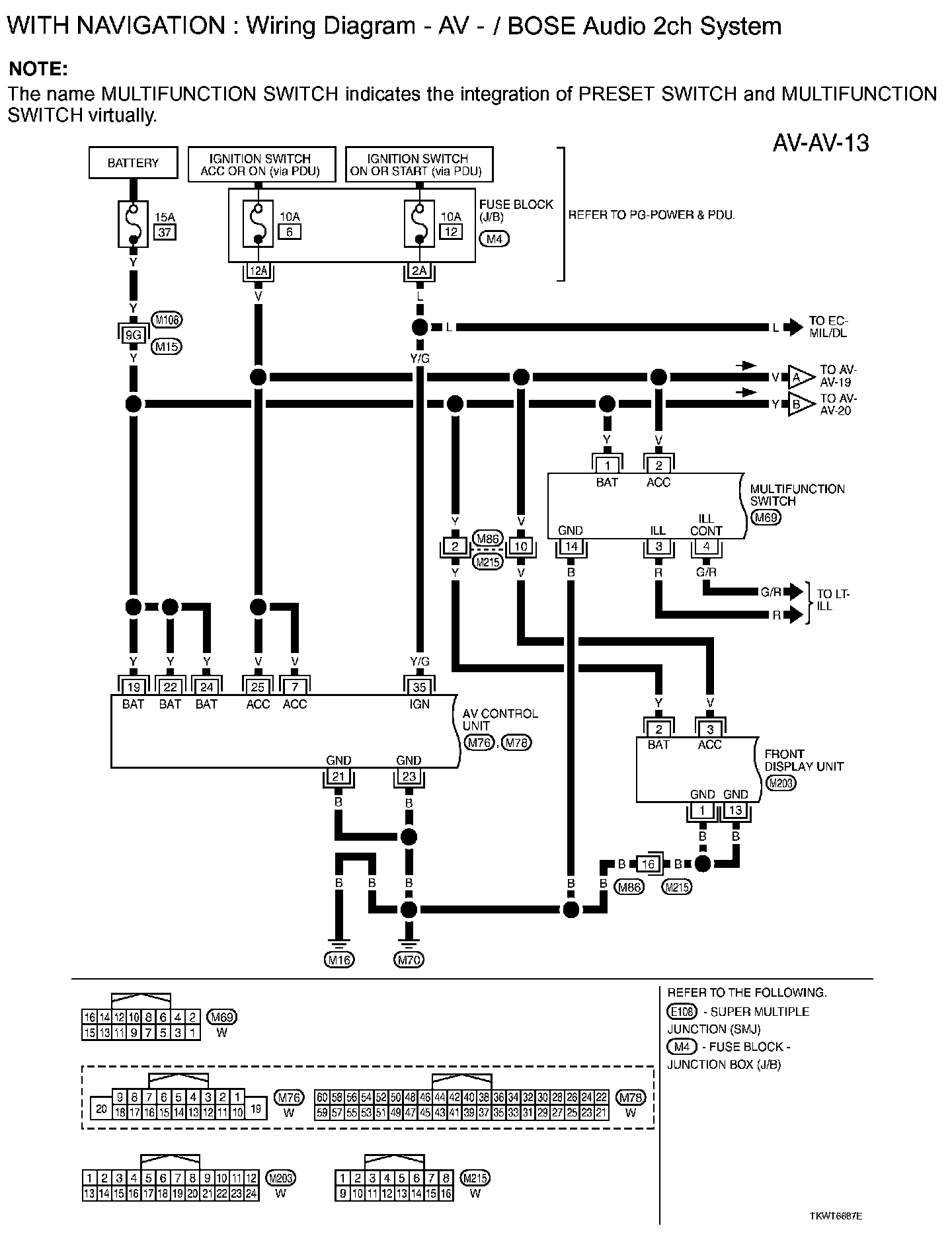

AV-AV-13:

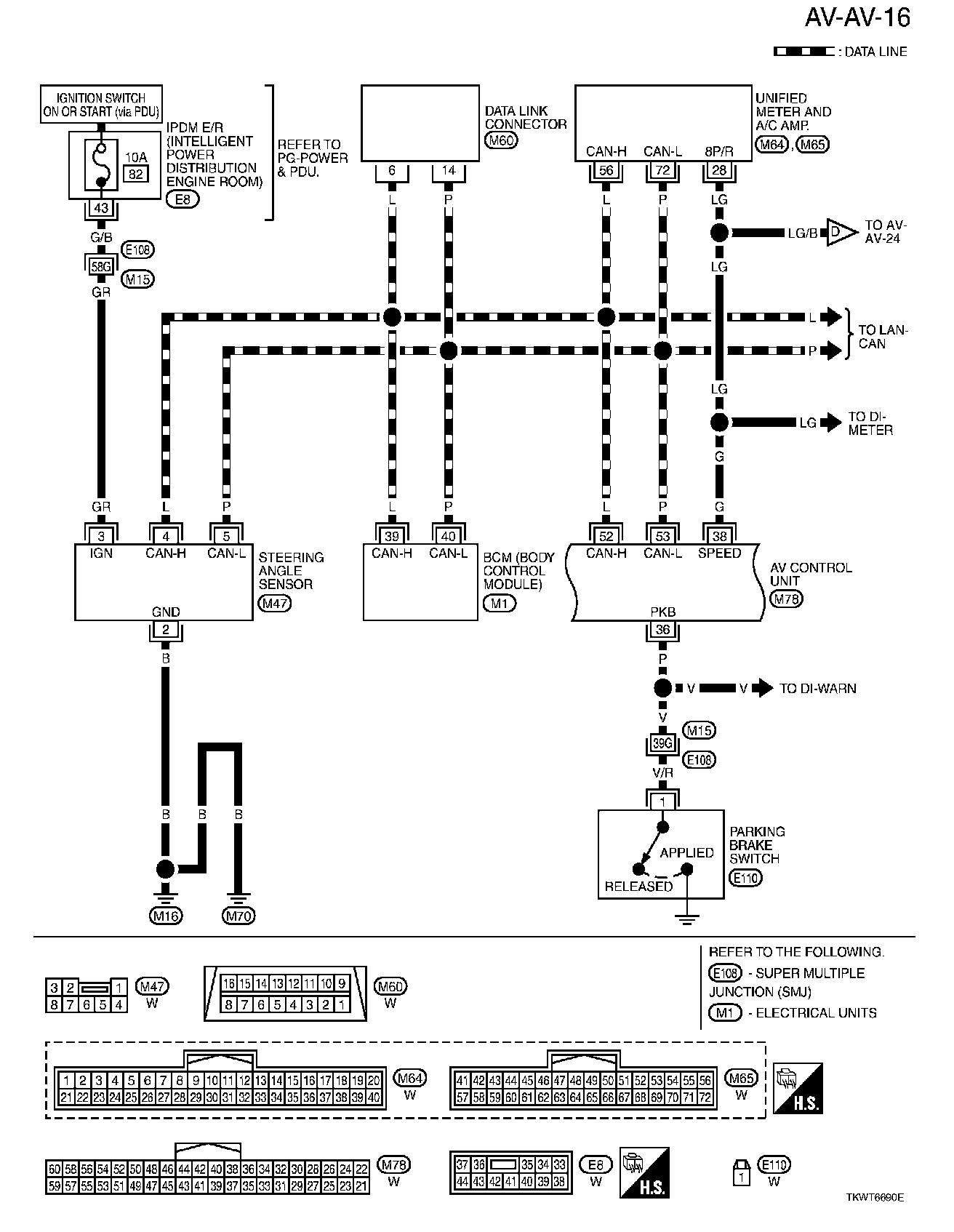

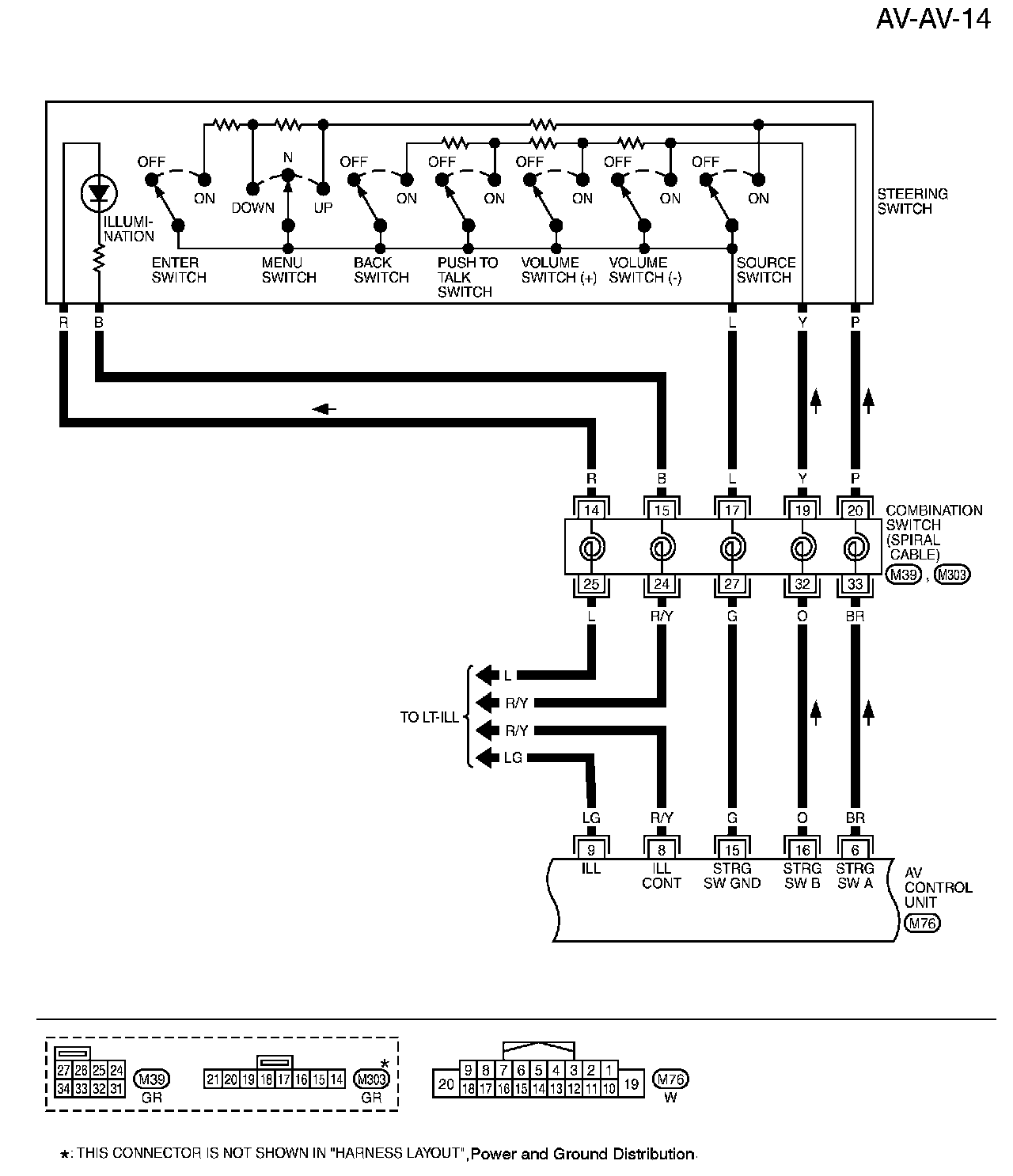

AV-AV-14:

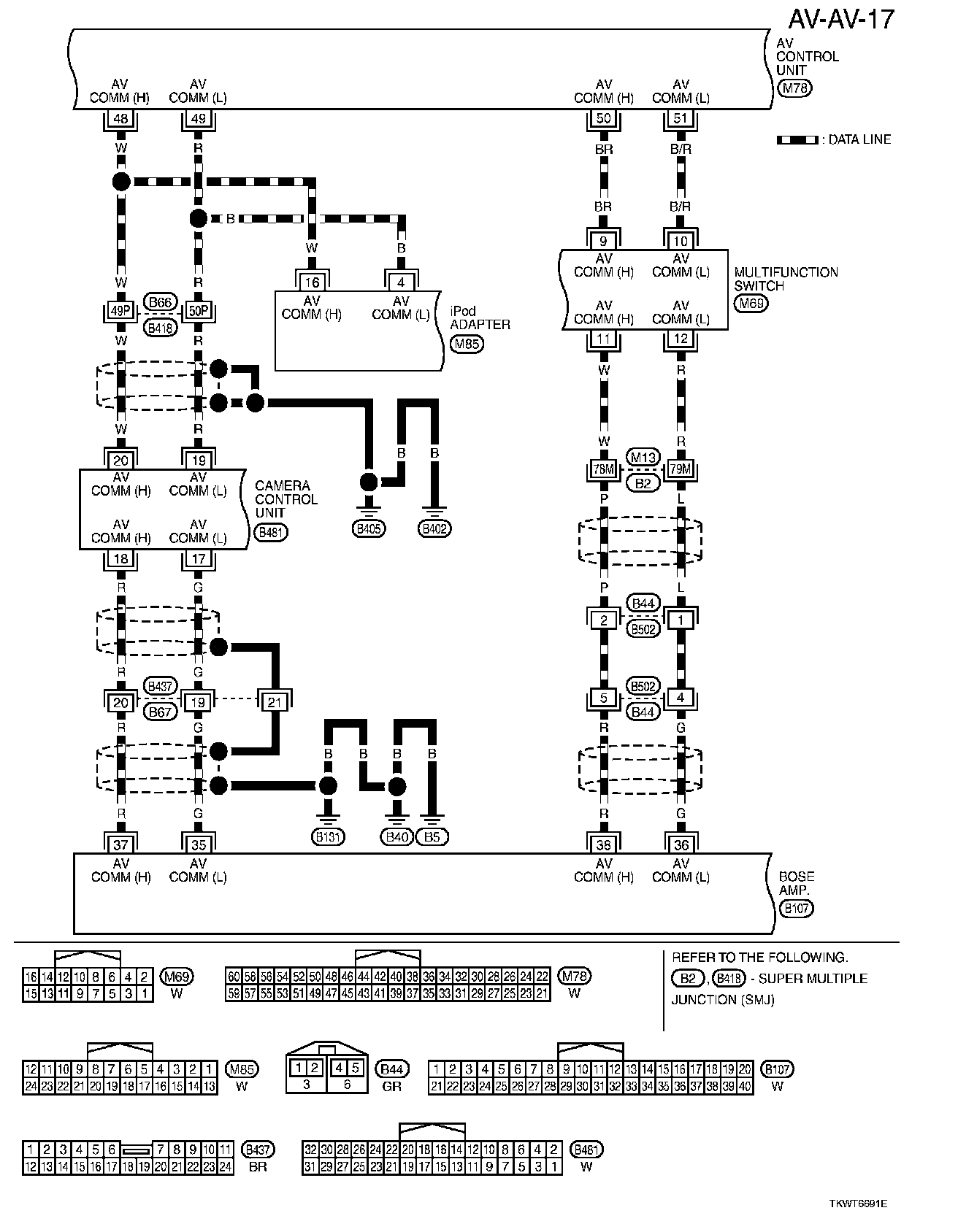

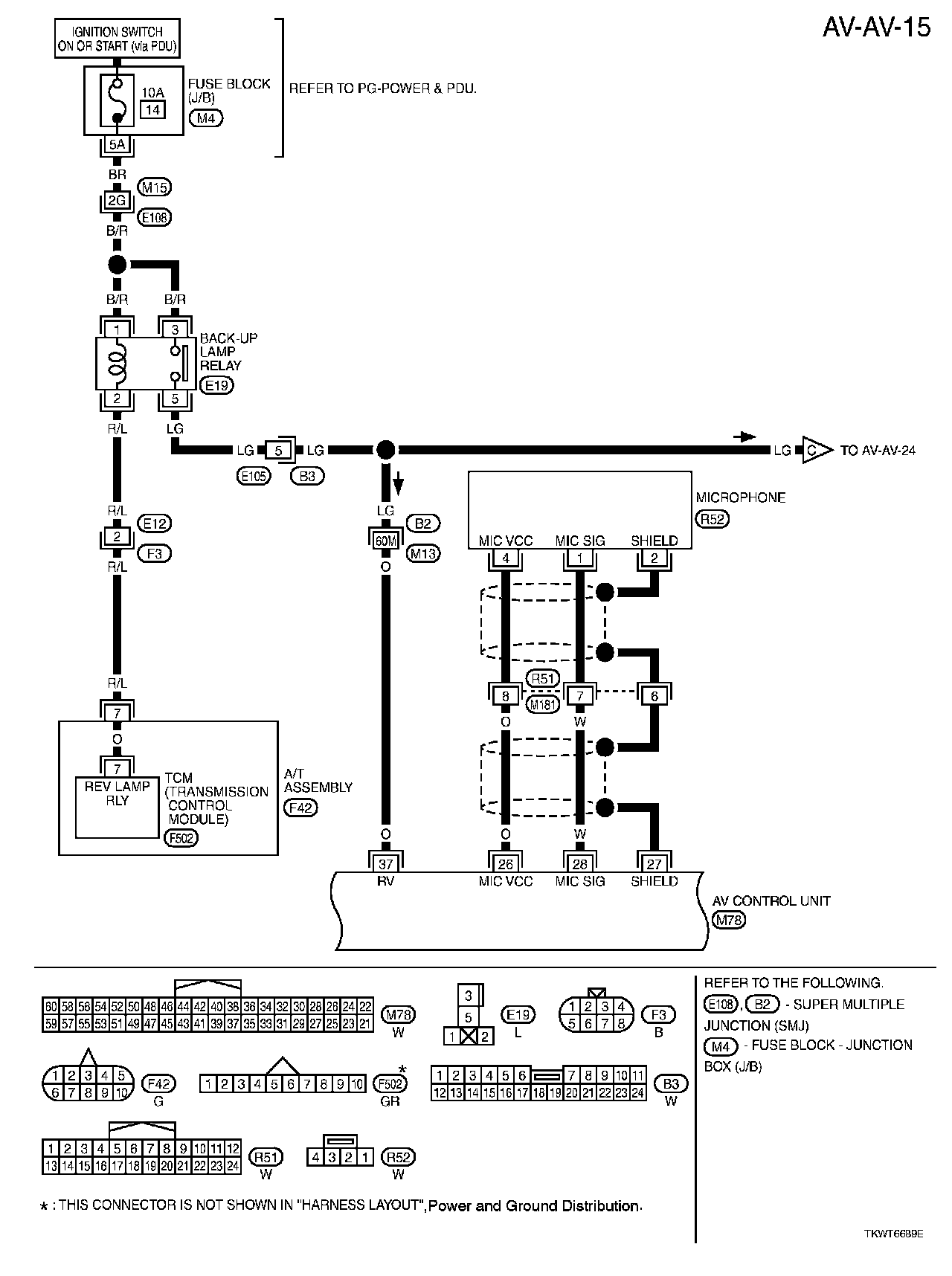

AV-AV-15:

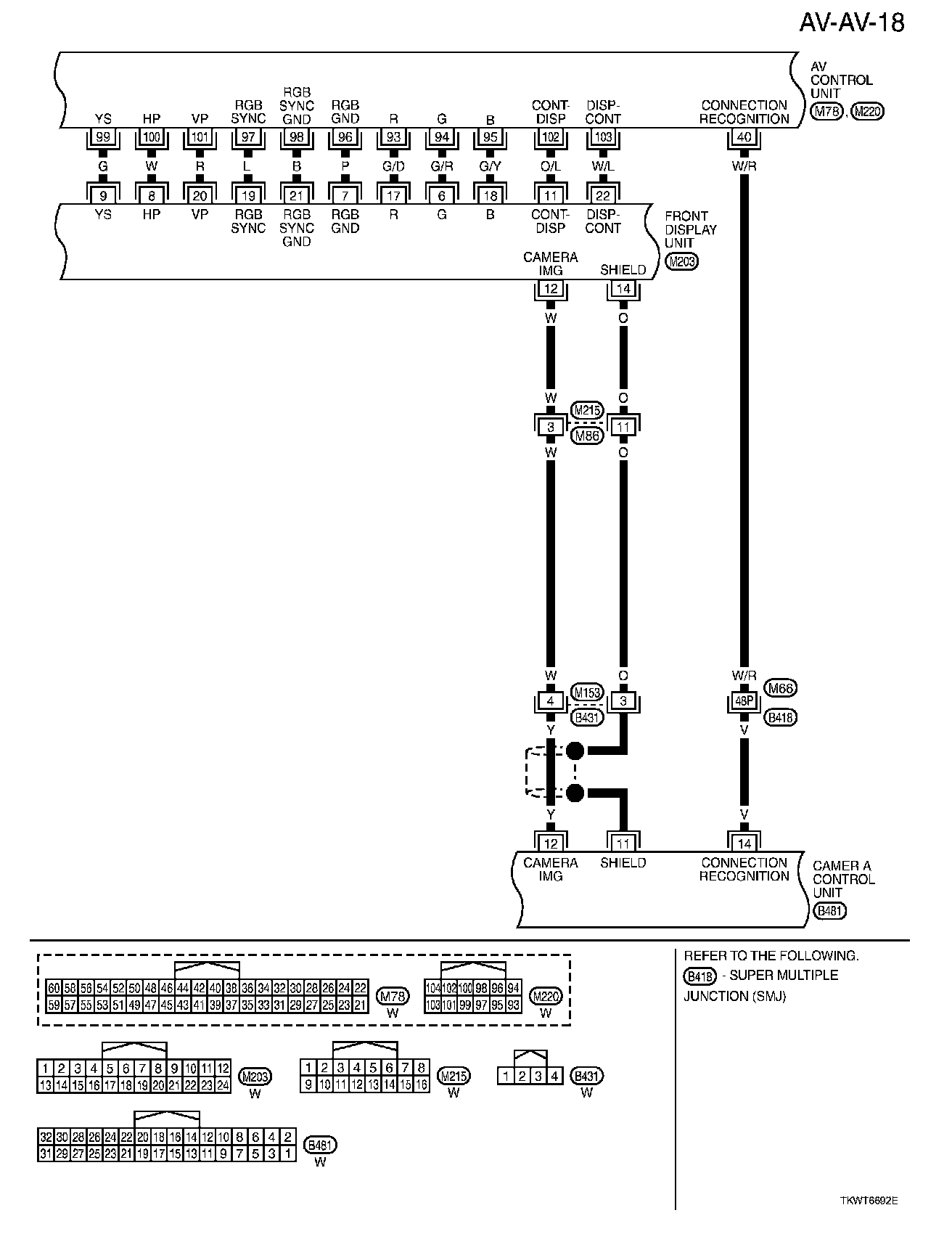

AV-AV-16:

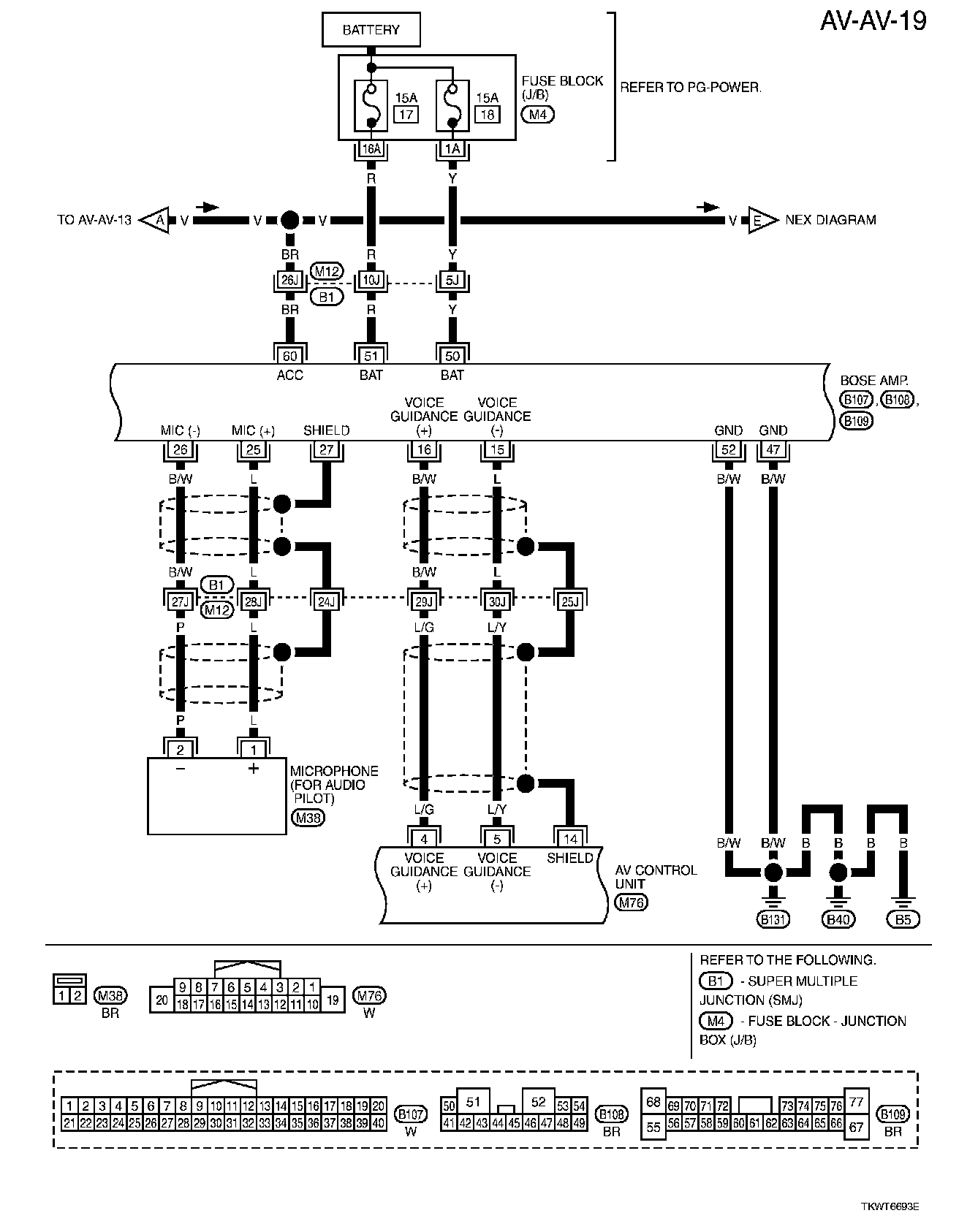

AV-AV-17:



AV-AV-18:

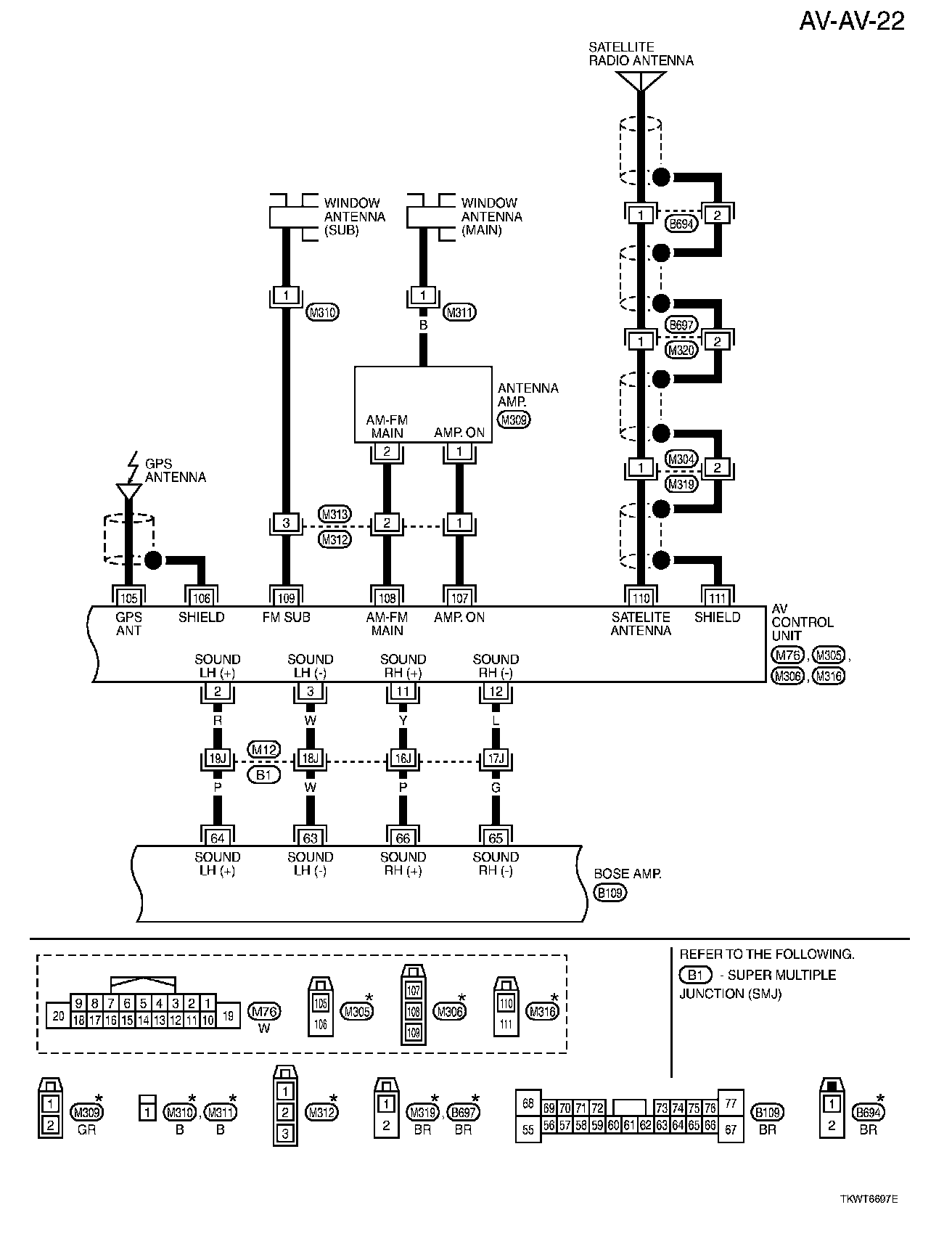

AV-AV-19:

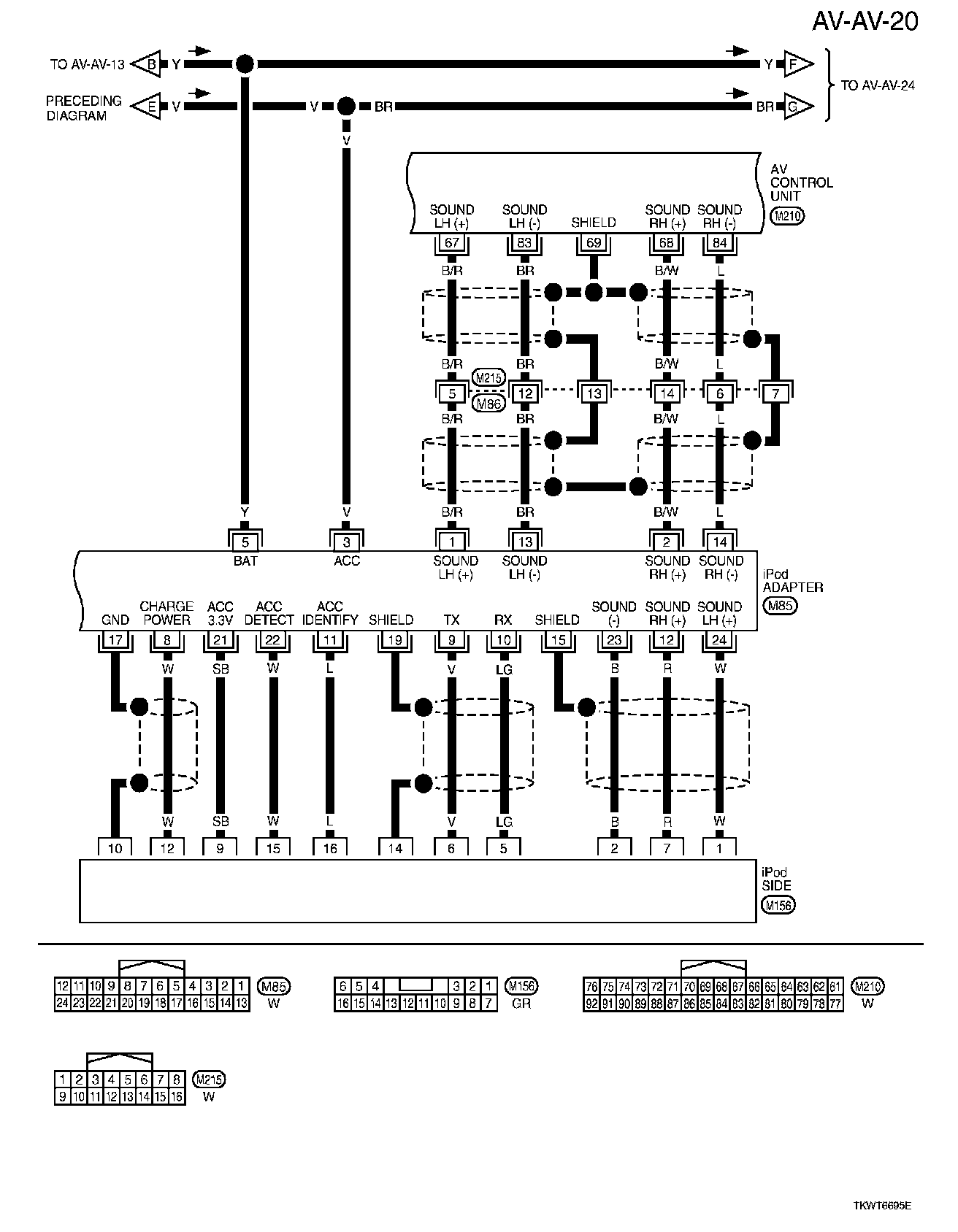

AV-AV-20:

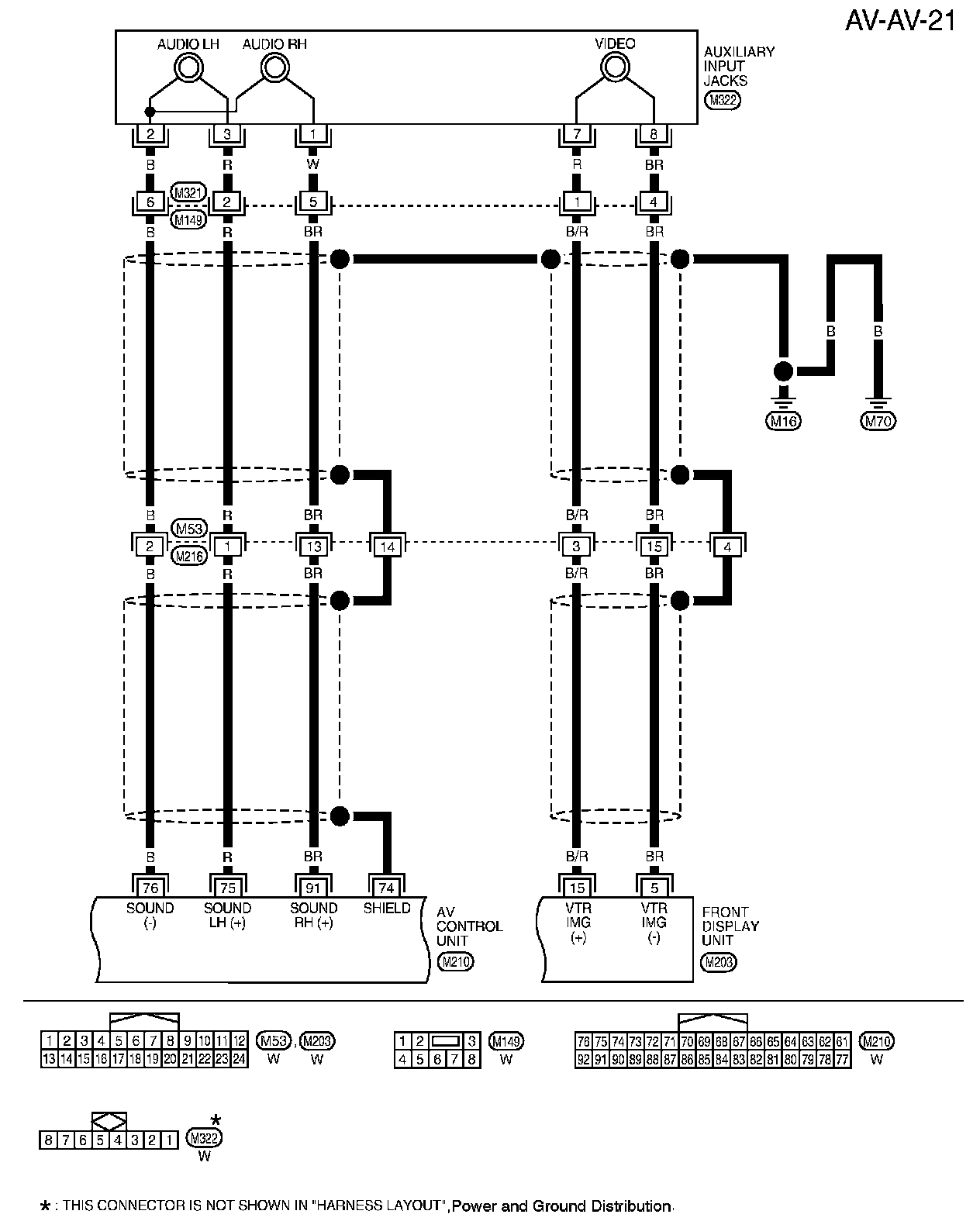

AV-AV-21:

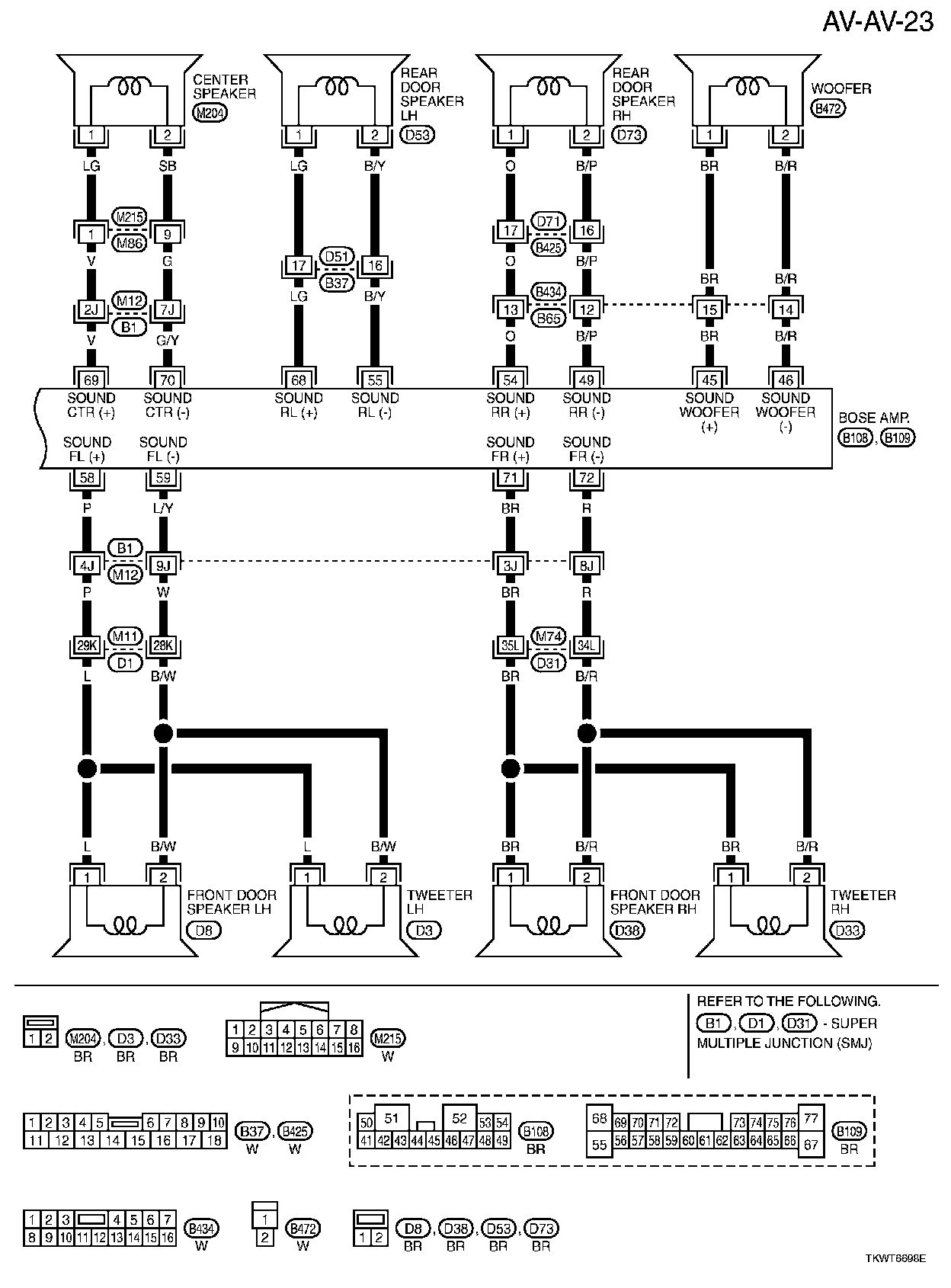

AV-AV-22:



AV-AV-23:

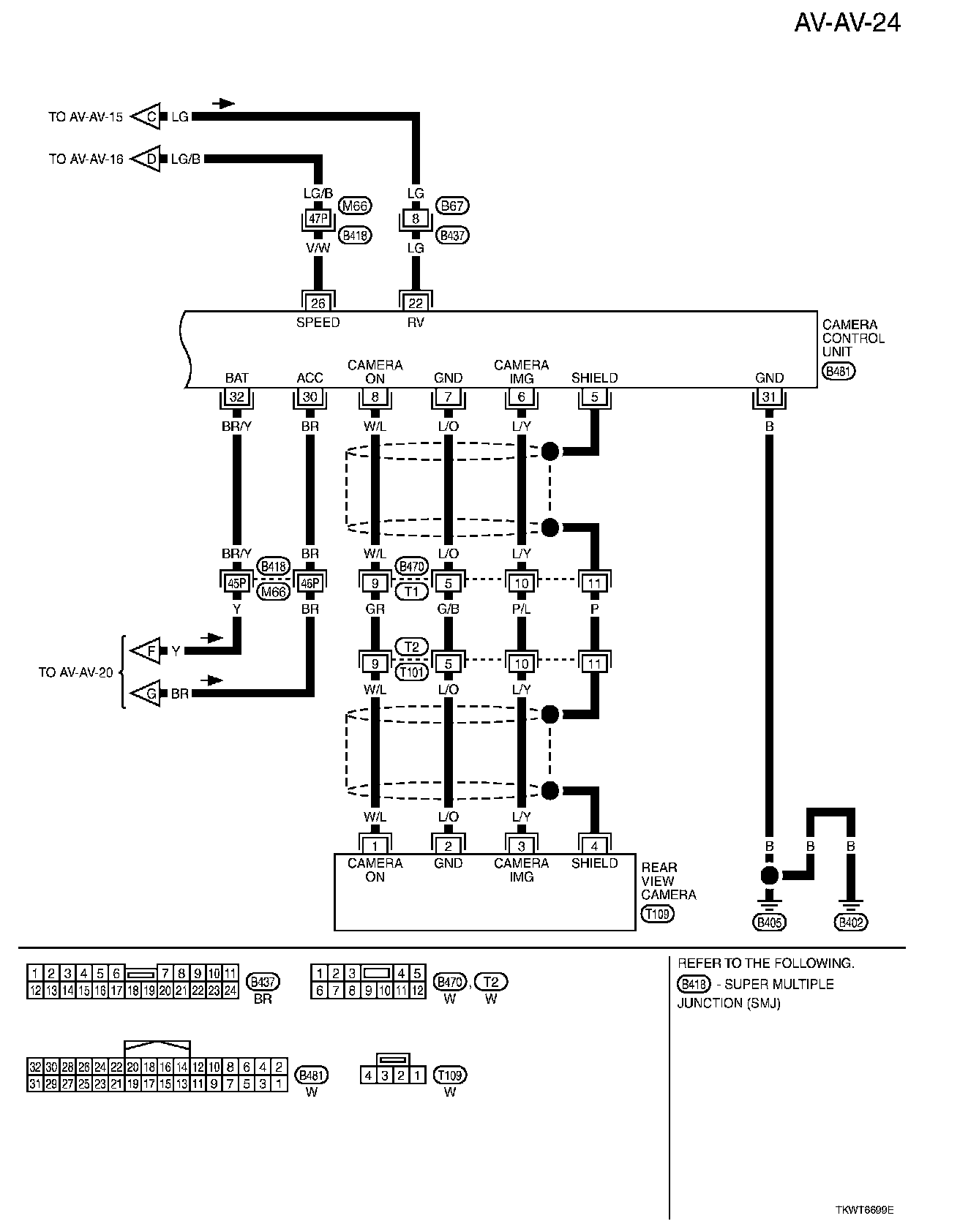

AV-AV-24:
