Satellite Radio Tuner

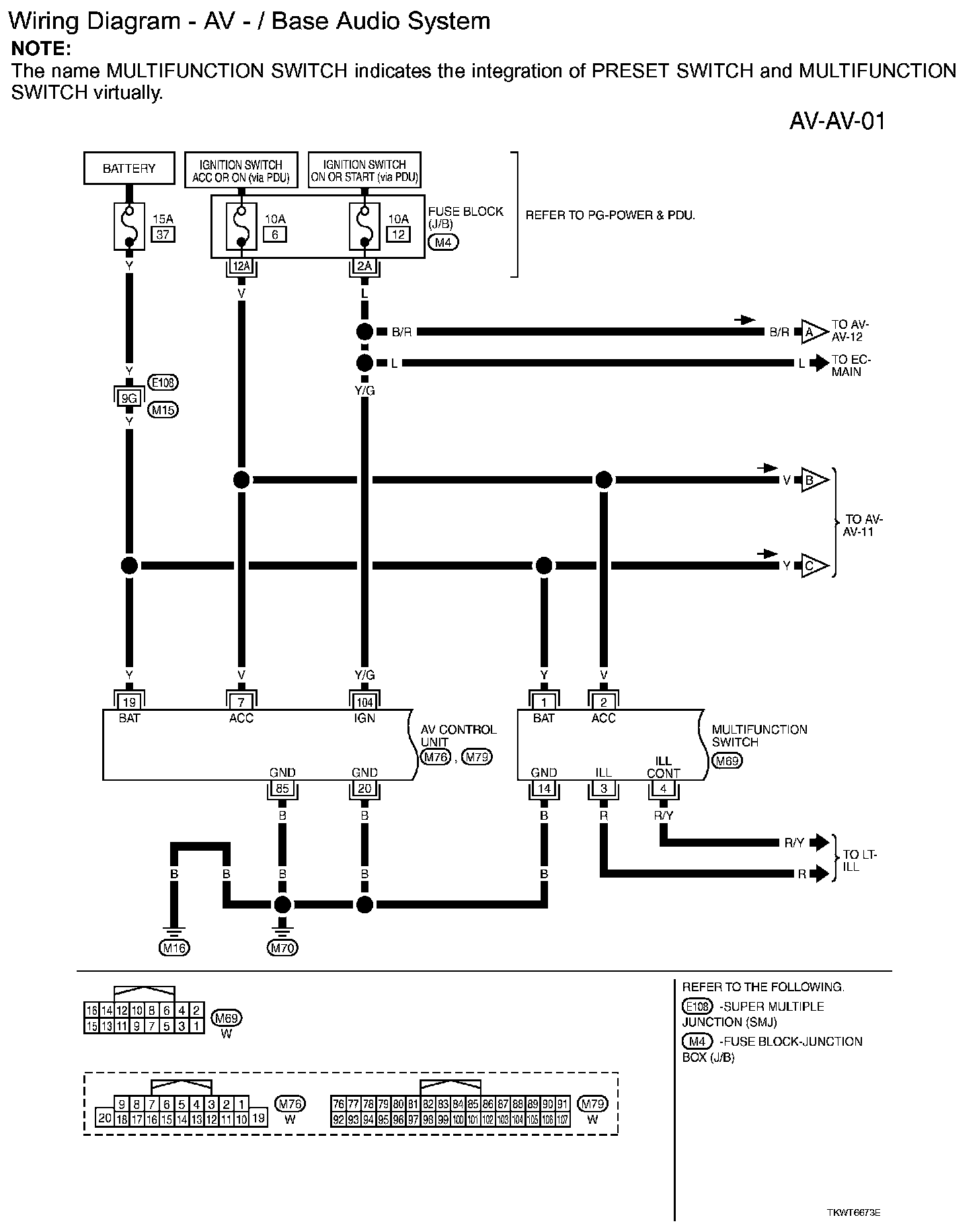

AV-AV-01:

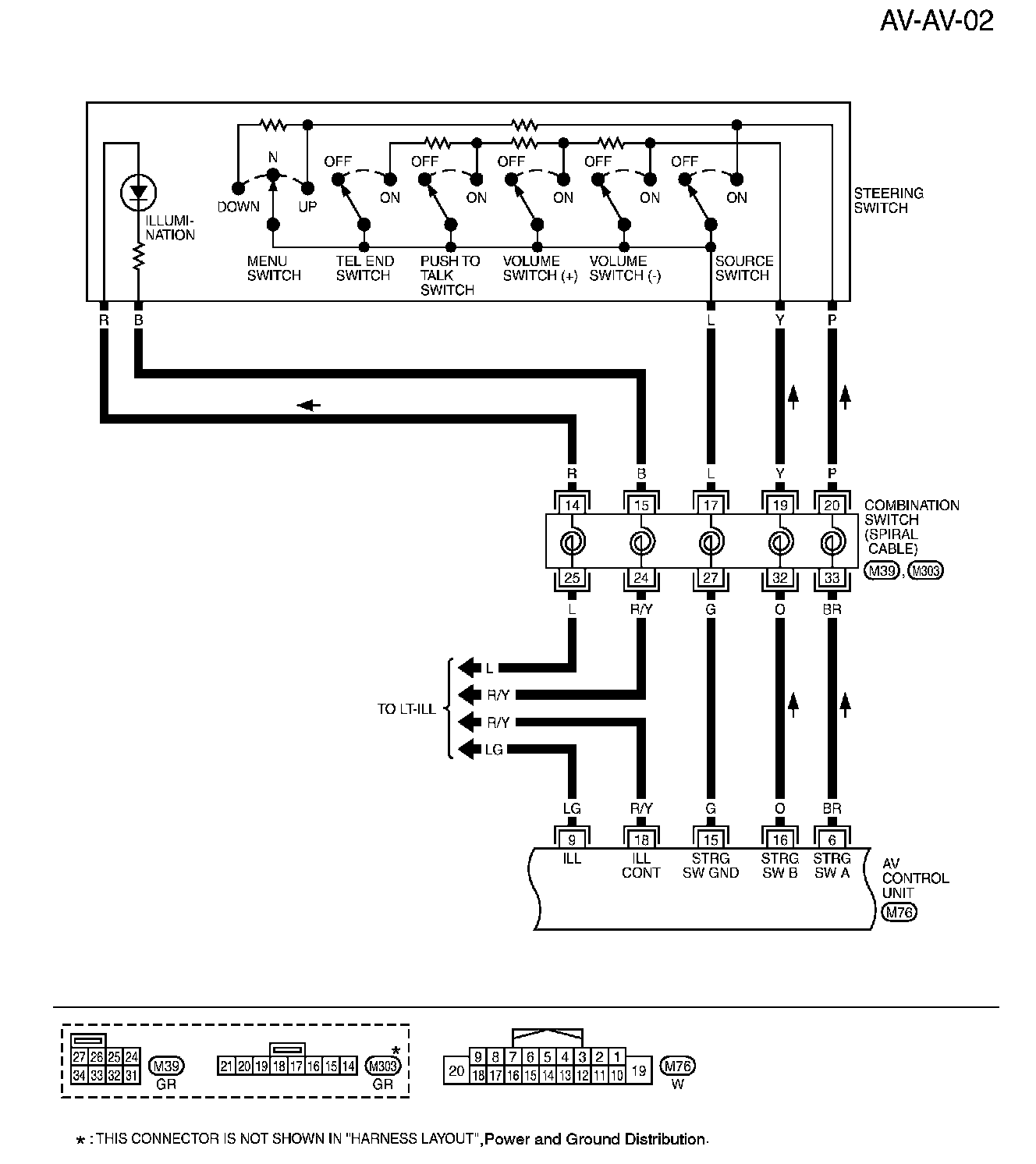

AV-AV-02:

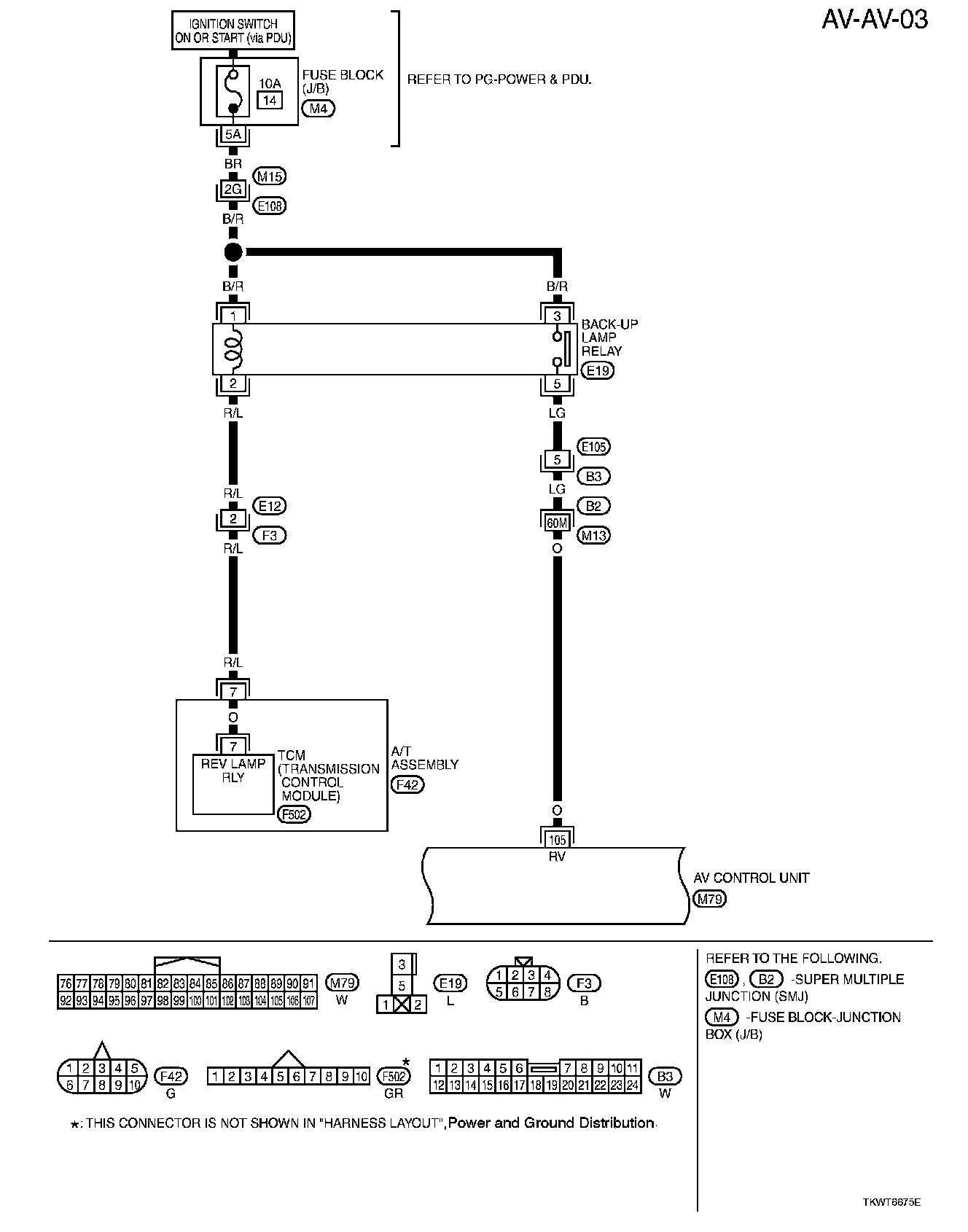

AV-AV-03:

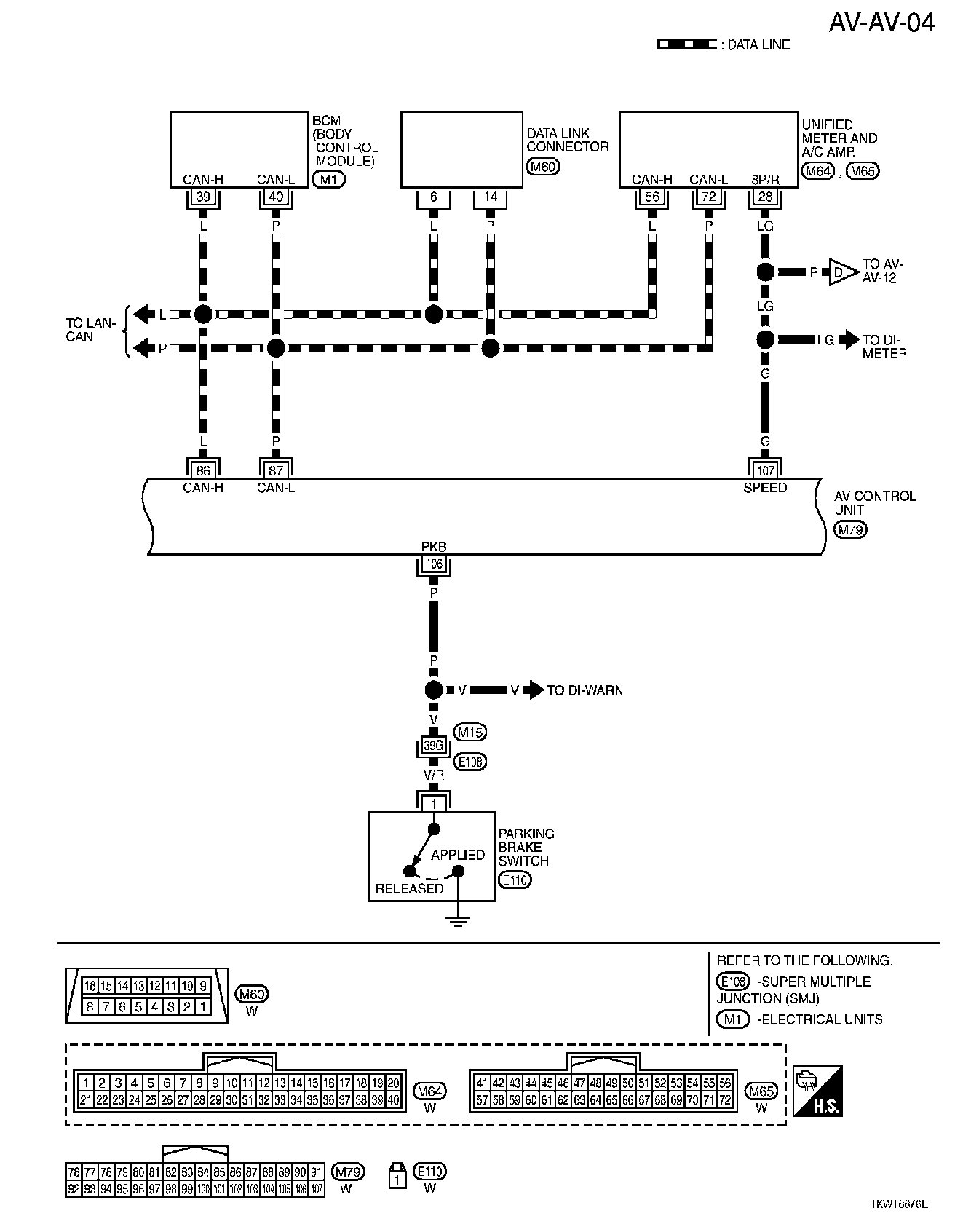

AV-AV-04:

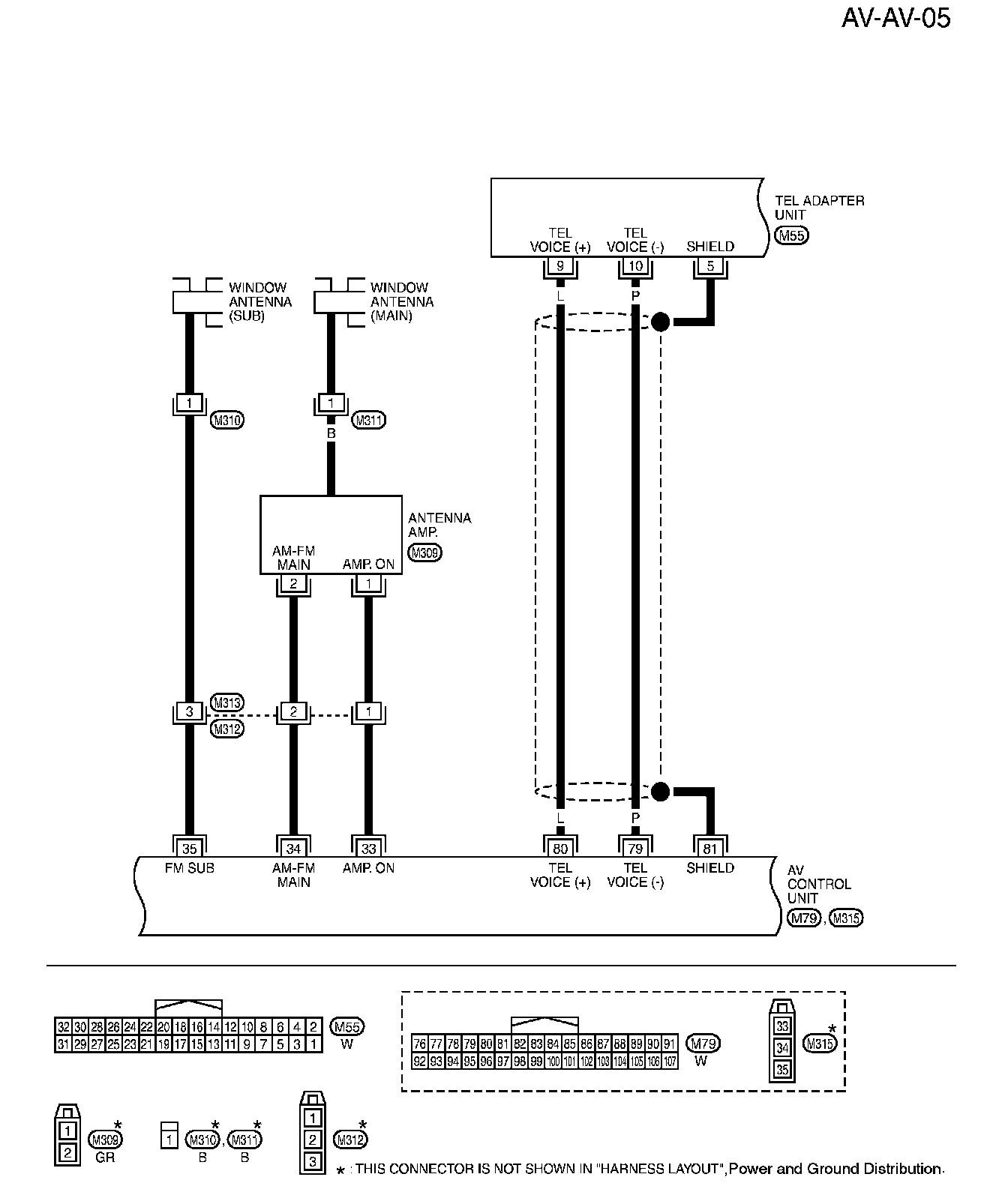

AV-AV-05:

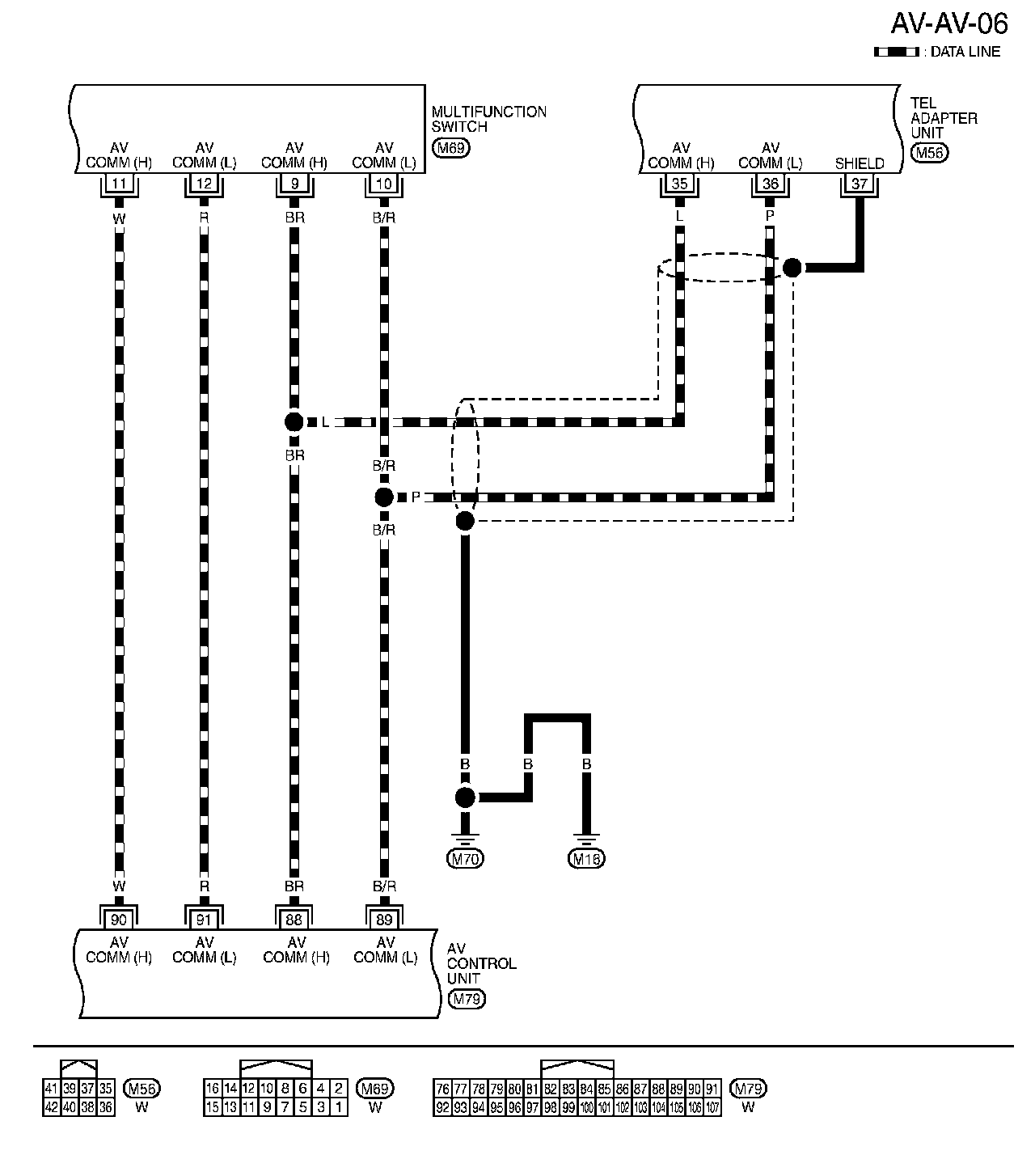

AV-AV-06:

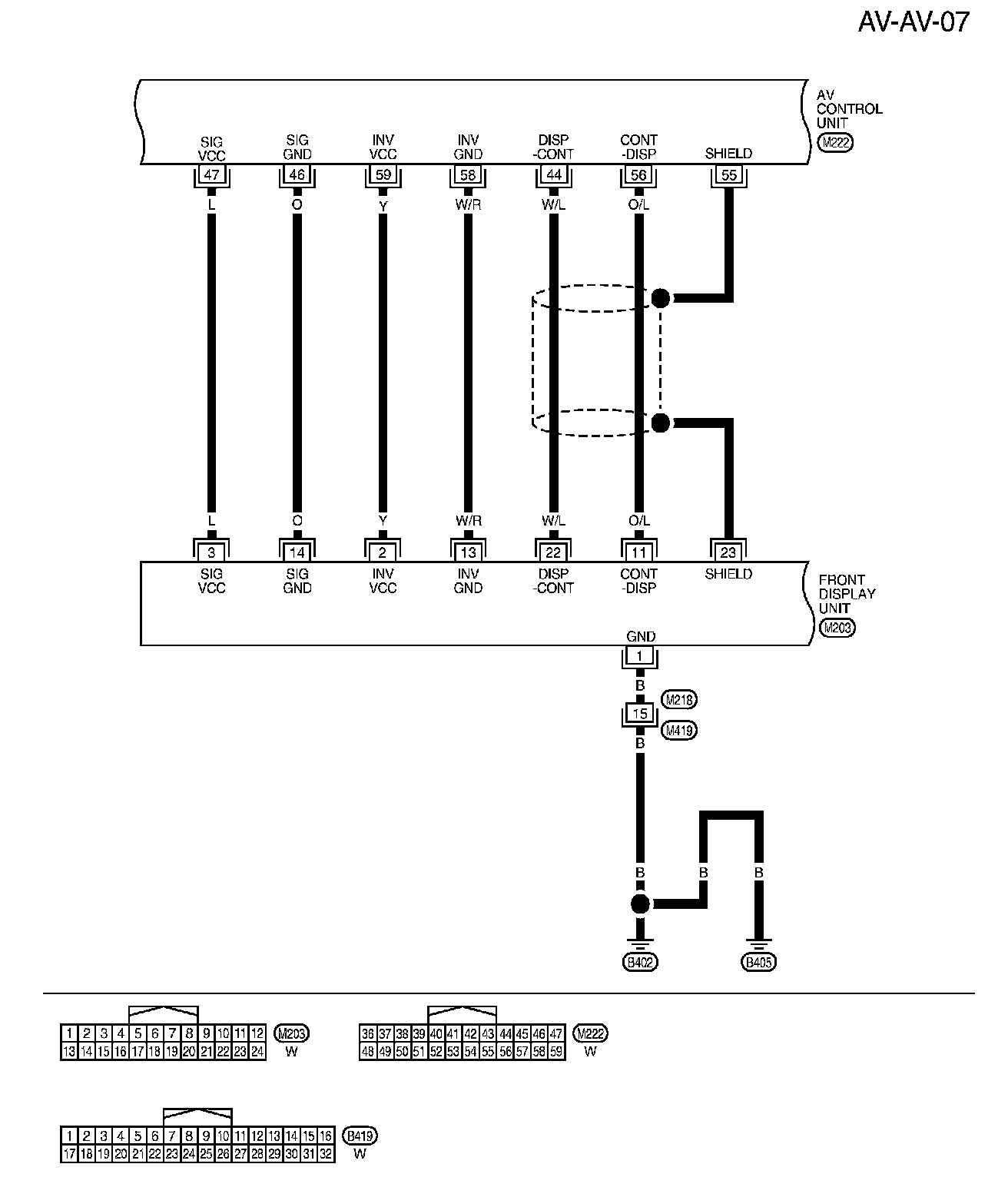

AV-AV-07:

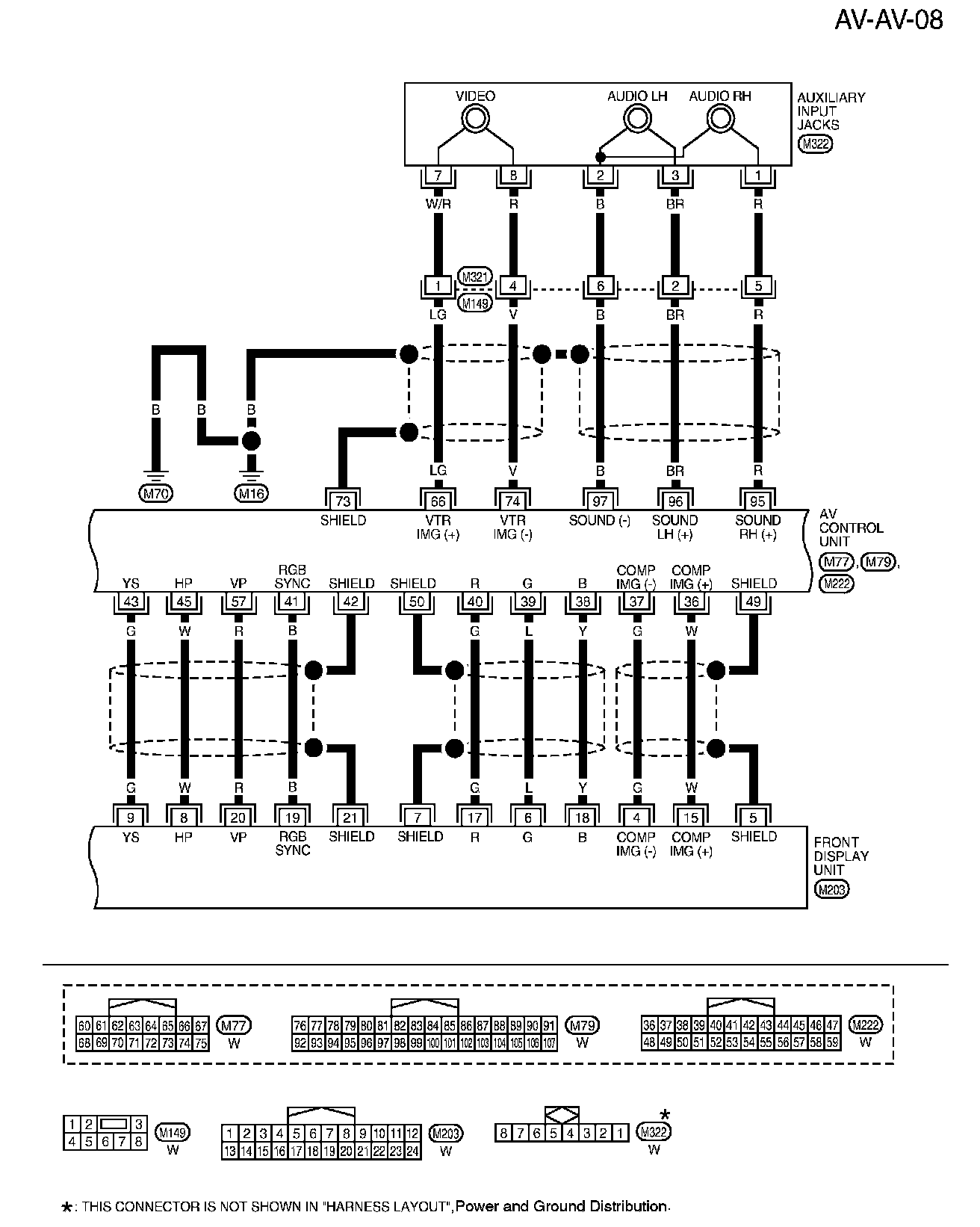

AV-AV-08:

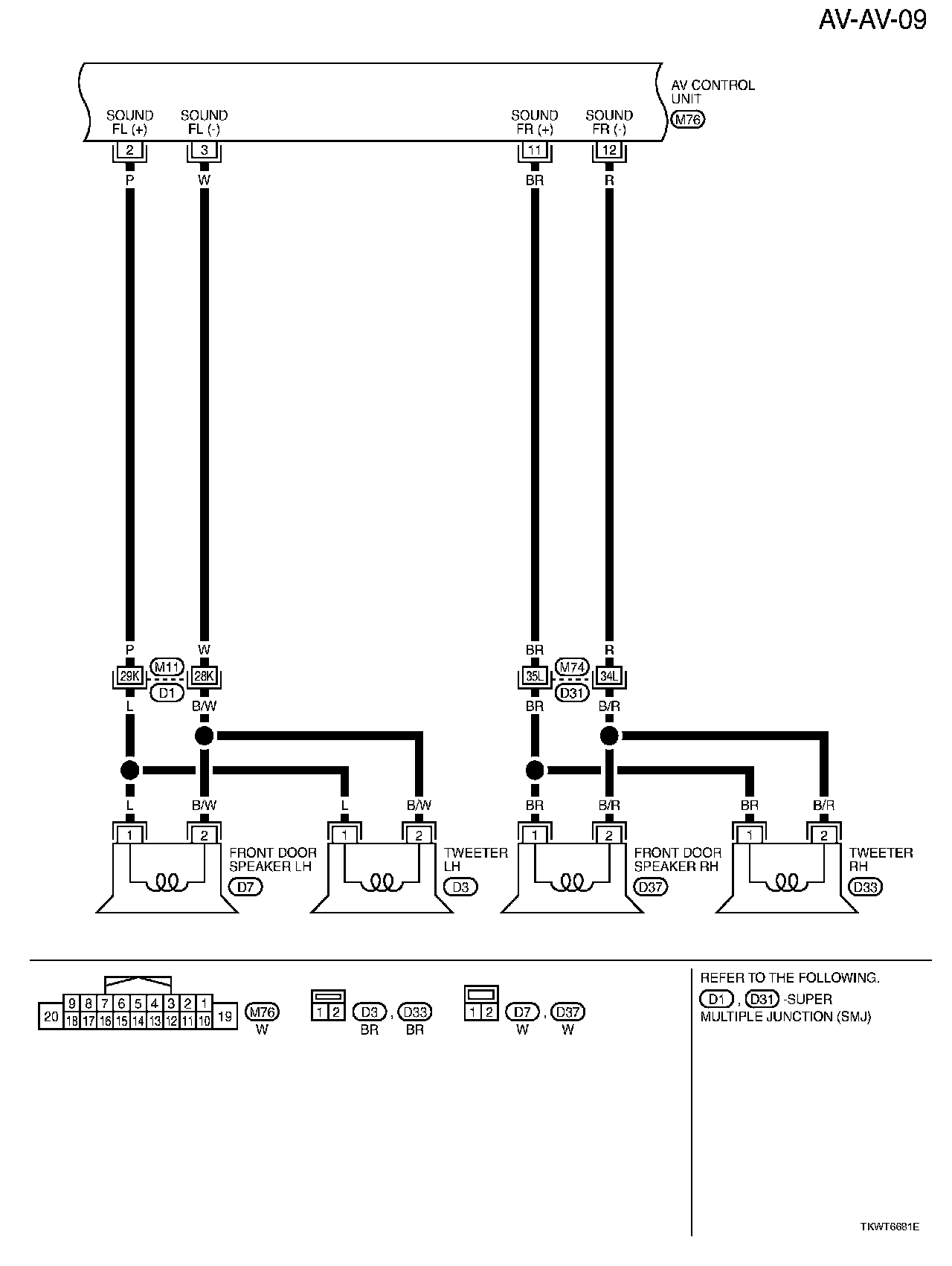

AV-AV-09:

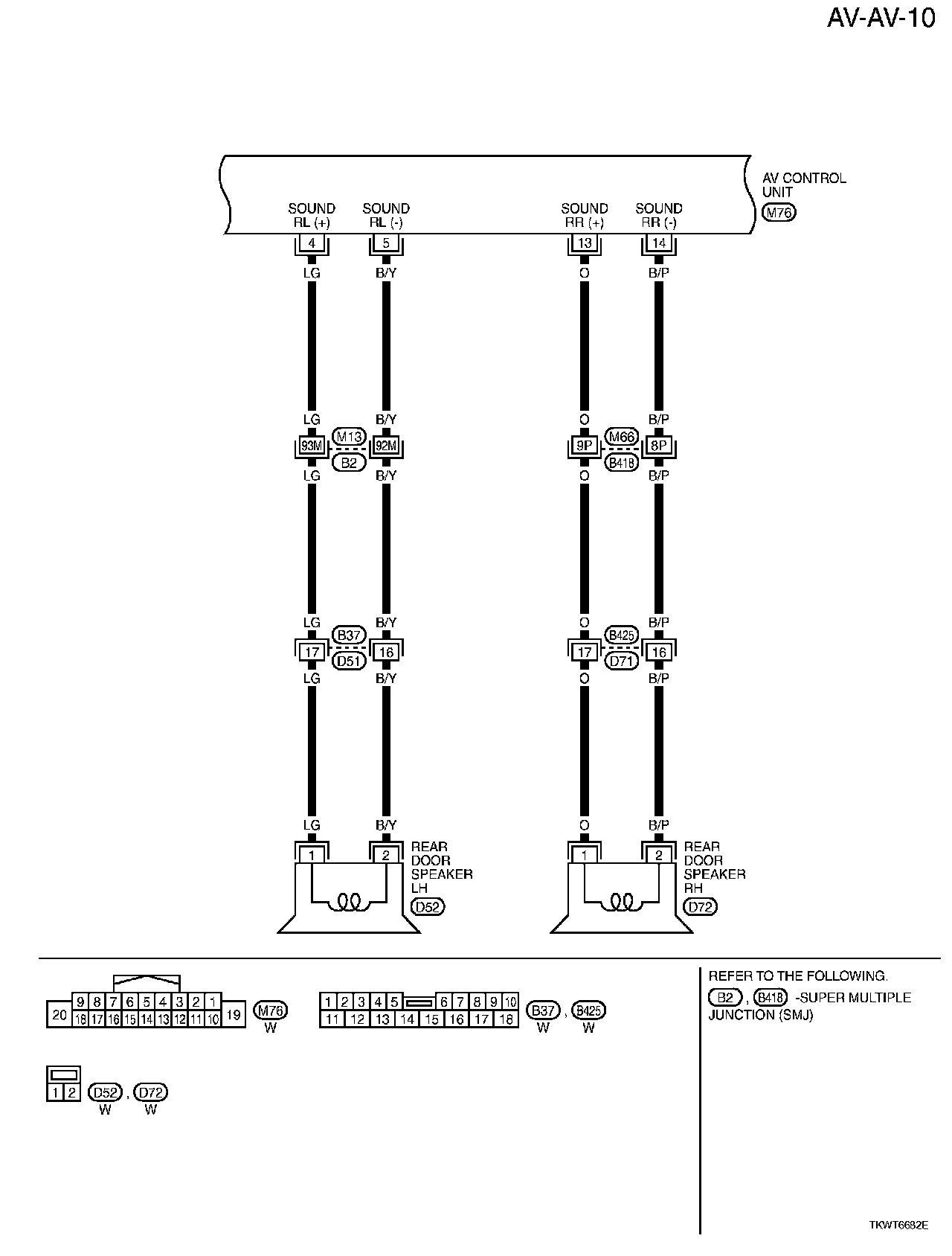

AV-AV-10:

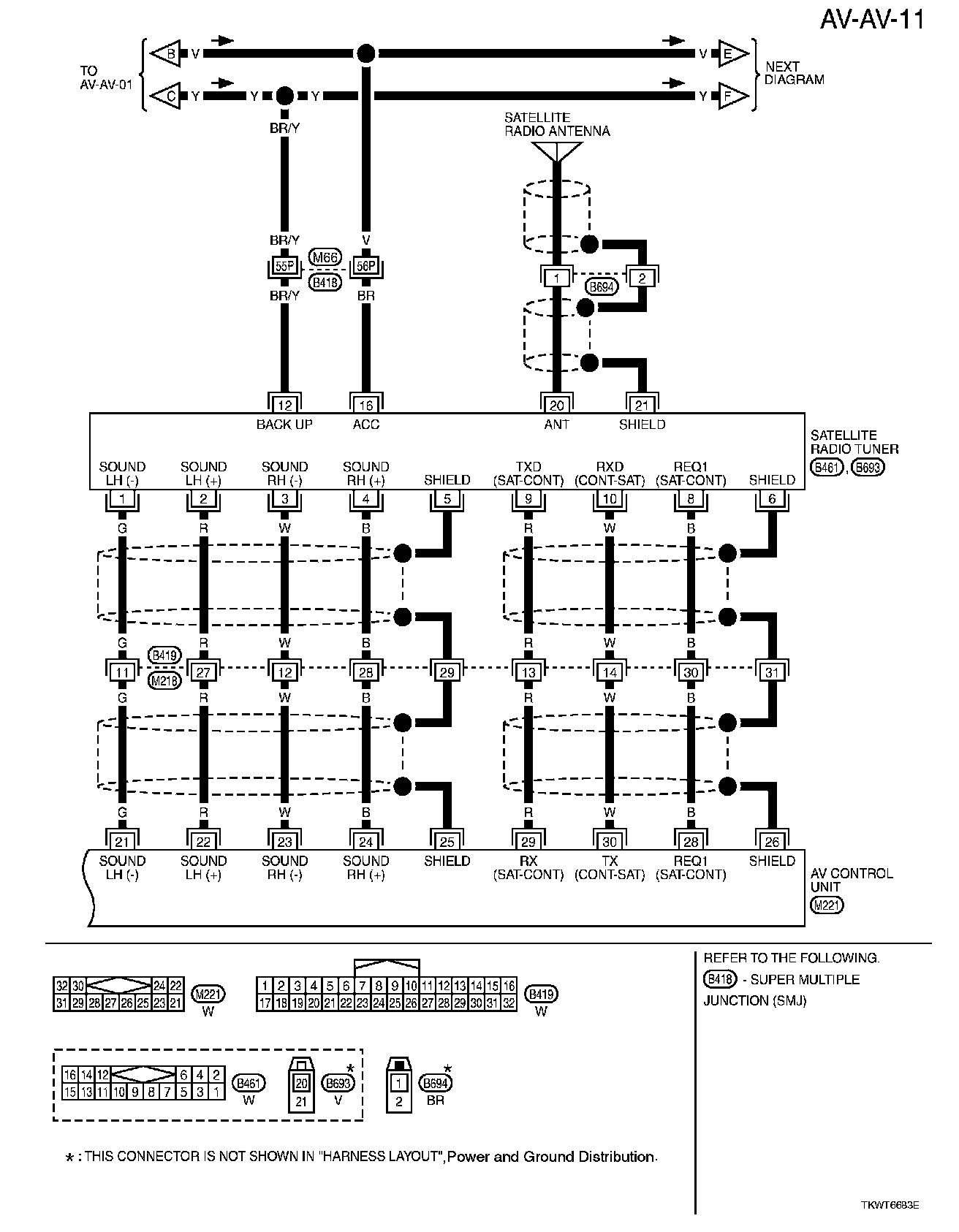

AV-AV-11:

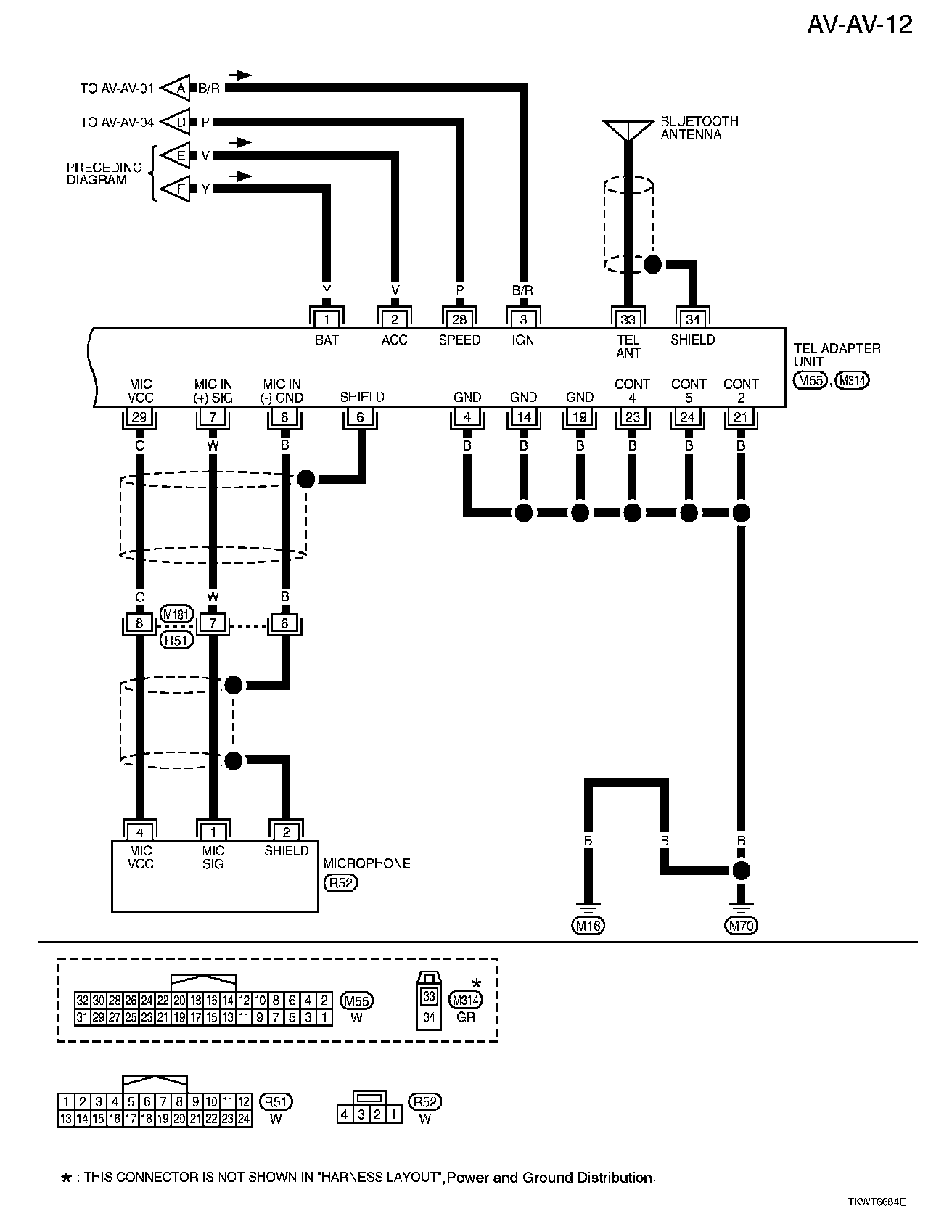

AV-AV-12:
