DI-WARN
DI-WARN

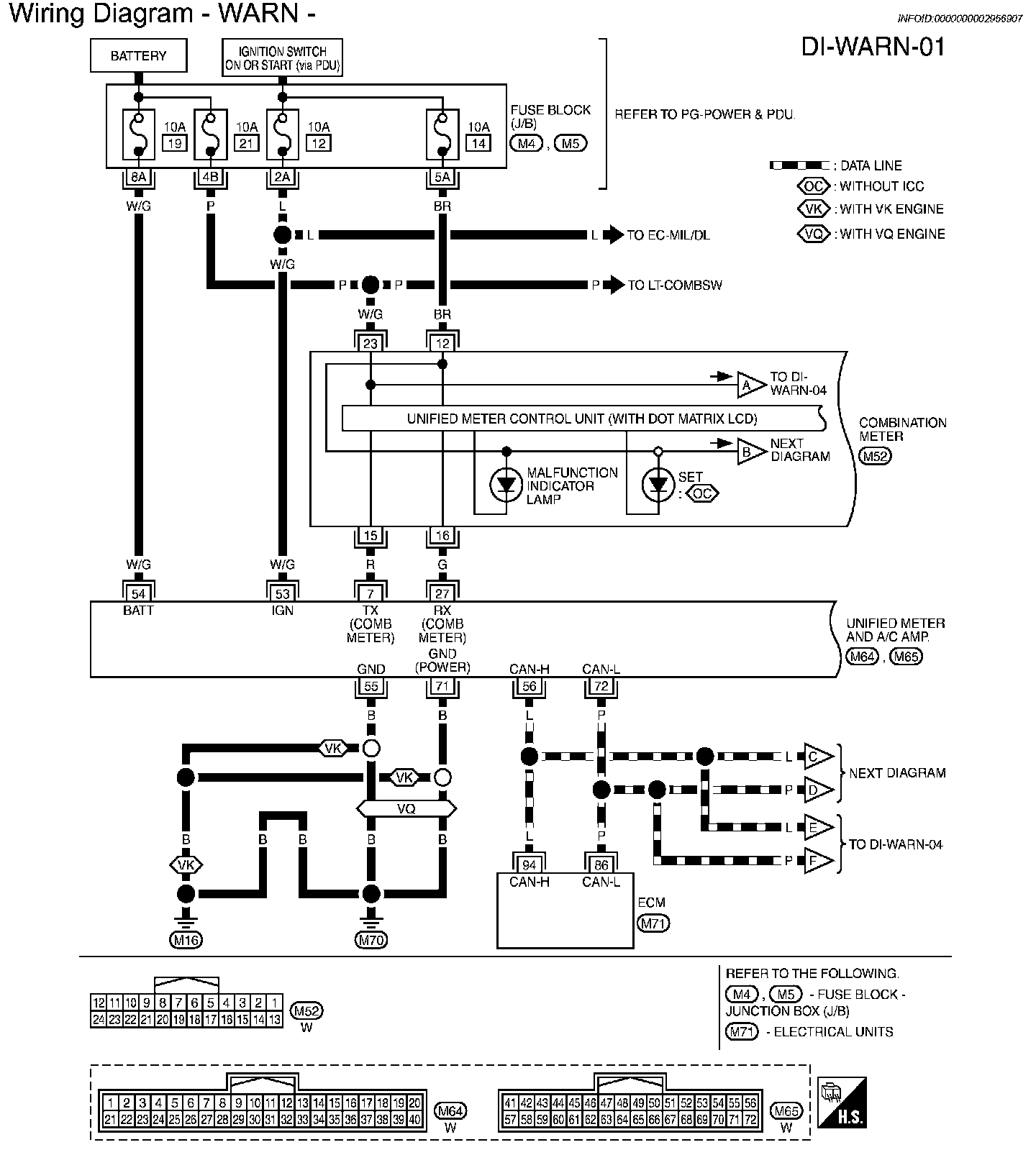

DI-WARN-01:

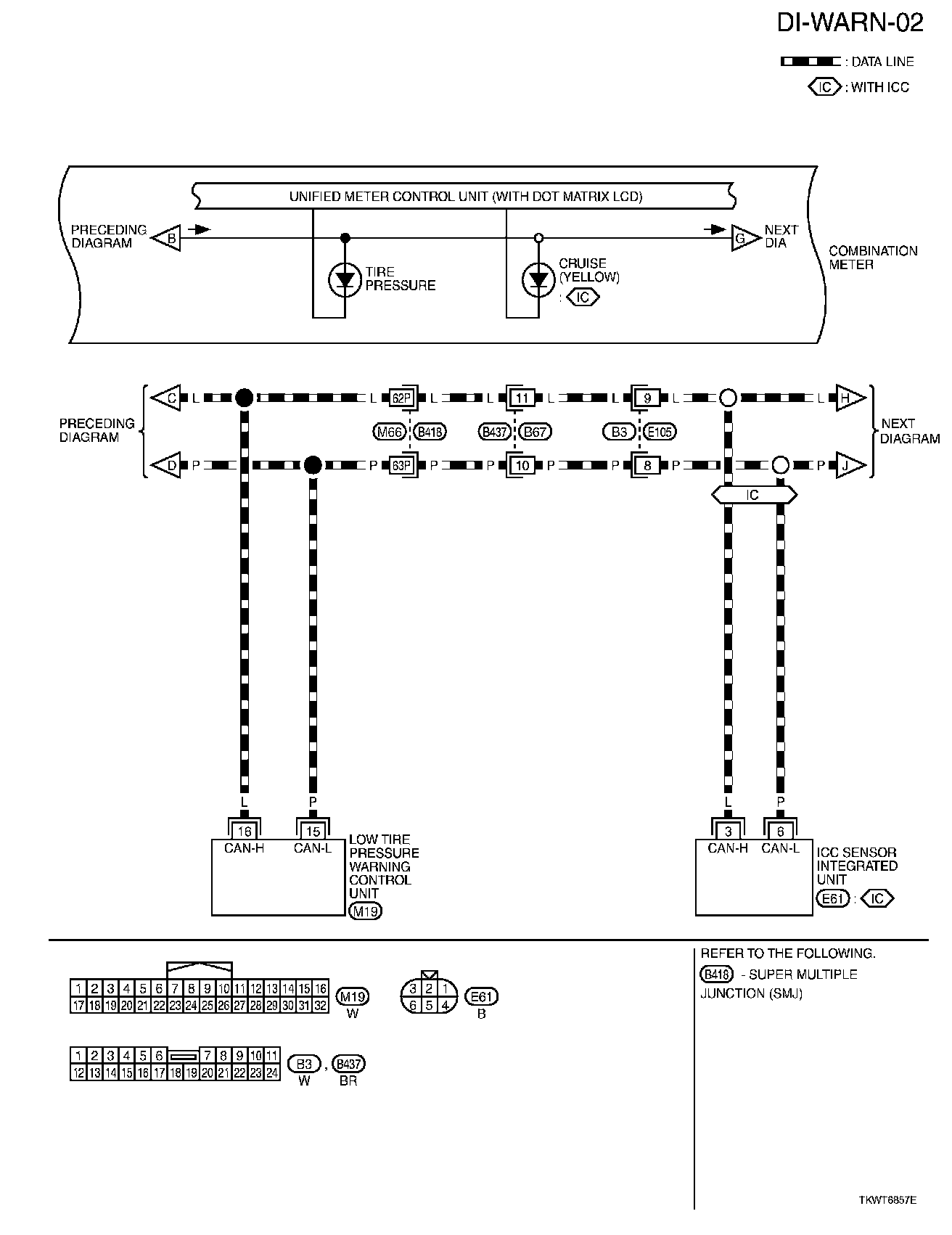

DI-WARN-02:

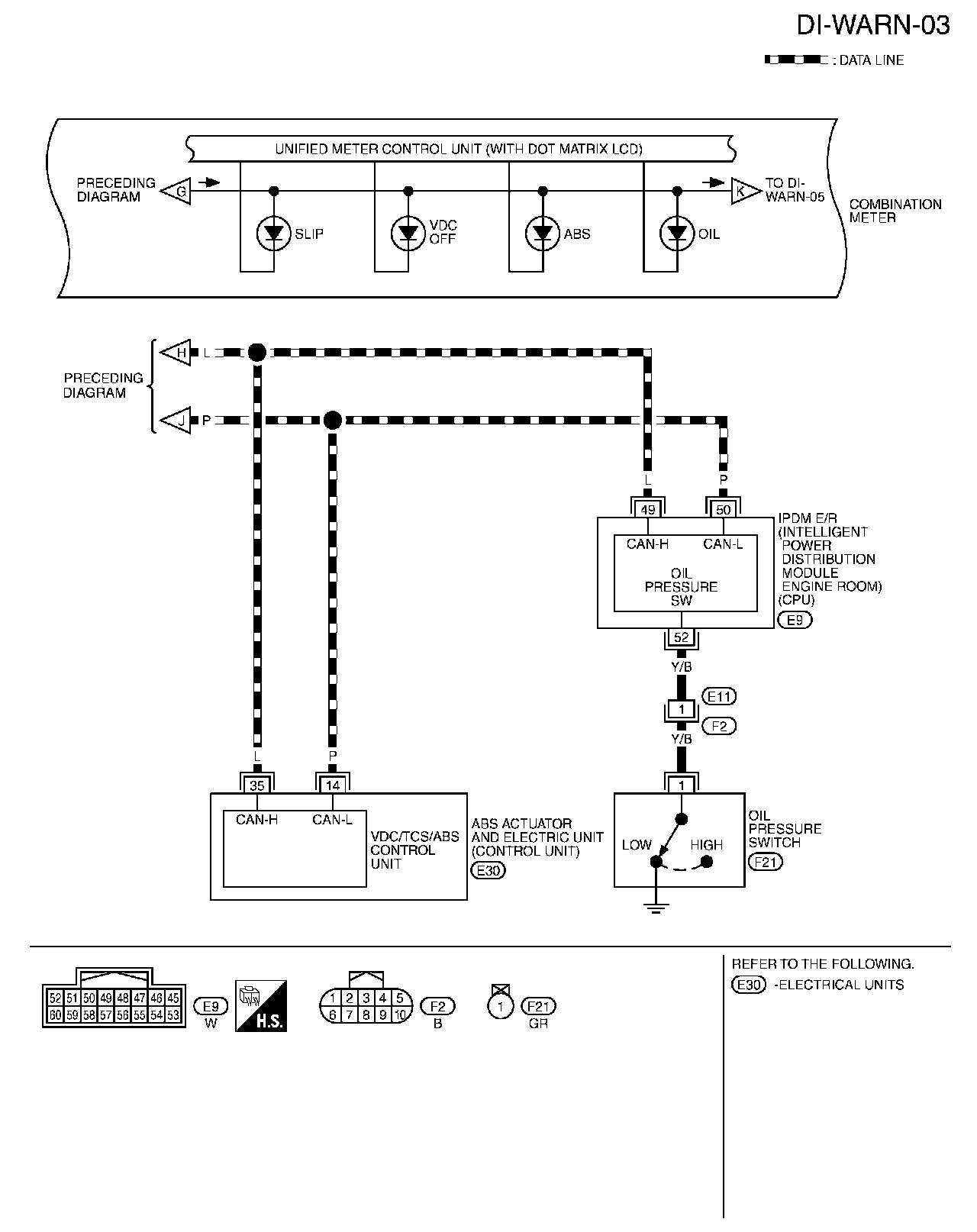

DI-WARN-03:

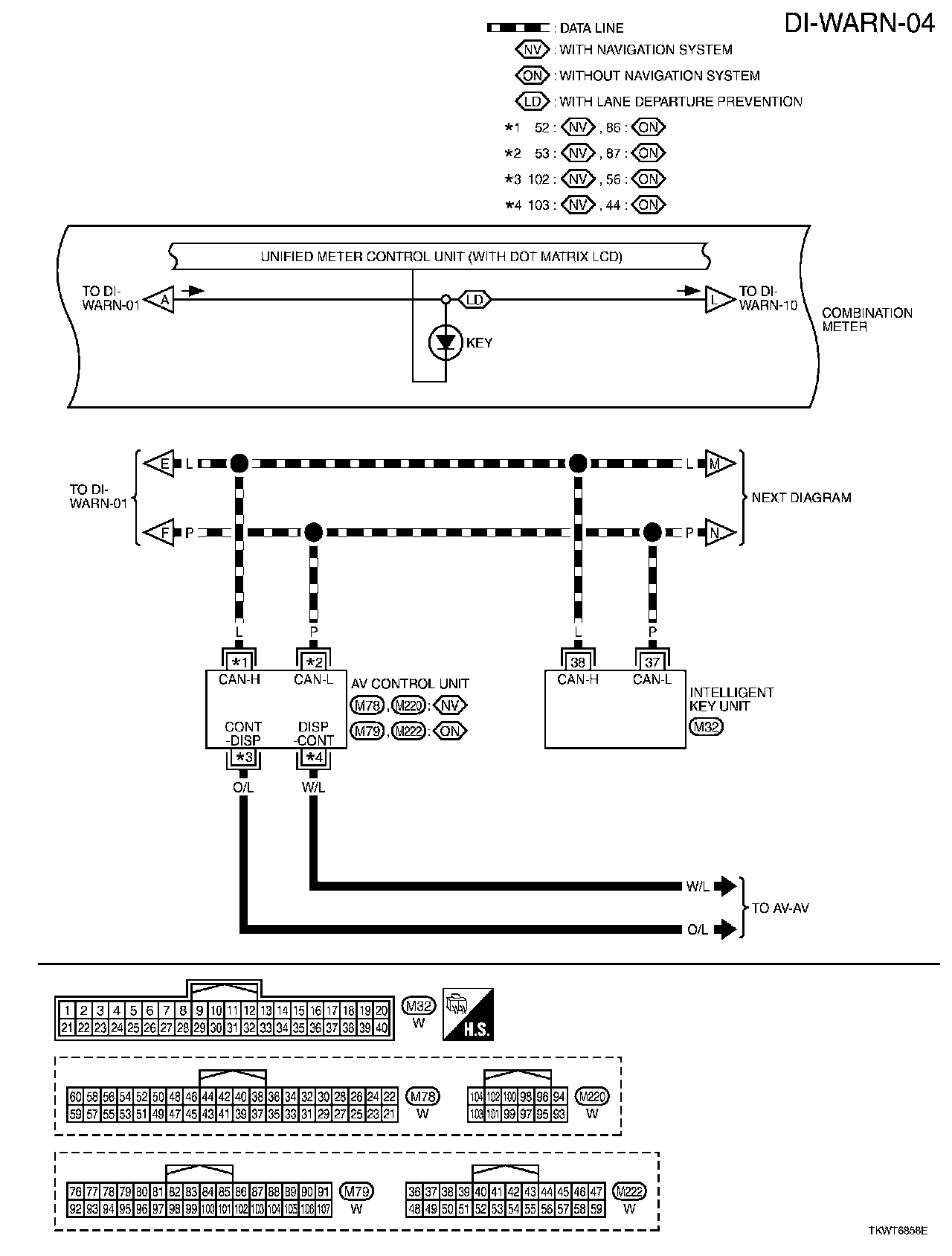

DI-WARN-04:

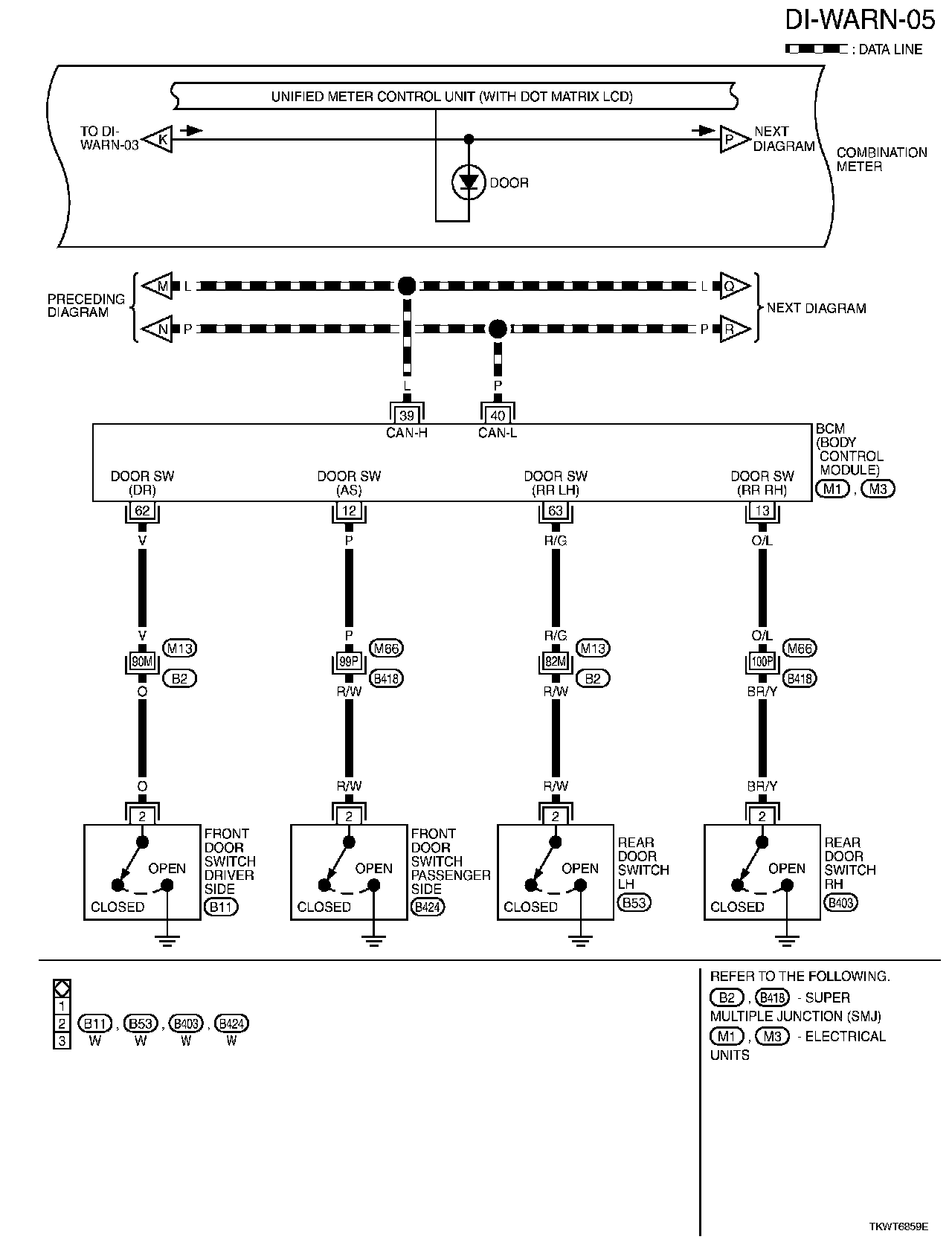

DI-WARN-05:

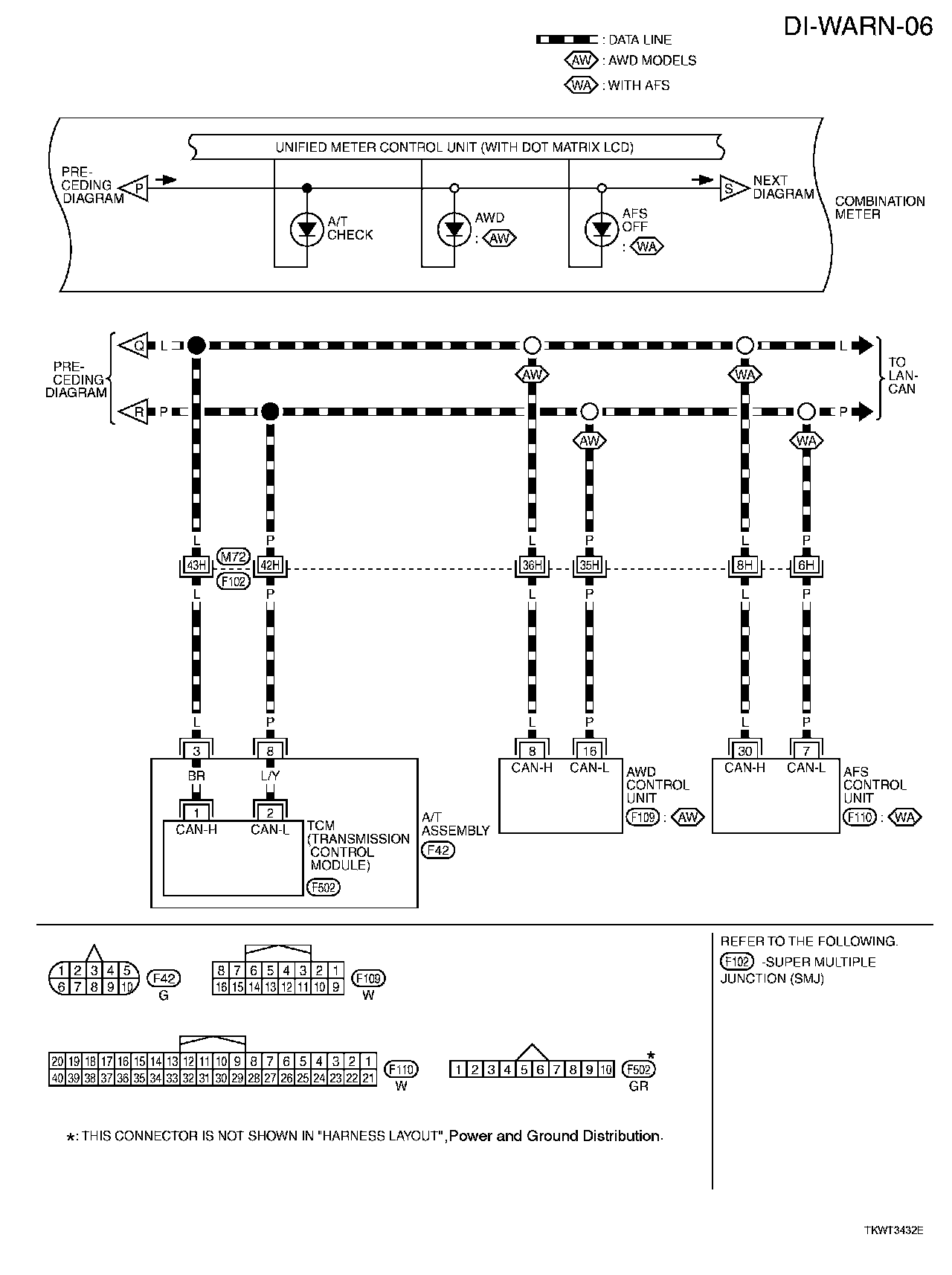

DI-WARN-06:

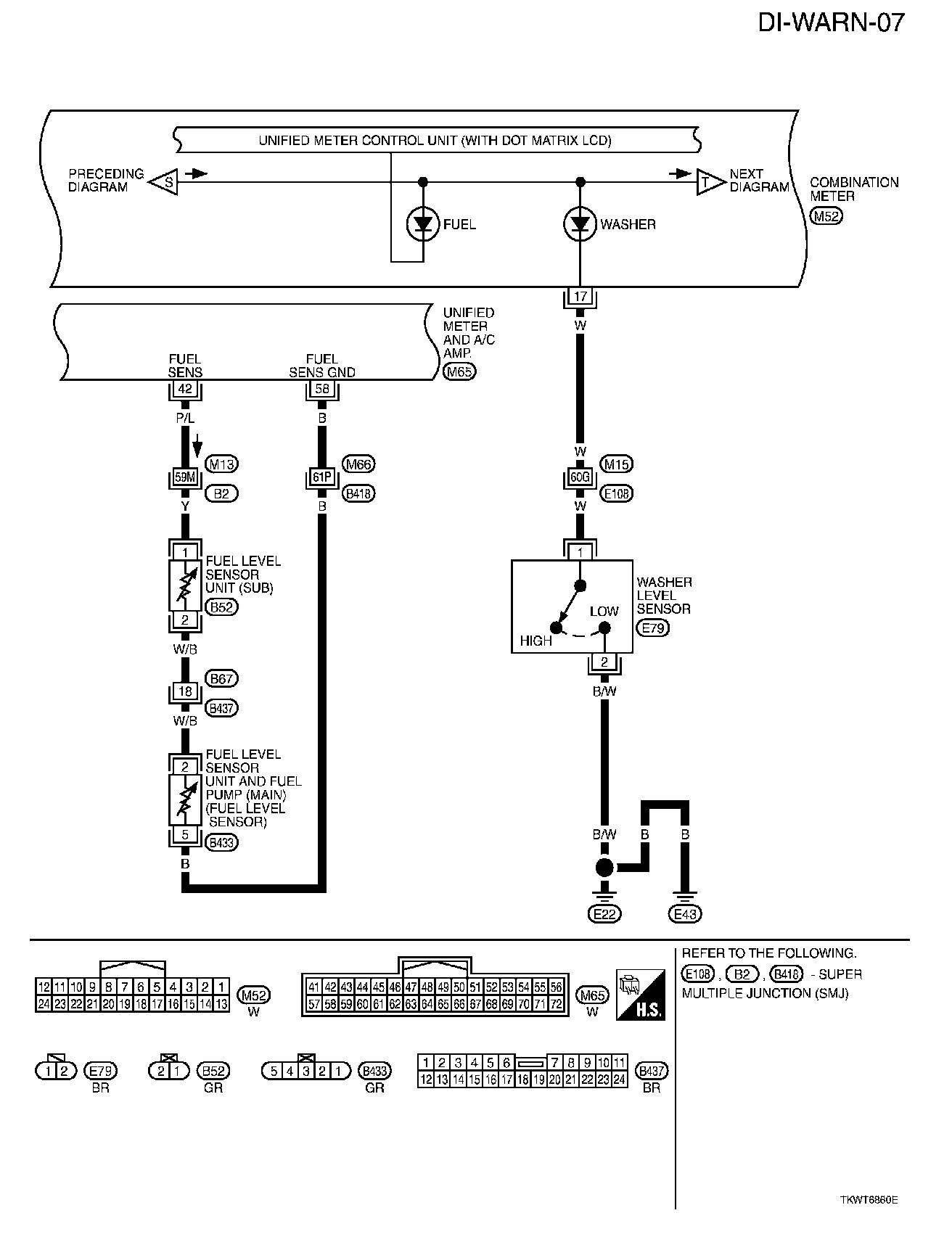

DI-WARN-07:

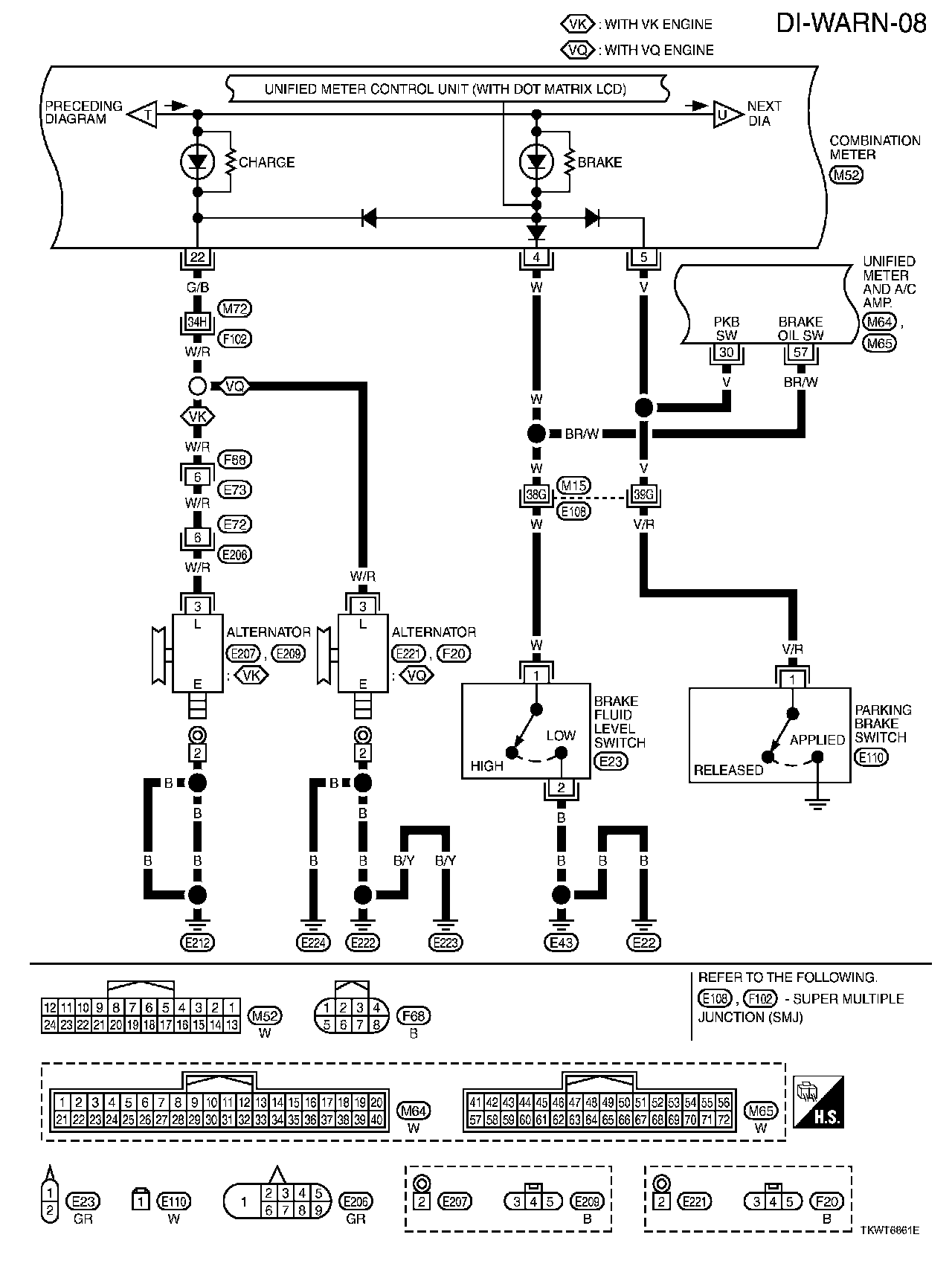

DI-WARN-08:

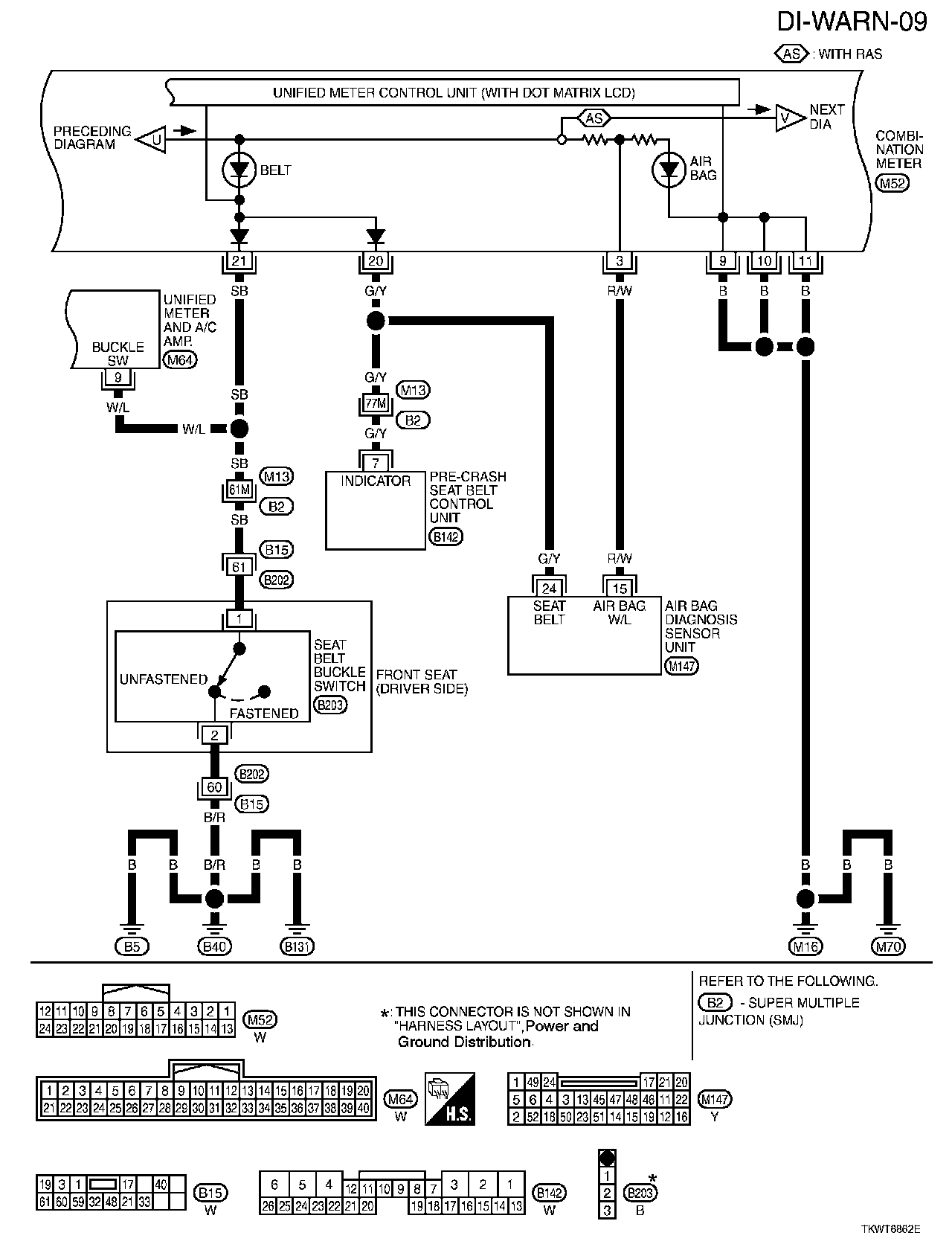

DI-WARN-09:

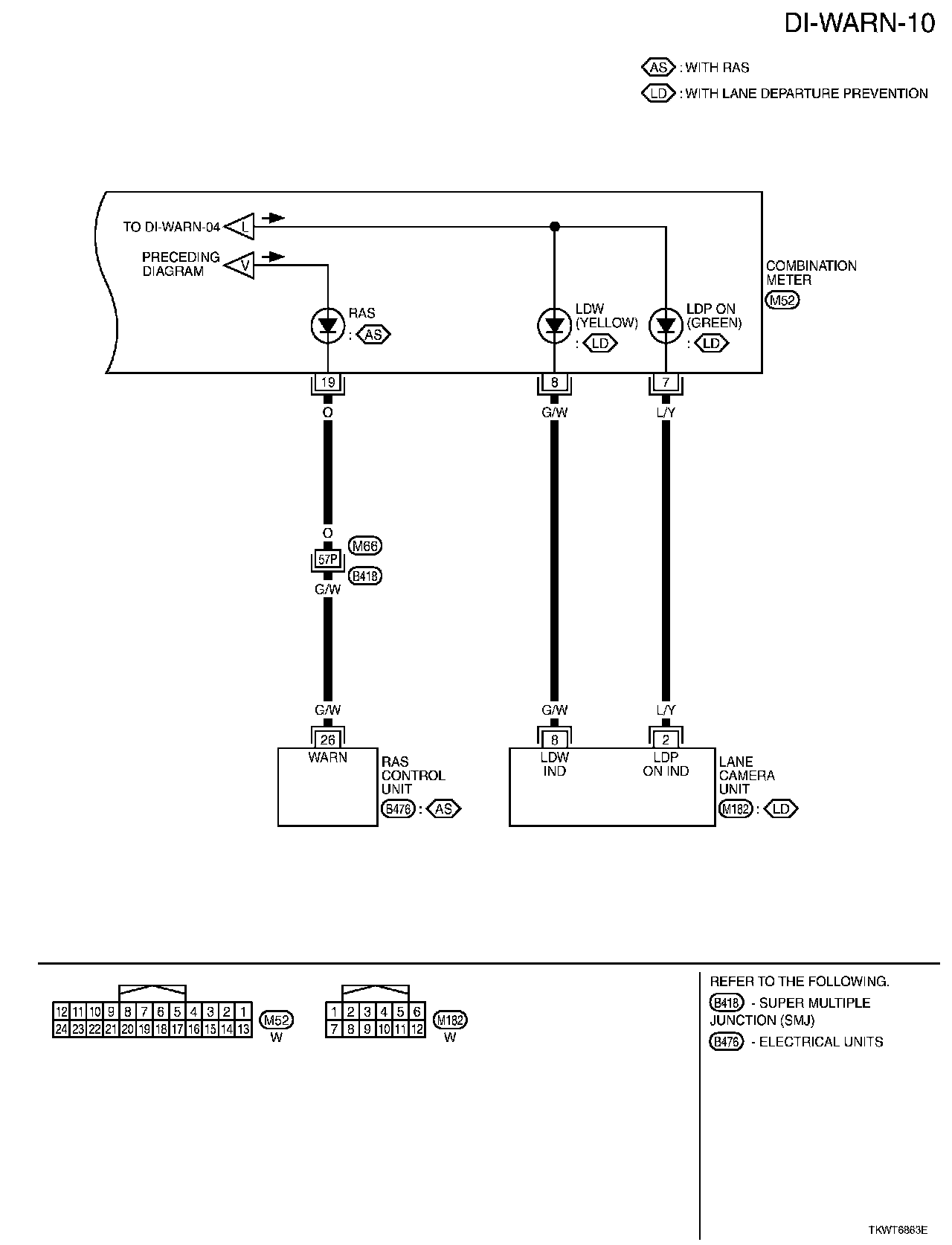

DI-WARN-10:
