LAN Diagrams (LAN System)
LAN Diagrams (LAN System)

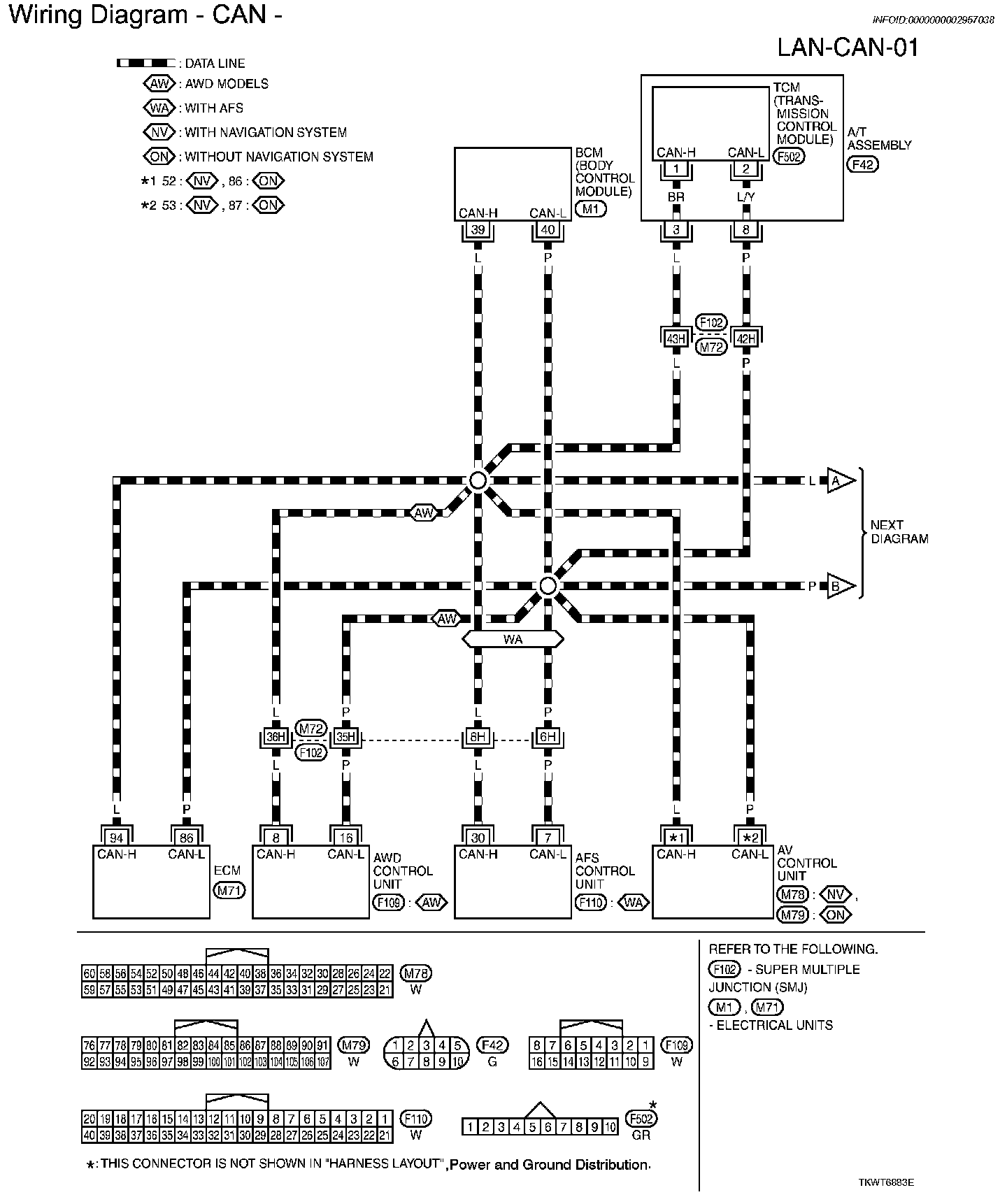

LAN-CAN-01:

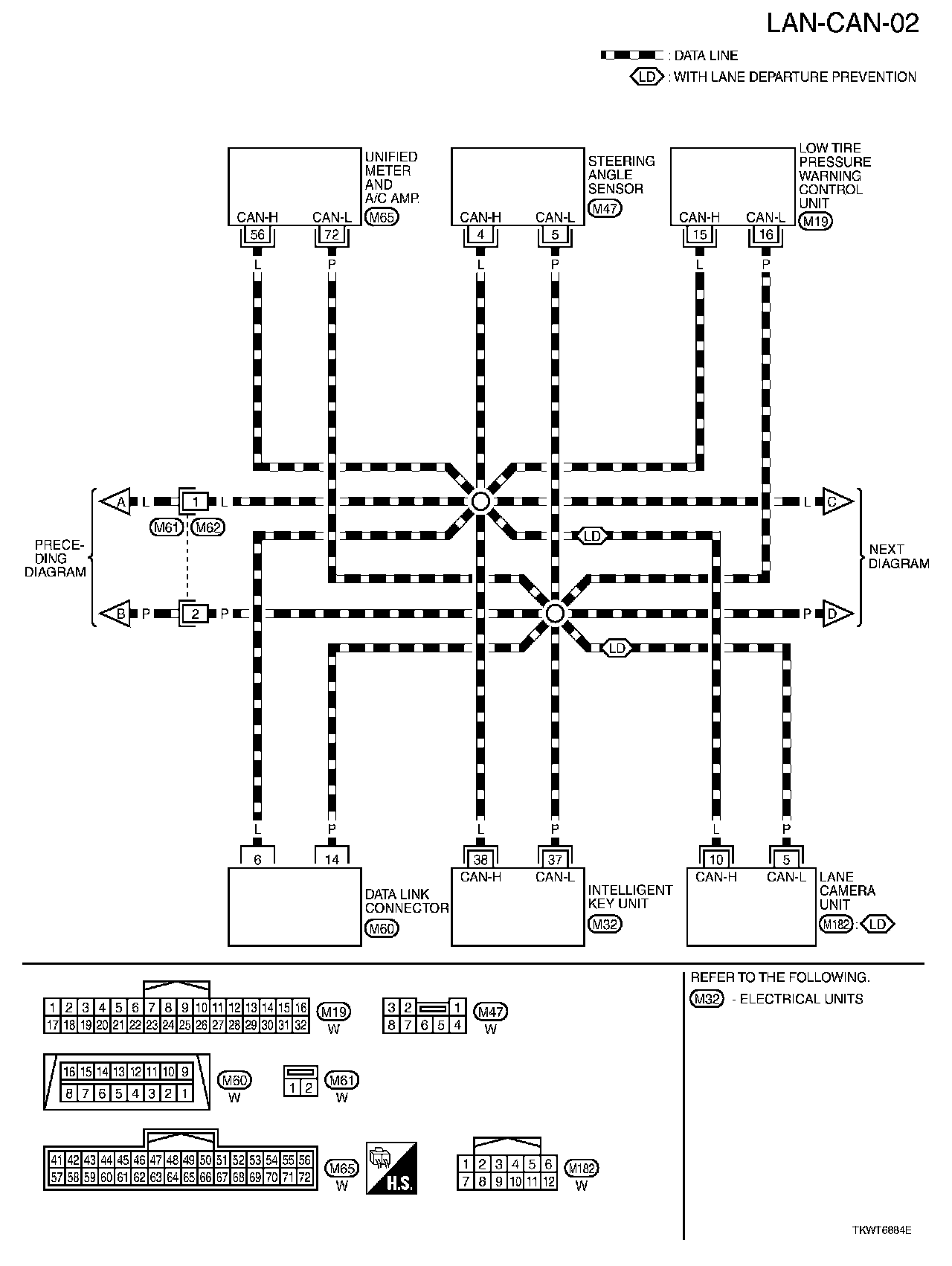

LAN-CAN-02:

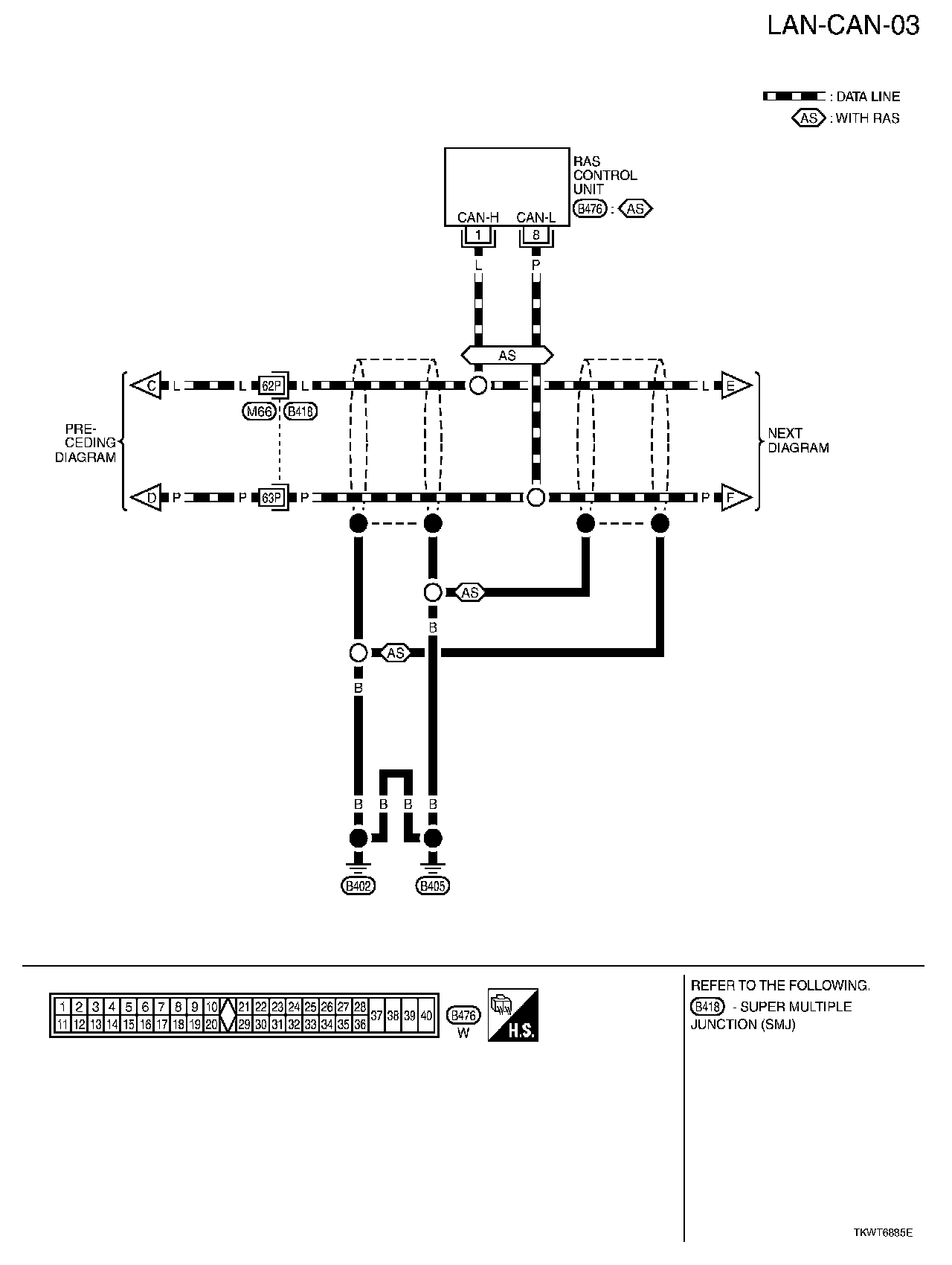

LAN-CAN-03:

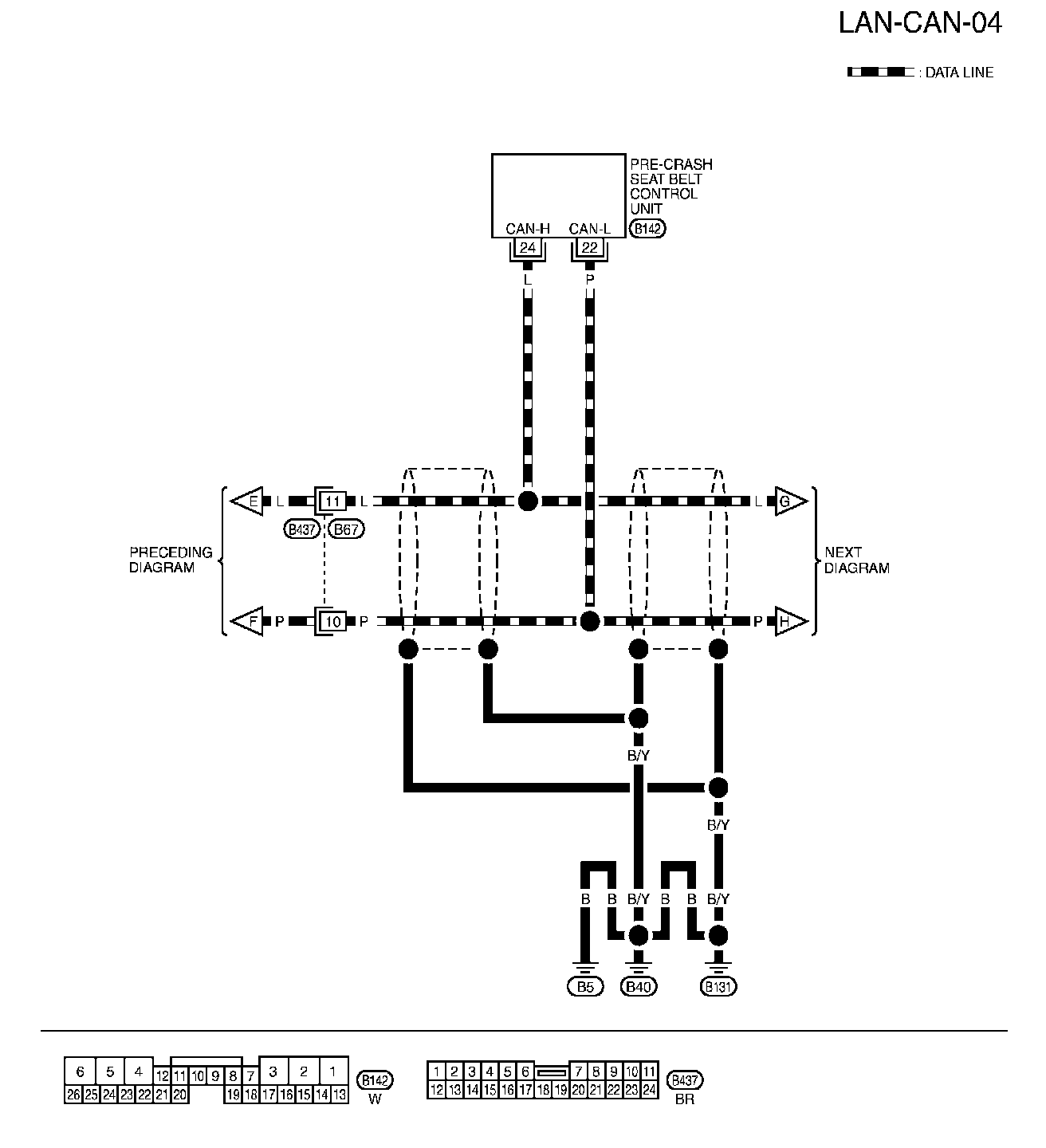

LAN-CAN-04:

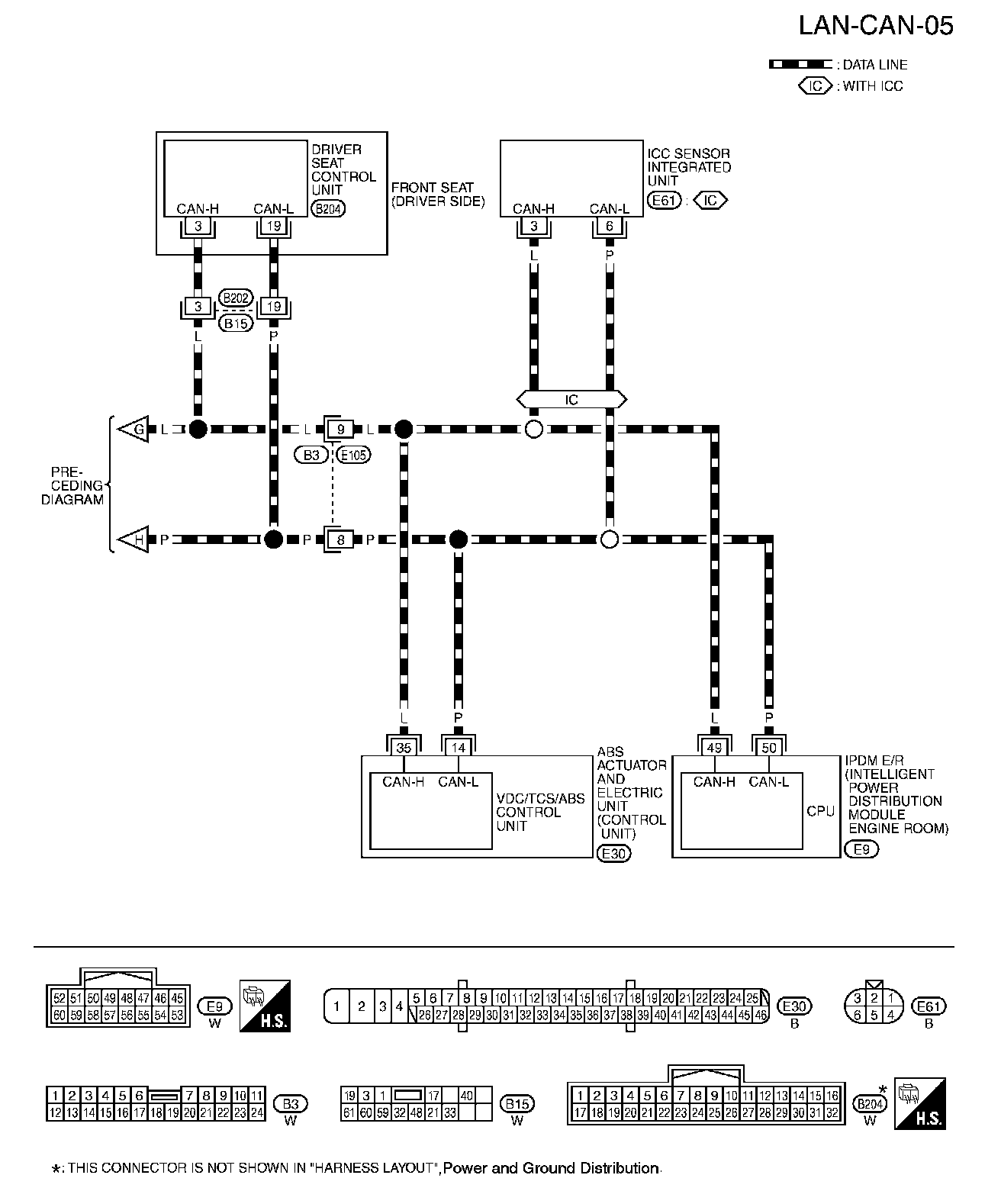

LAN-CAN-05:
