SRS-SRS

Wiring Diagram - SRS -

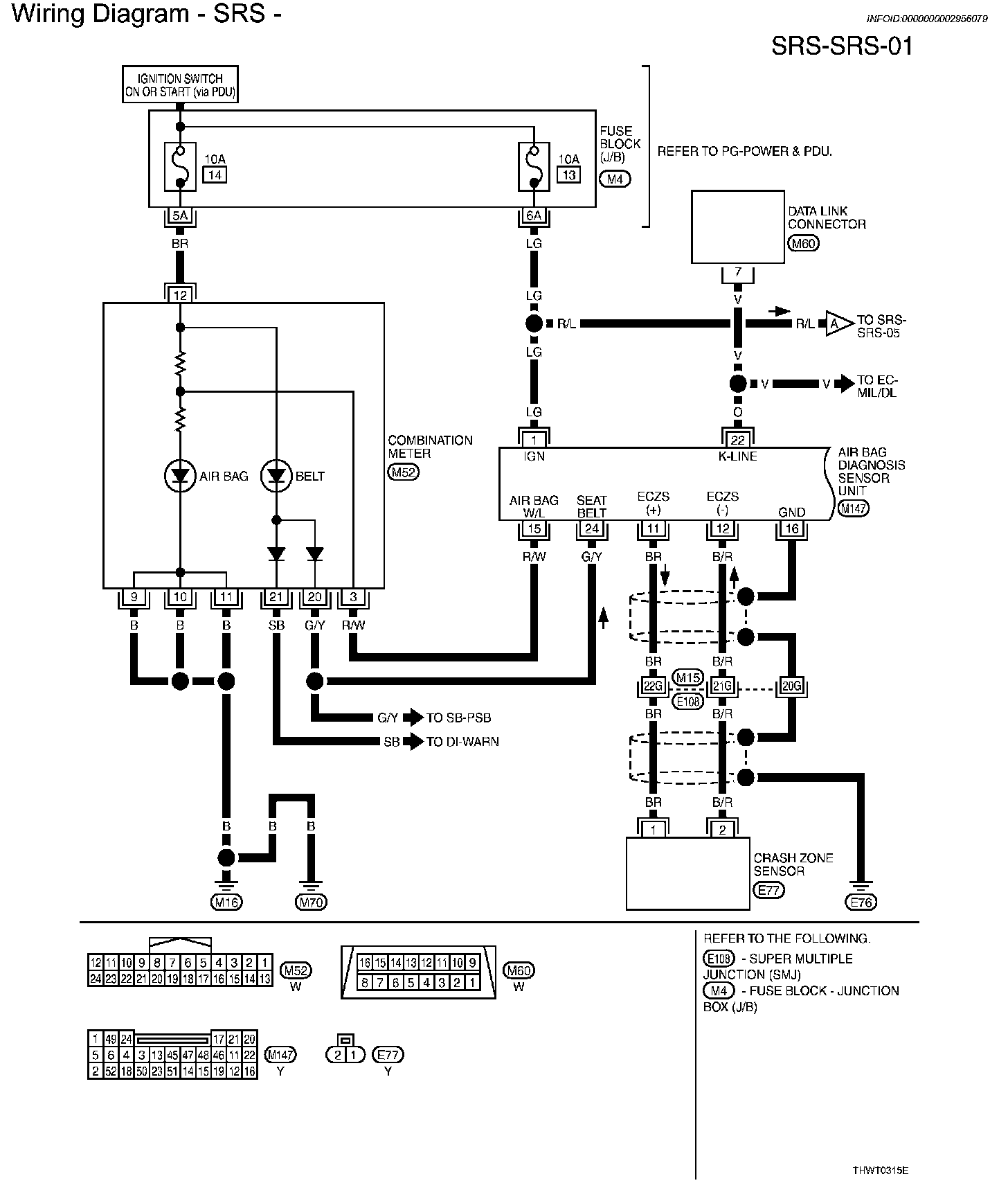

SRS-SRS-01:

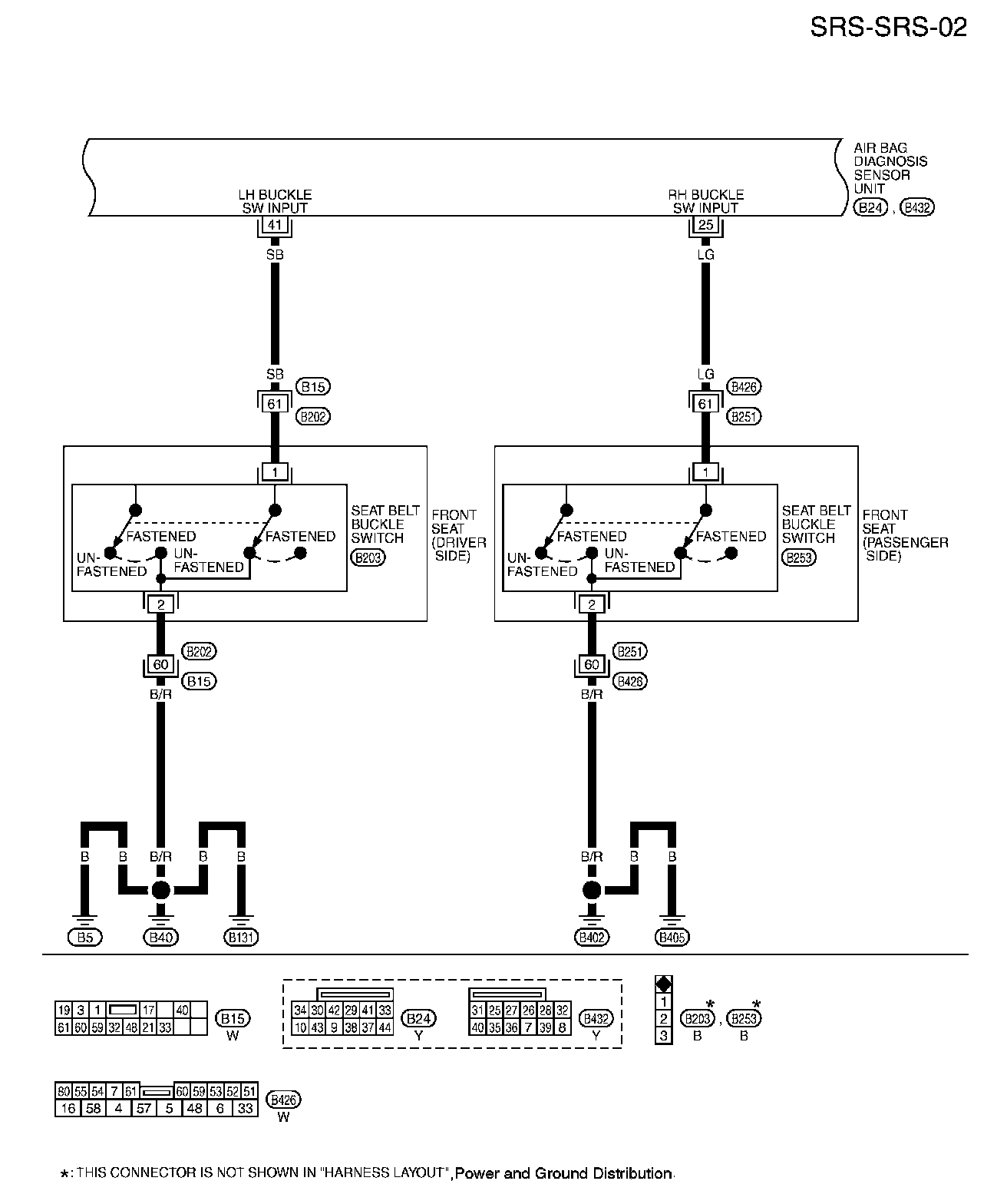

SRS-SRS-02:

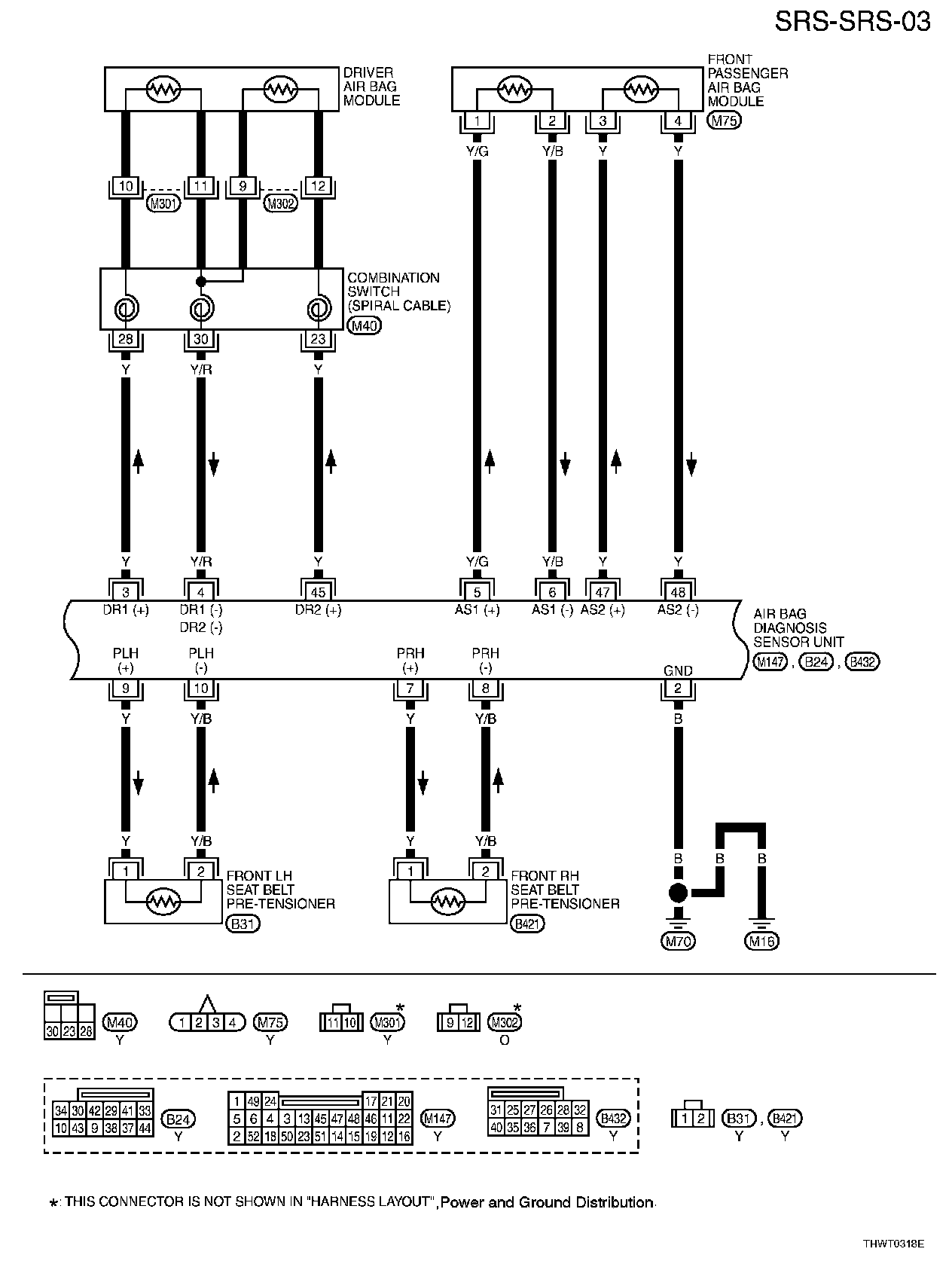

SRS-SRS-03:

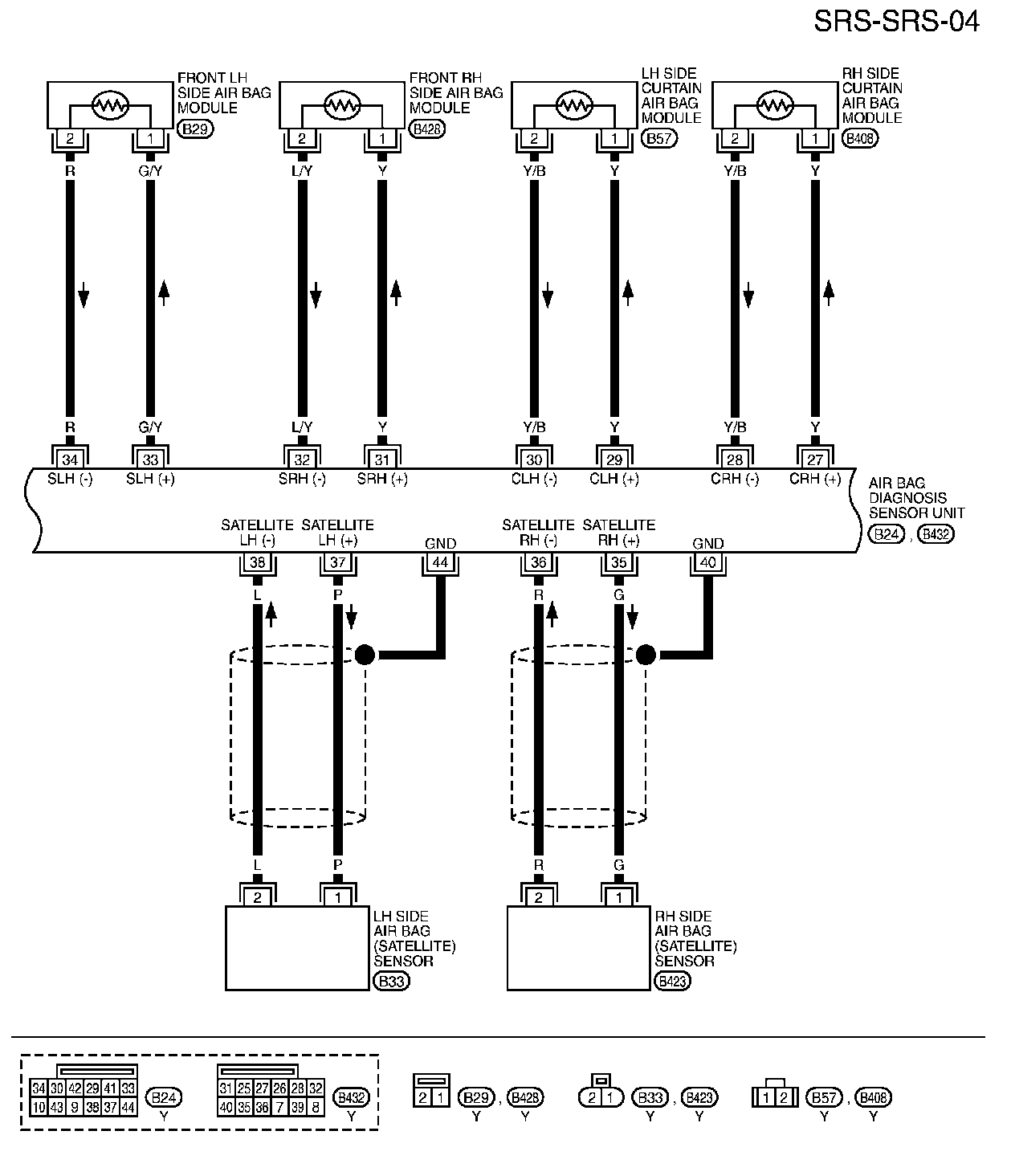

SRS-SRS-04:

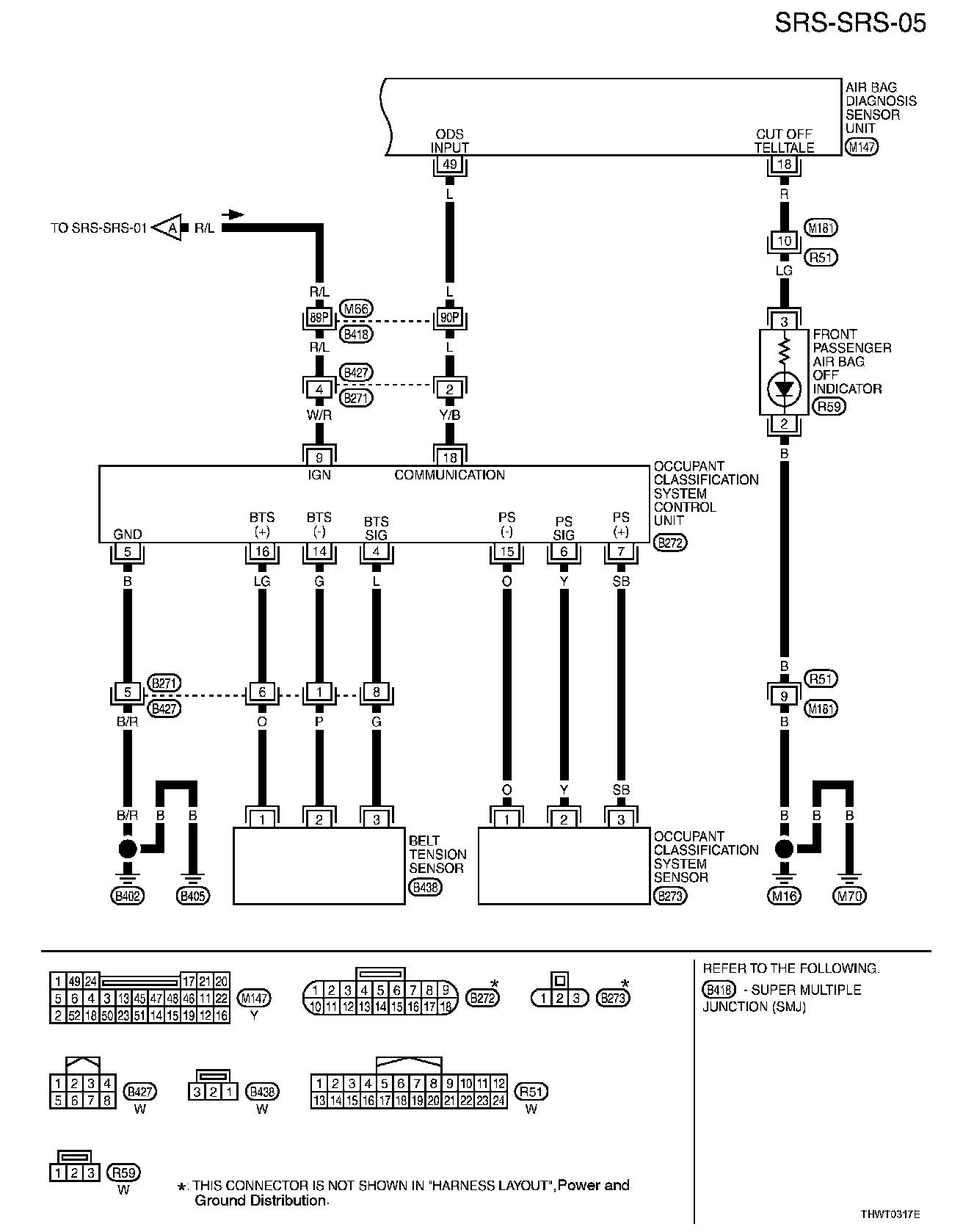

SRS-SRS-05:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
