Brake Lamp
STOP LAMPWiring Diagram - STOP LAMP -

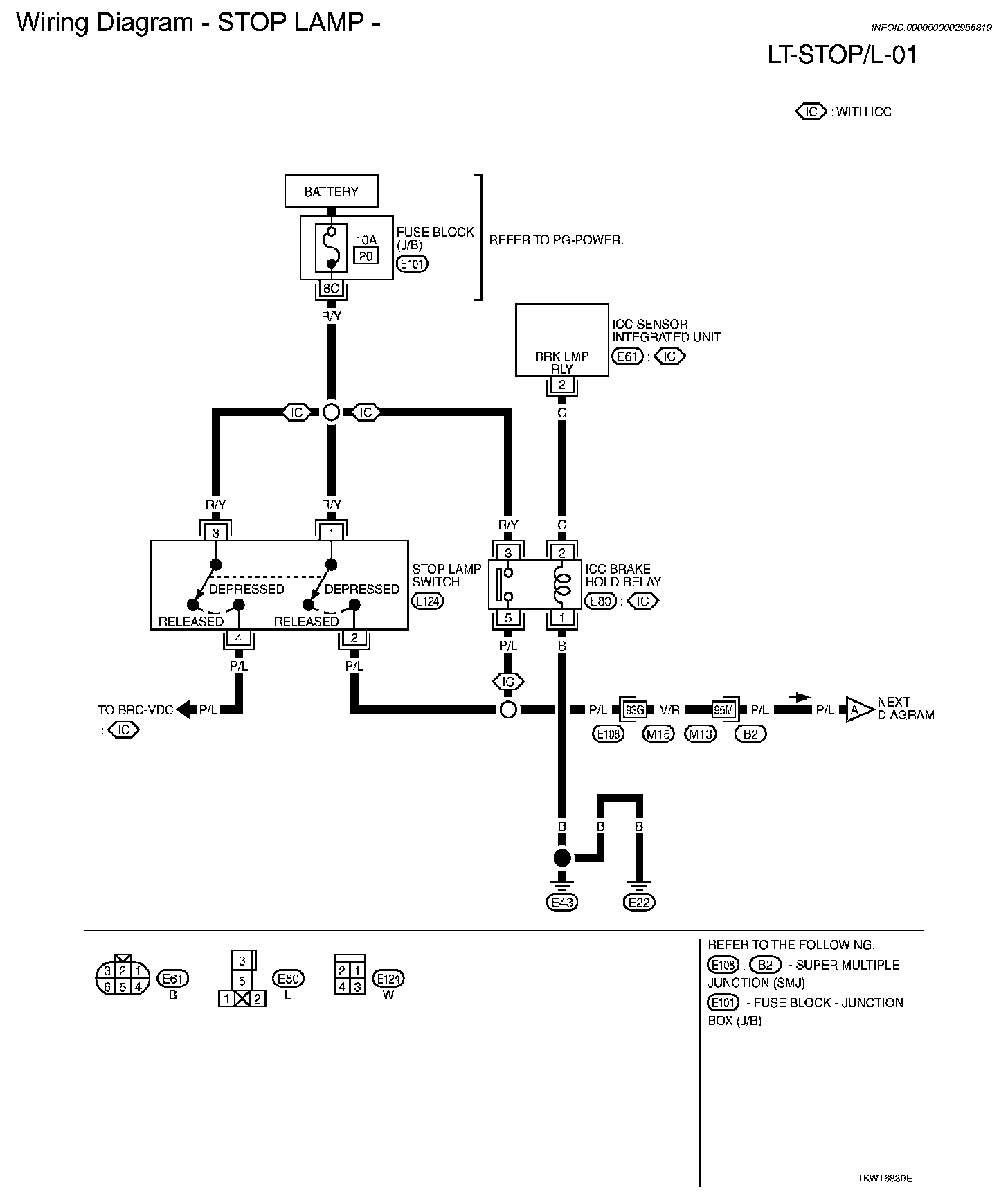

LT-STOP/L-01:

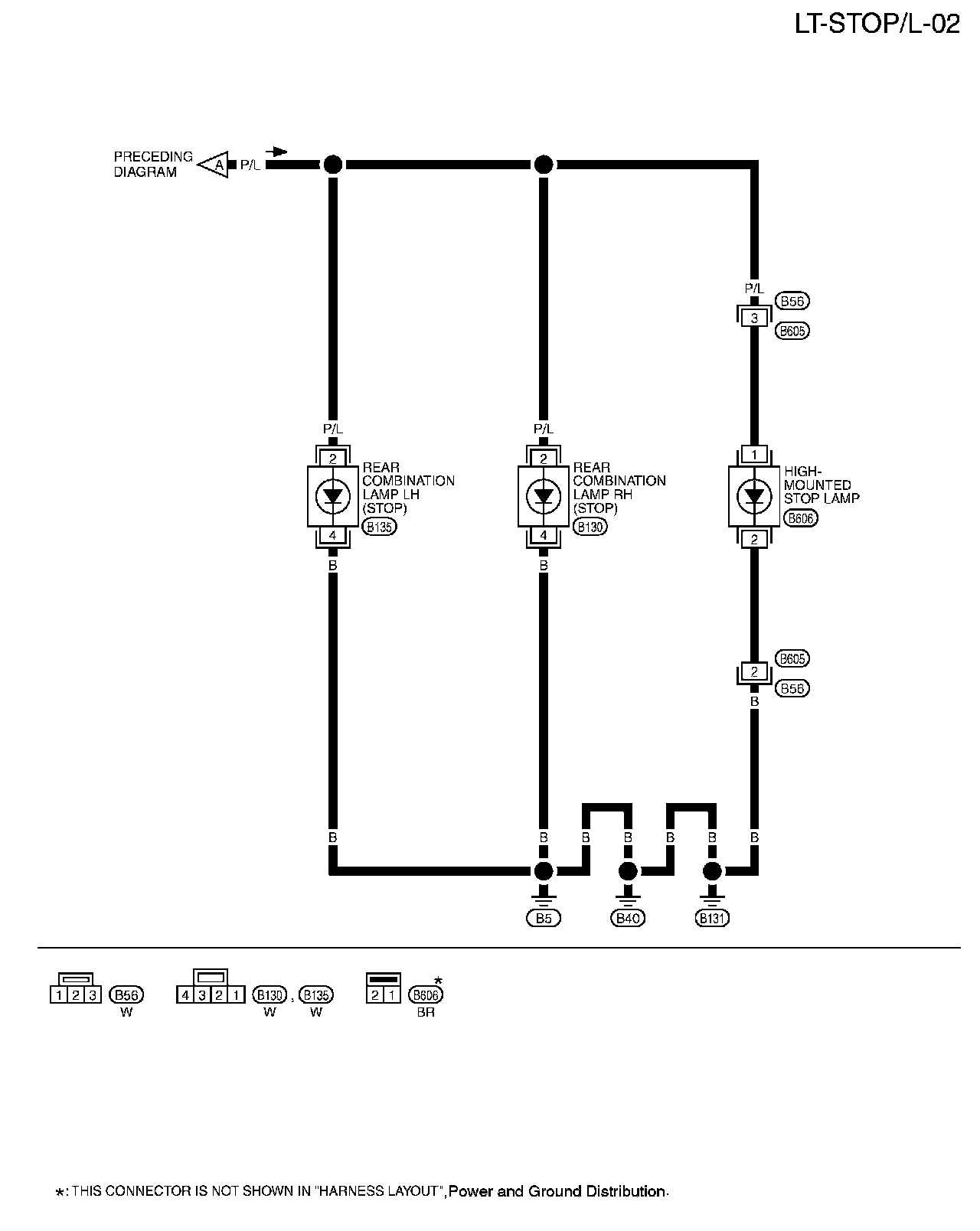

LT-STOP/L-02:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Wiring Diagram - STOP LAMP -
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
