ACS-ICC
WIRING DIAGRAMWiring Diagram - ICC-

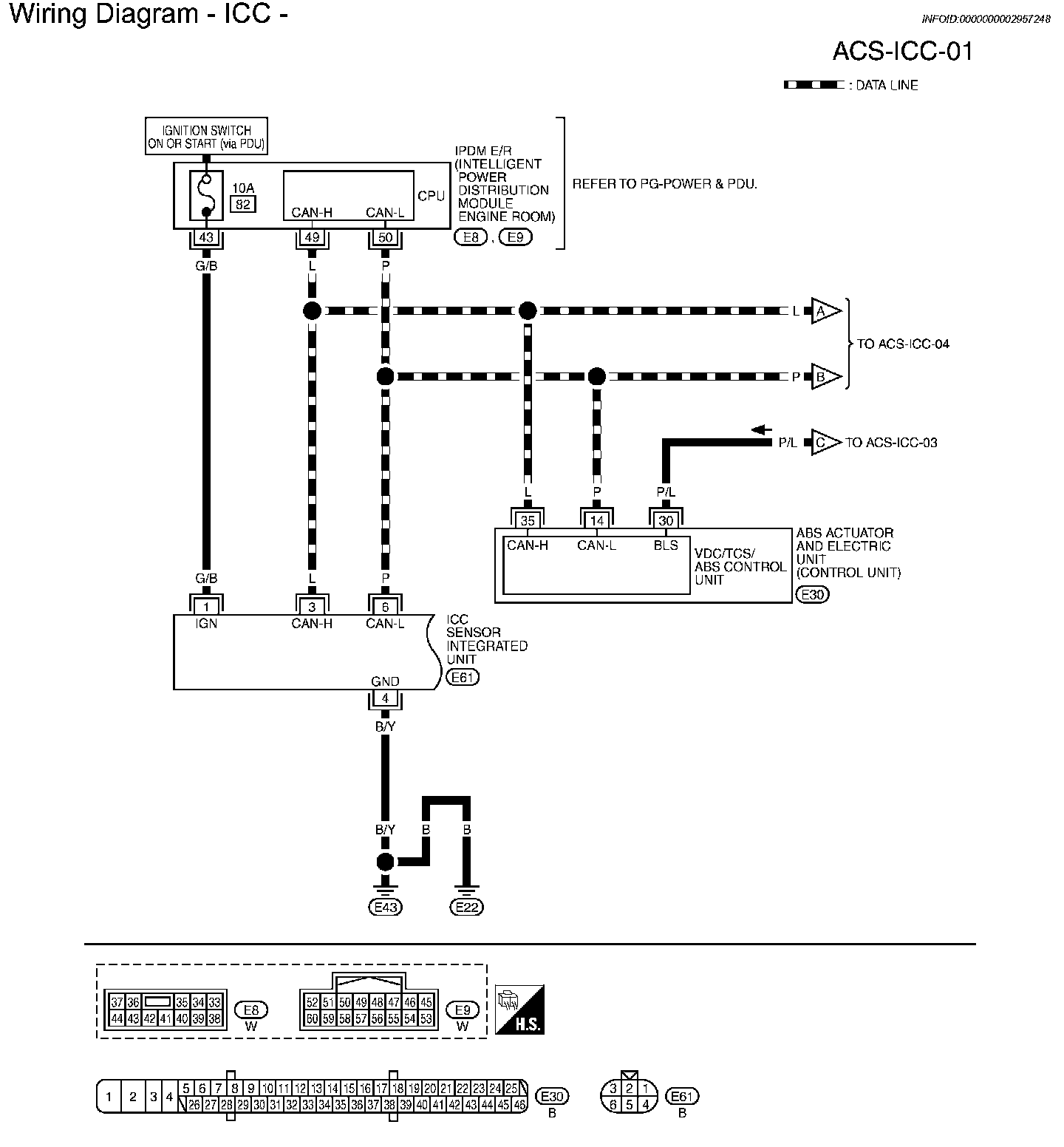

ACS-ICC-01:

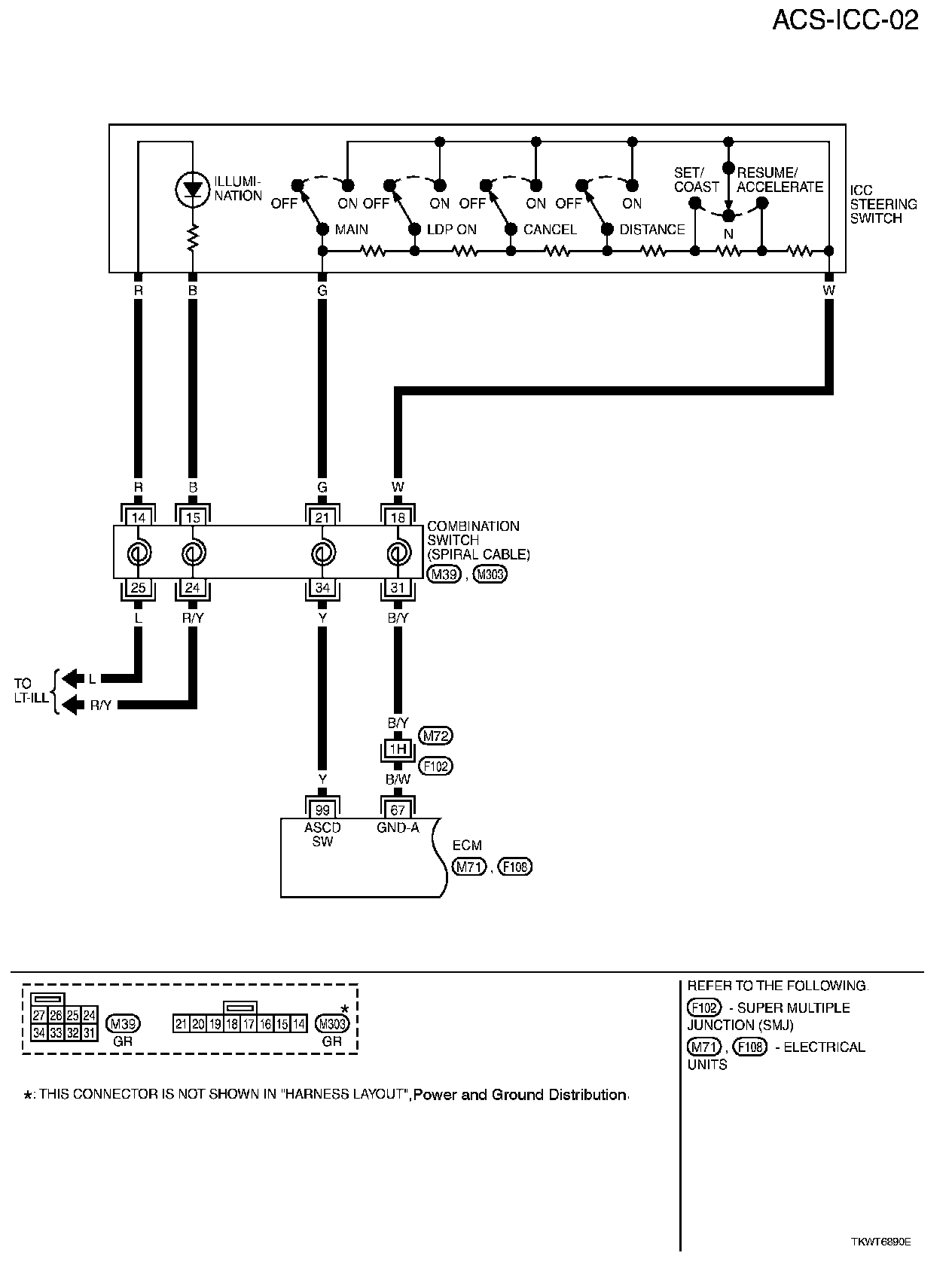

ACS-ICC-02:

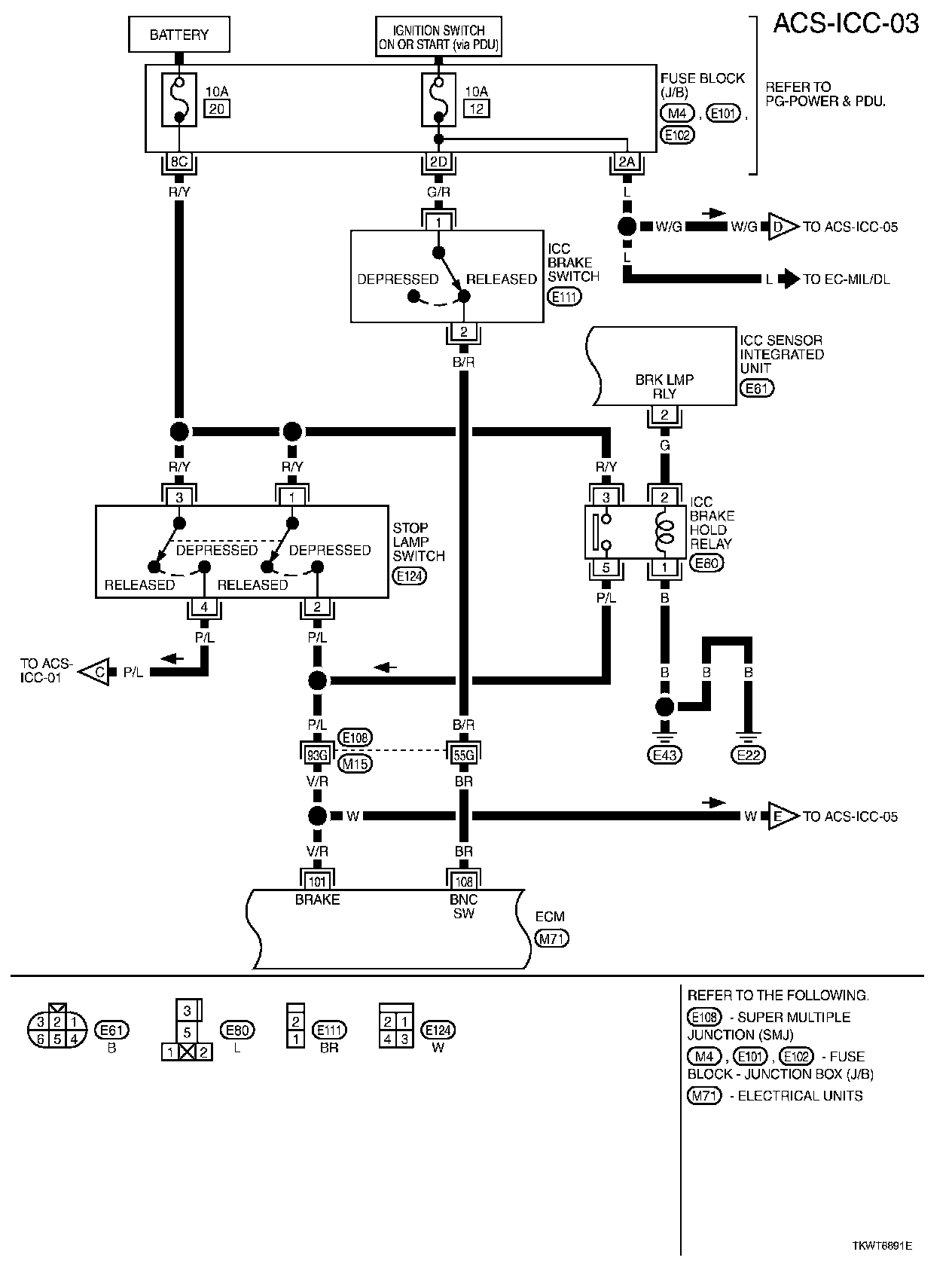

ACS-ICC-03:

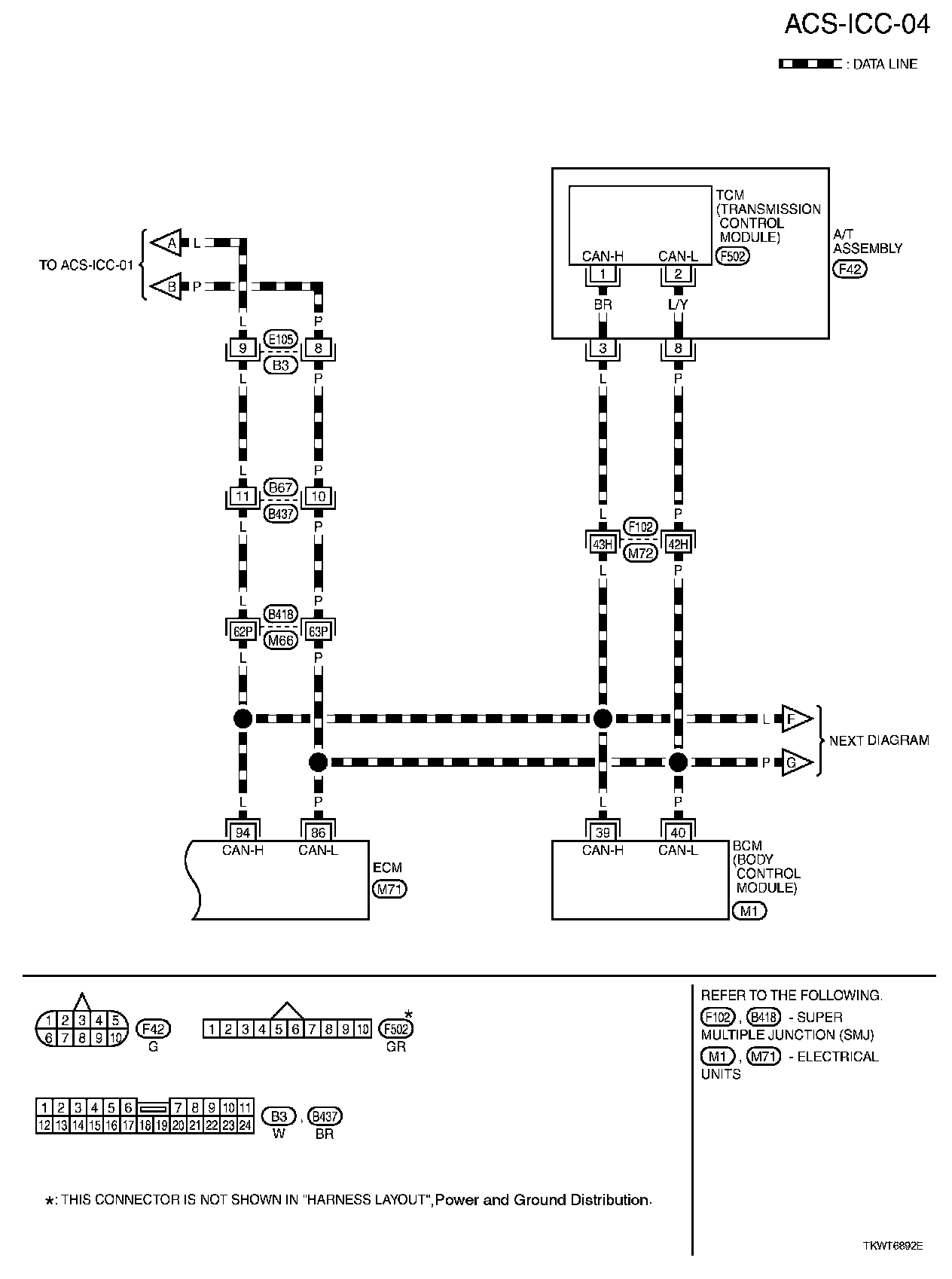

ACS-ICC-04:

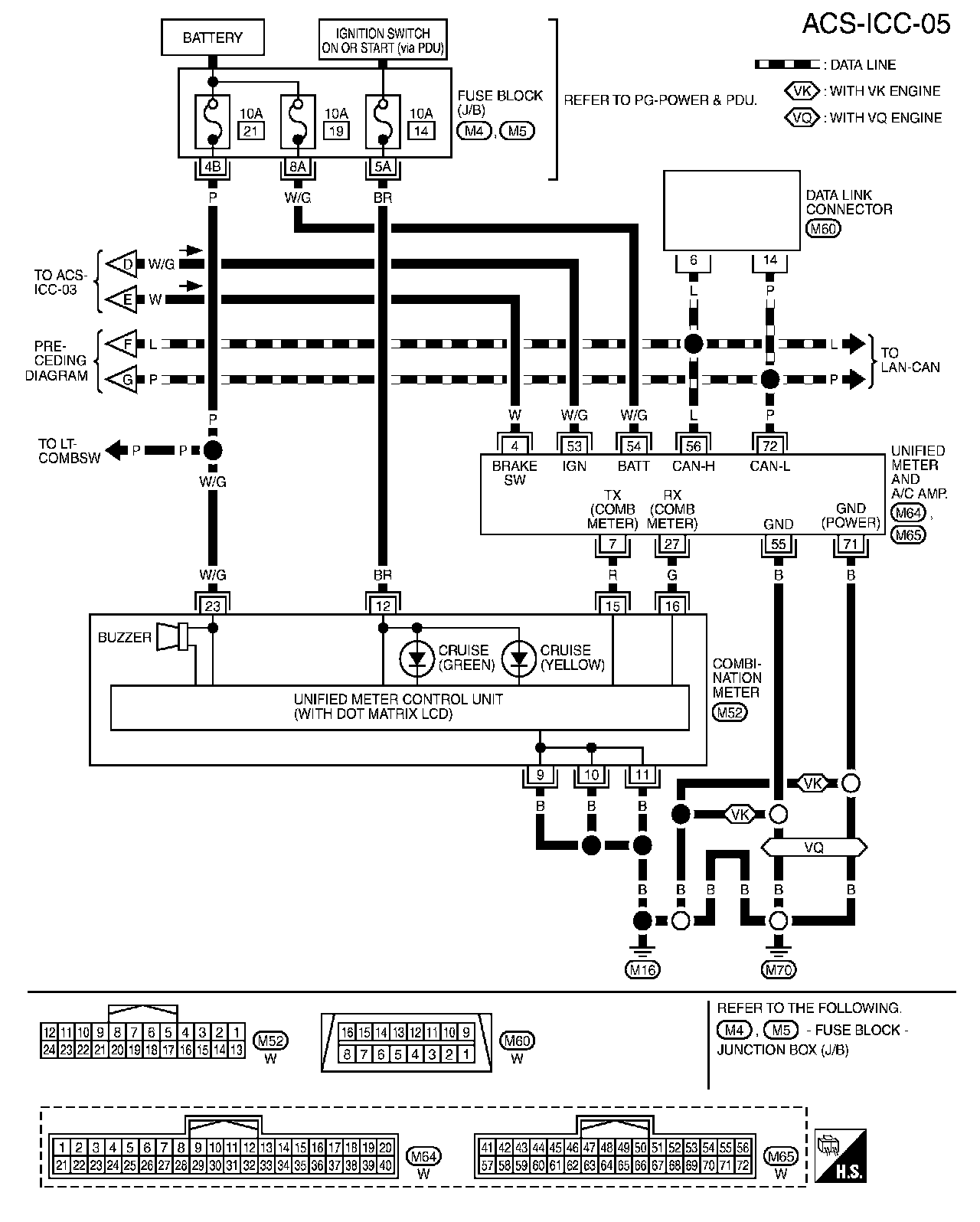

ACS-ICC-05:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagrams By Diagram. Diagrams By Diagram Name
Wiring Diagram - ICC-
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagrams By Diagram. Diagrams By Diagram Name
