Hazard Warning Lamps

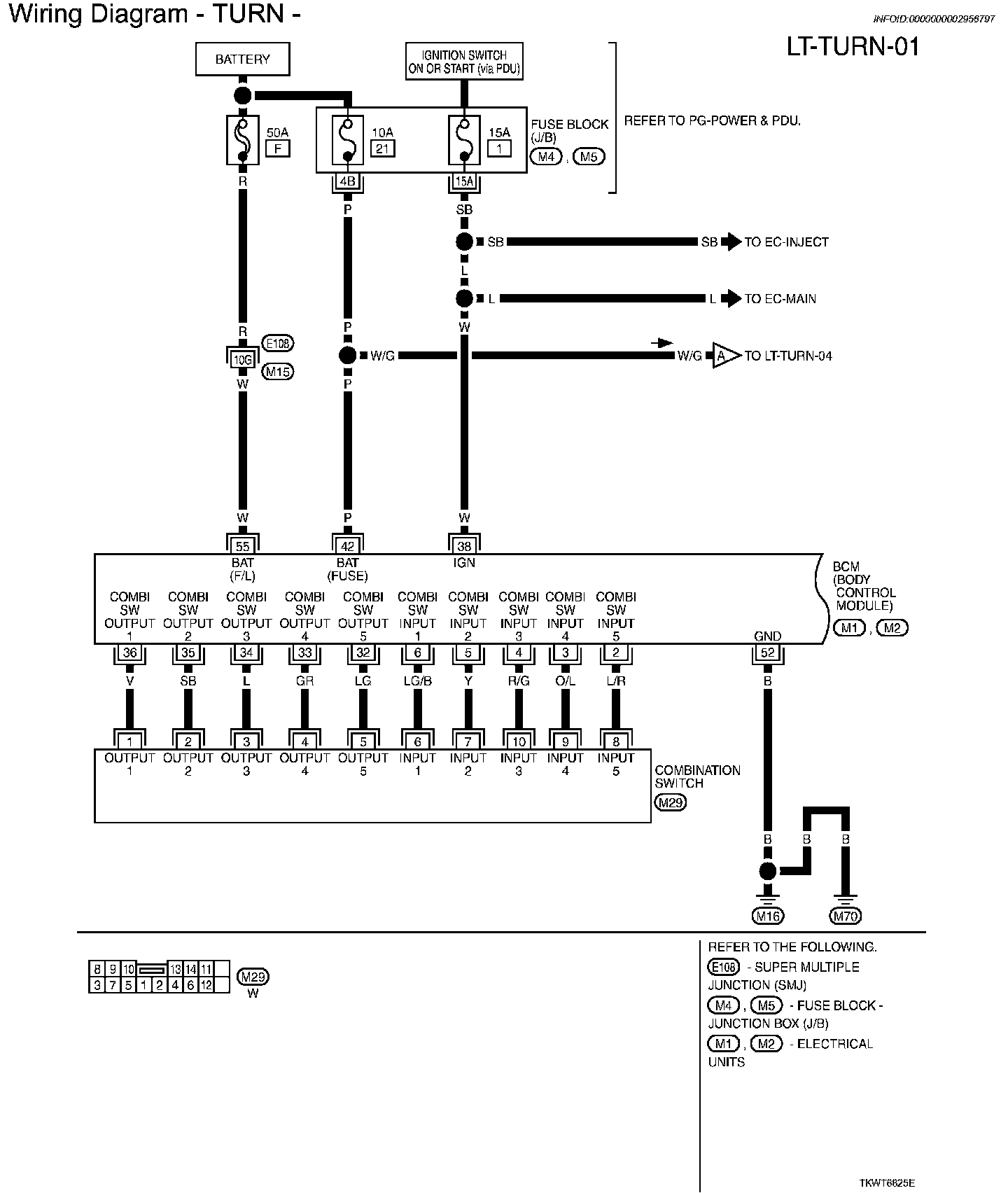

Wiring Diagram - TURN -LT-TURN-01:

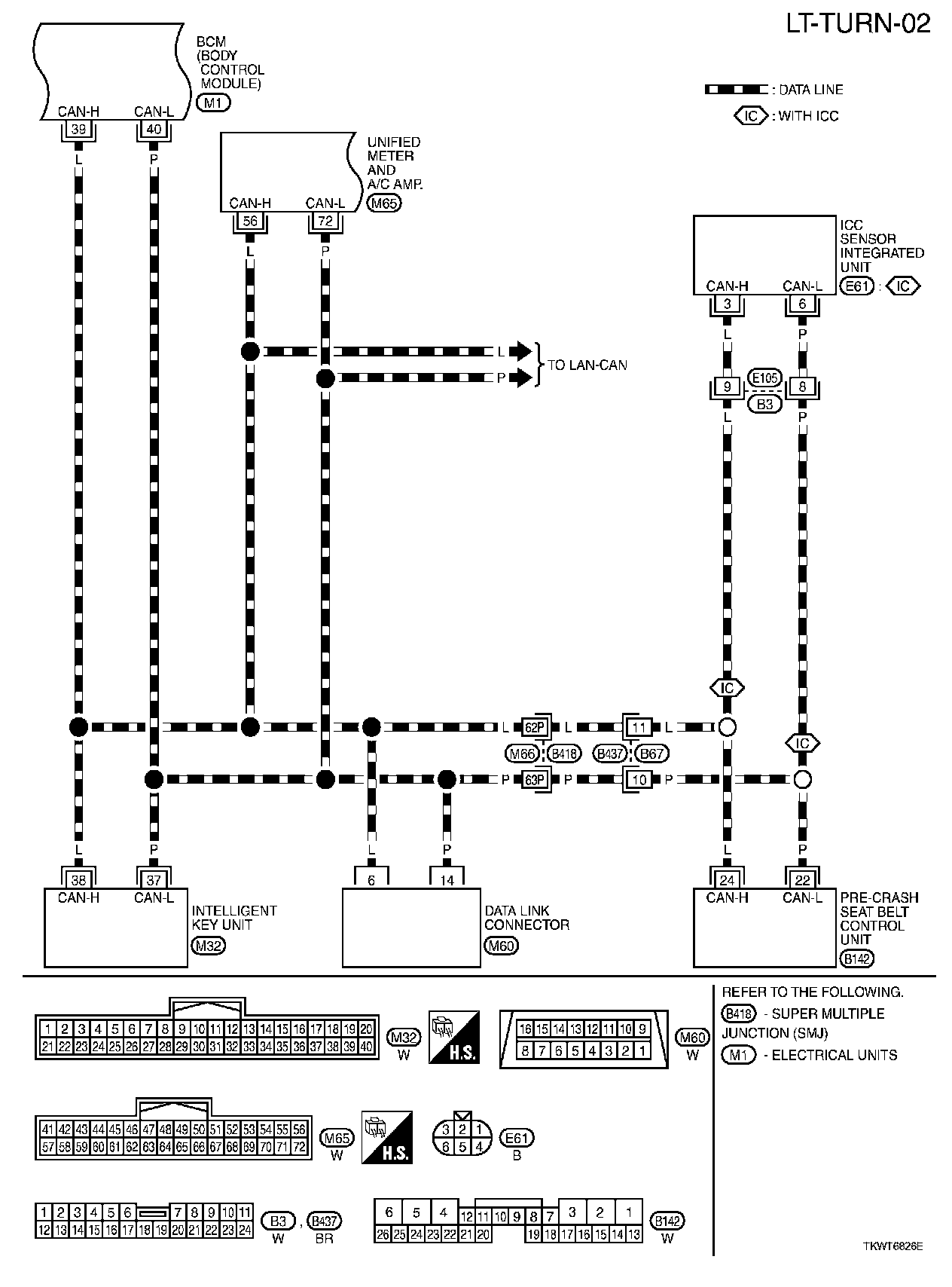

LT-TURN-02:

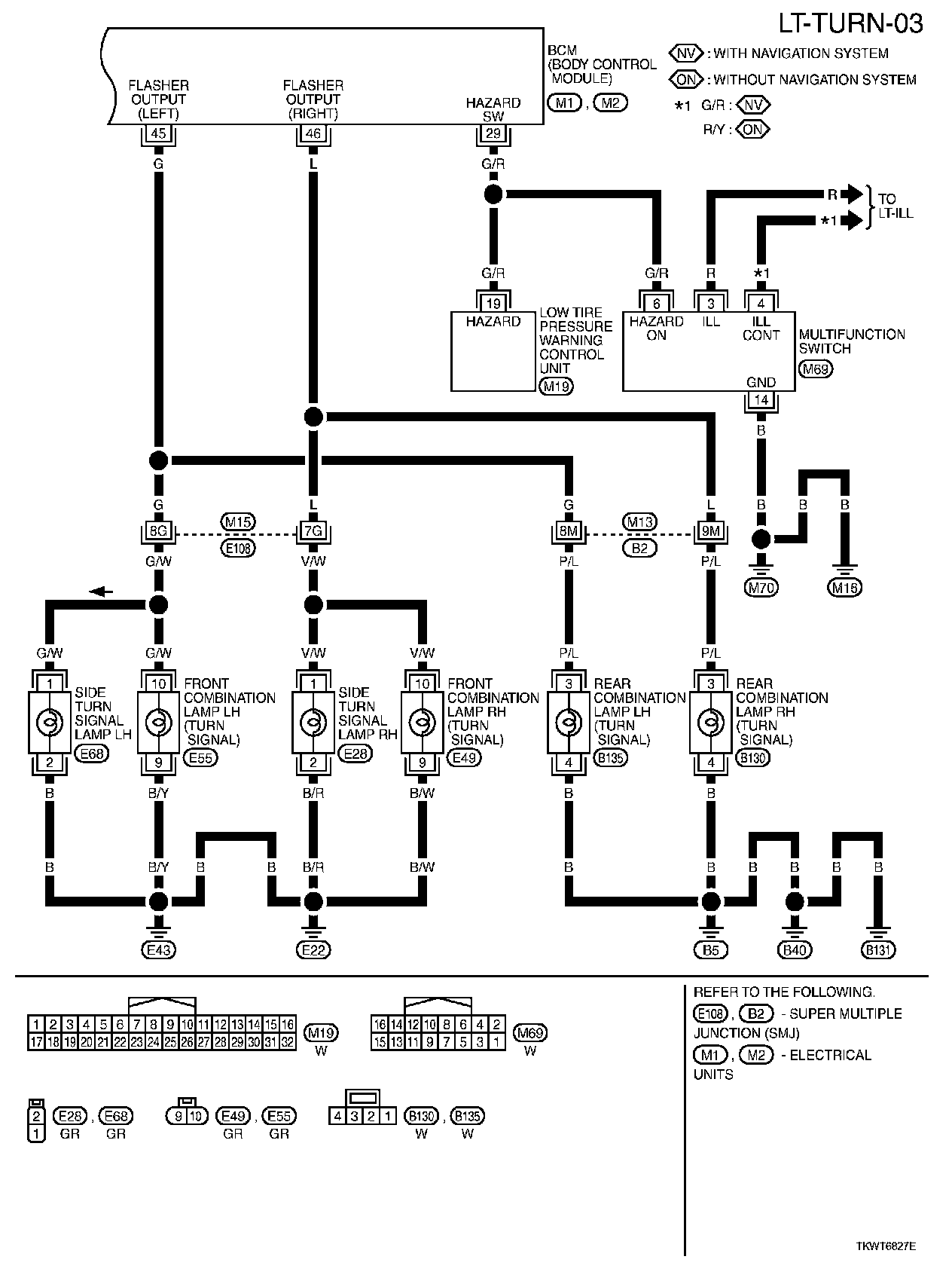

LT-TURN-03:

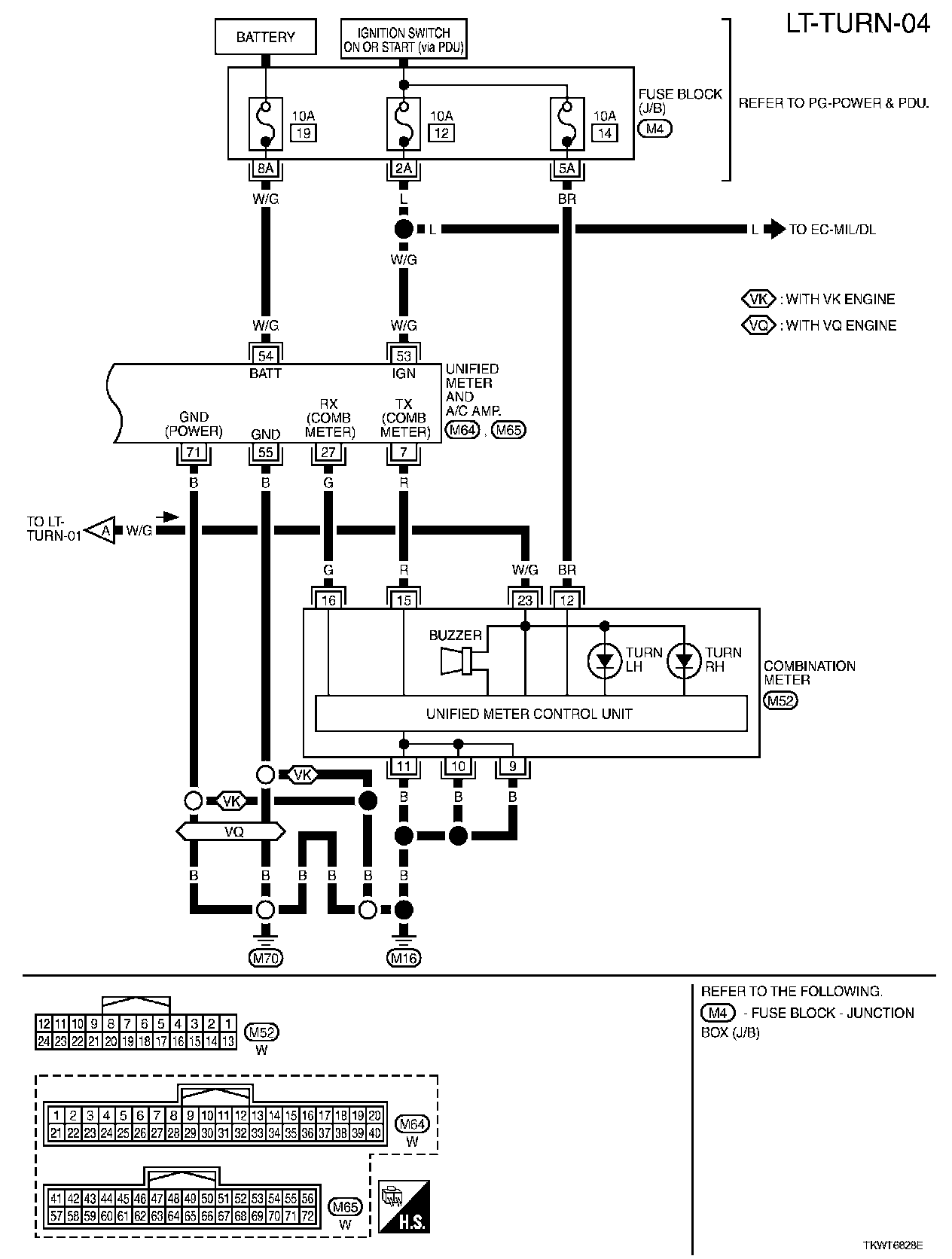

LT-TURN-04:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
