Headlamp Alignment Control Module

Wiring Diagram - AFS -

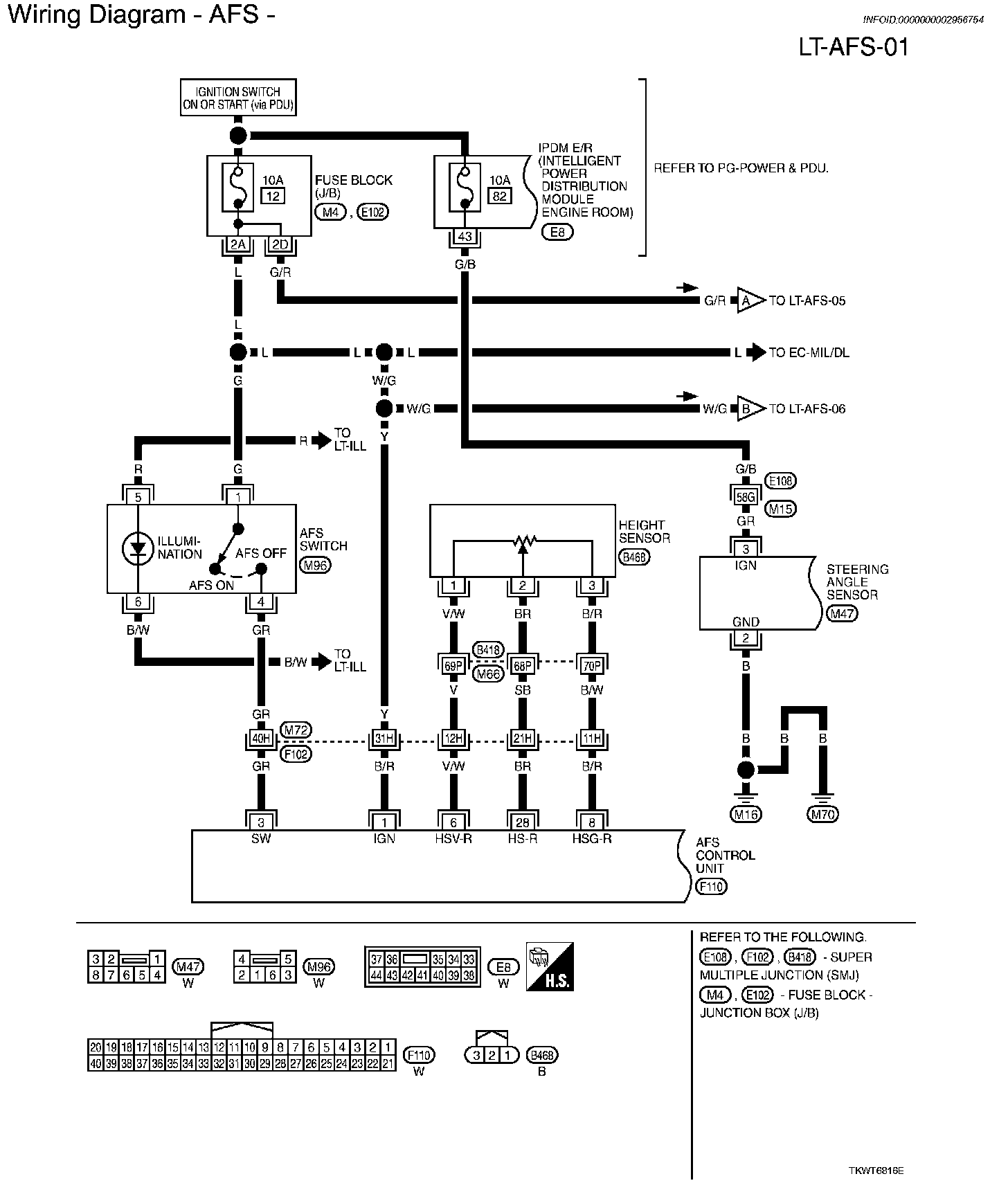

LT-AFS-01:

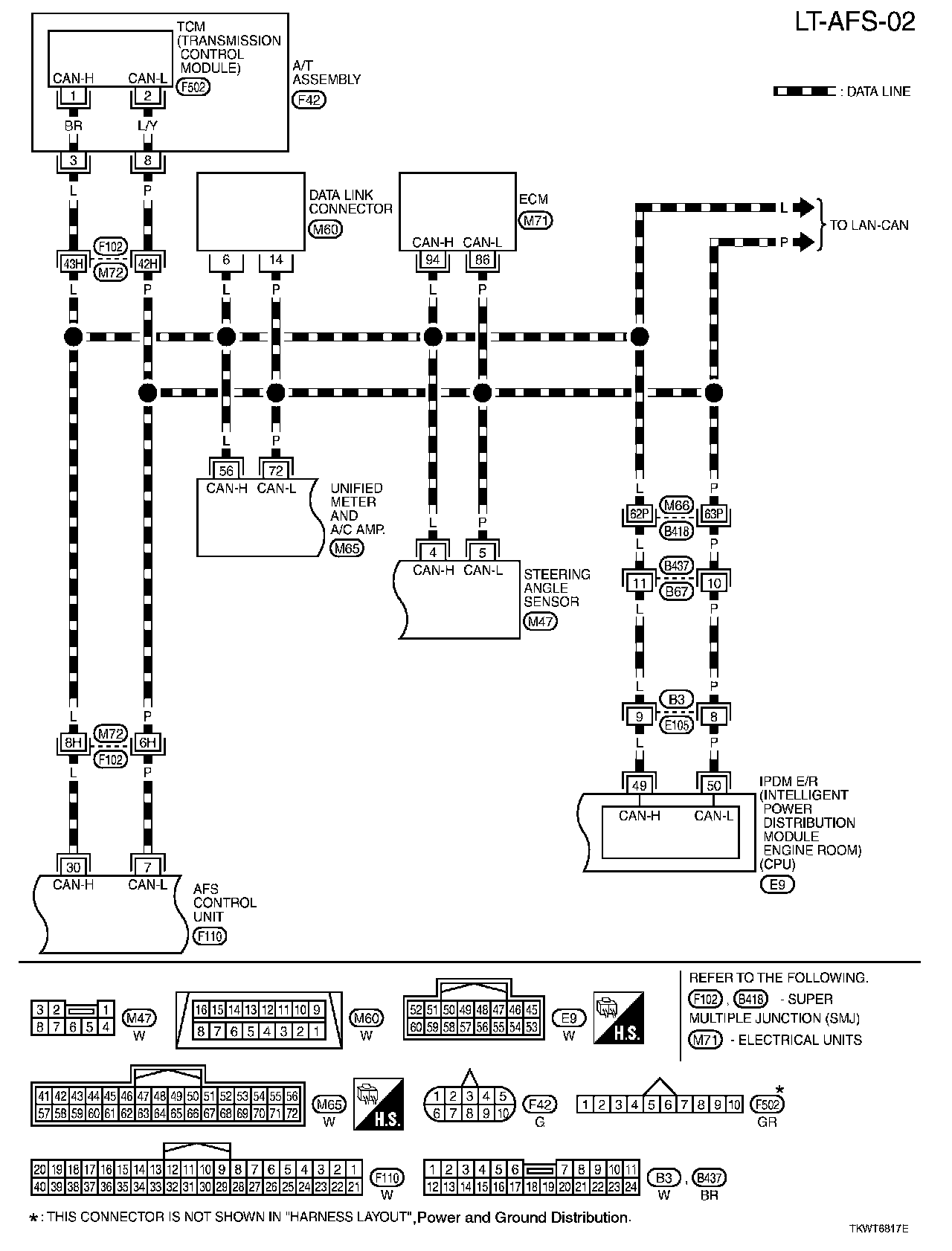

LT-AFS-02:

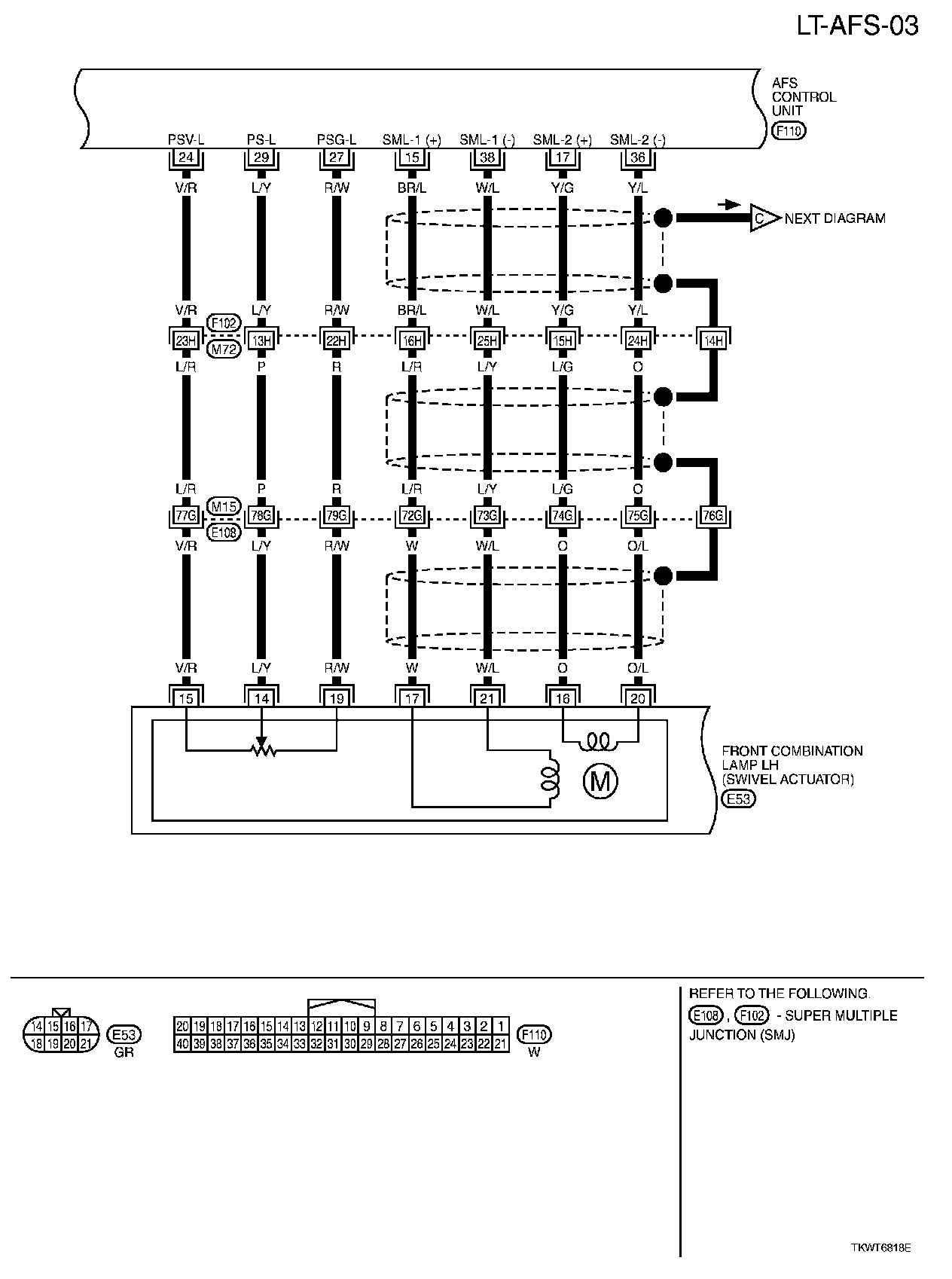

LT-AFS-03:

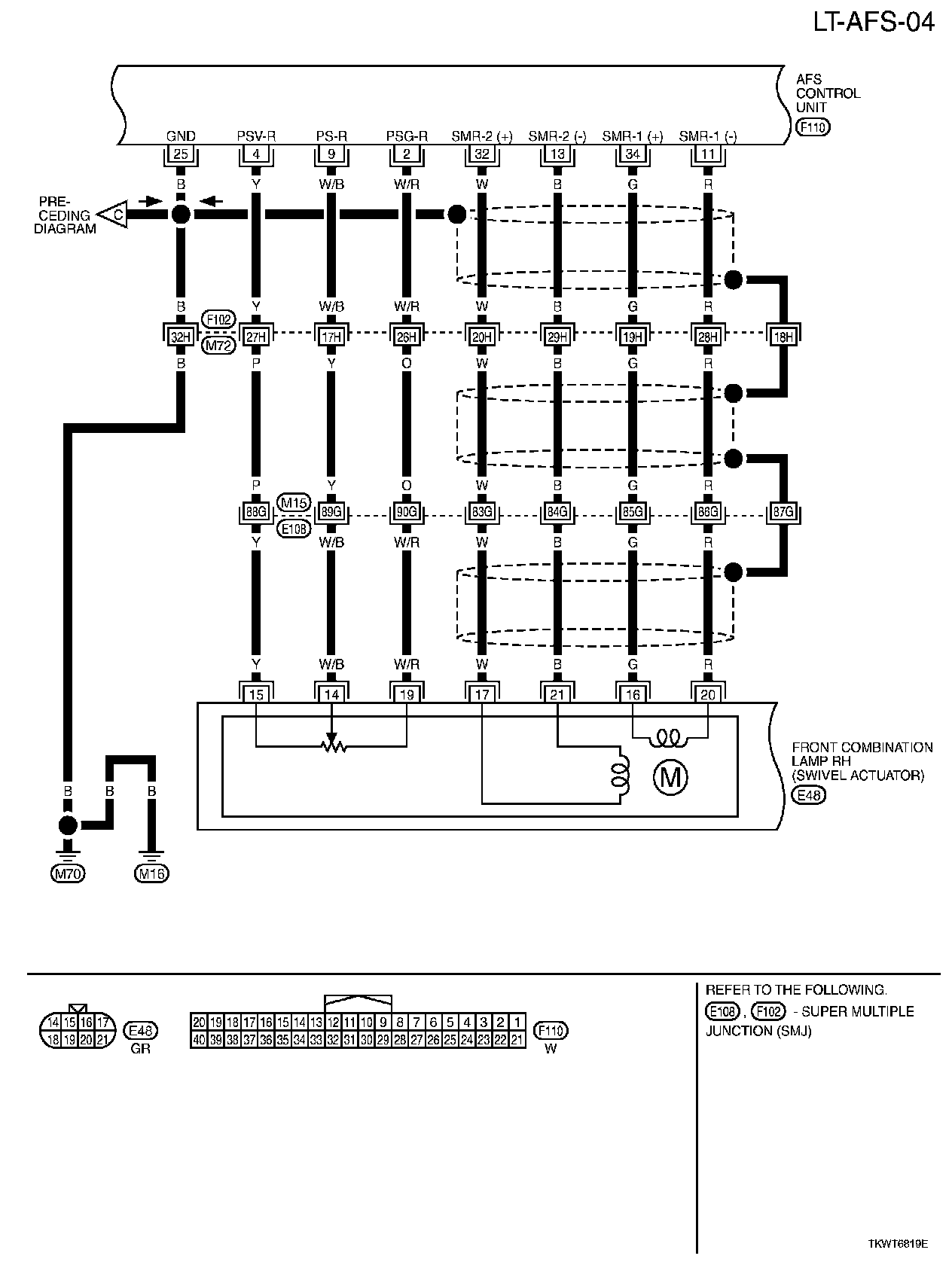

LT-AFS-04:

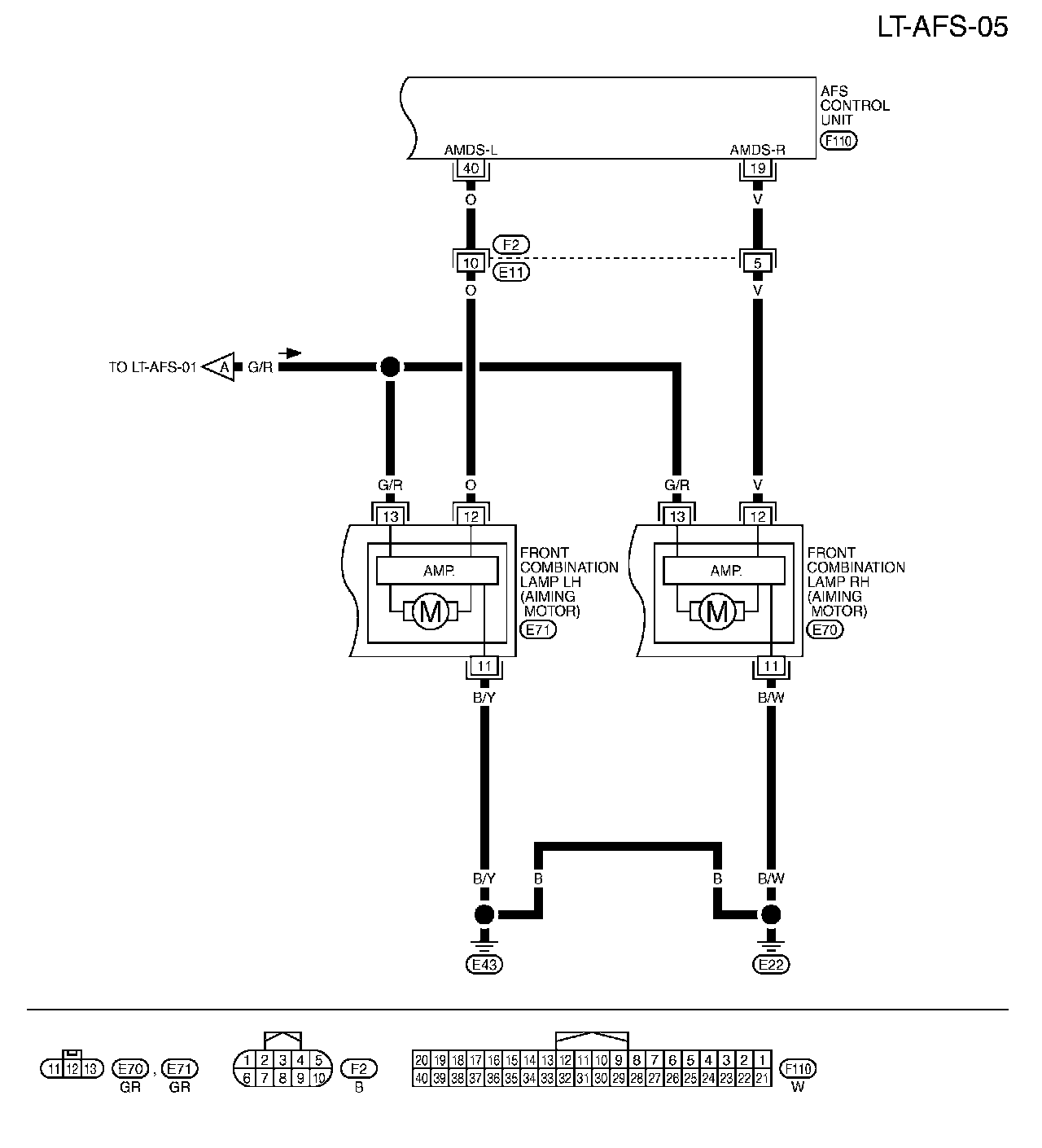

LT-AFS-05:

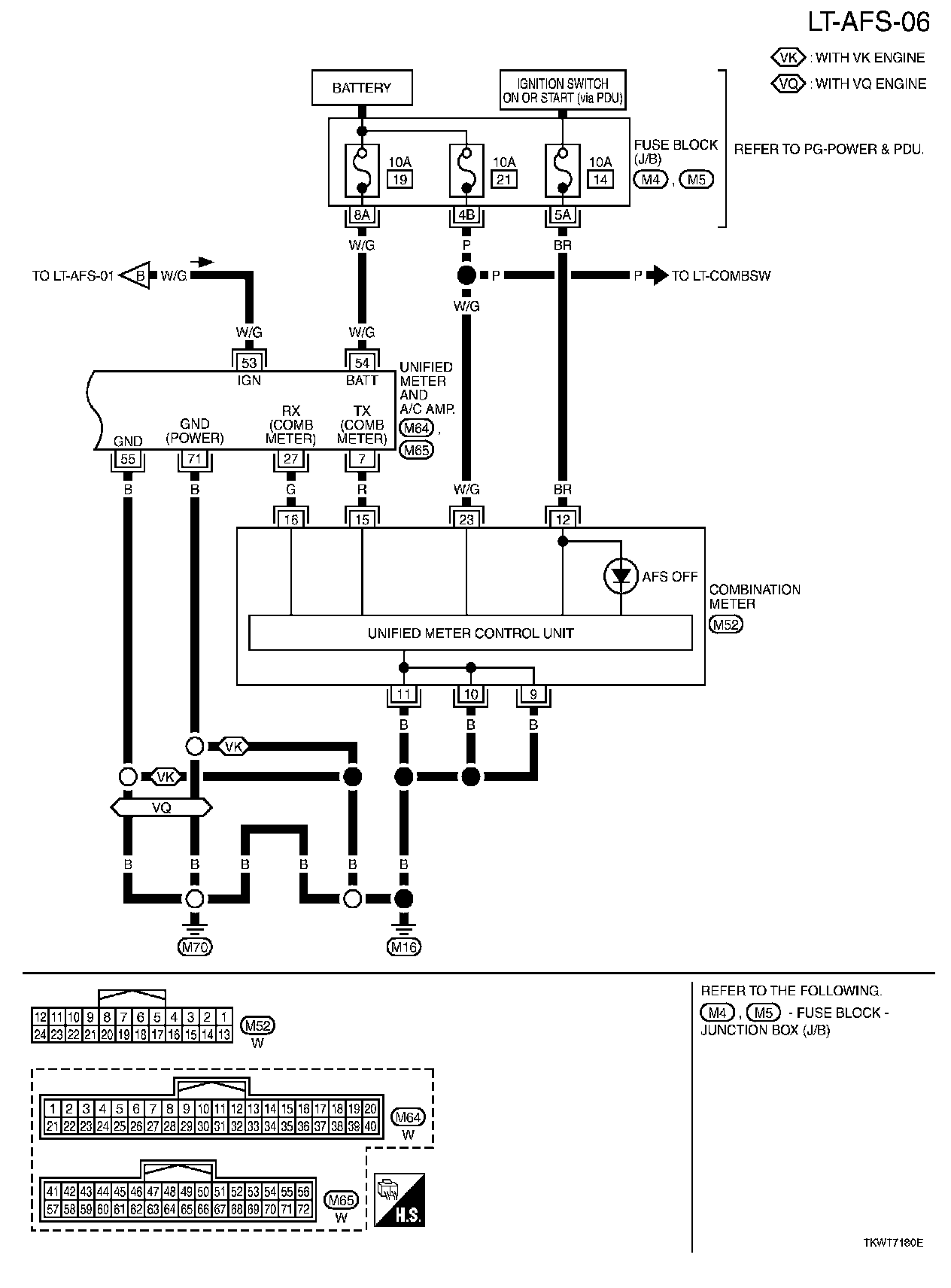

LT-AFS-06:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
