Intelligent Key System

Wiring Diagram - I/KEY-

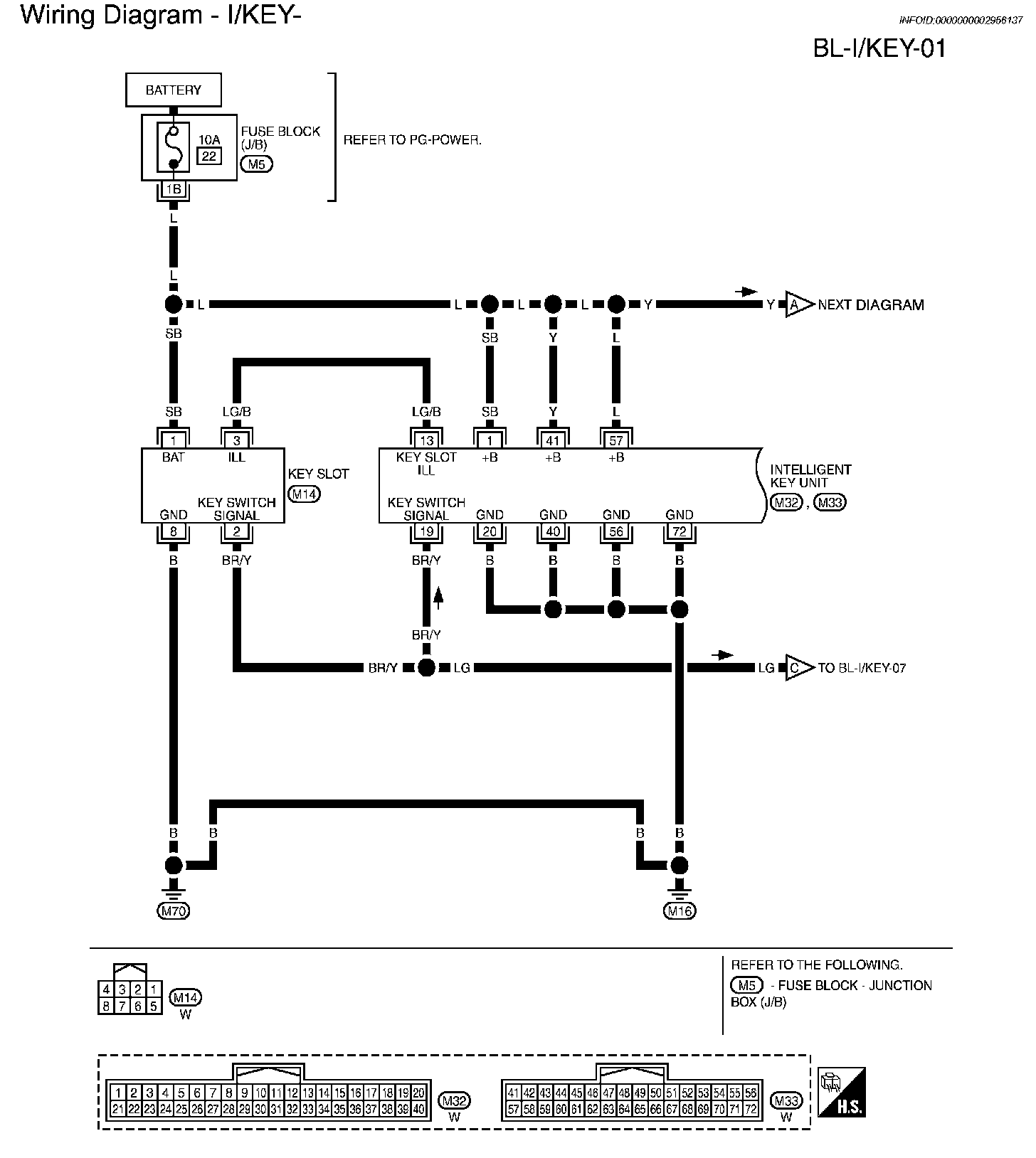

BL-I/KEY-01:

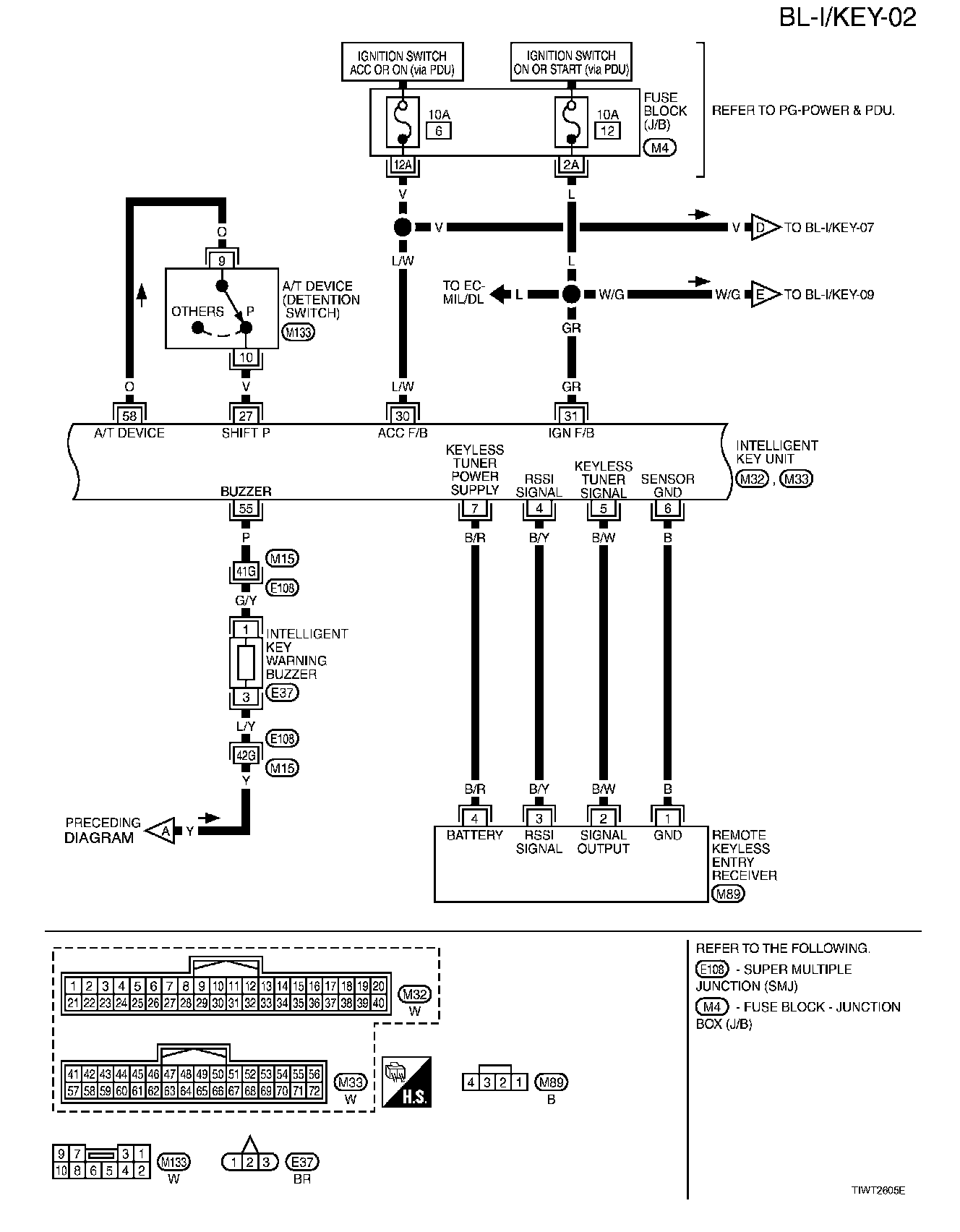

BL-I/KEY-02:

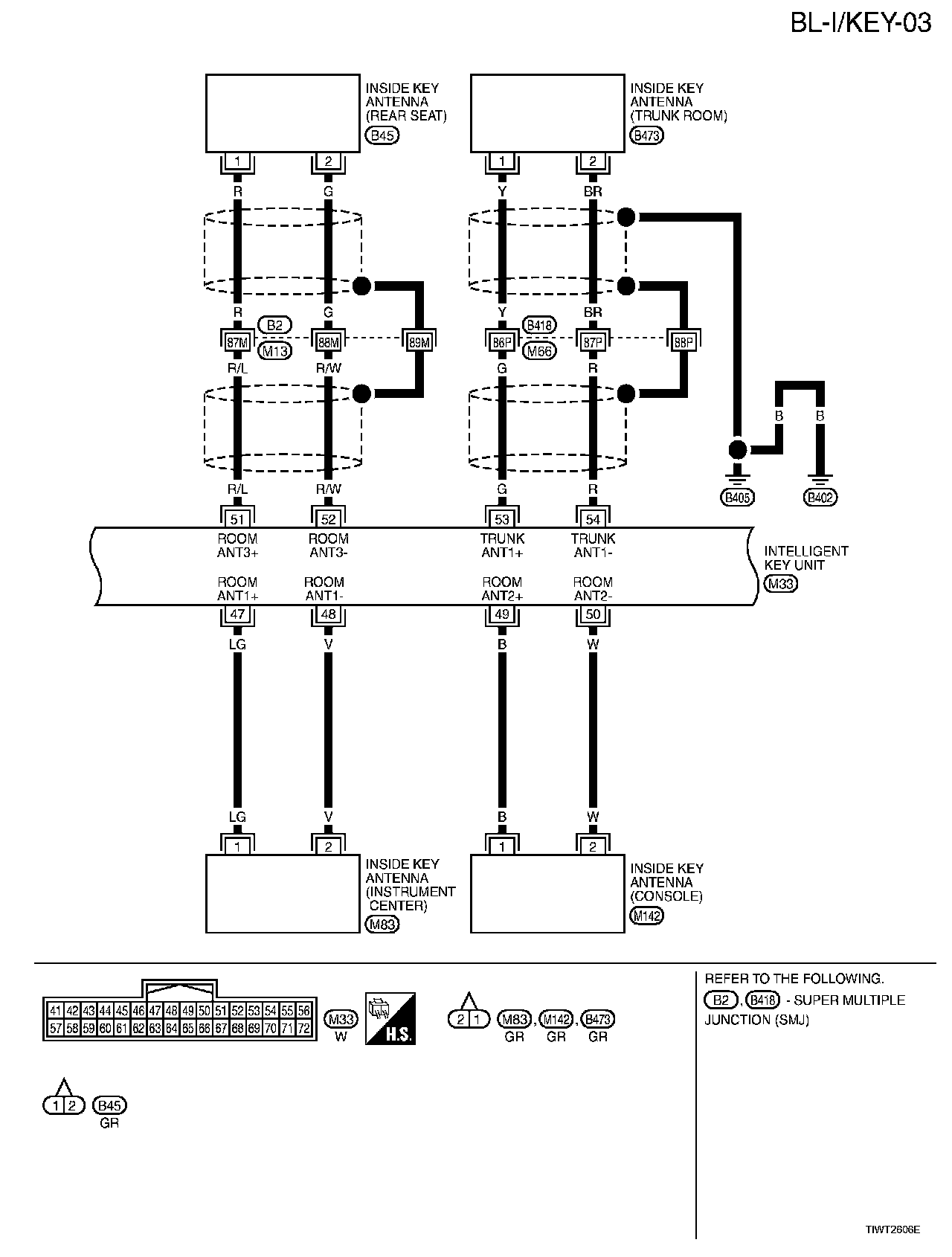

BL-I/KEY-03:

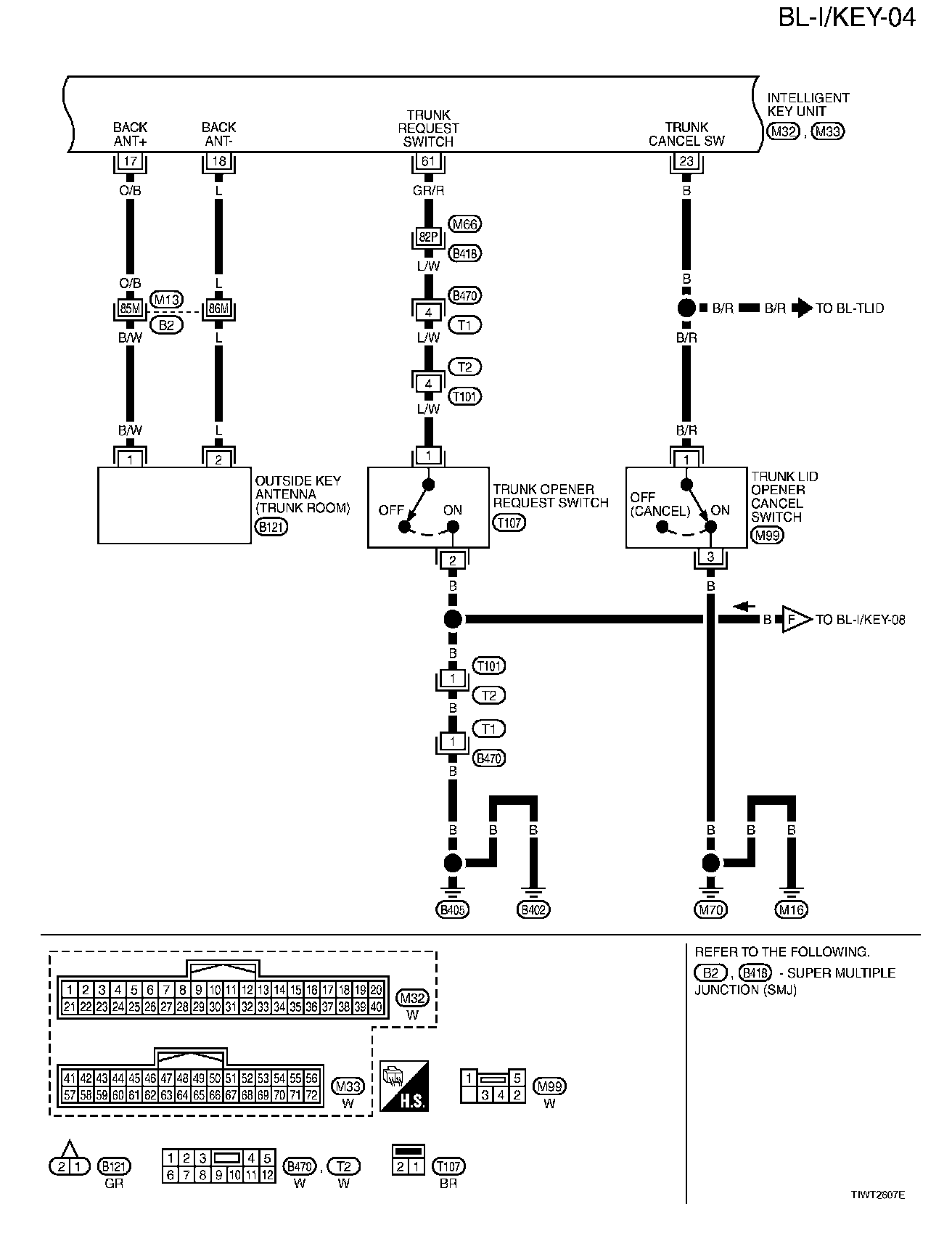

BL-I/KEY-04:

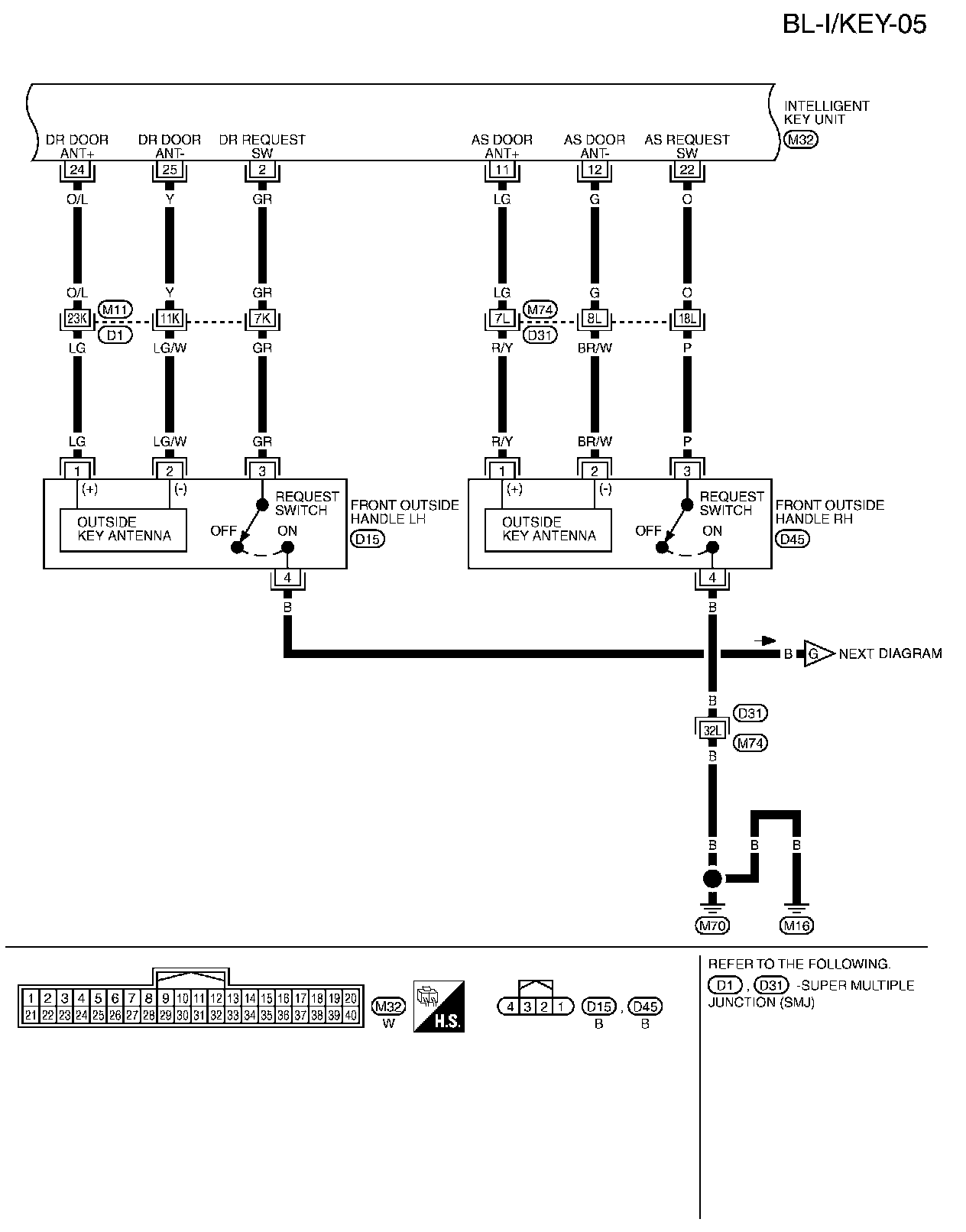

BL-I/KEY-05:

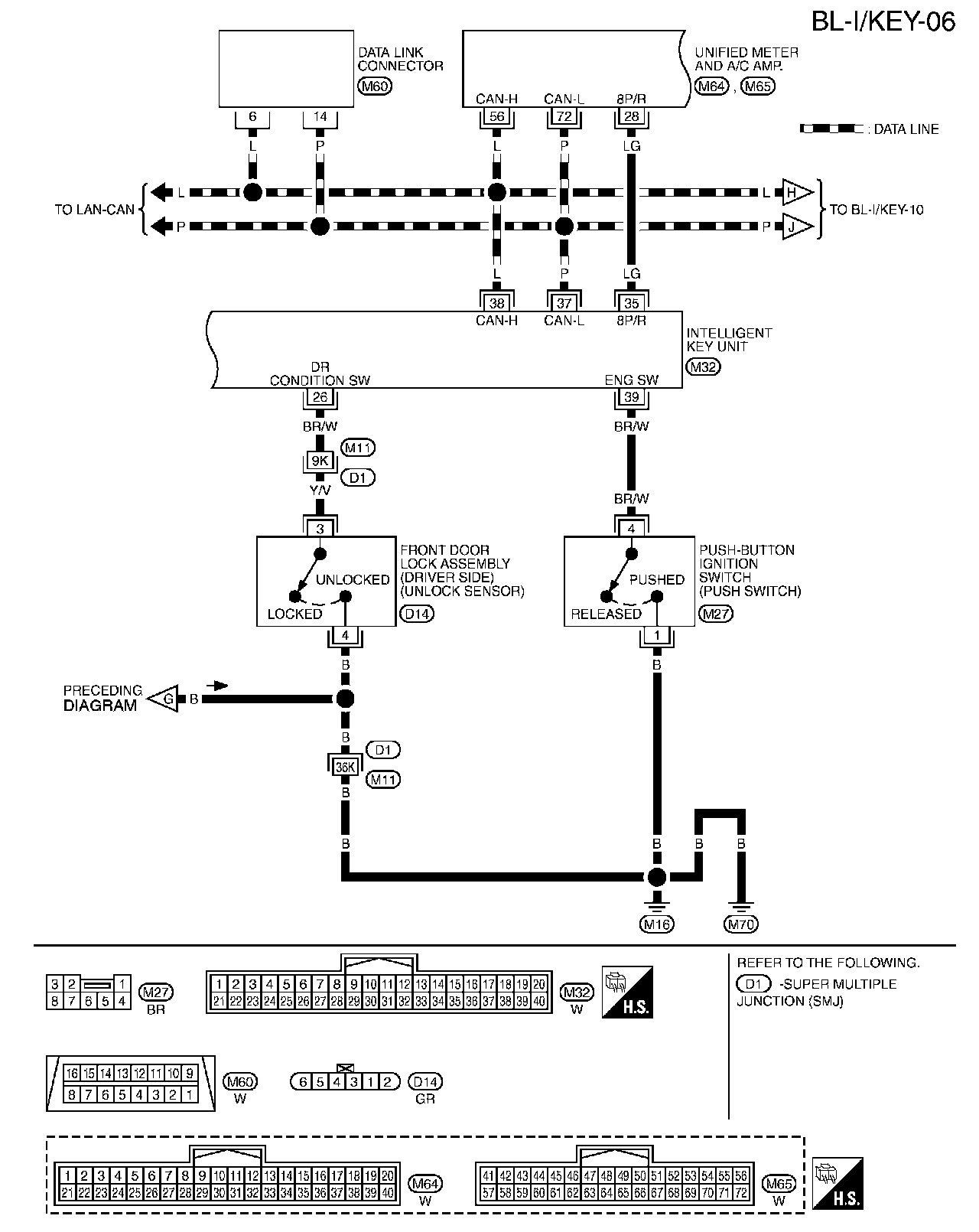

BL-I/KEY-06:

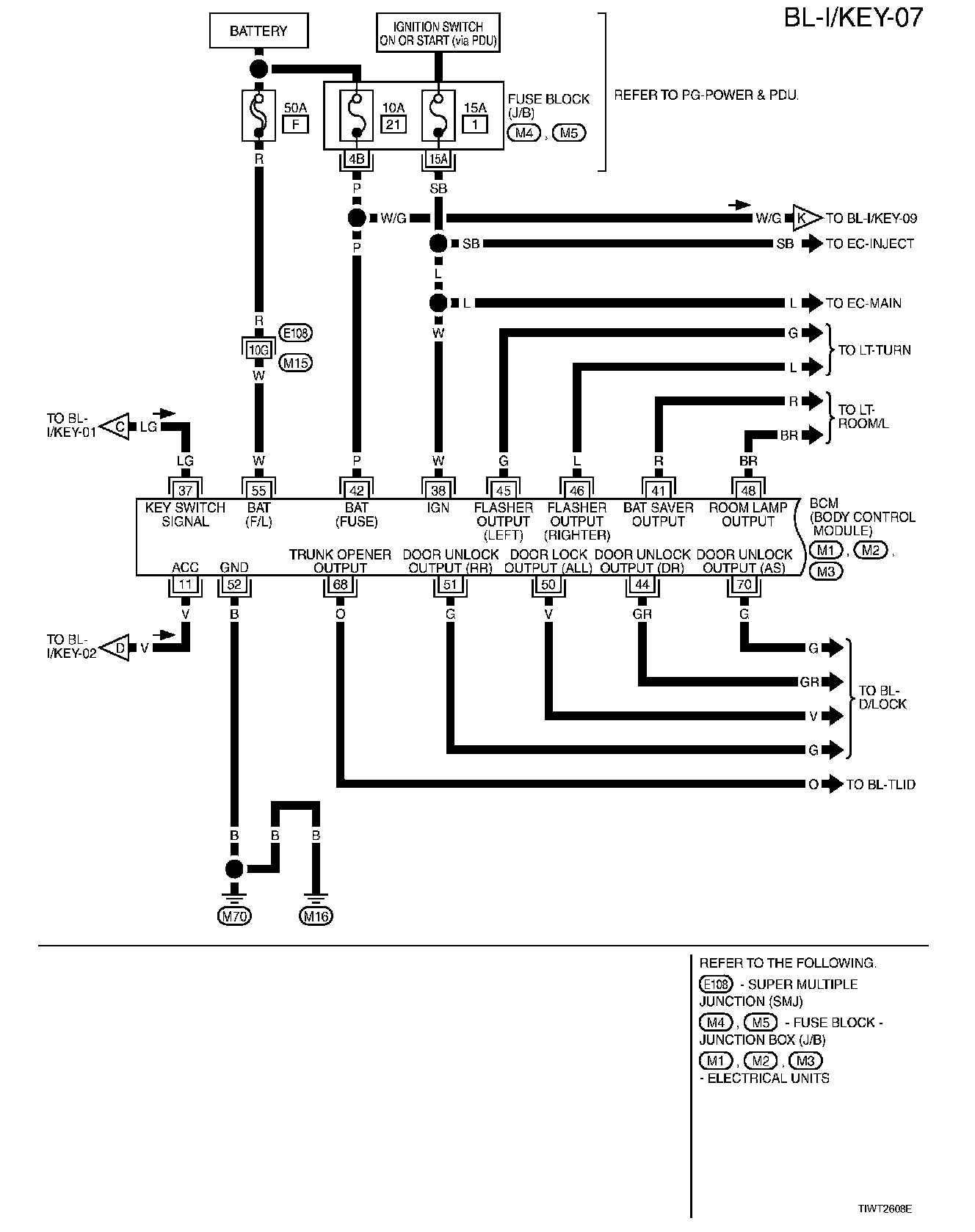

BL-I/KEY-07:

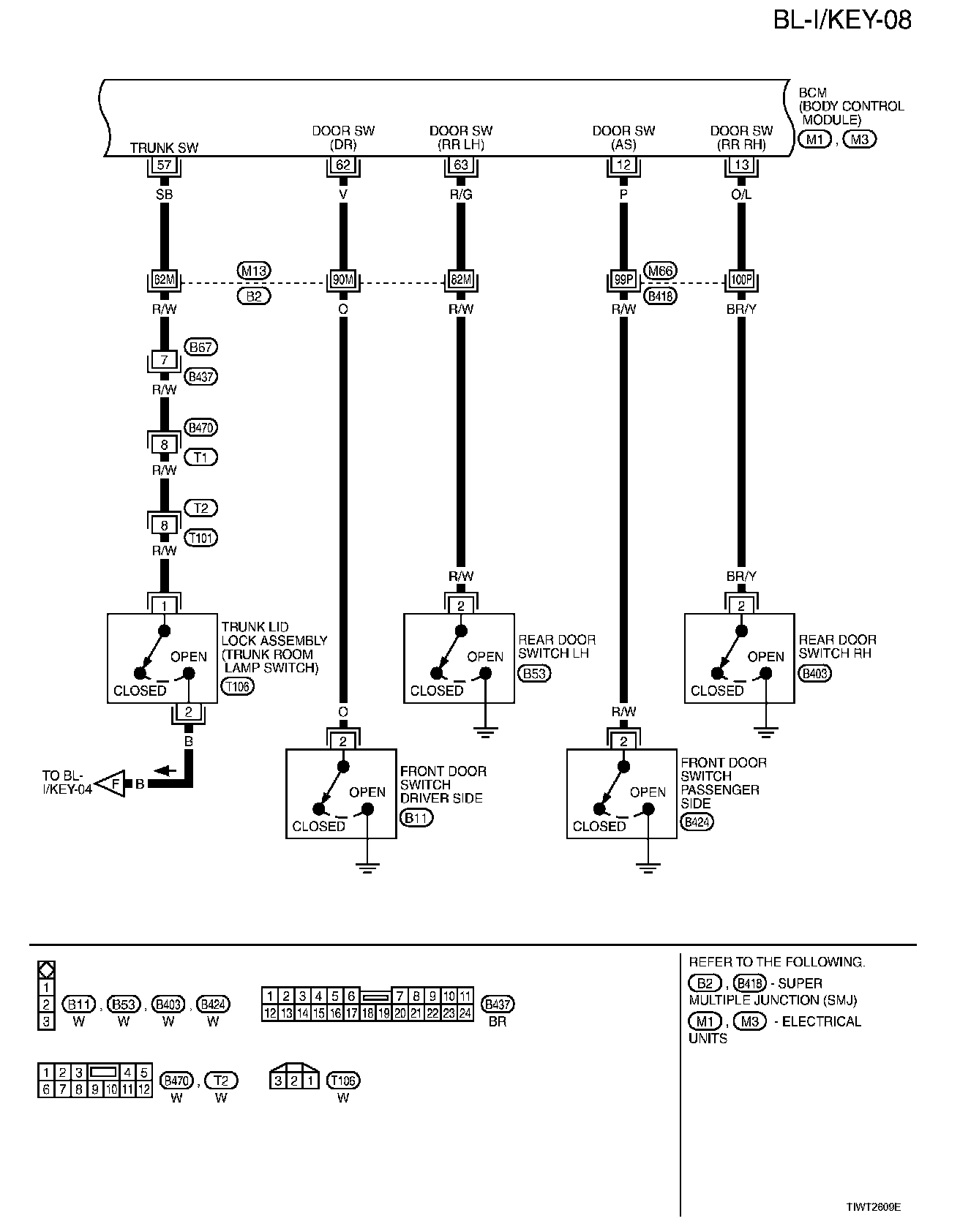

BL-I/KEY-08:

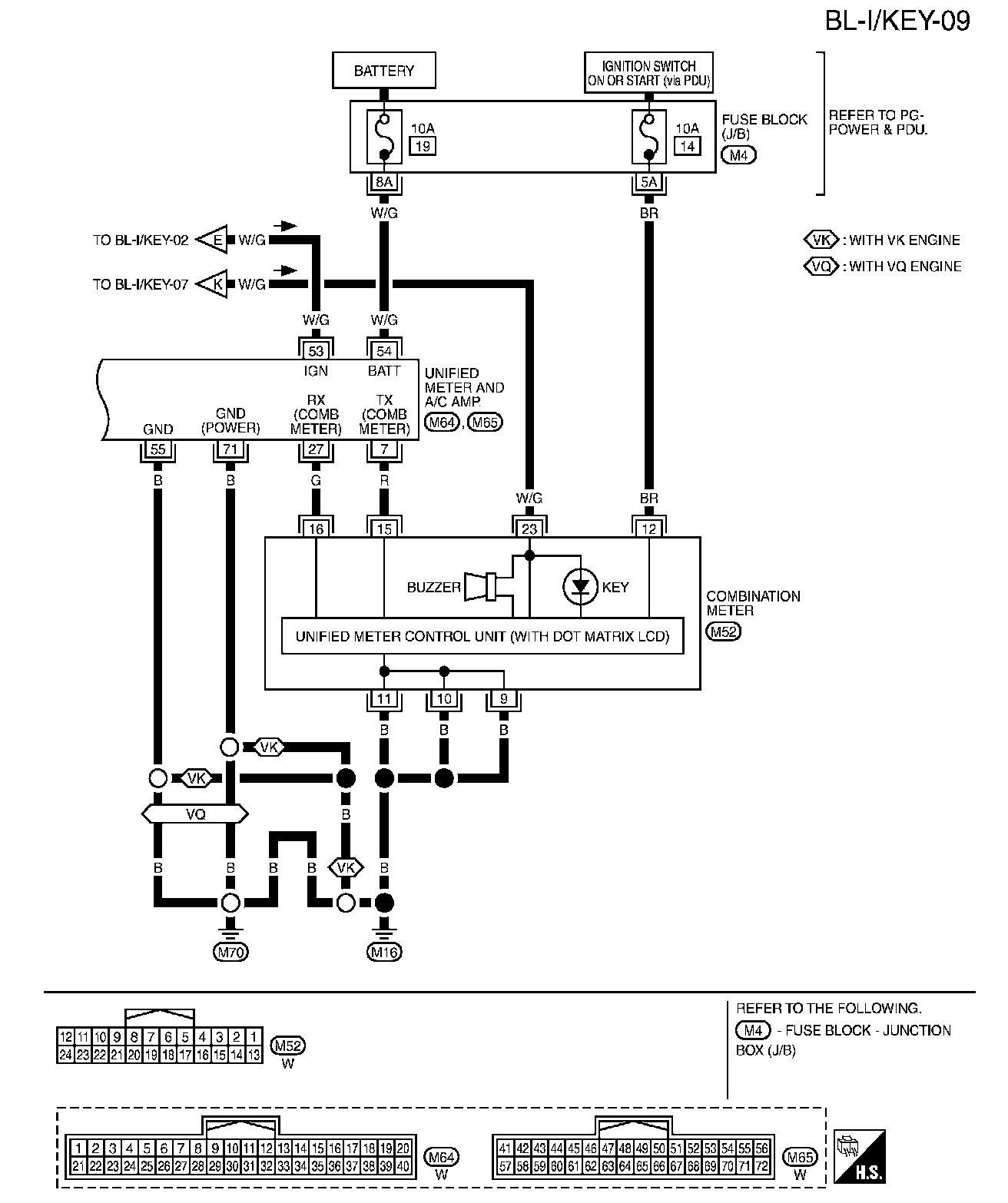

BL-I/KEY-09:

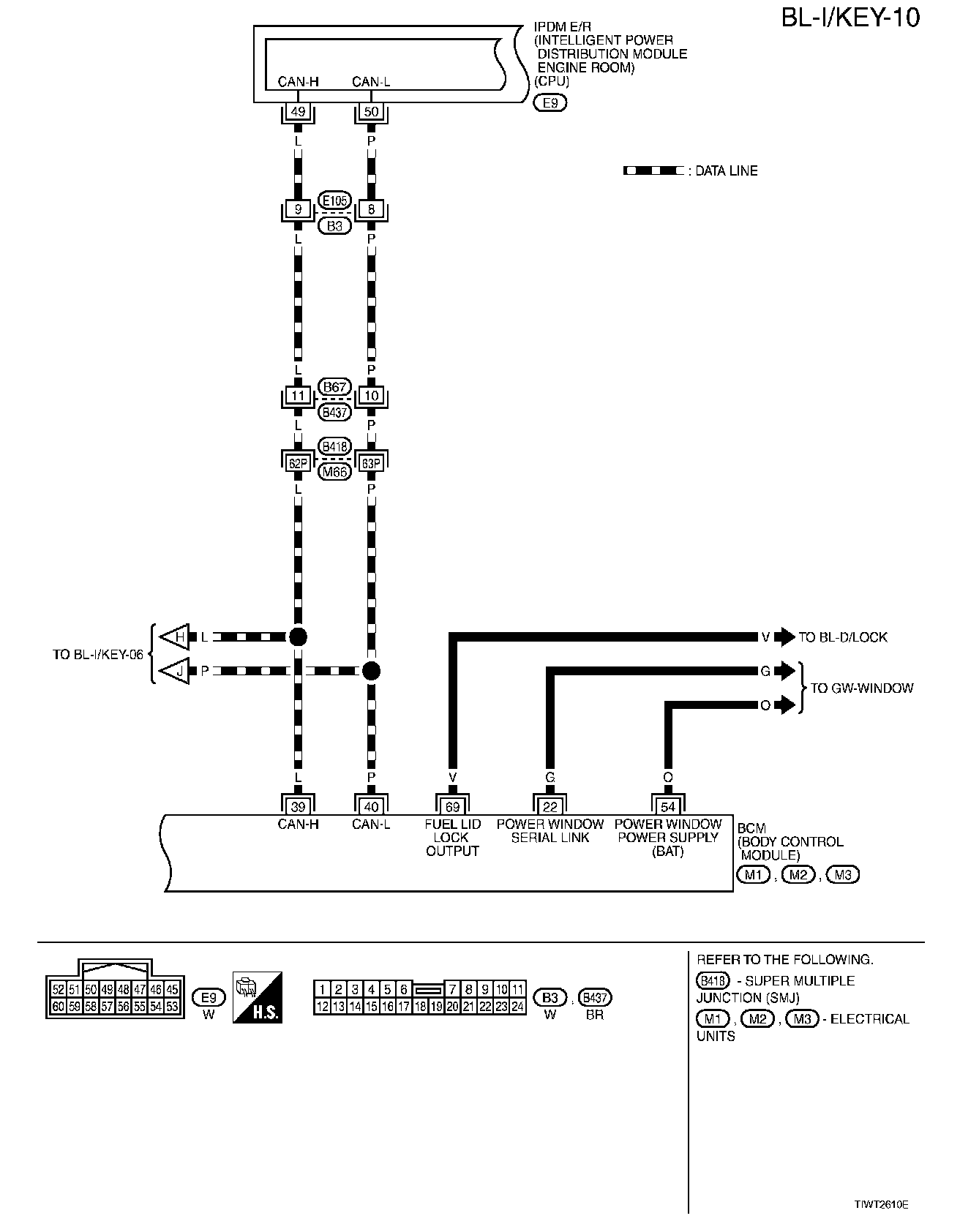

BL-I/KEY-10:

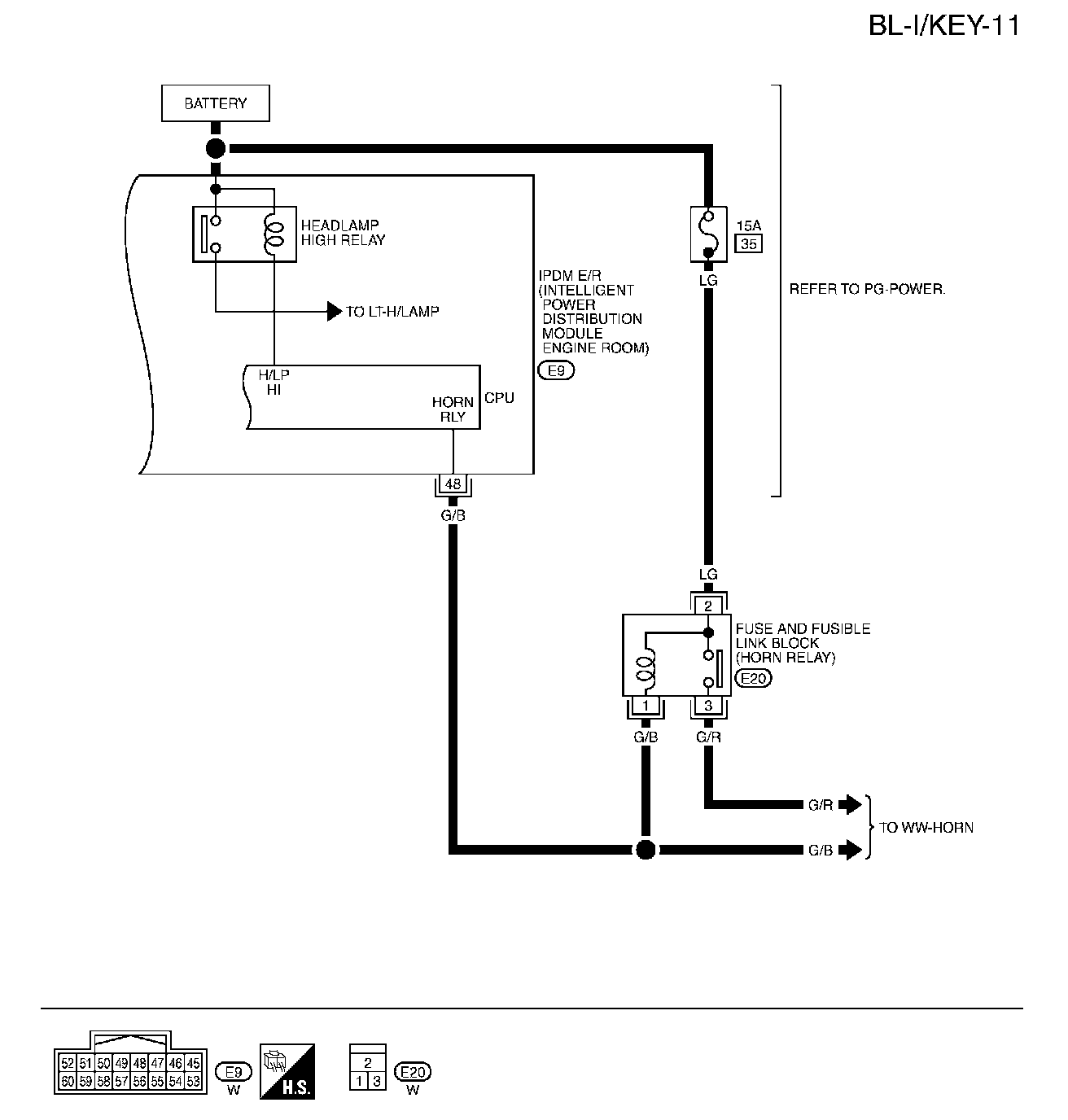

BL-I/KEY-11:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
