Memory Positioning Systems

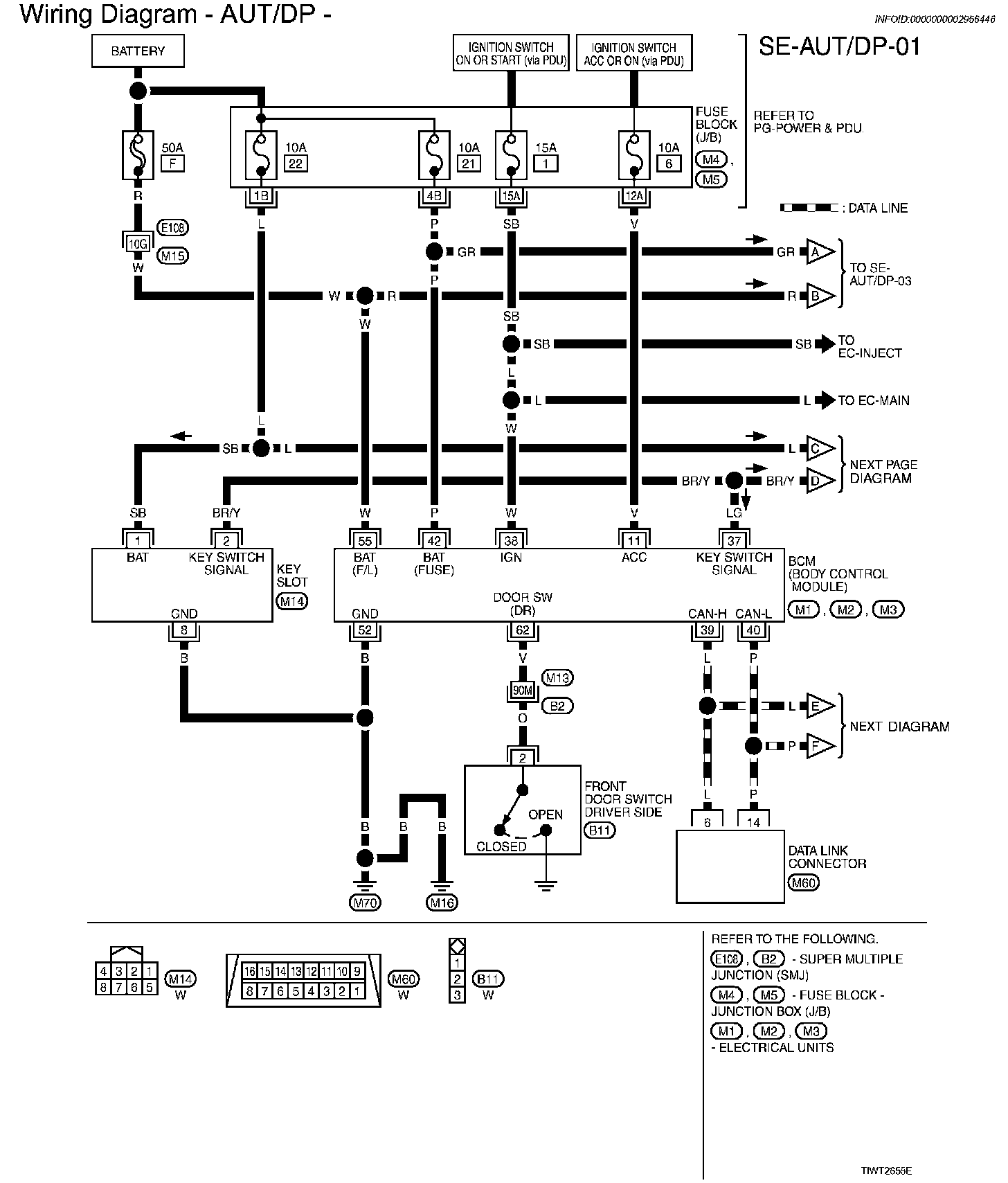

Wiring Diagram - AUT/DP - Part 1:

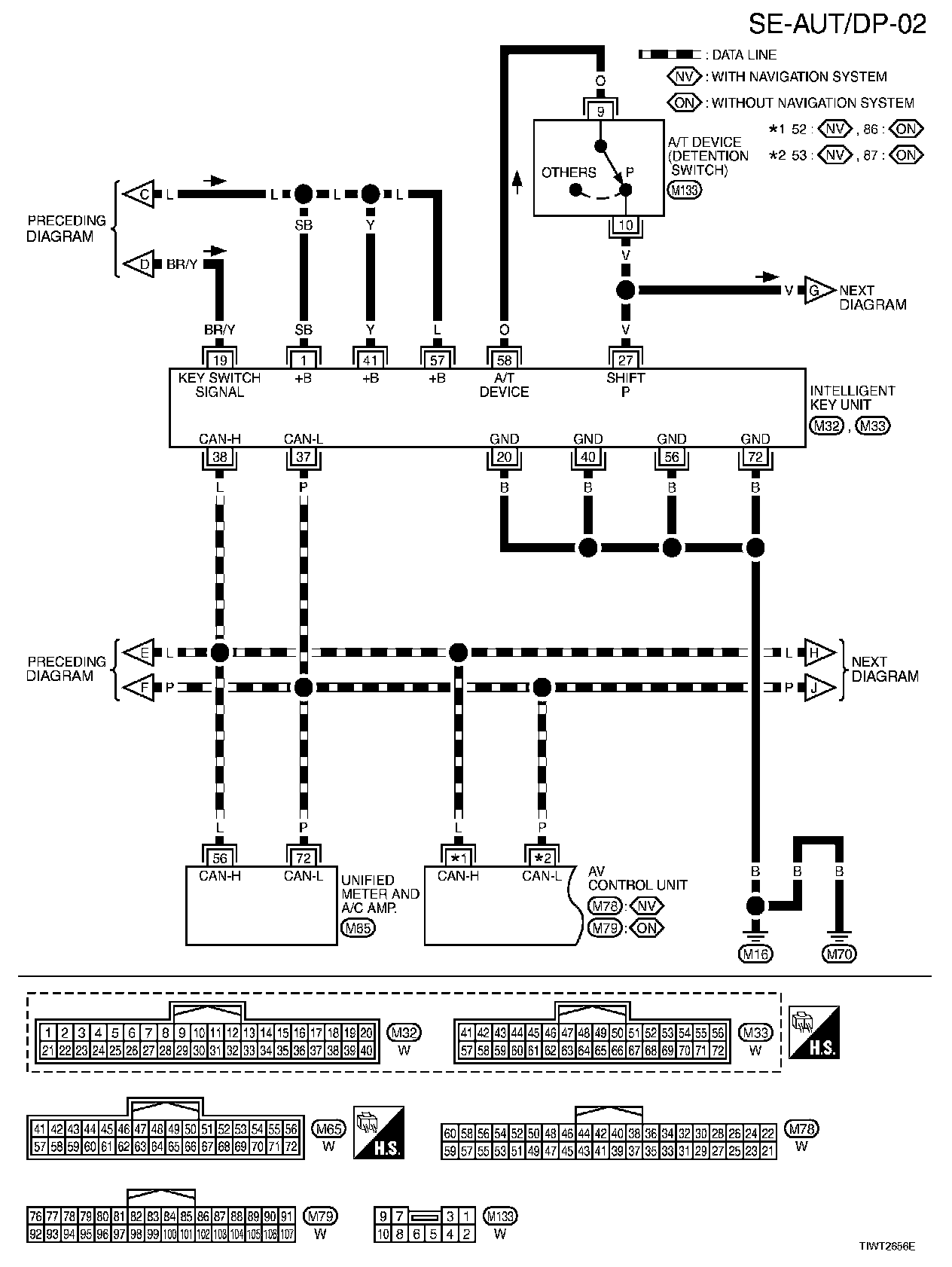

Wiring Diagram - AUT/DP - Part 2:

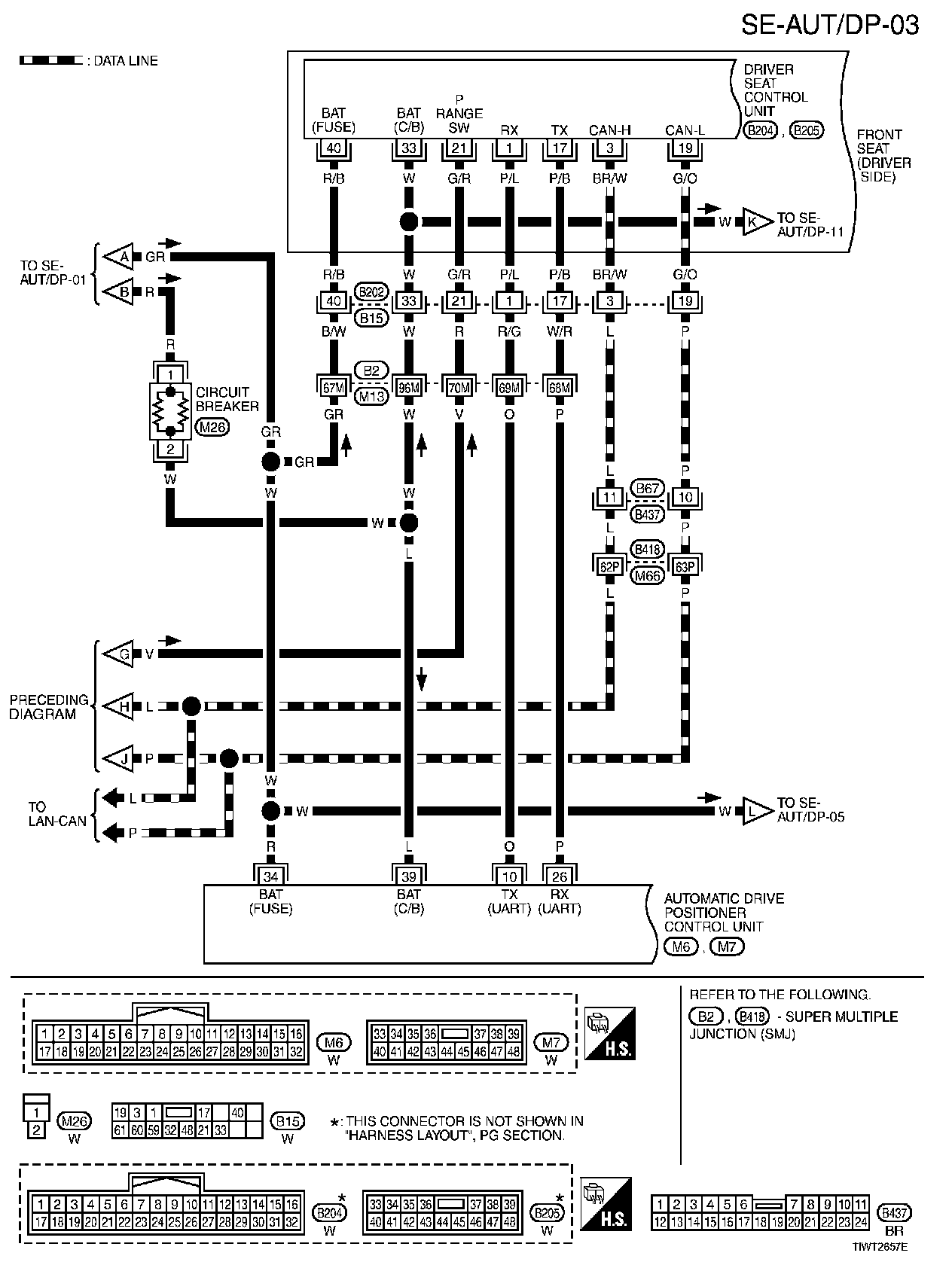

Wiring Diagram - AUT/DP - Part 3:

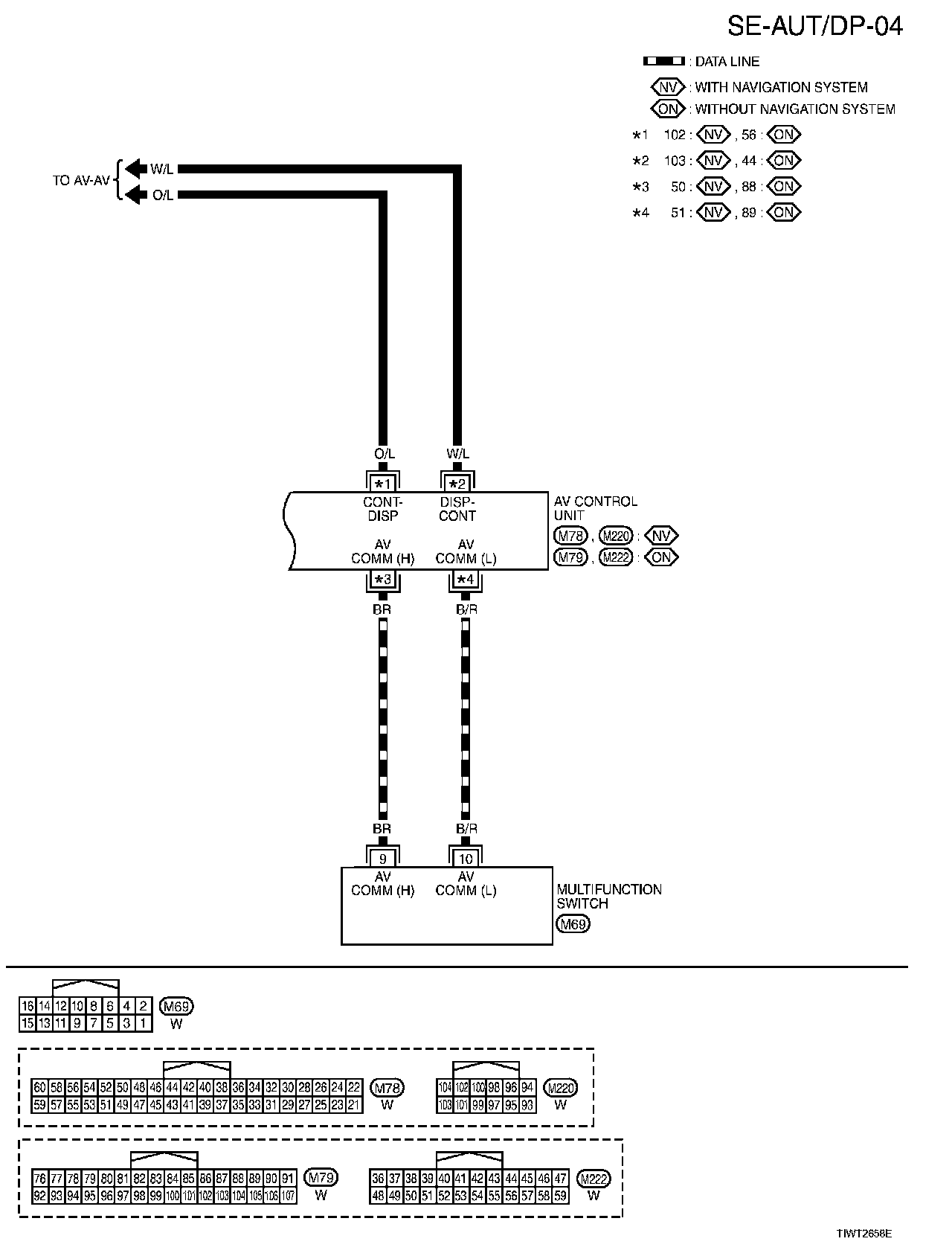

Wiring Diagram - AUT/DP - Part 4:

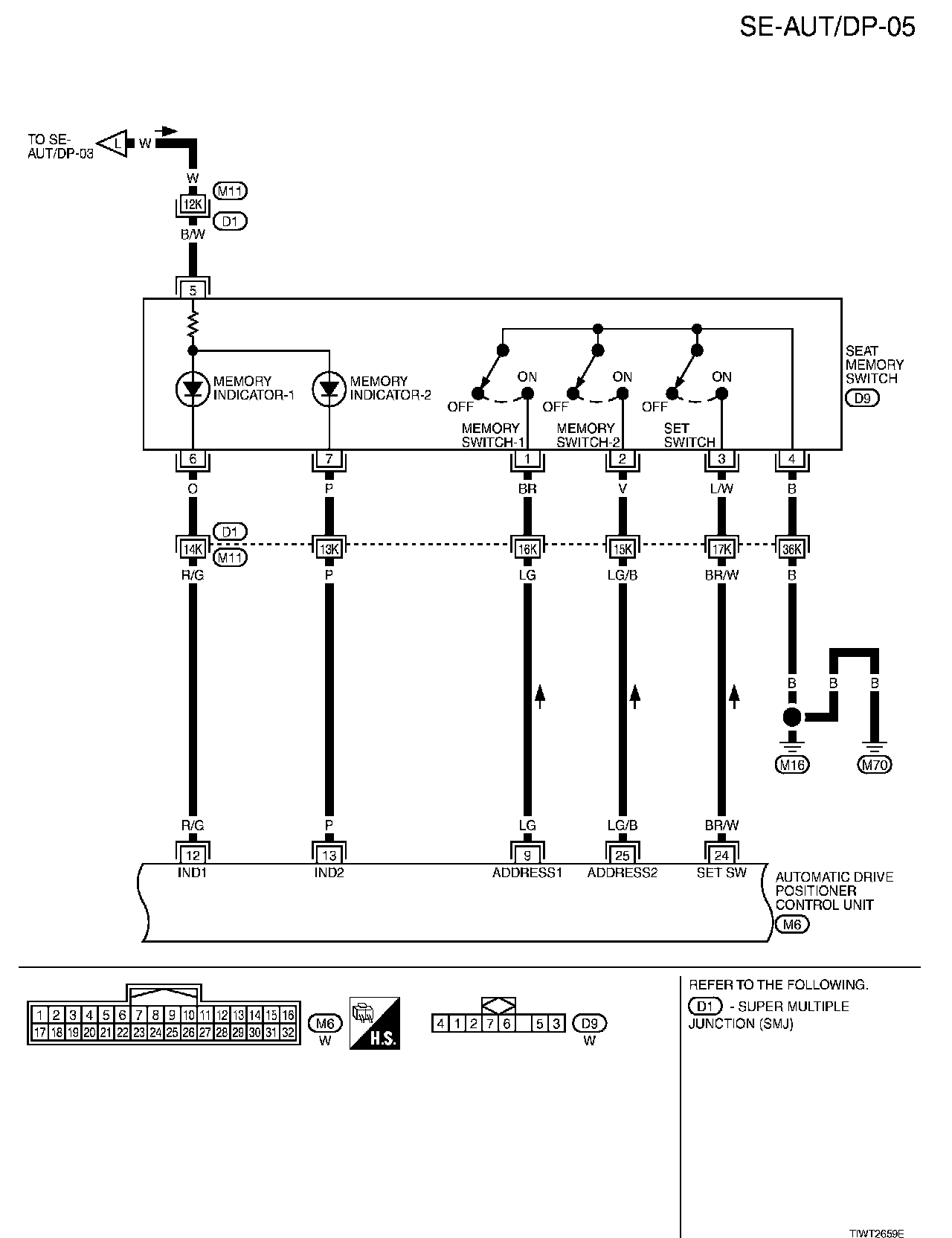

Wiring Diagram - AUT/DP - Part 5:

Wiring Diagram - AUT/DP - Part 6:

Wiring Diagram - AUT/DP - Part 7:

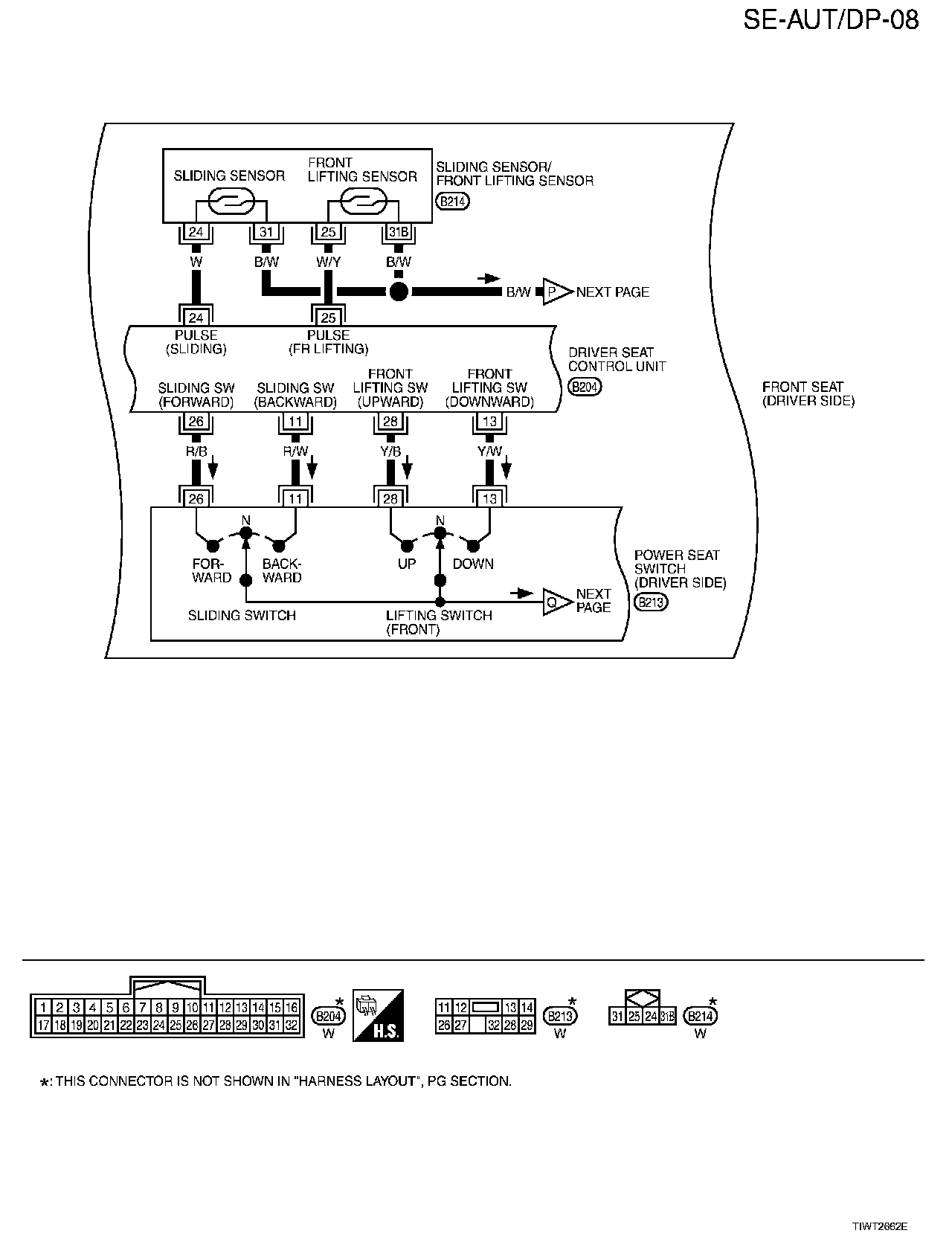

Wiring Diagram - AUT/DP - Part 8:

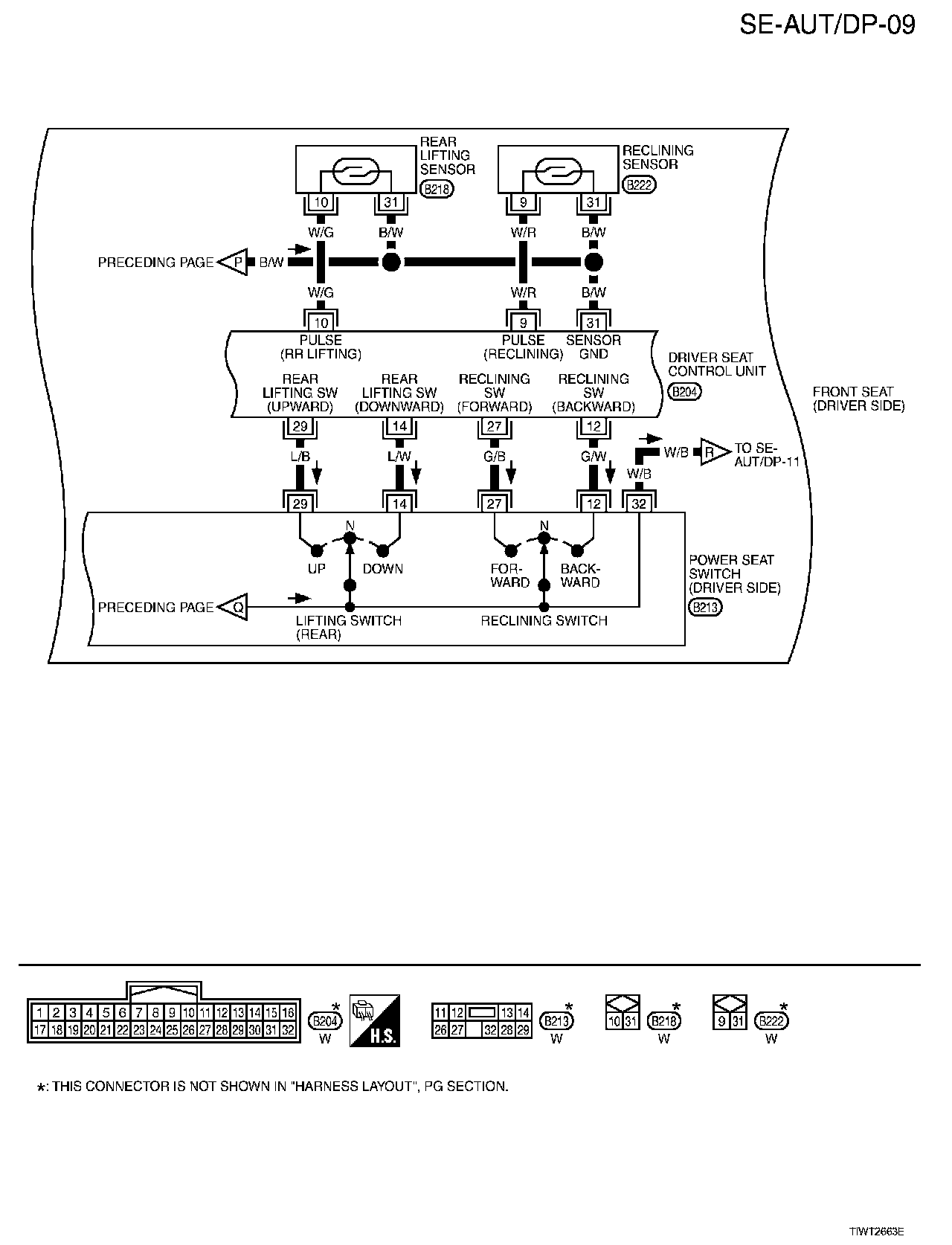

Wiring Diagram - AUT/DP - Part 9:

Wiring Diagram - AUT/DP - Part 10:

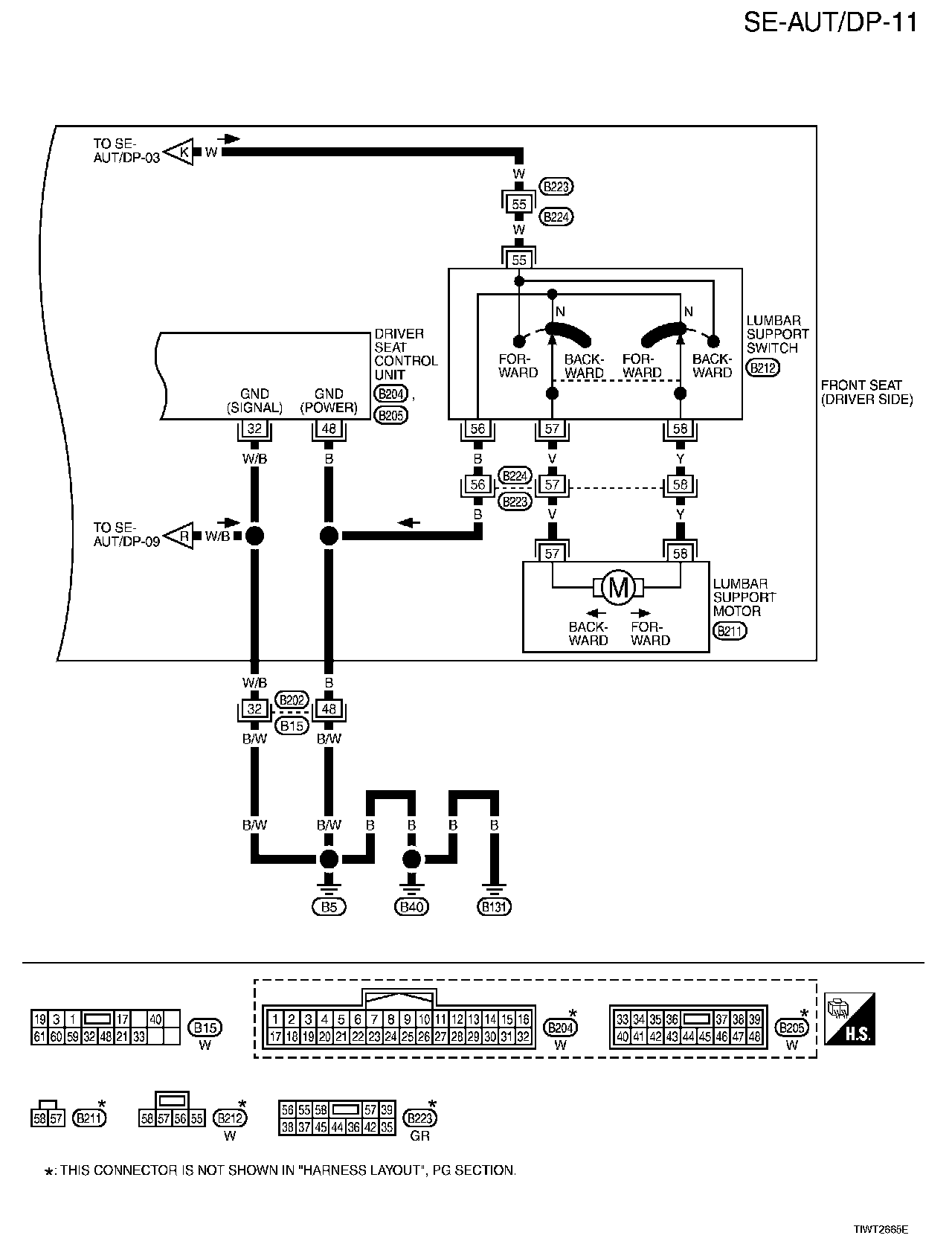

Wiring Diagram - AUT/DP - Part 11:
