GW-MIRROR

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Wiring Diagram - MIRROR -

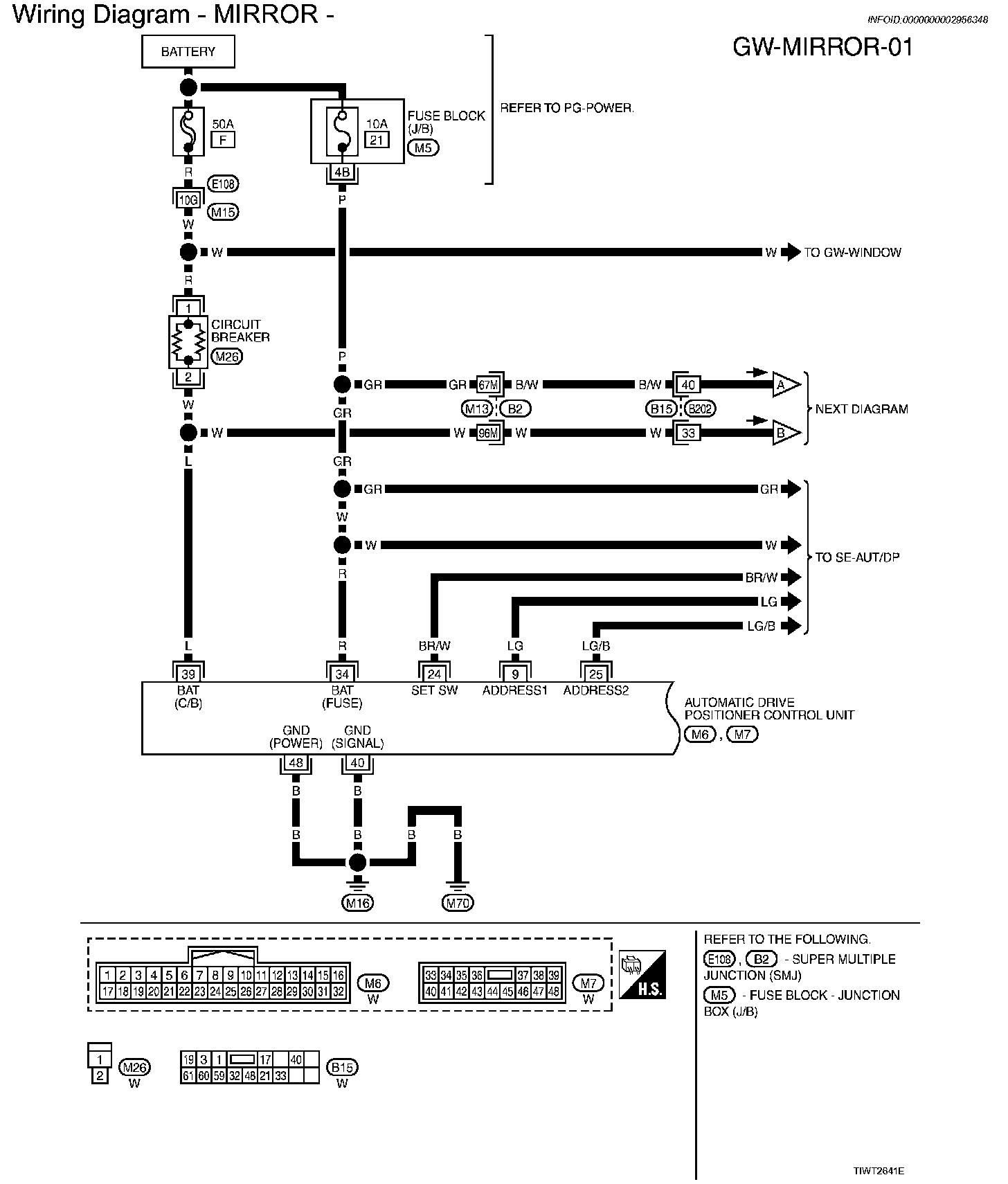

Wiring Diagram - Mirror - Part 1:

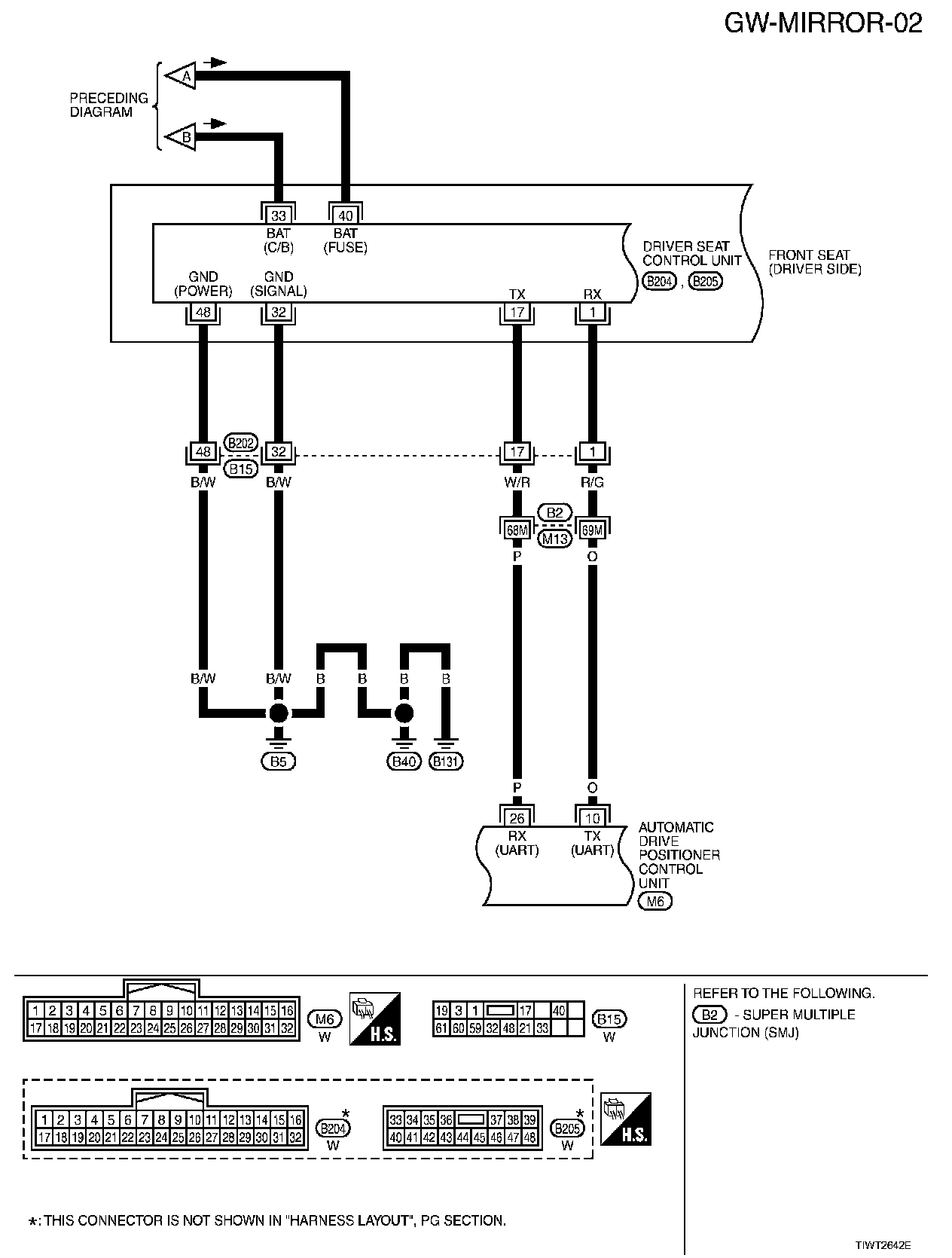

Wiring Diagram - Mirror - Part 2:

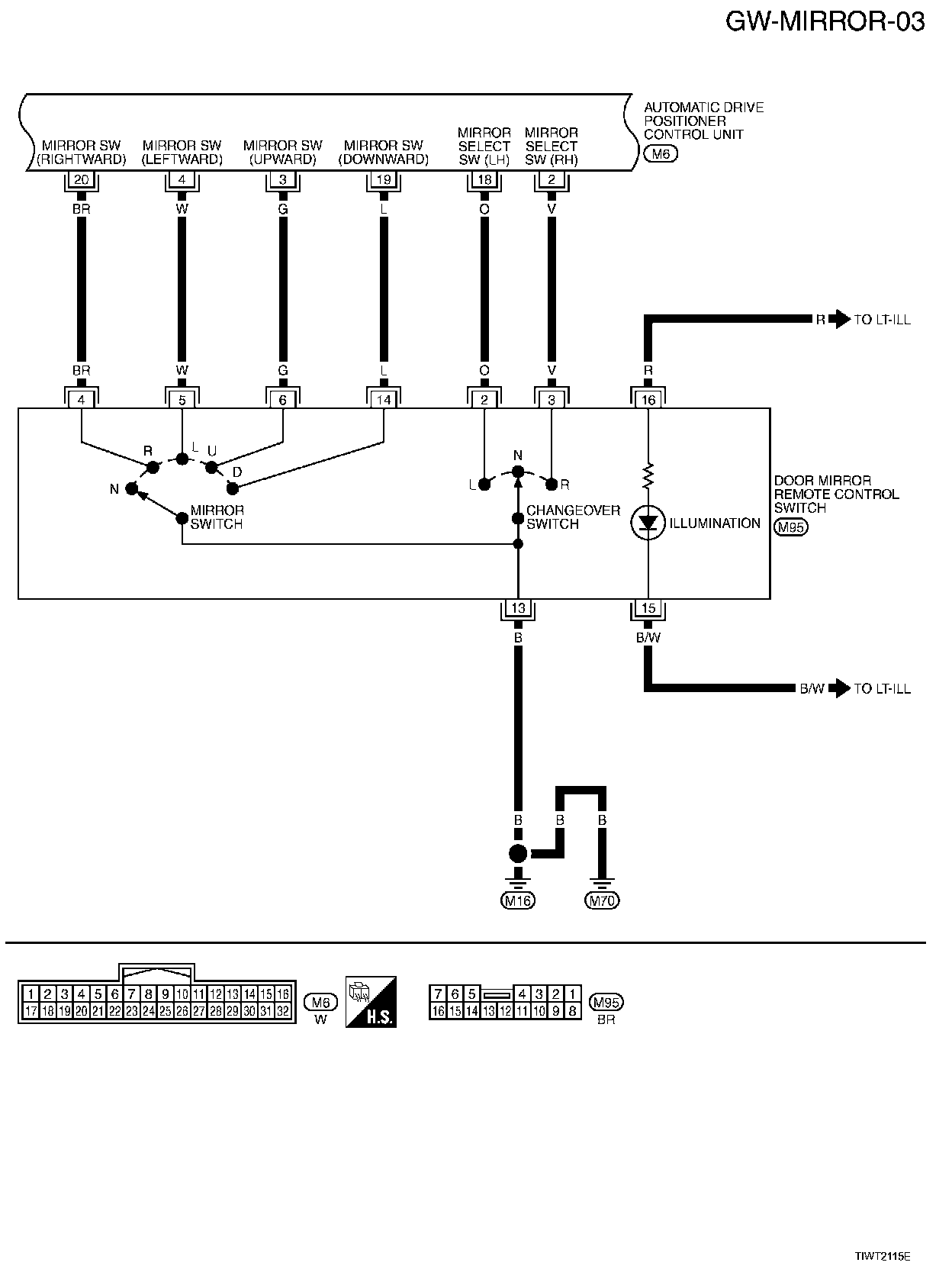

Wiring Diagram - Mirror - Part 3:

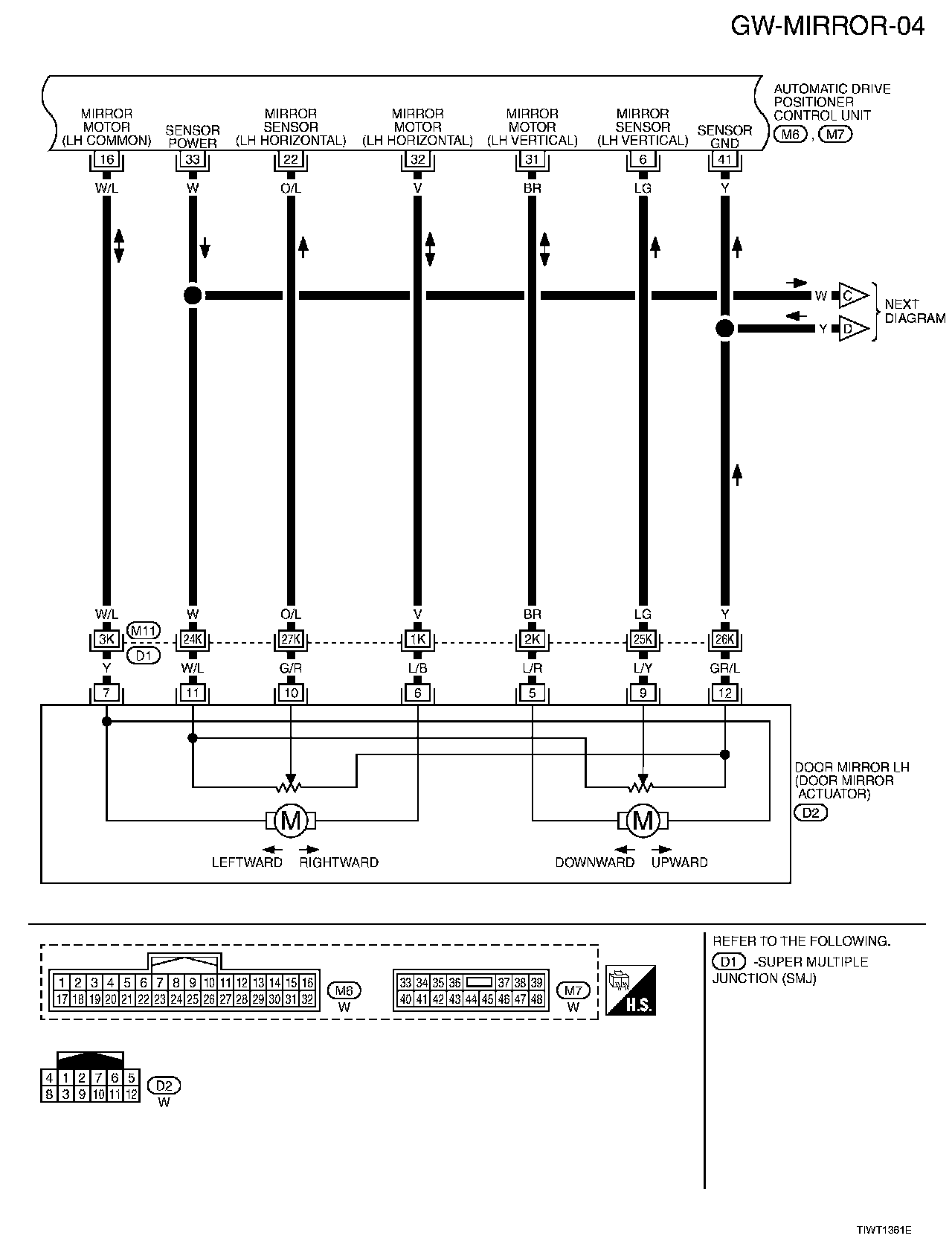

Wiring Diagram - Mirror - Part 4:

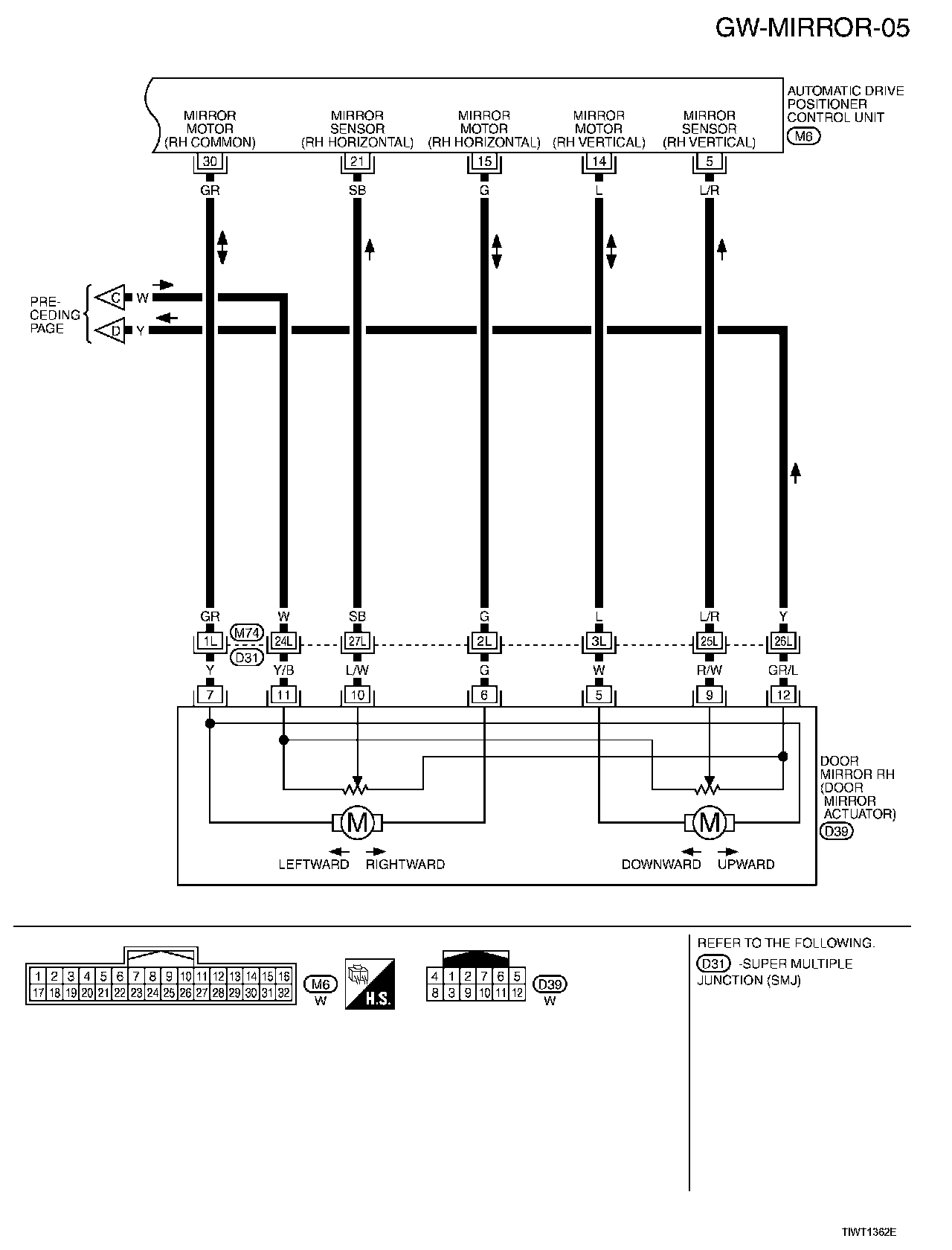

Wiring Diagram - Mirror - Part 5:

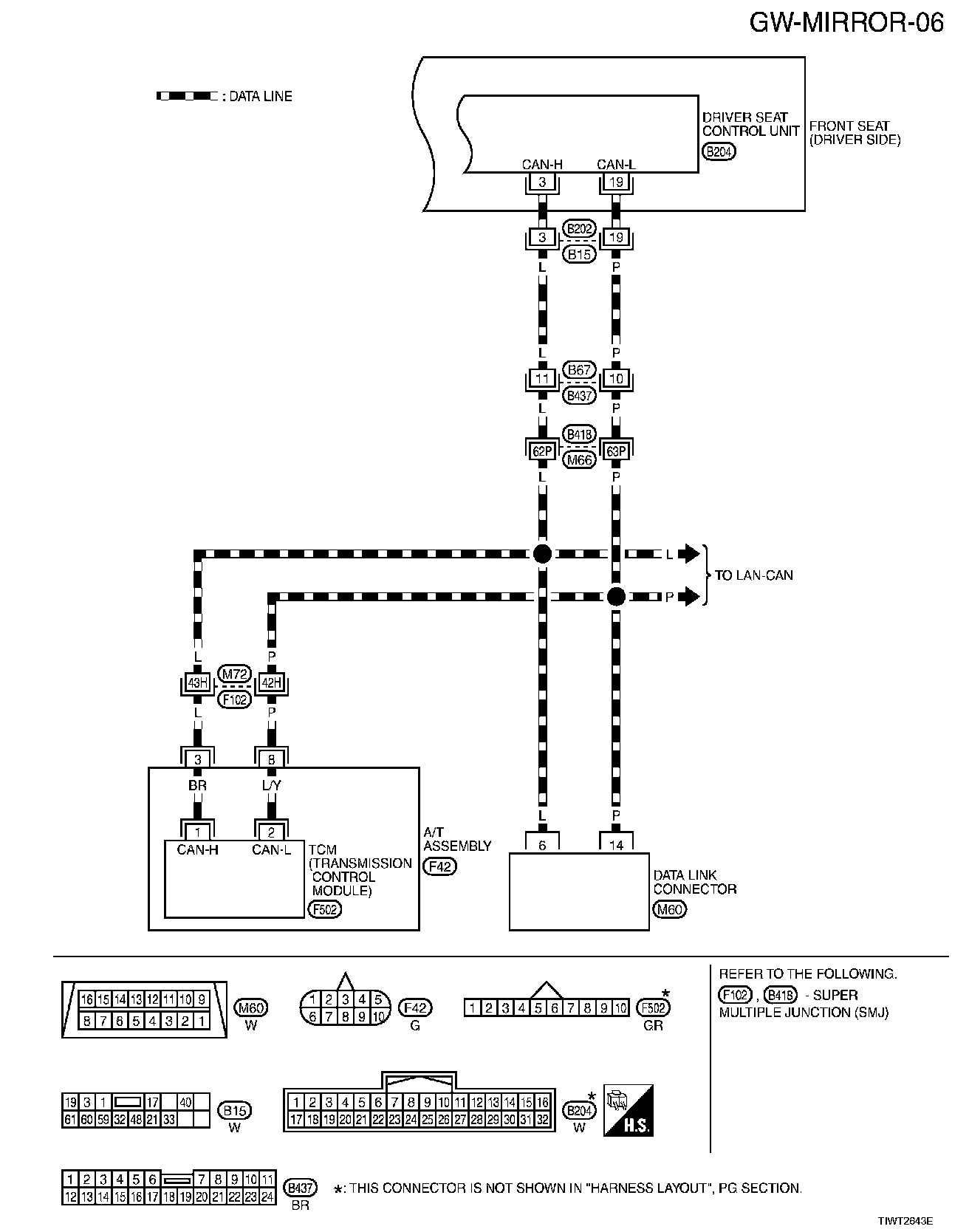

Wiring Diagram - Mirror - Part 6:
