Parking Lamp

Wiring Diagram - TAIL/L -

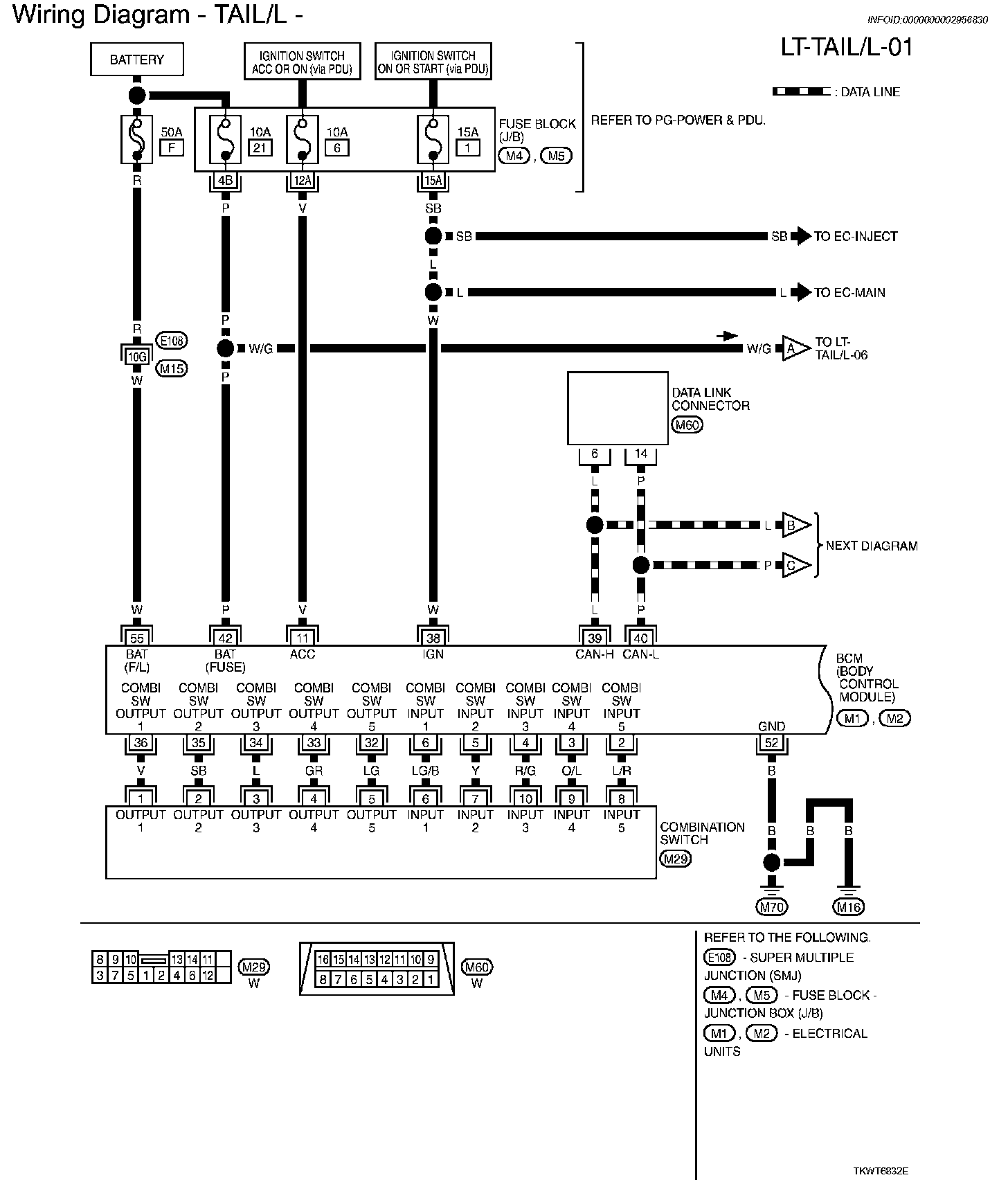

LT-TAIL/L-01:

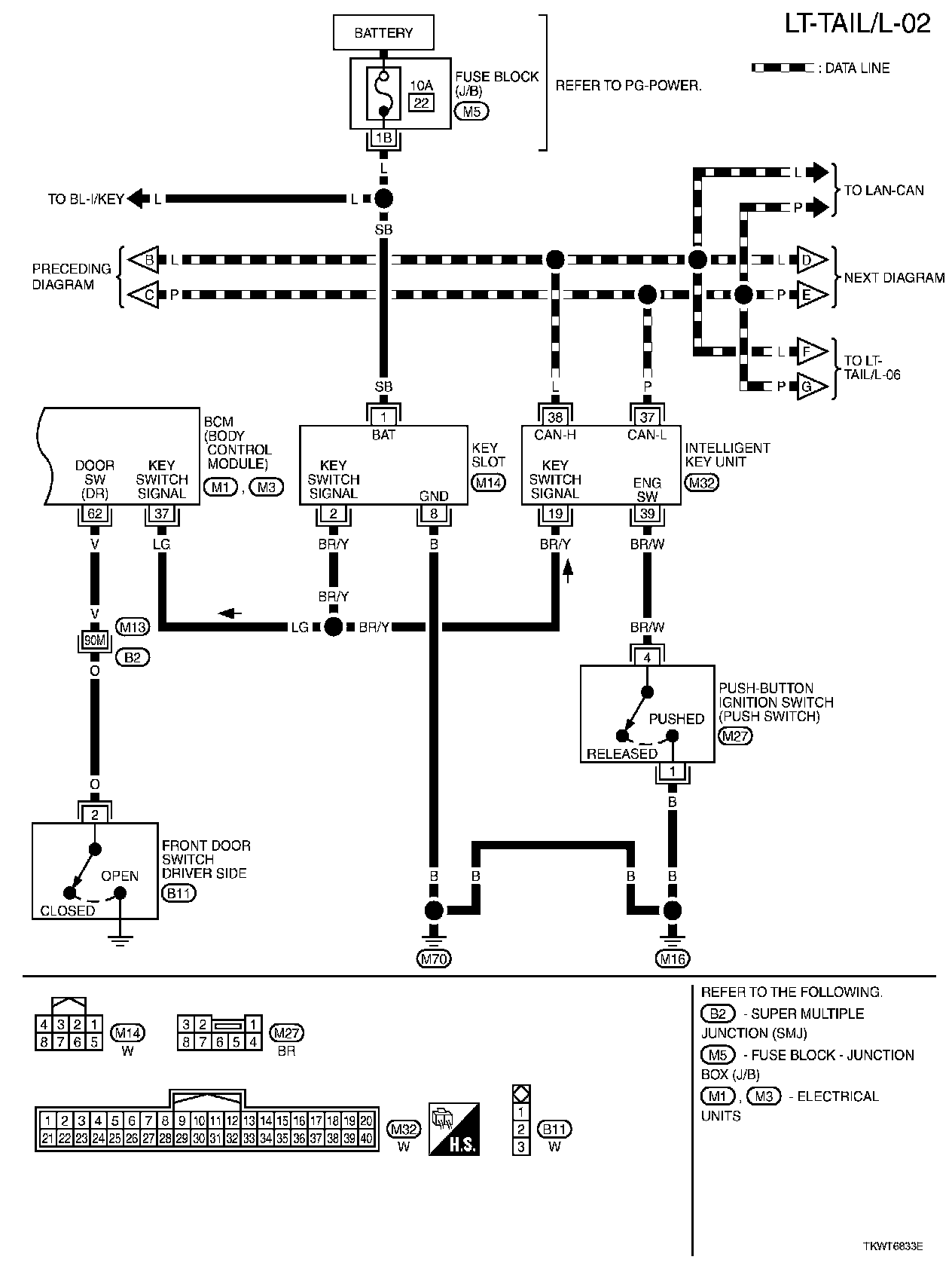

LT-TAIL/L-02:

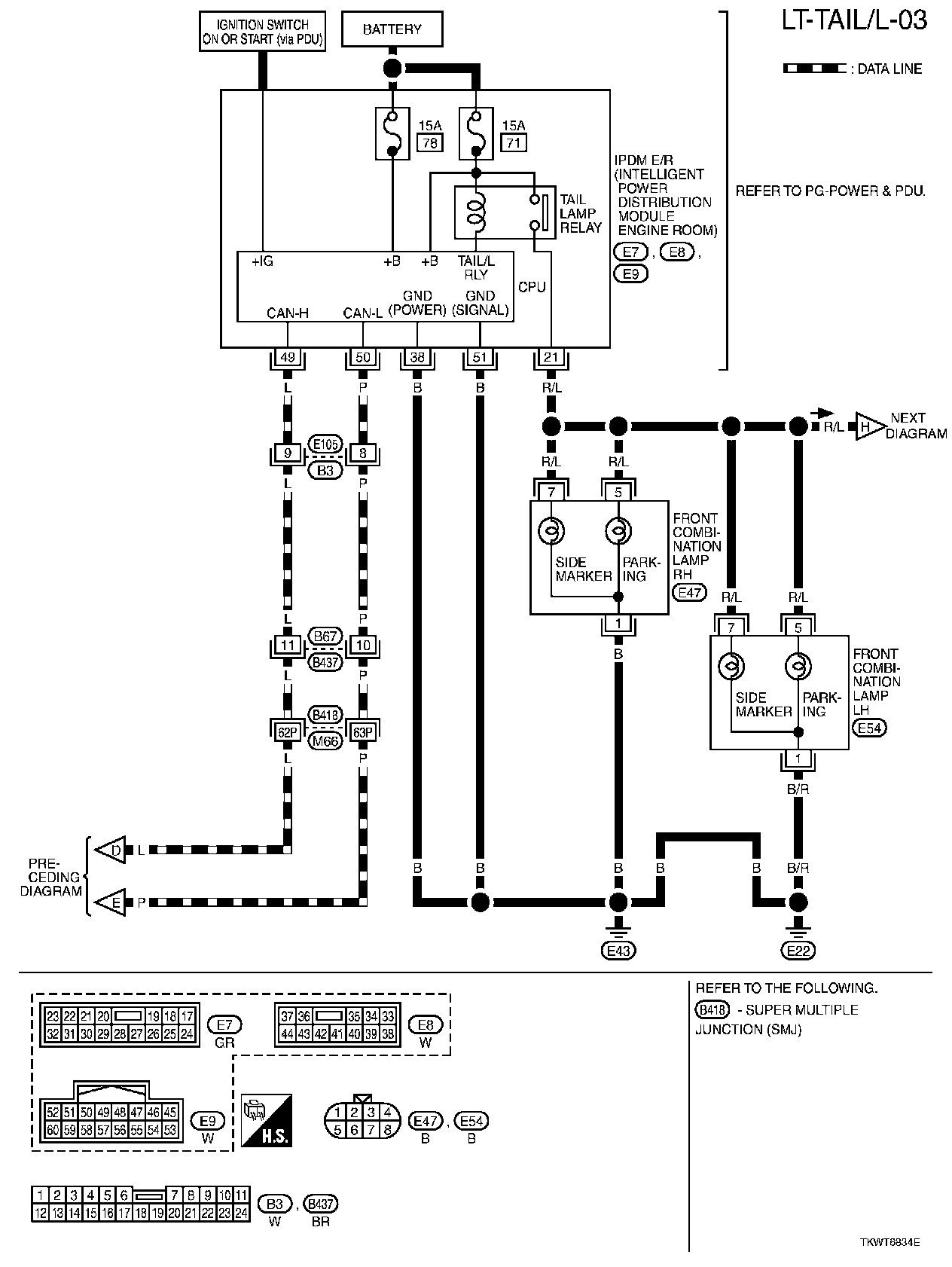

LT-TAIL/L-03:

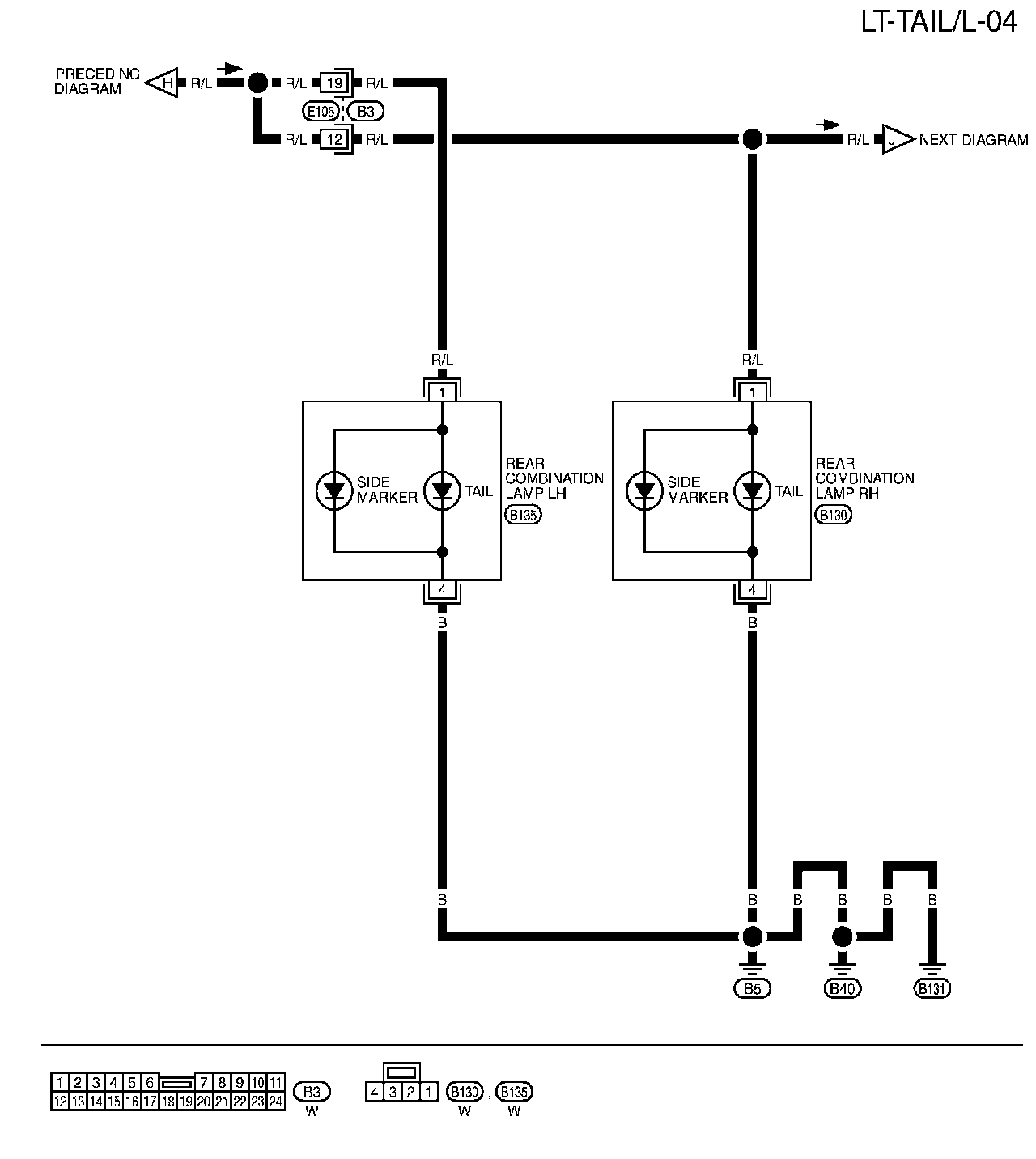

LT-TAIL/L-04:

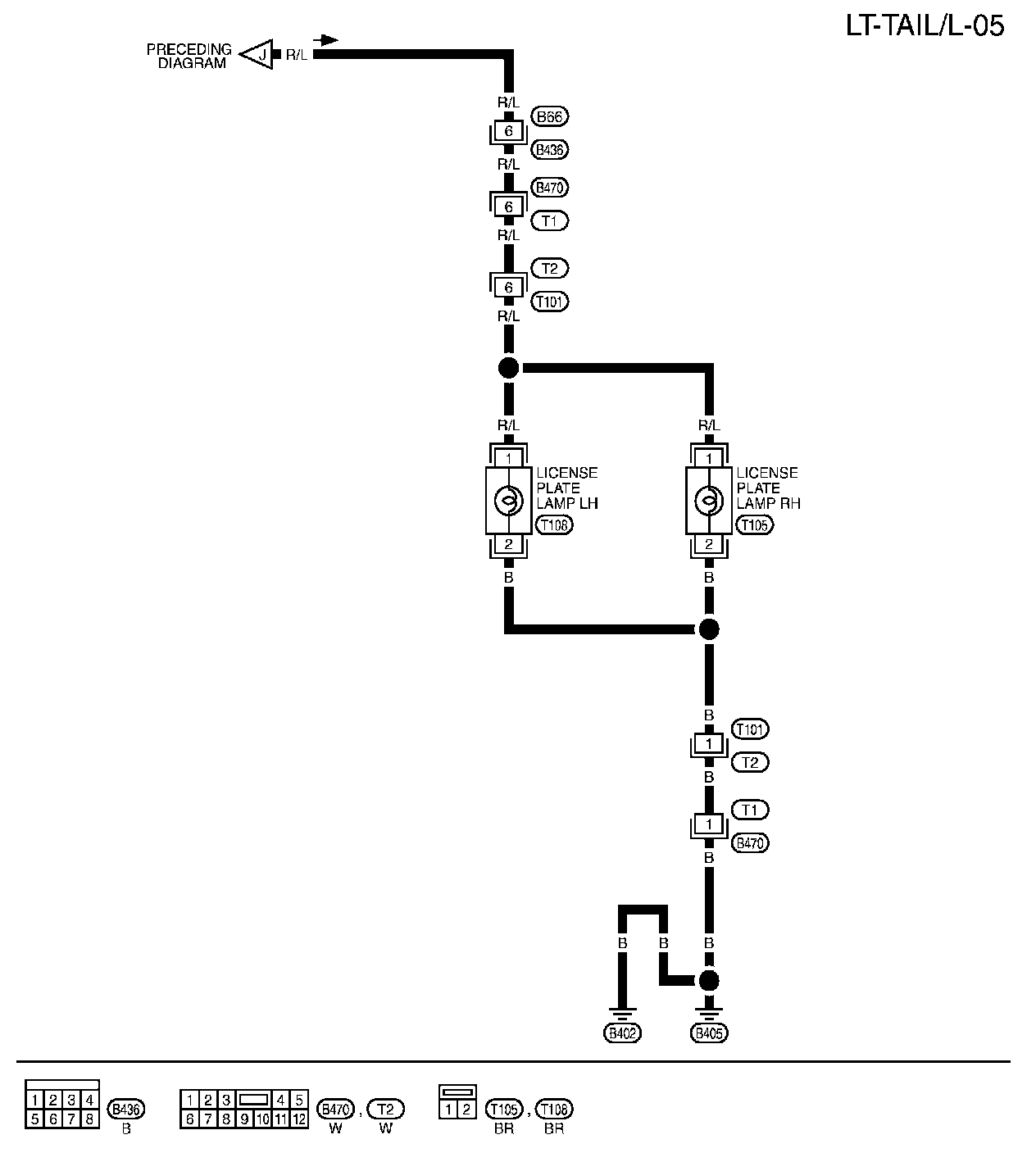

LT-TAIL/L-05:

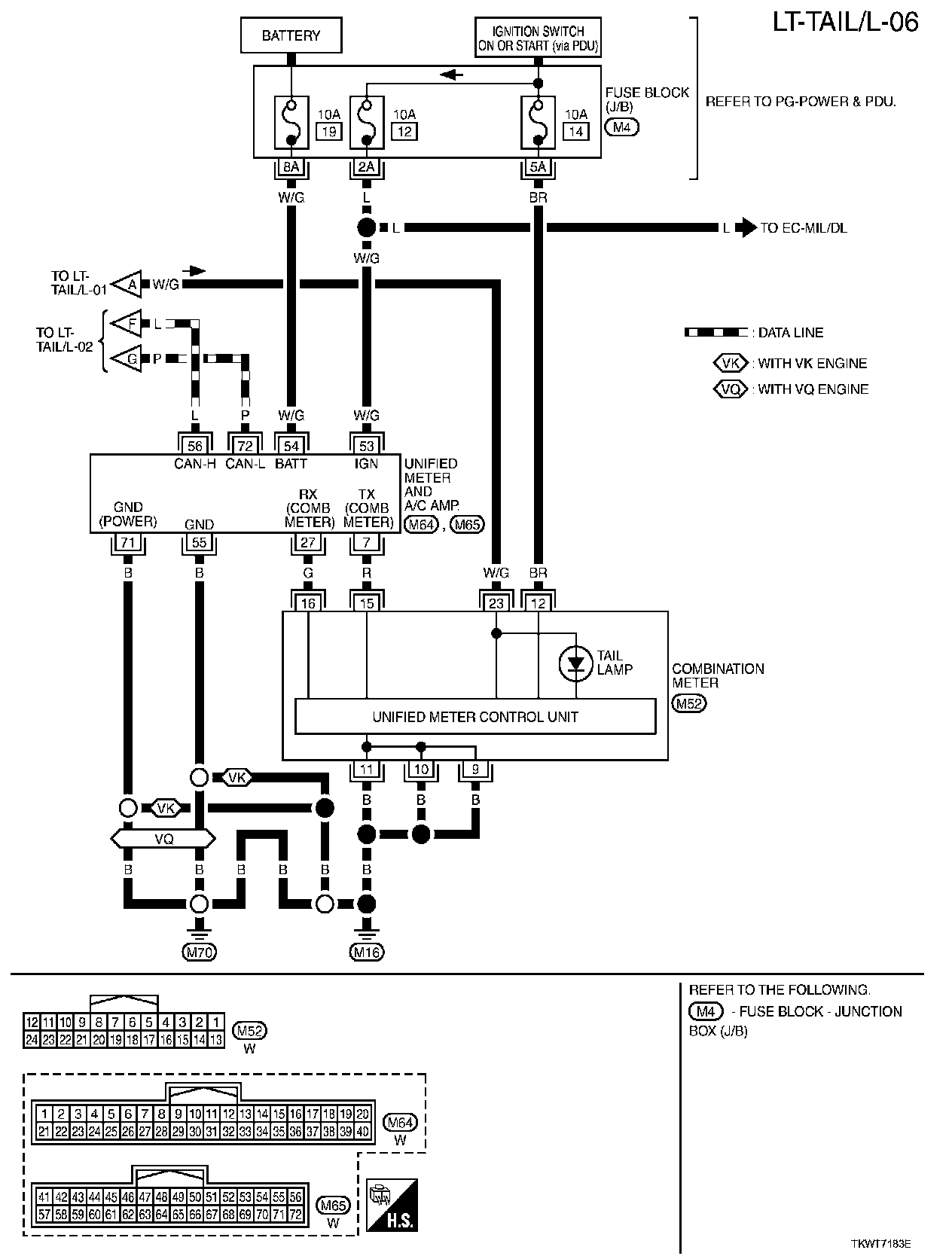

LT-TAIL/L-06:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
