Bose Audio 2ch System

AV CONTROL UNIT

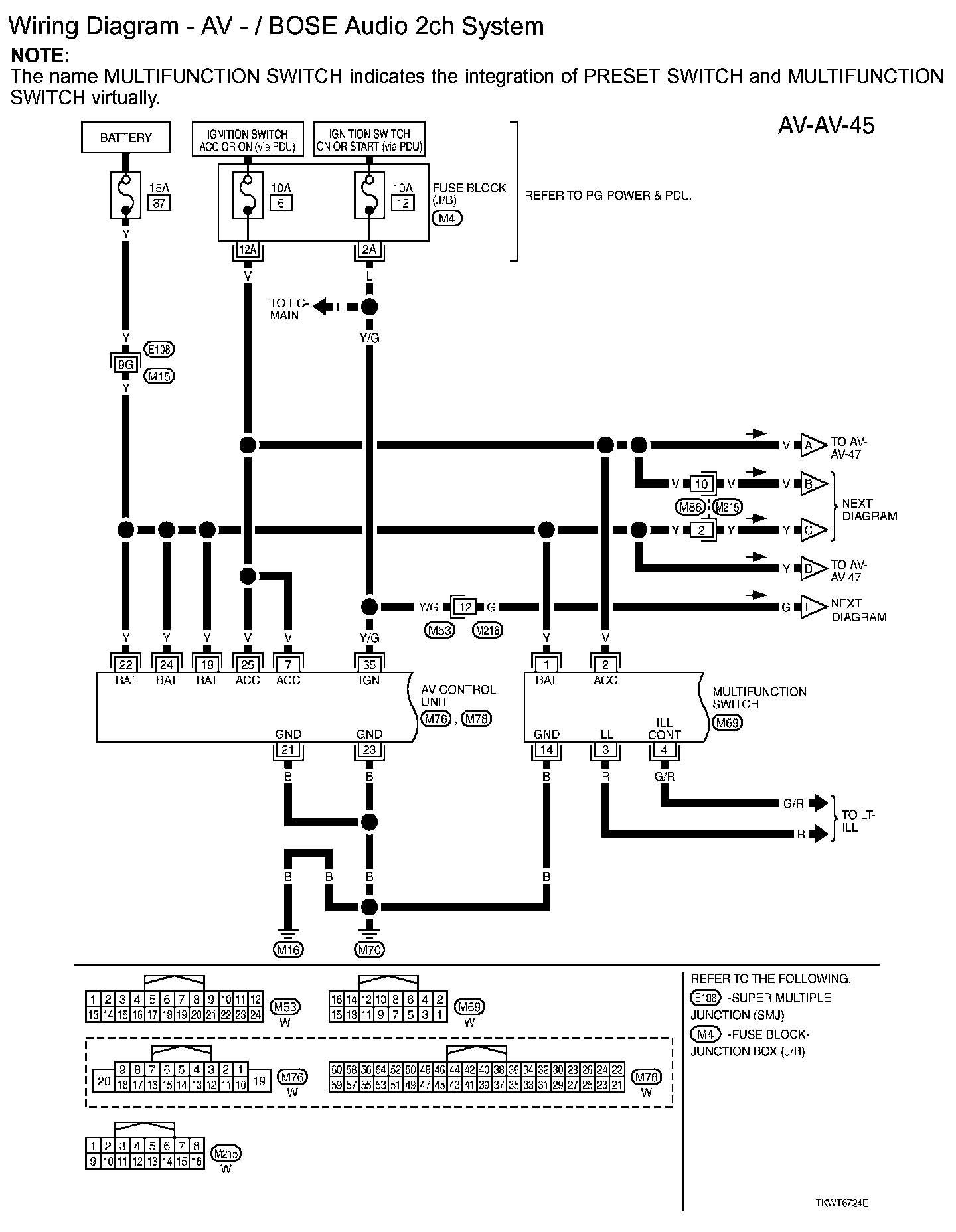

Wiring Diagram - AV - / BOSE Audio 2ch System

AV-AV-45:

AV-AV-46:

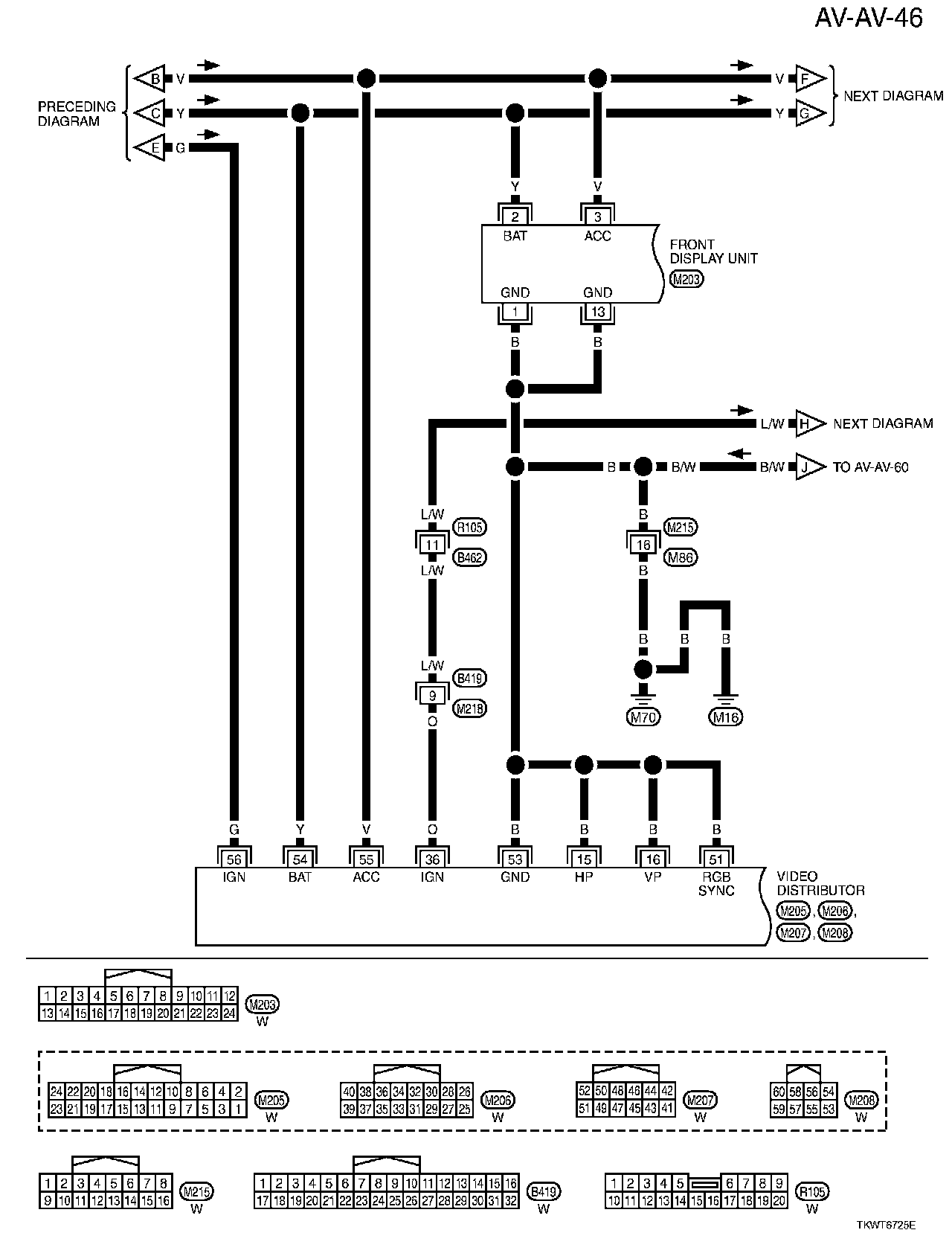

AV-AV-47:

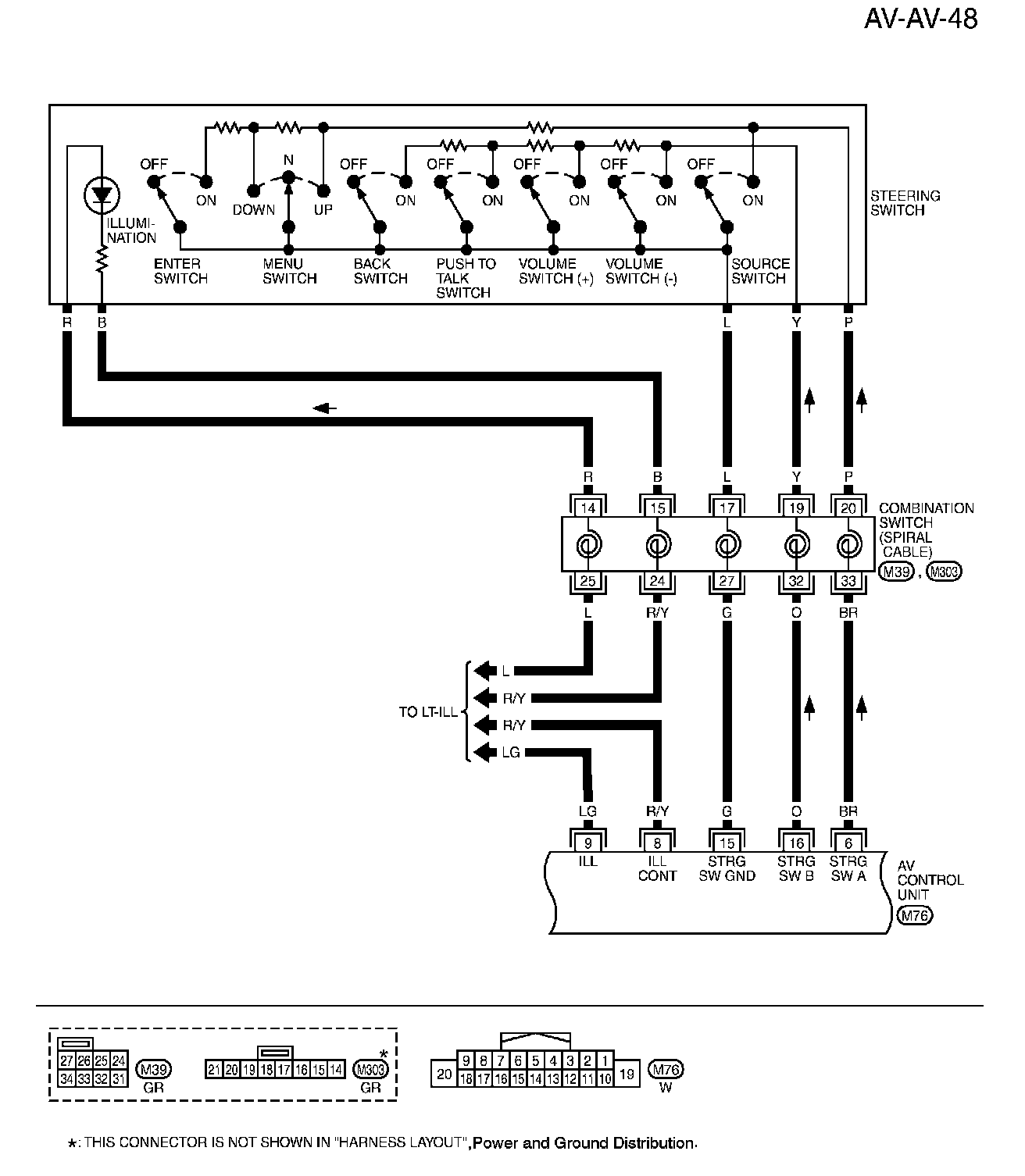

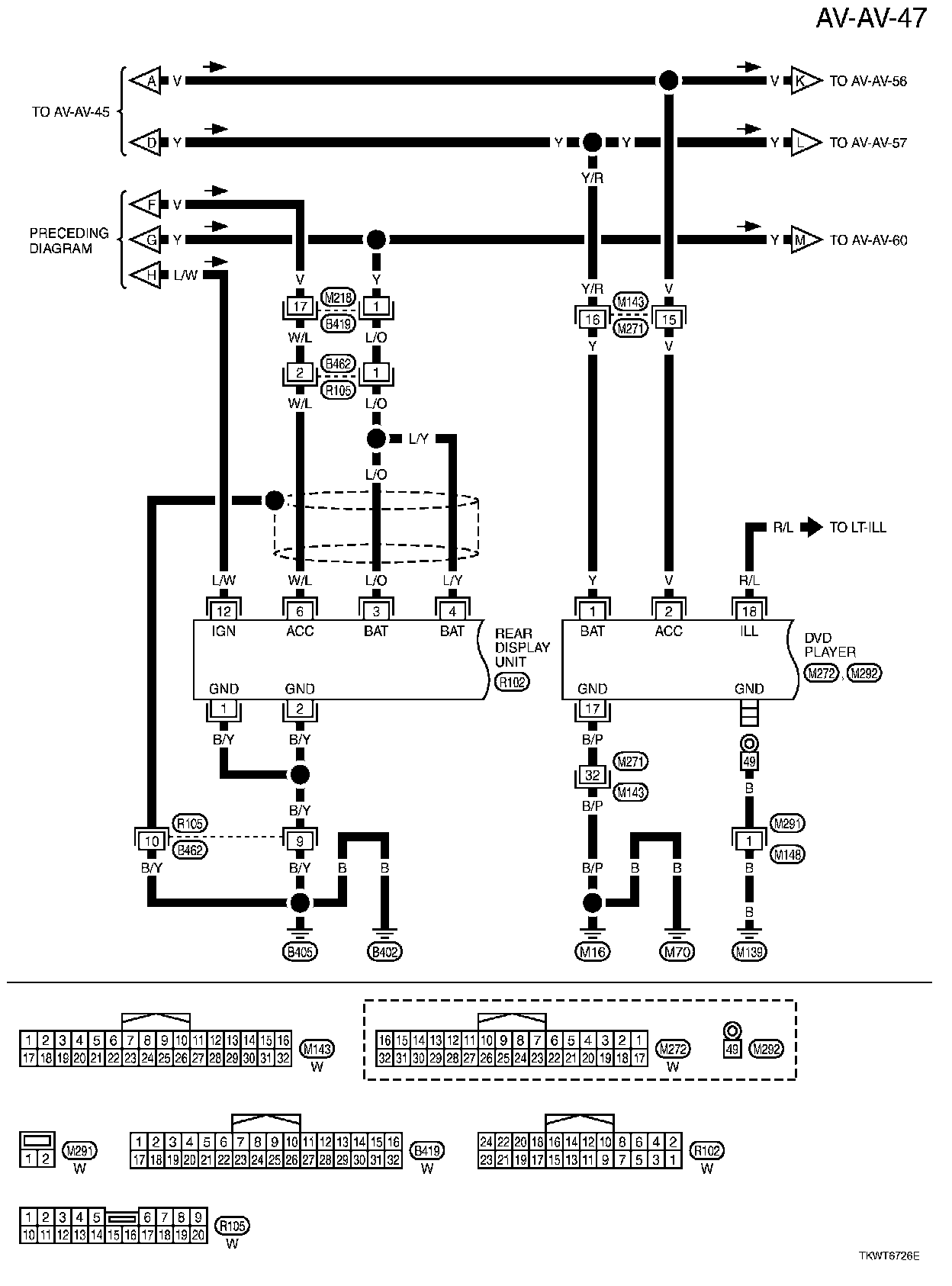

AV-AV-48:

AV-AV-49:

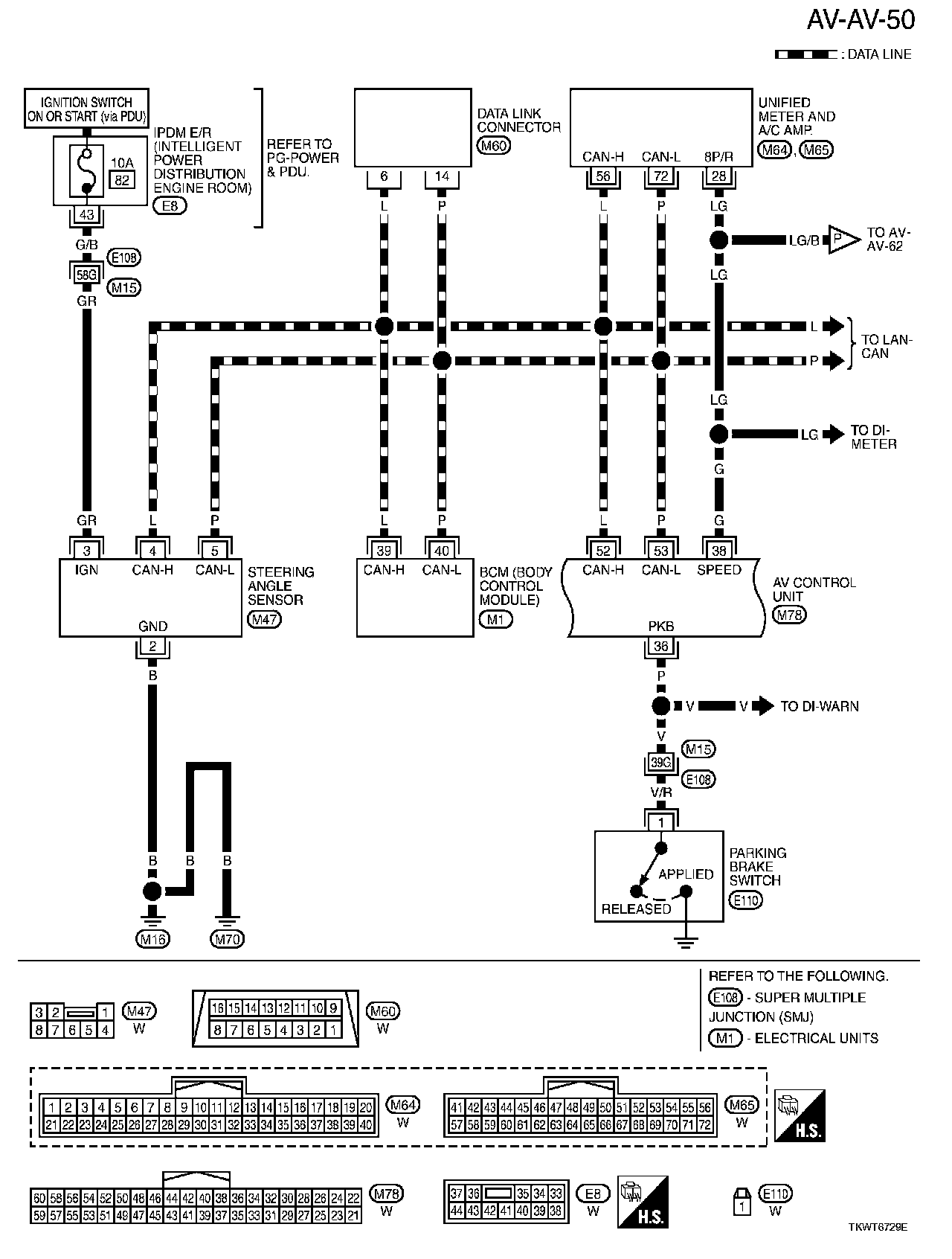

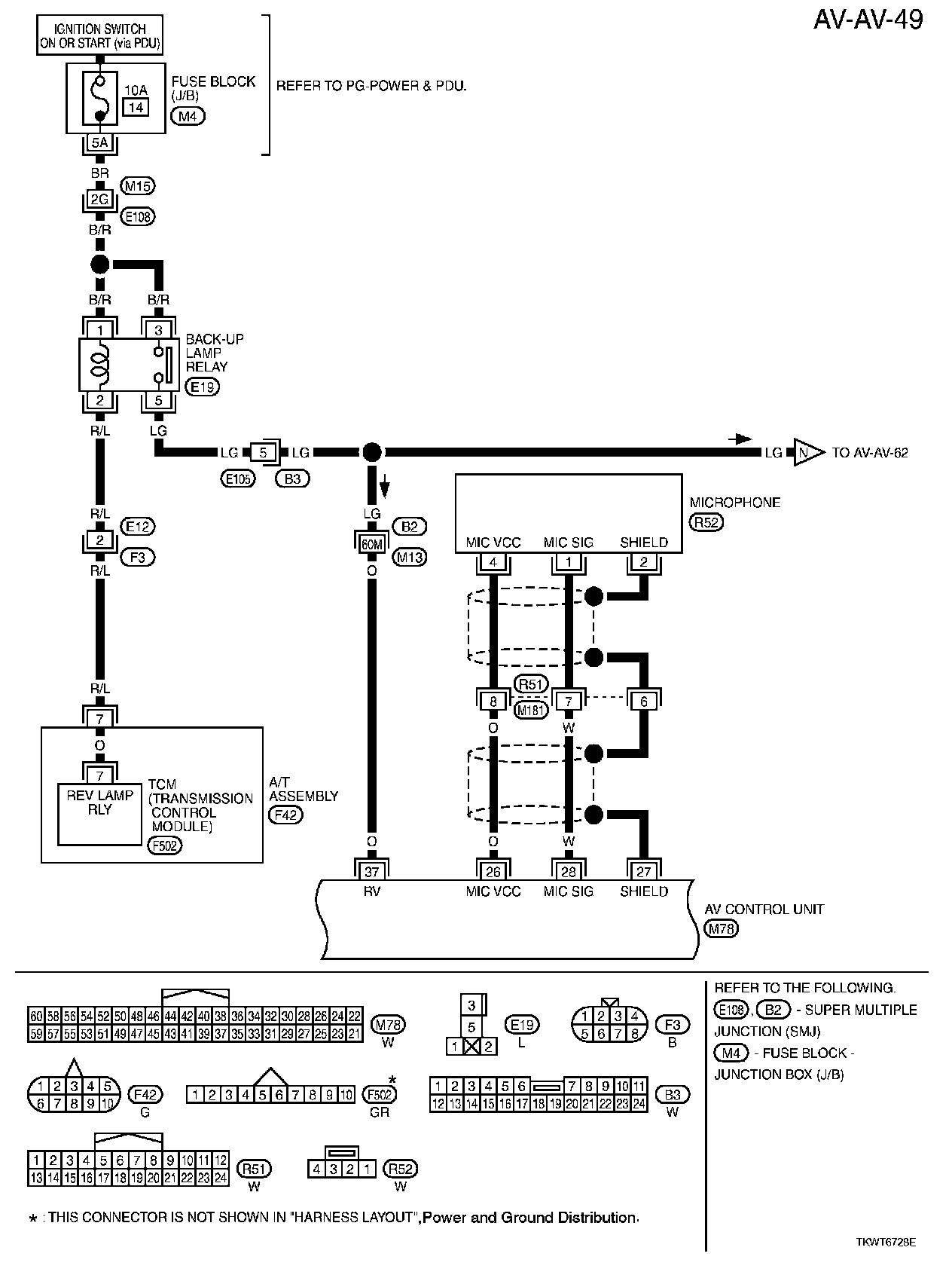

AV-AV-50:

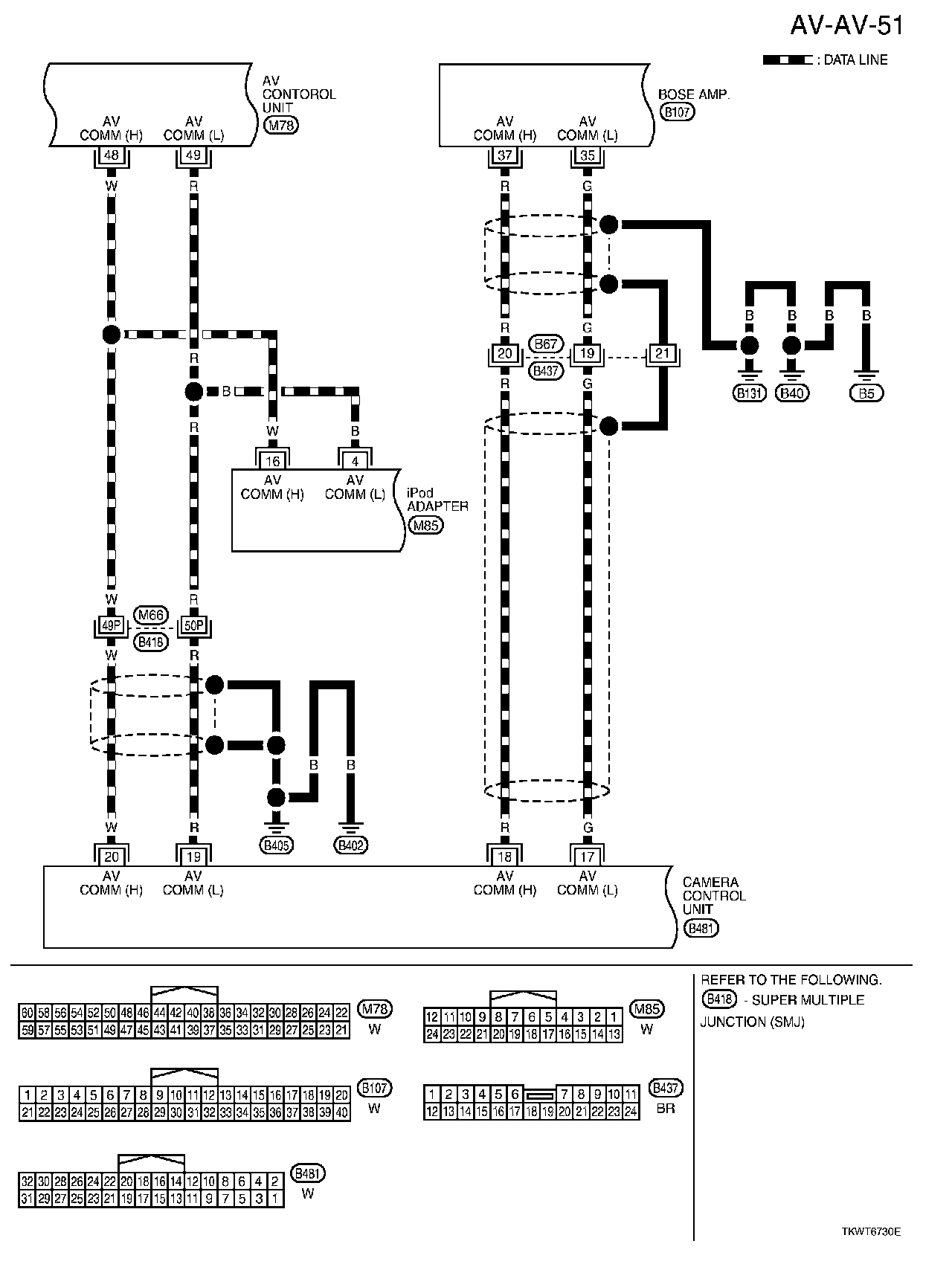

AV-AV-51:

AV-AV-52:

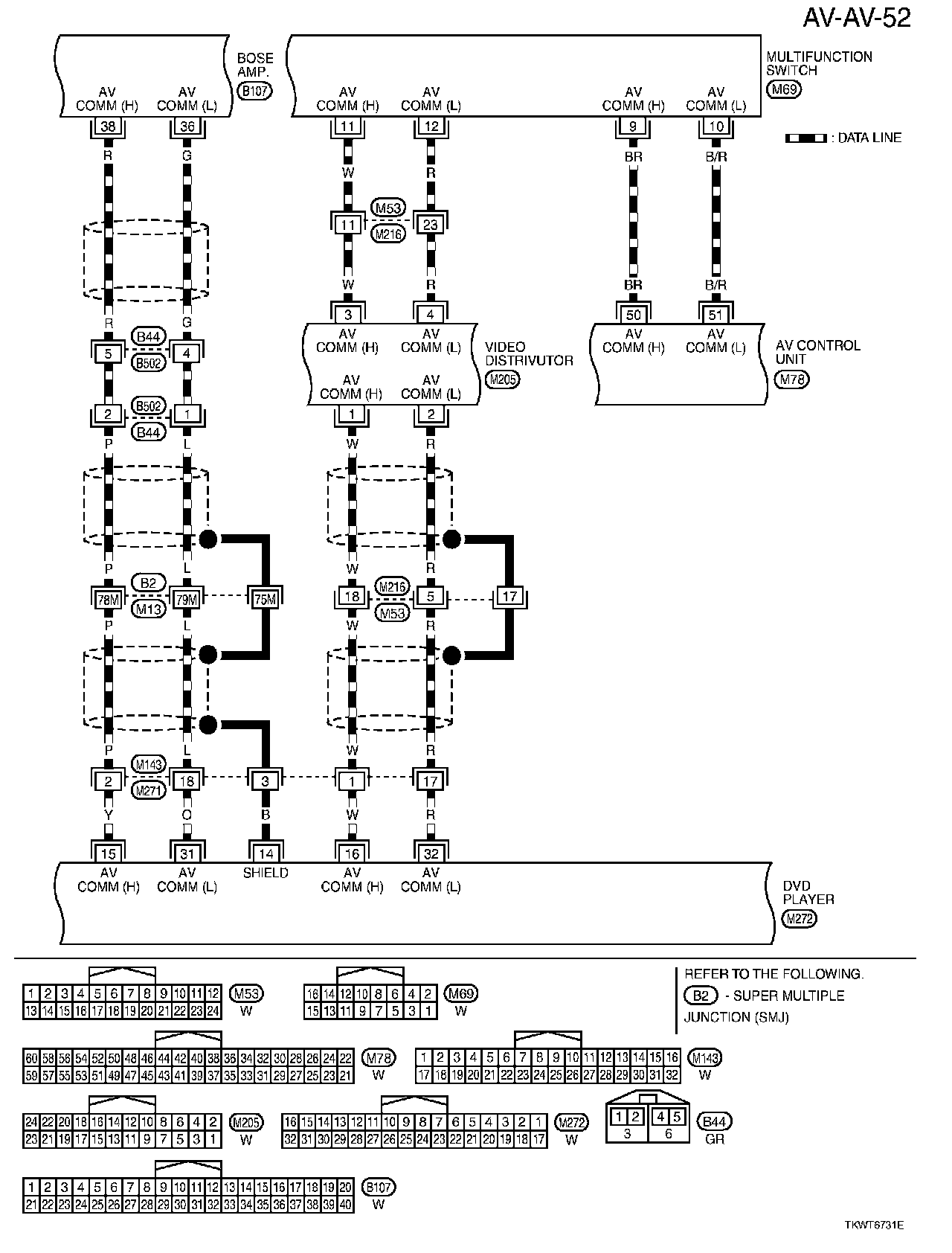

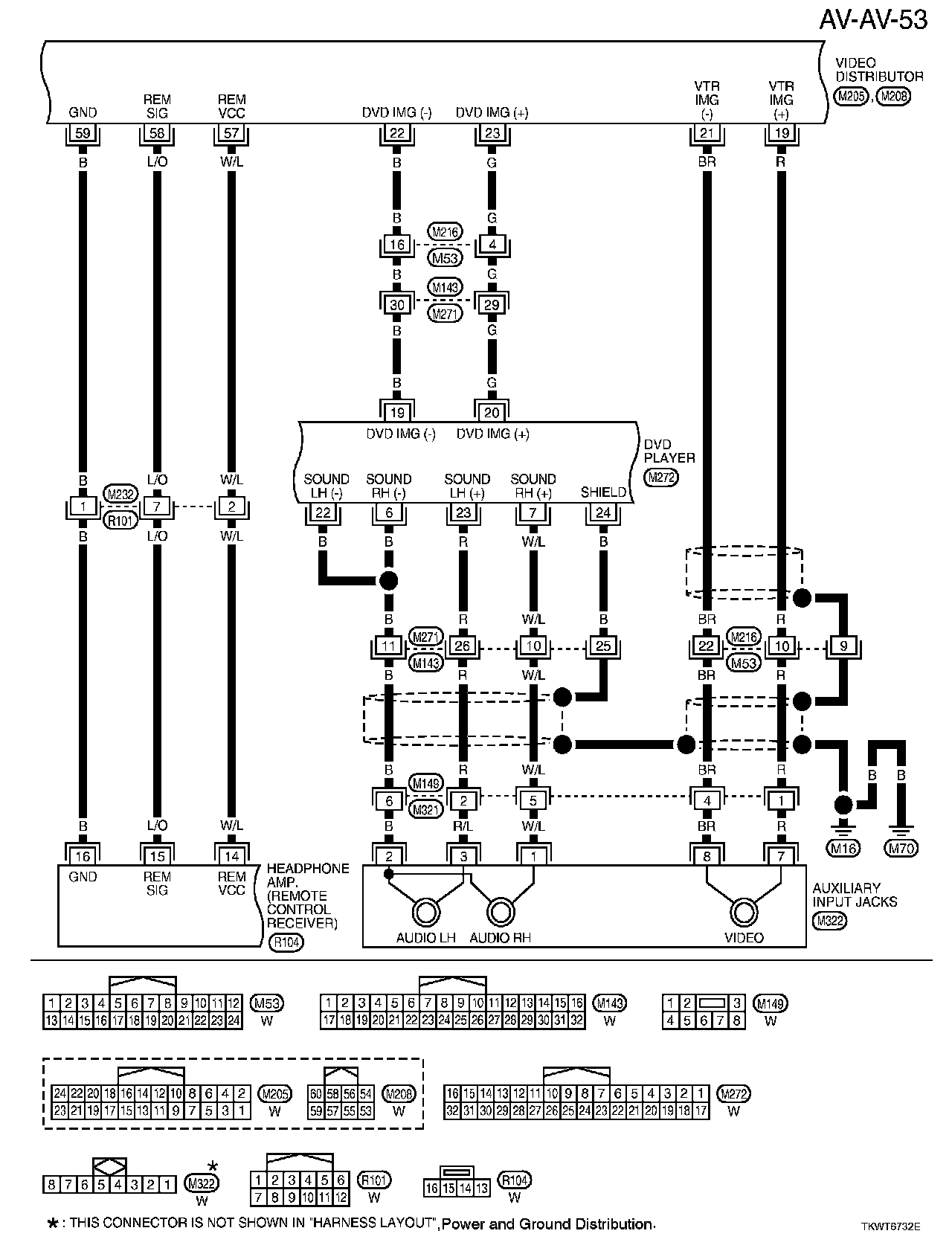

AV-AV-53:

AV-AV-54:

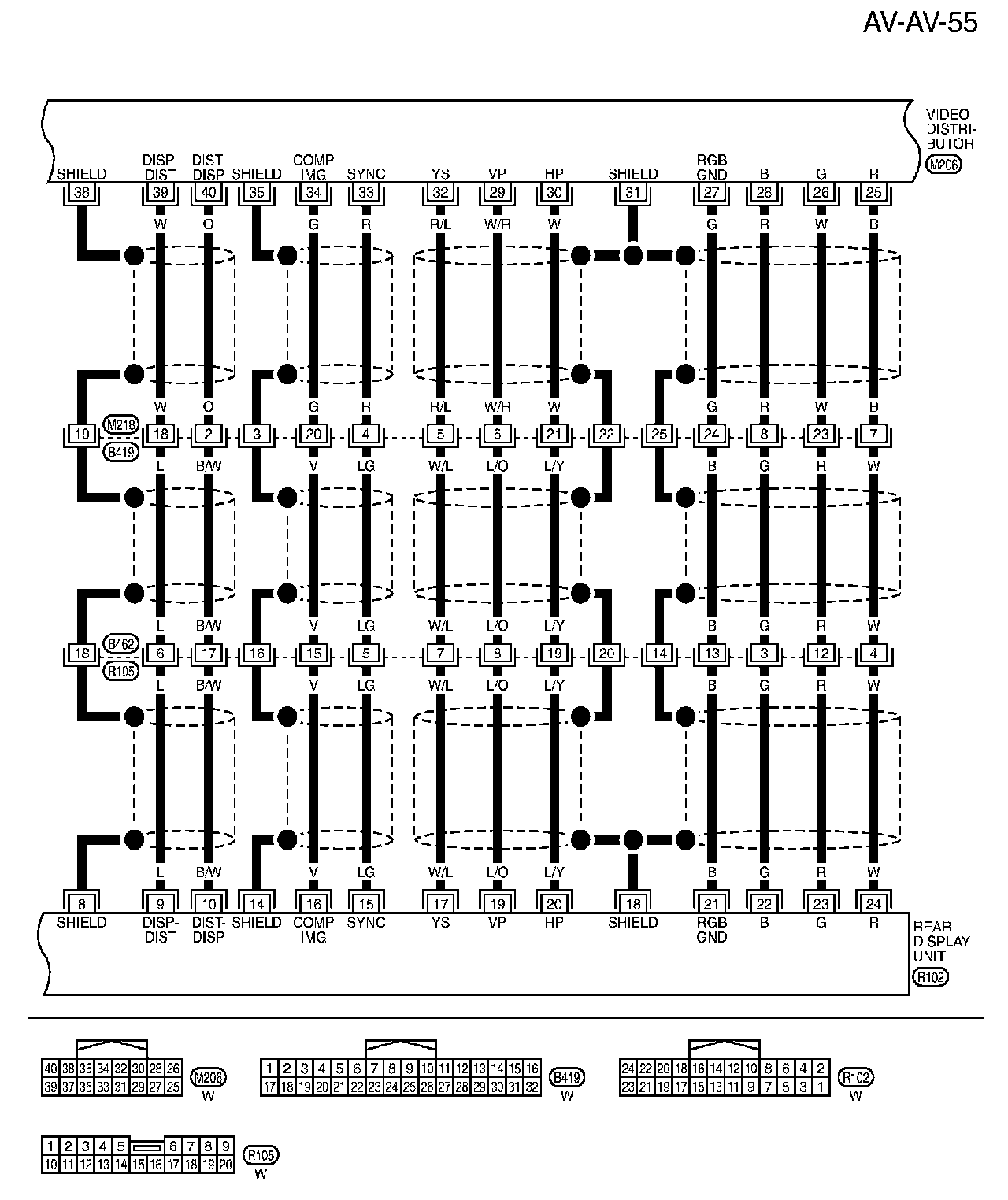

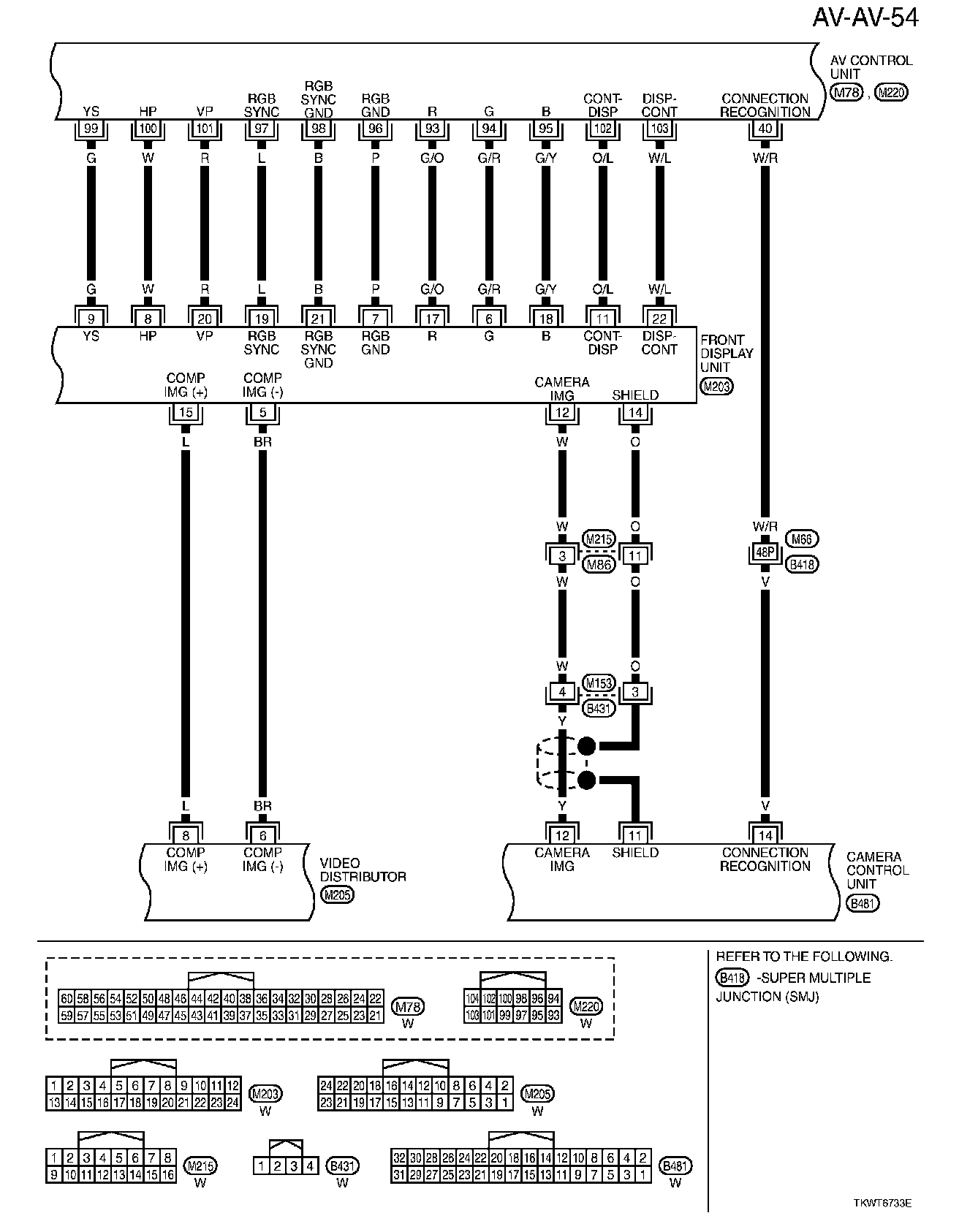

AV-AV-55:

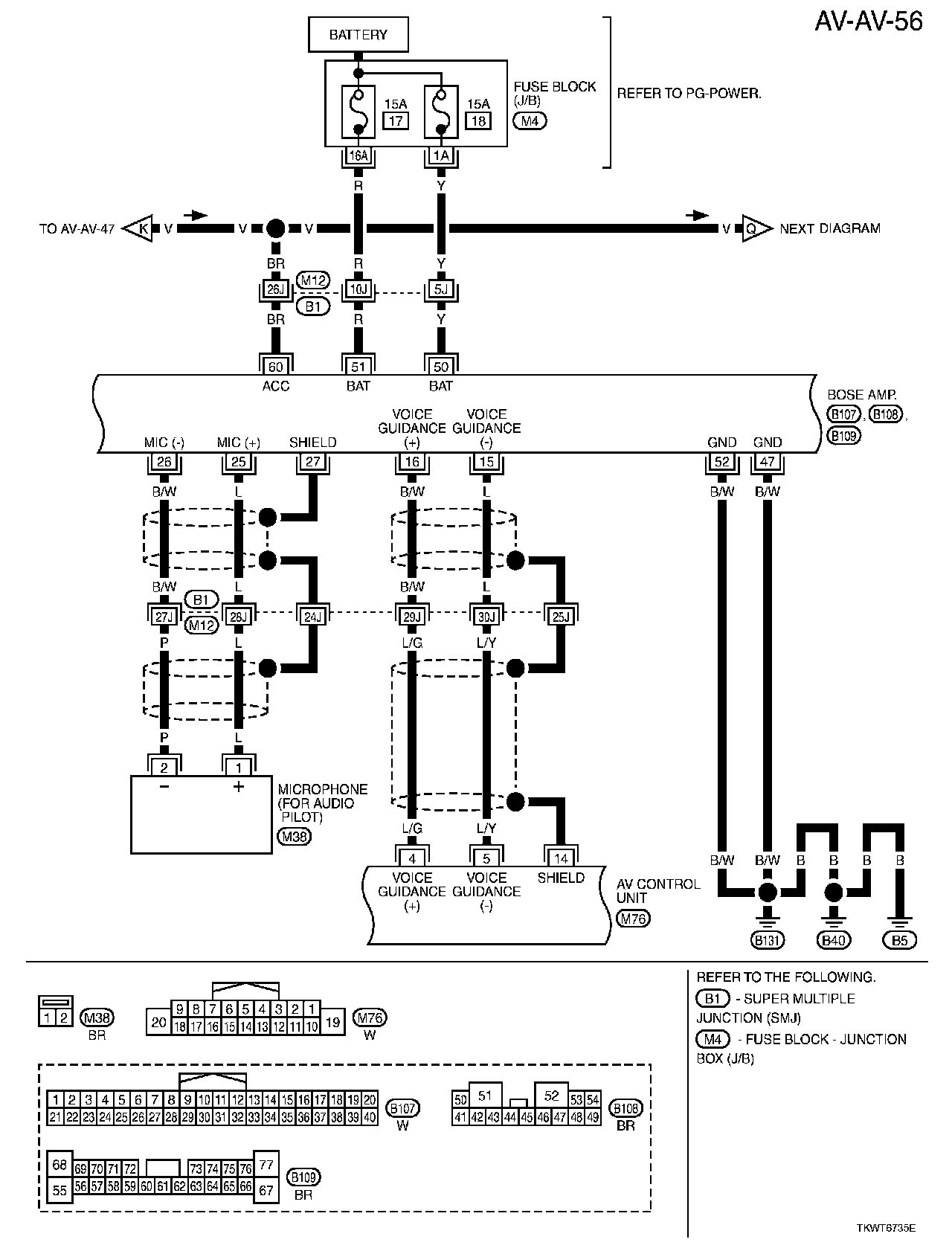

AV-AV-56:

AV-AV-57:

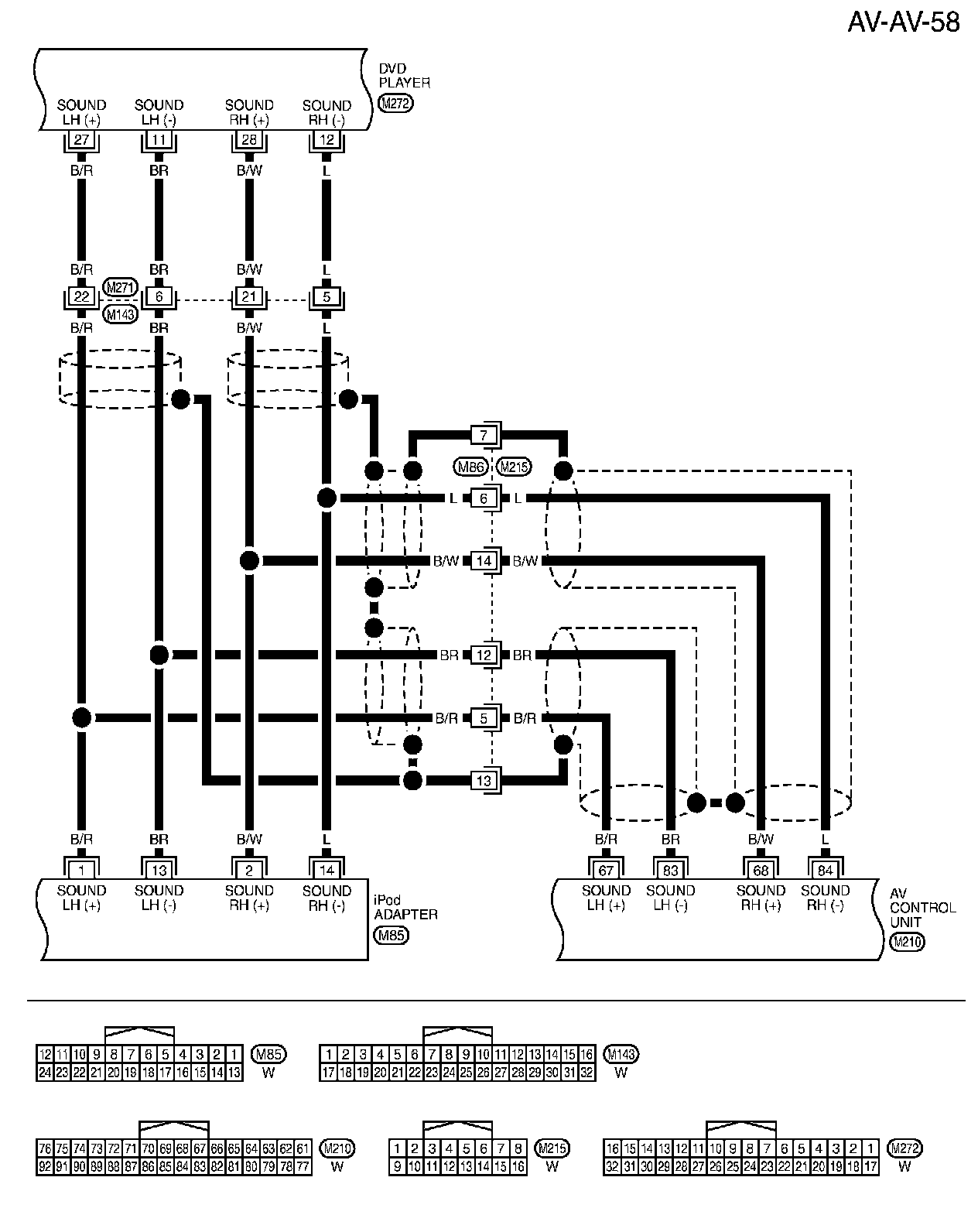

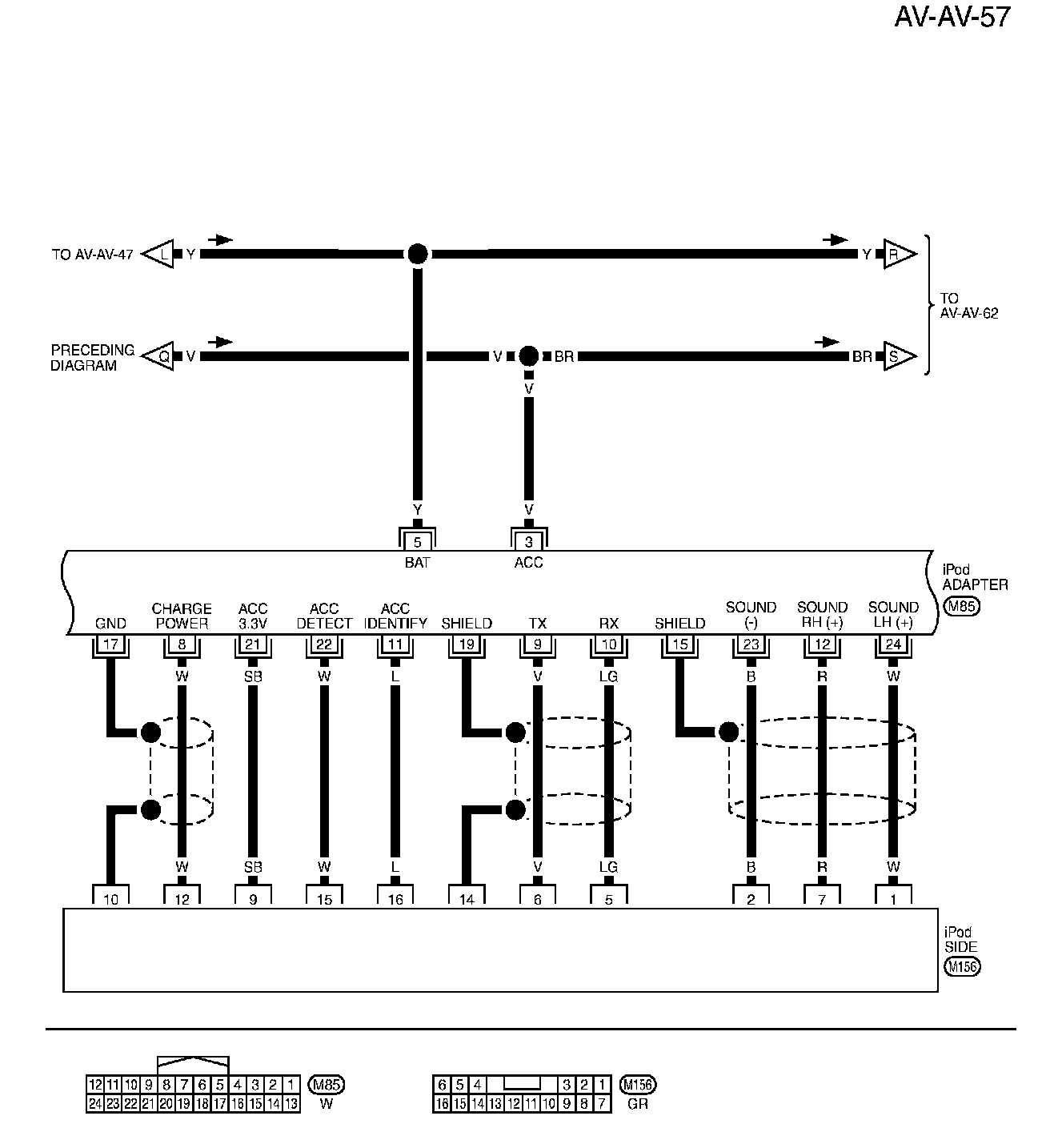

AV-AV-58:

AV-AV-59:

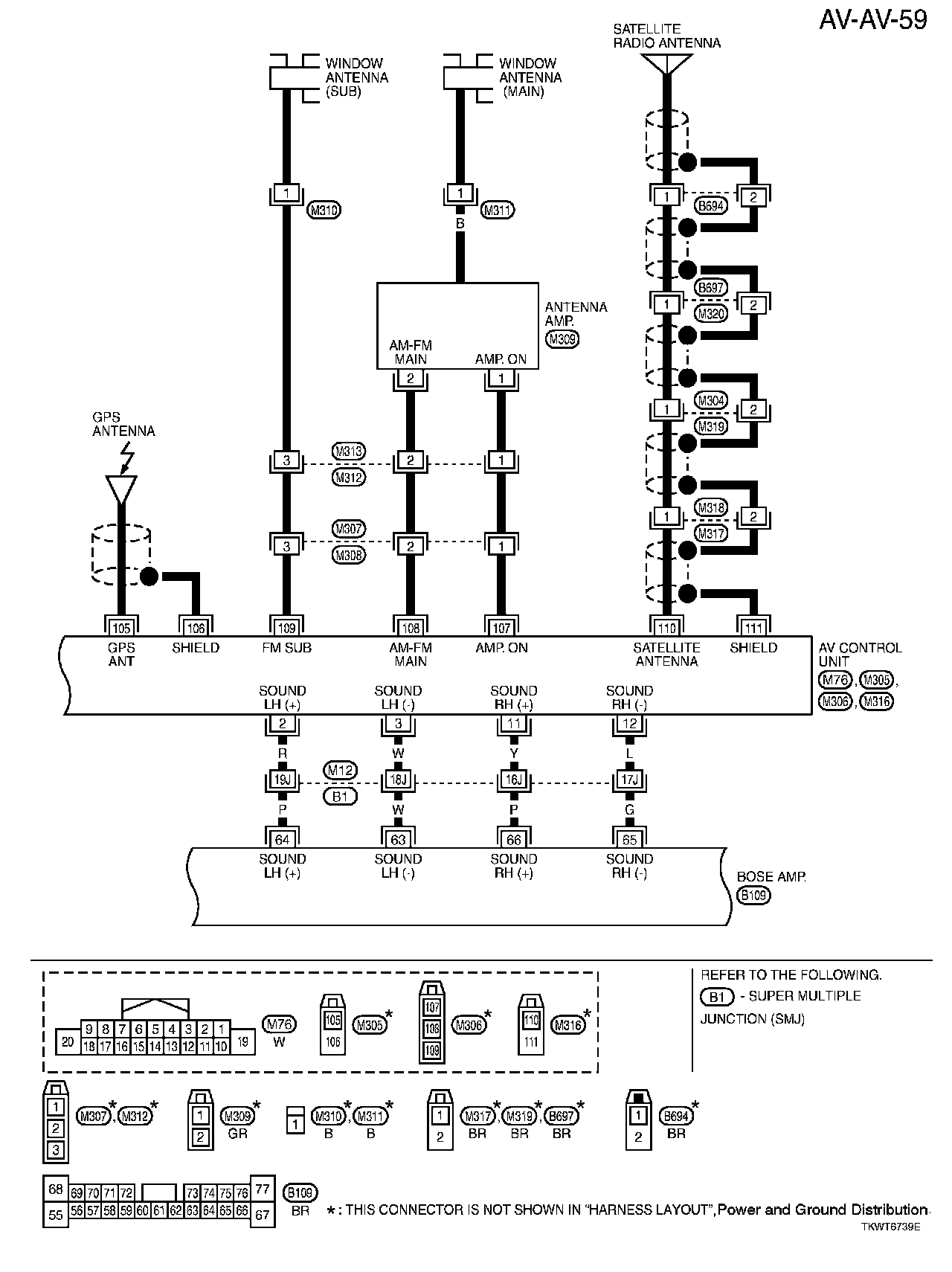

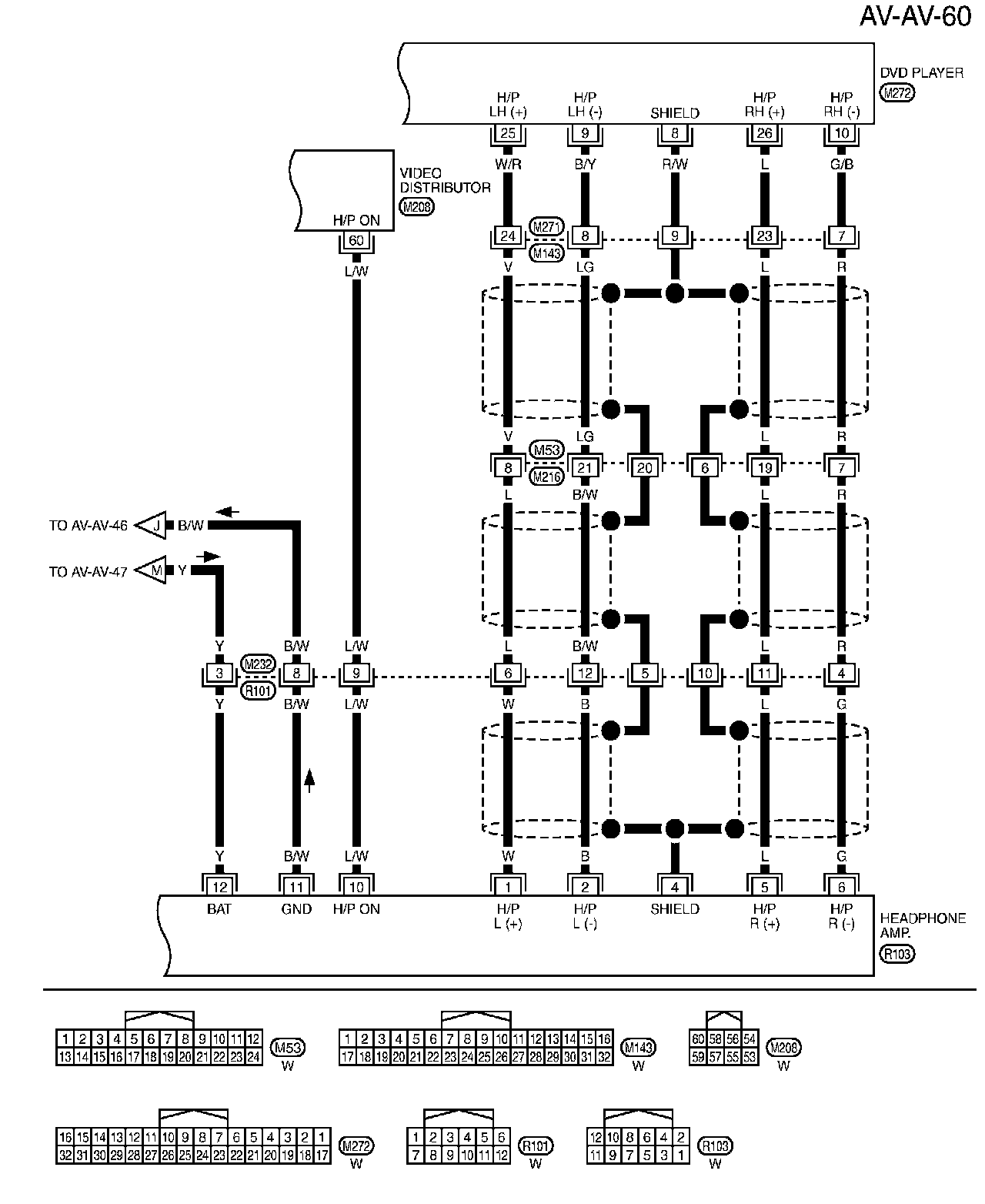

AV-AV-60:

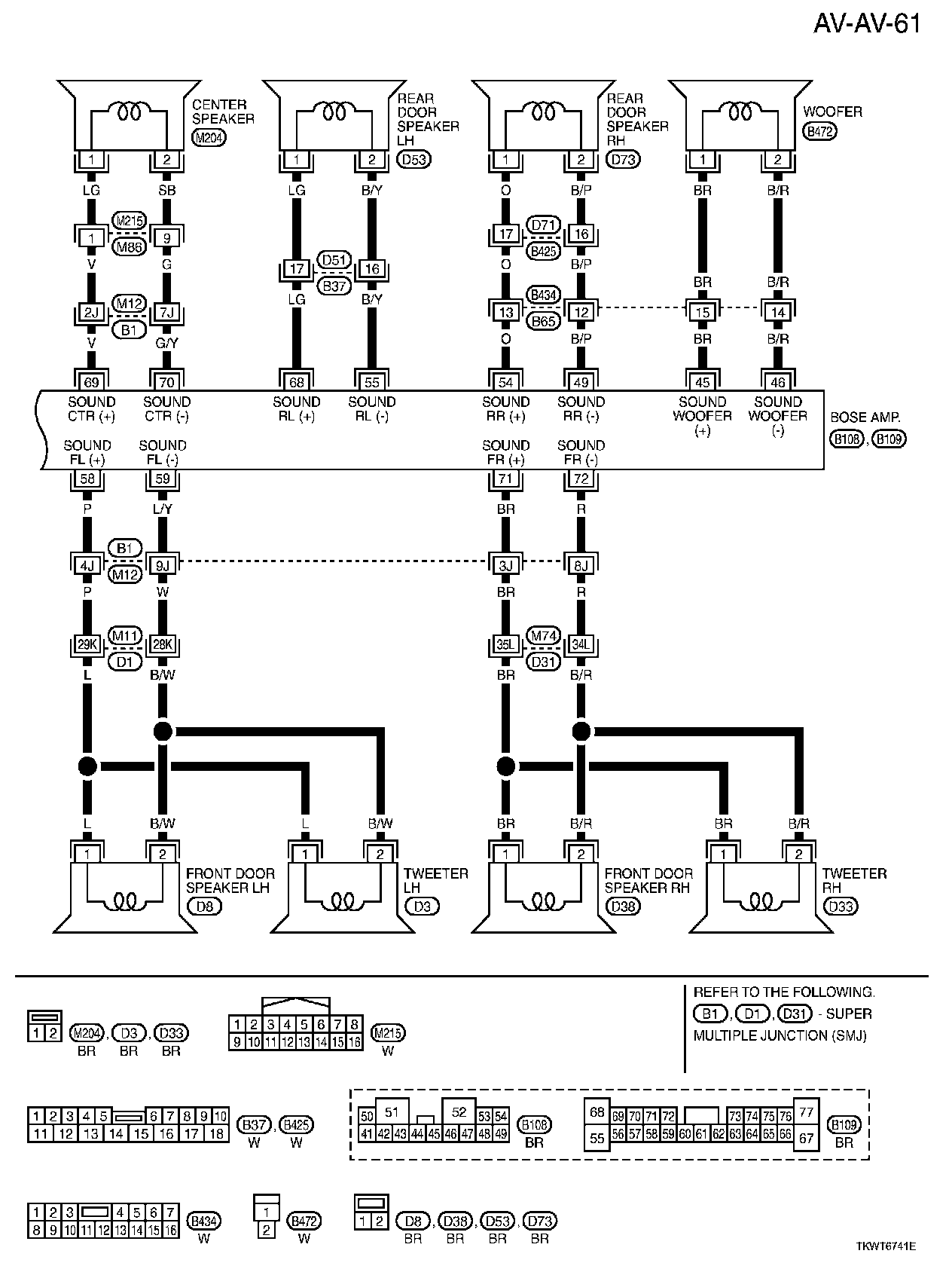

AV-AV-61:

AV-AV-62:

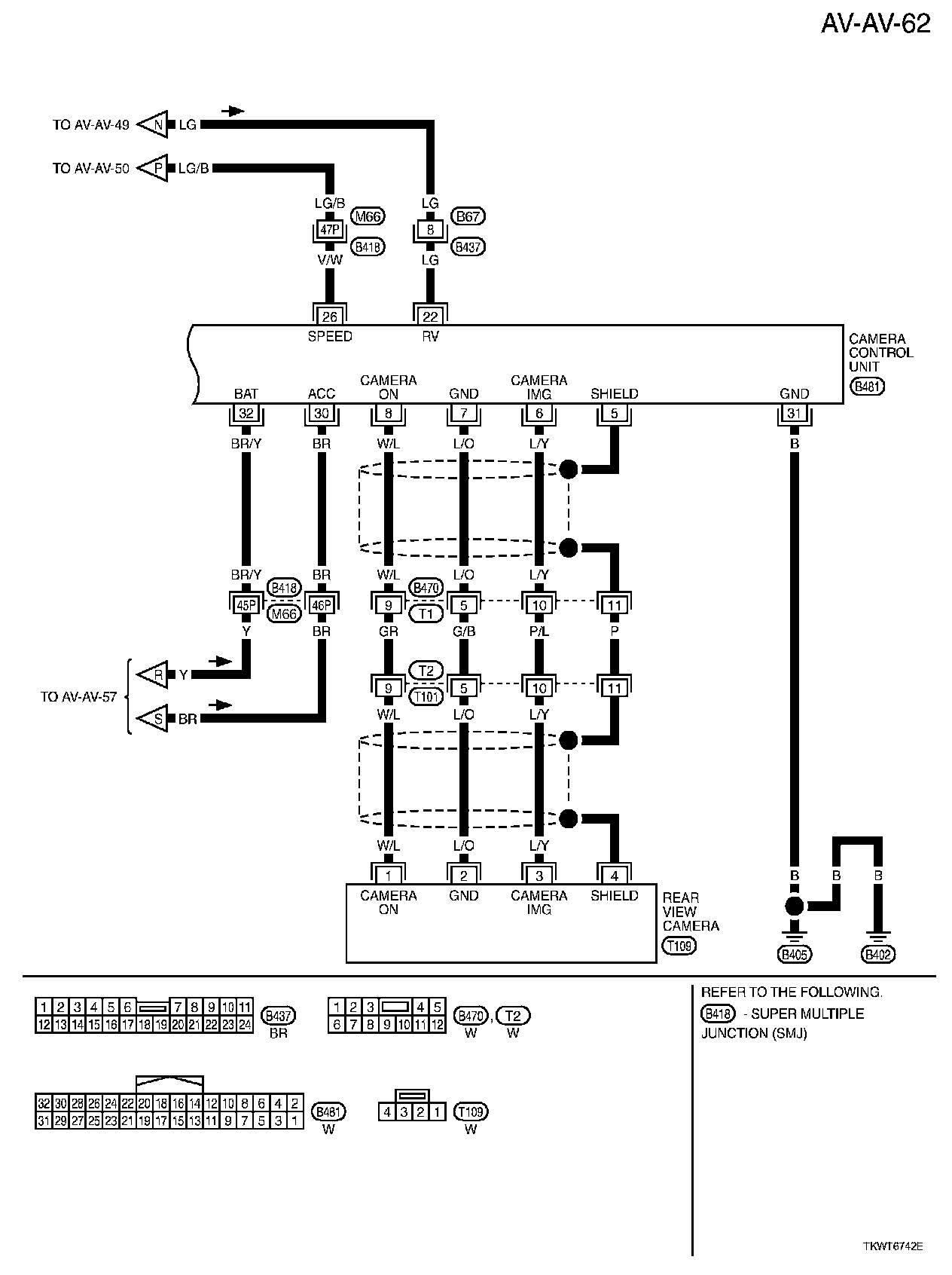

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
