Seat Temperature Element

HEATED SEAT

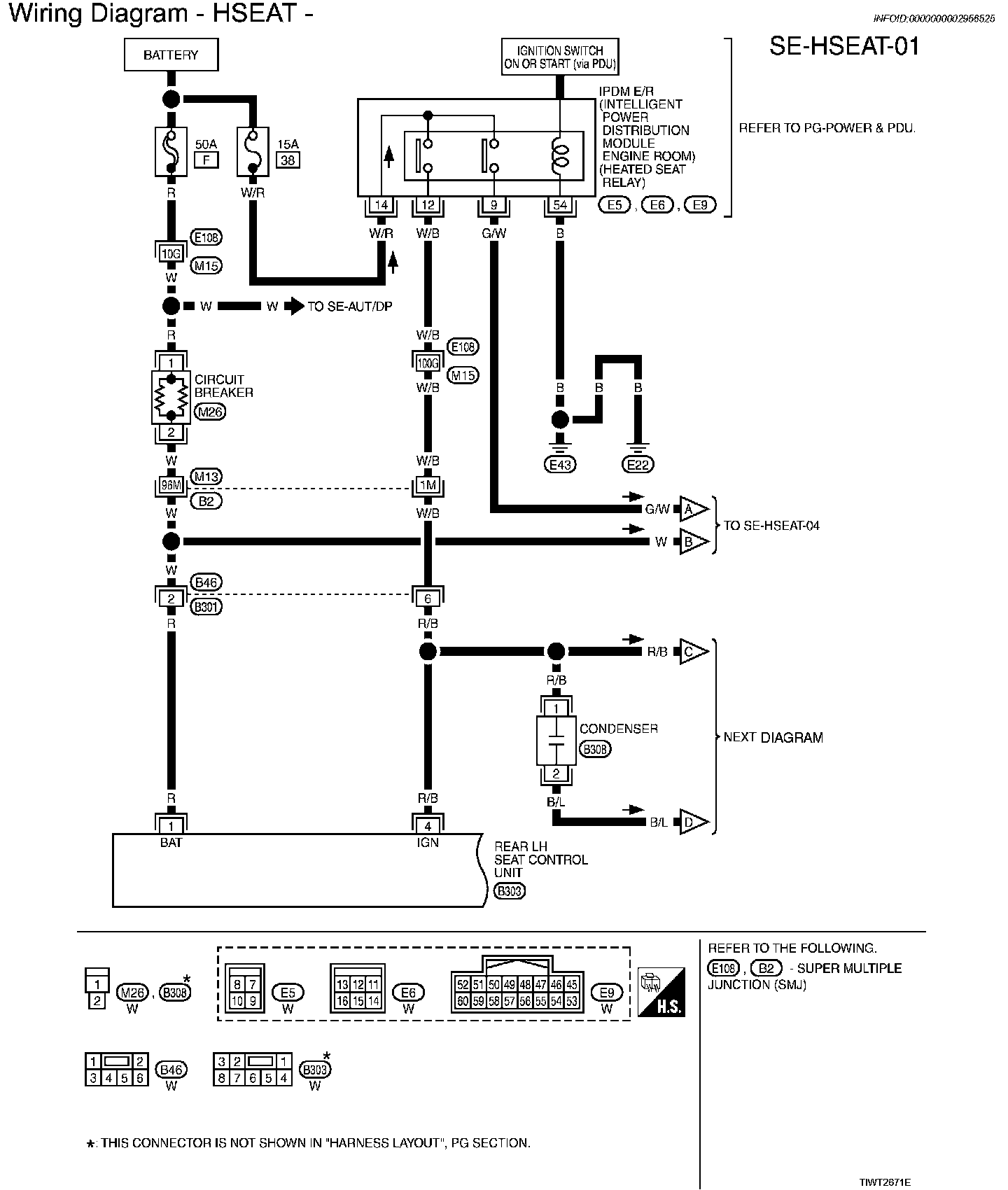

Wiring Diagram - HSEAT -

Wiring Diagram - HSEAT - Part 1:

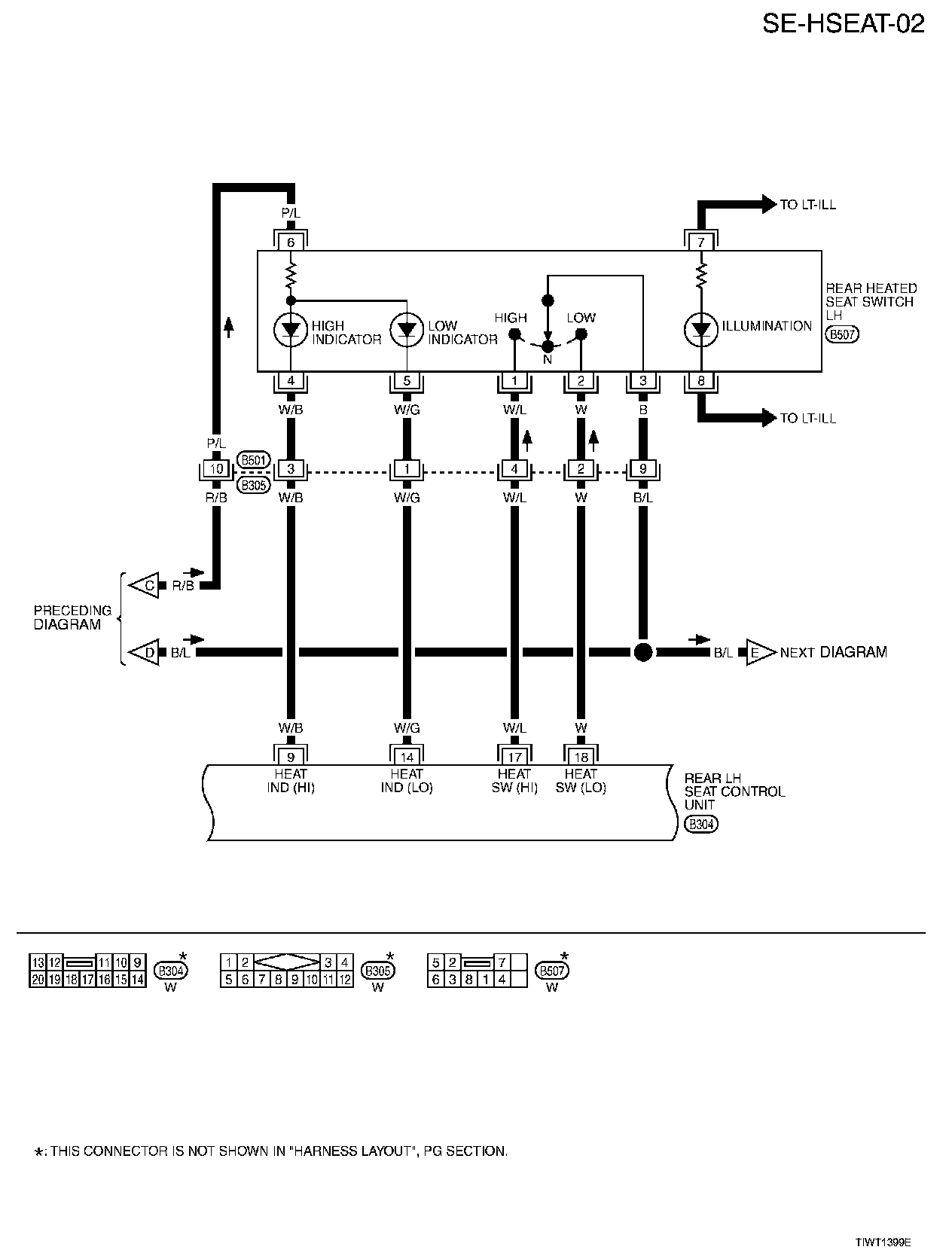

Wiring Diagram - HSEAT - Part 2:

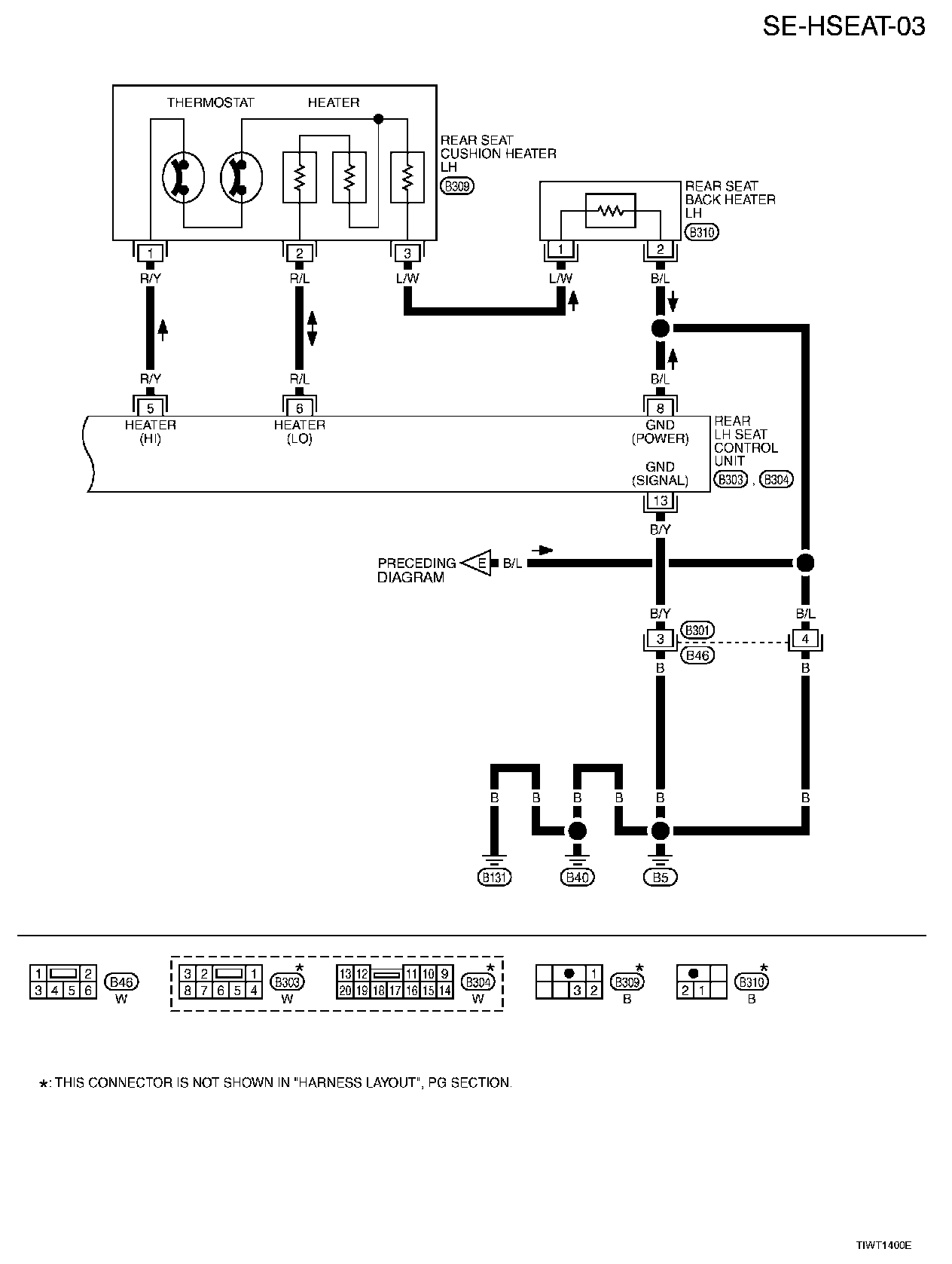

Wiring Diagram - HSEAT - Part 3:

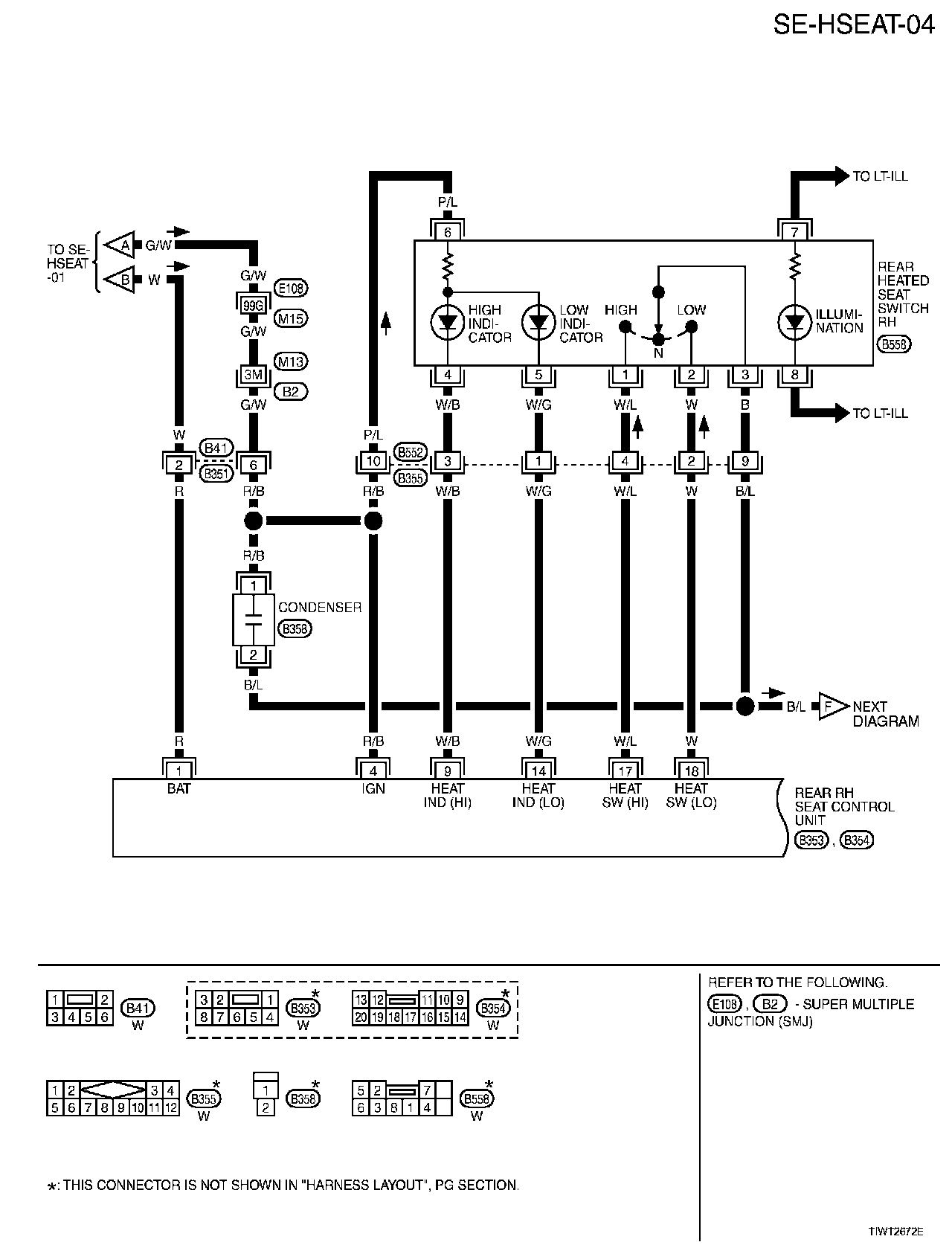

Wiring Diagram - HSEAT - Part 4:

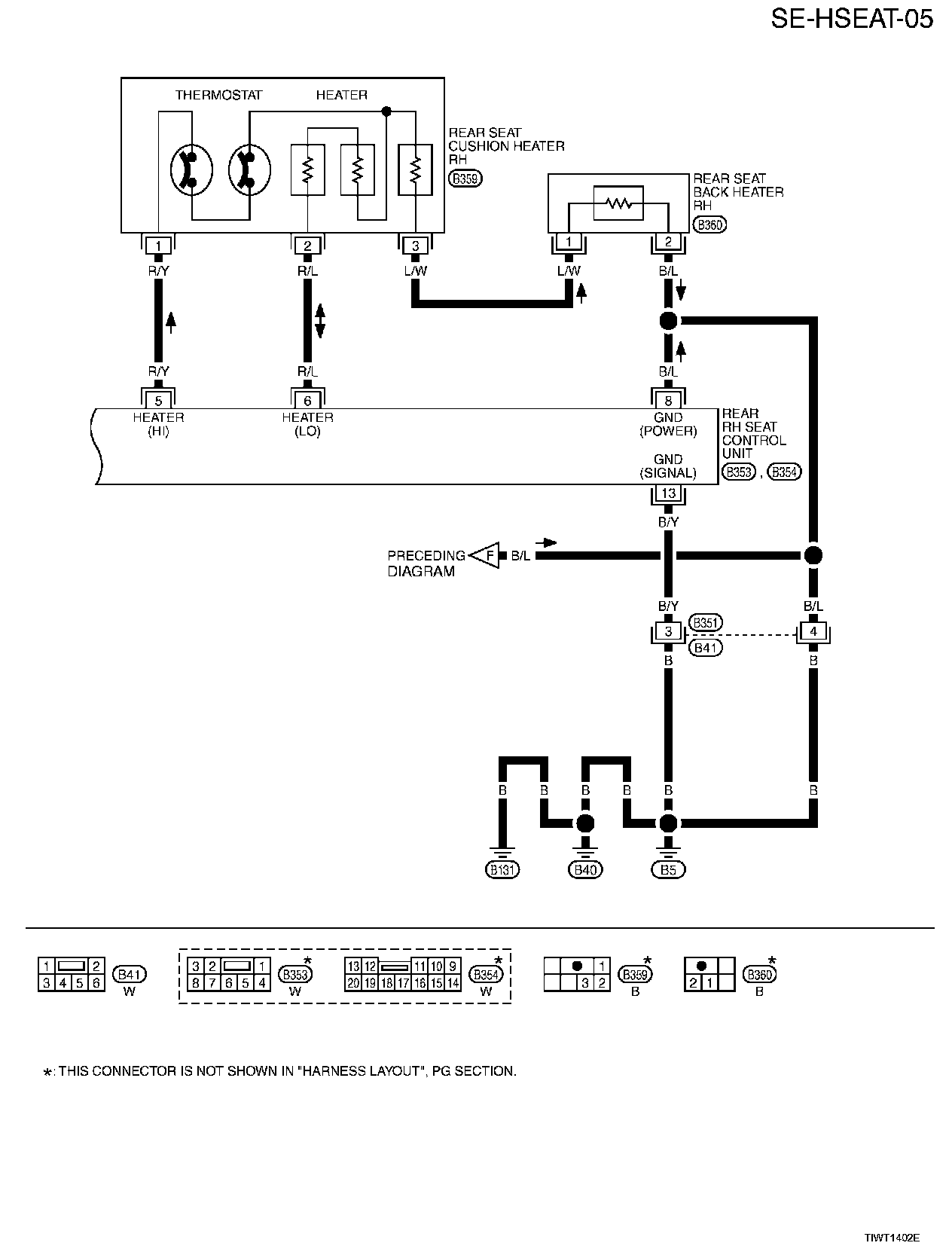

Wiring Diagram - HSEAT - Part 5:
