Hydraulic System, Brakes

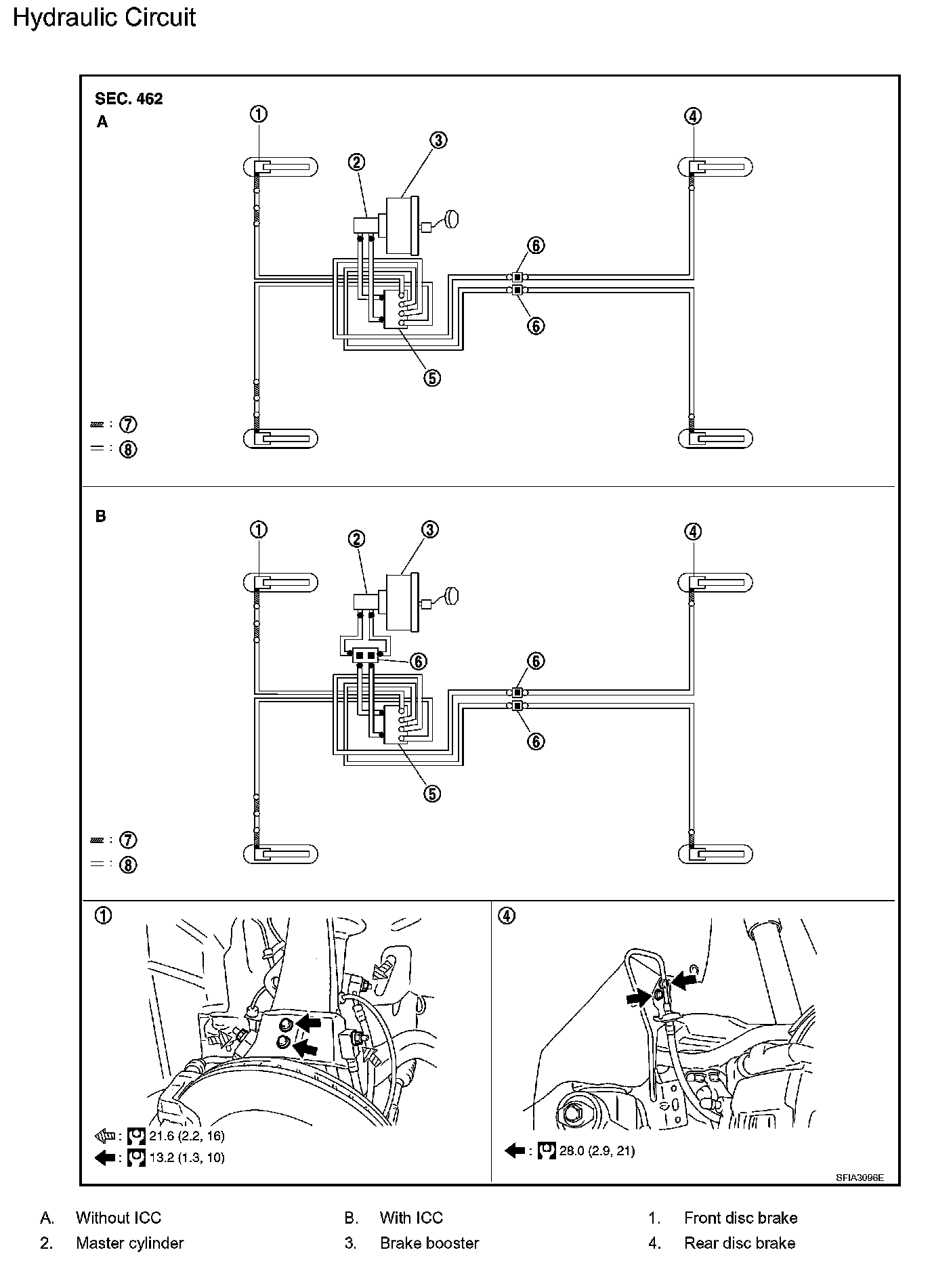

Hydraulic Circuit
CAUTION:
^ All brake hoses and tubes must be free from excessive bending, twisting and pulling.
^ Make sure that there is no interference with other parts when turning steering both clockwise and counterclockwise.
^ Brake tubes and hoses are an important safety part. Always disassemble the parts and retighten their fittings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is detected.
^ Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
^ Cover the open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.
^ Refill with new brake fluid "DOT 3".
^ Never reuse drained brake fluid.
