Transmission Pan

Transmission Pan

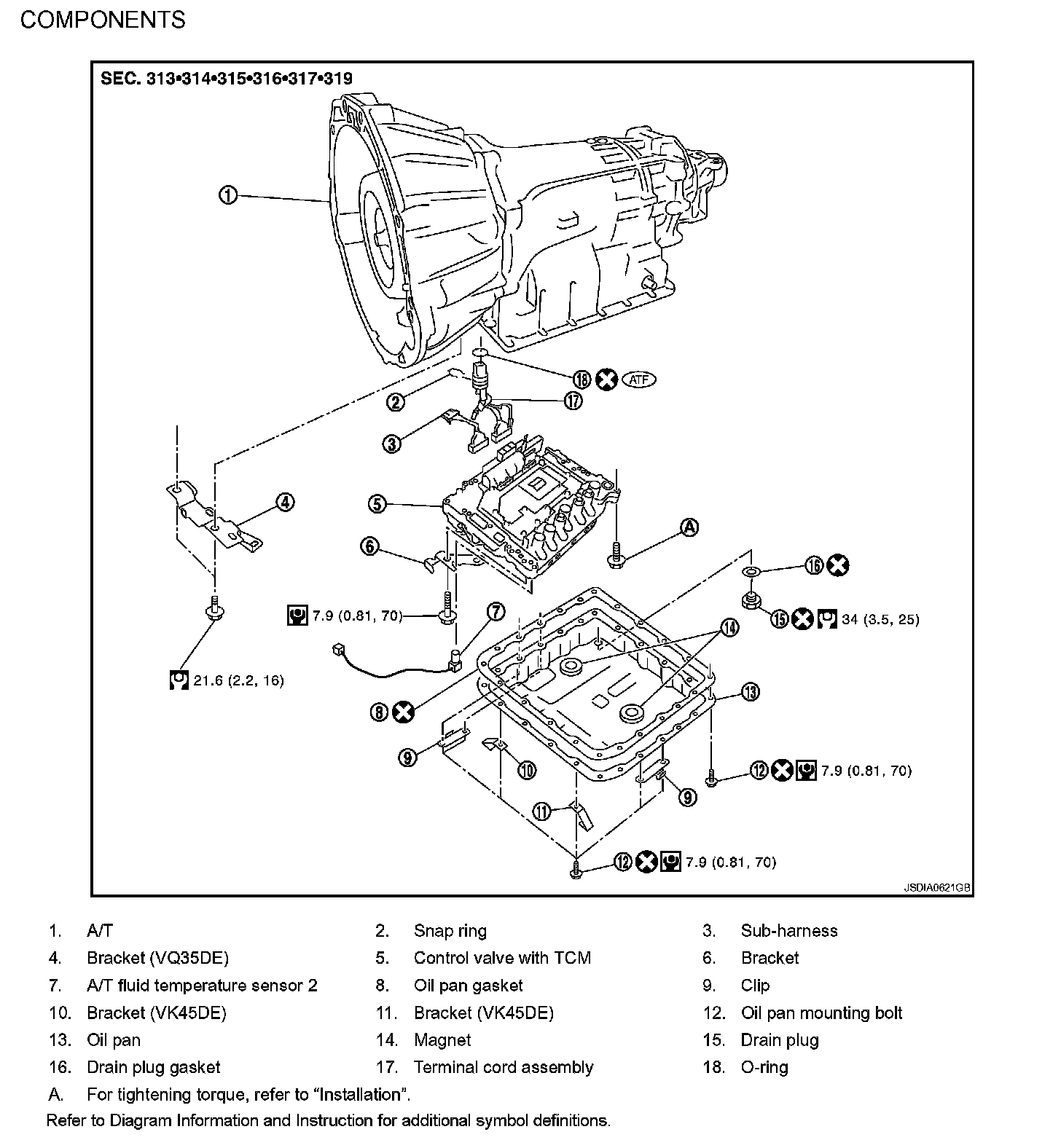

AT-210 COMPONENTS:

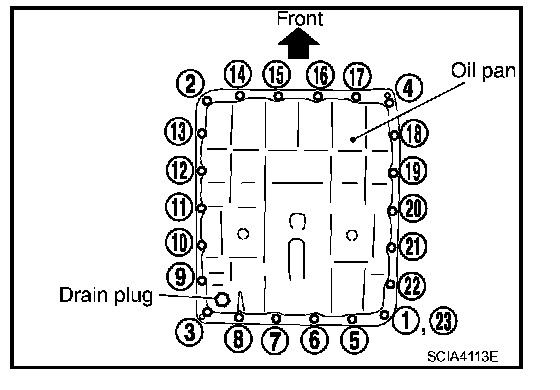

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque. Refer to "COMPONENTS".
