Inspection and Adjustment

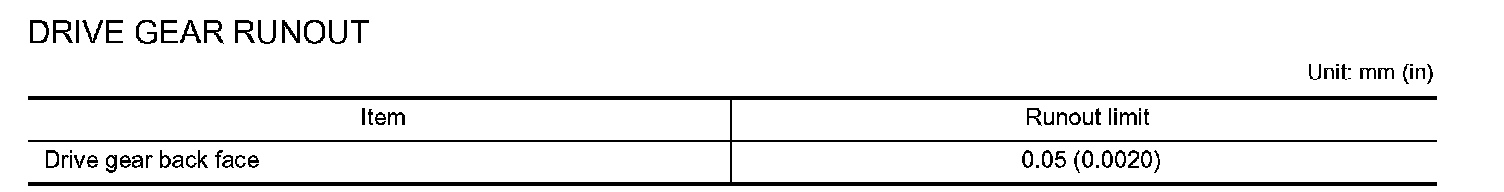

DRIVE GEAR RUNOUT

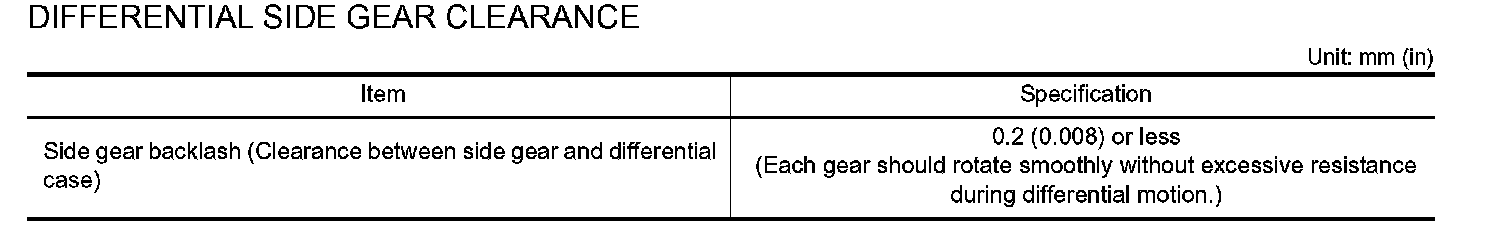

DIFFERENTIAL SIDE GEAR CLEARANCE

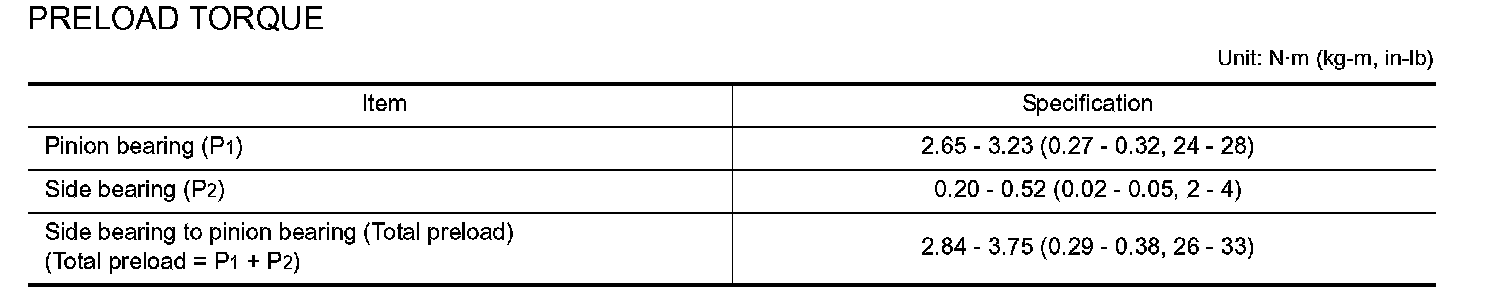

PRELOAD TORQUE

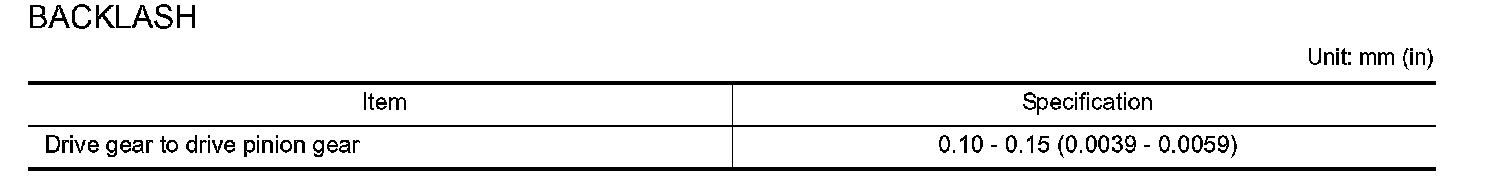

BACKLASH

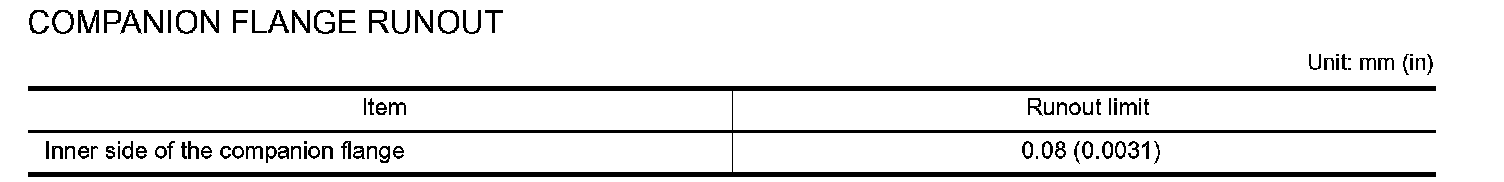

COMPANION FLANGE RUNOUT

SELECTIVE PARTS

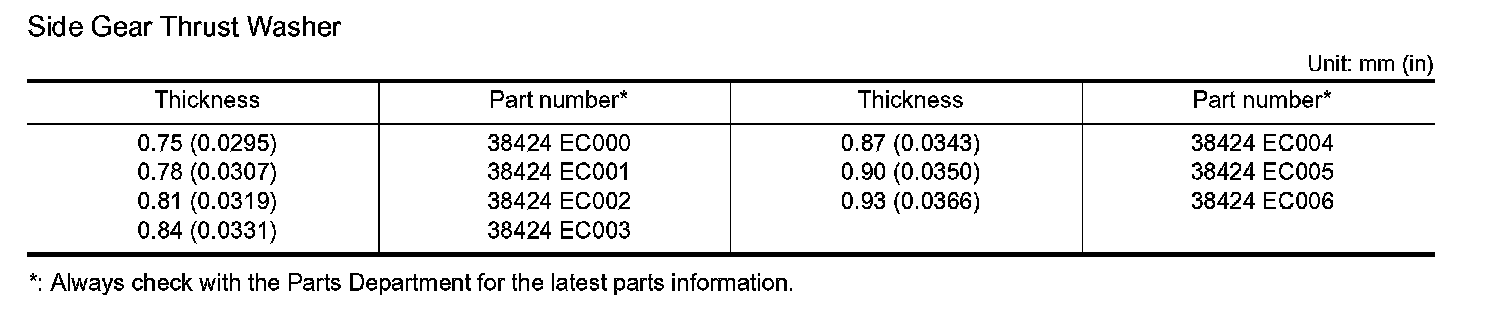

Side Gear Thrust Washer

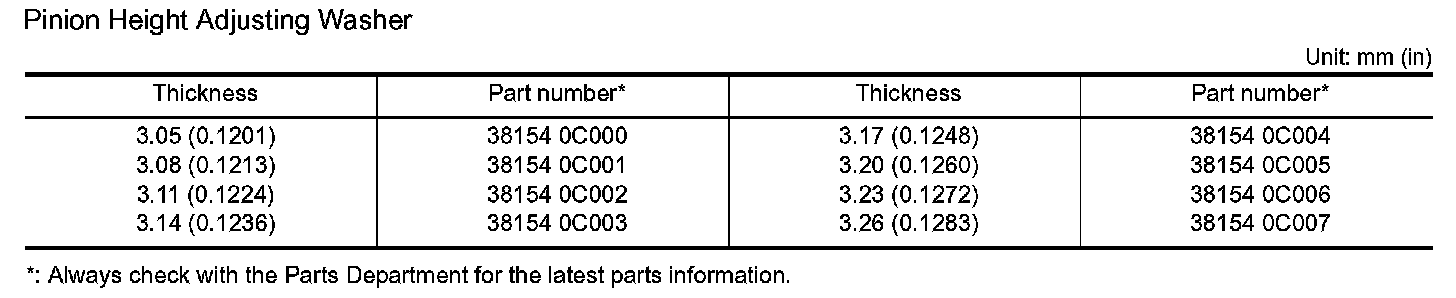

Pinion Height Adjusting Washer

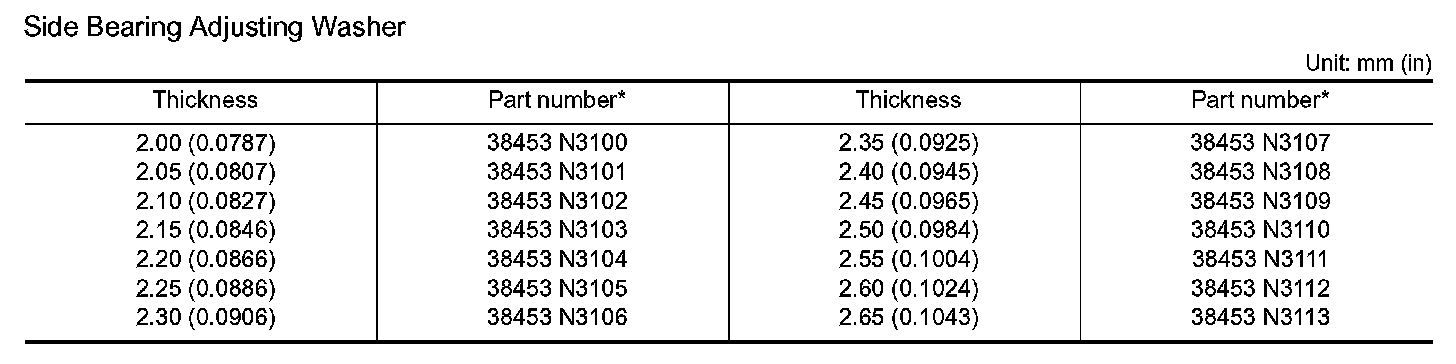

Side Bearing Adjusting Washer
