Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Chain Tensioner

Timing Chain Tensioner

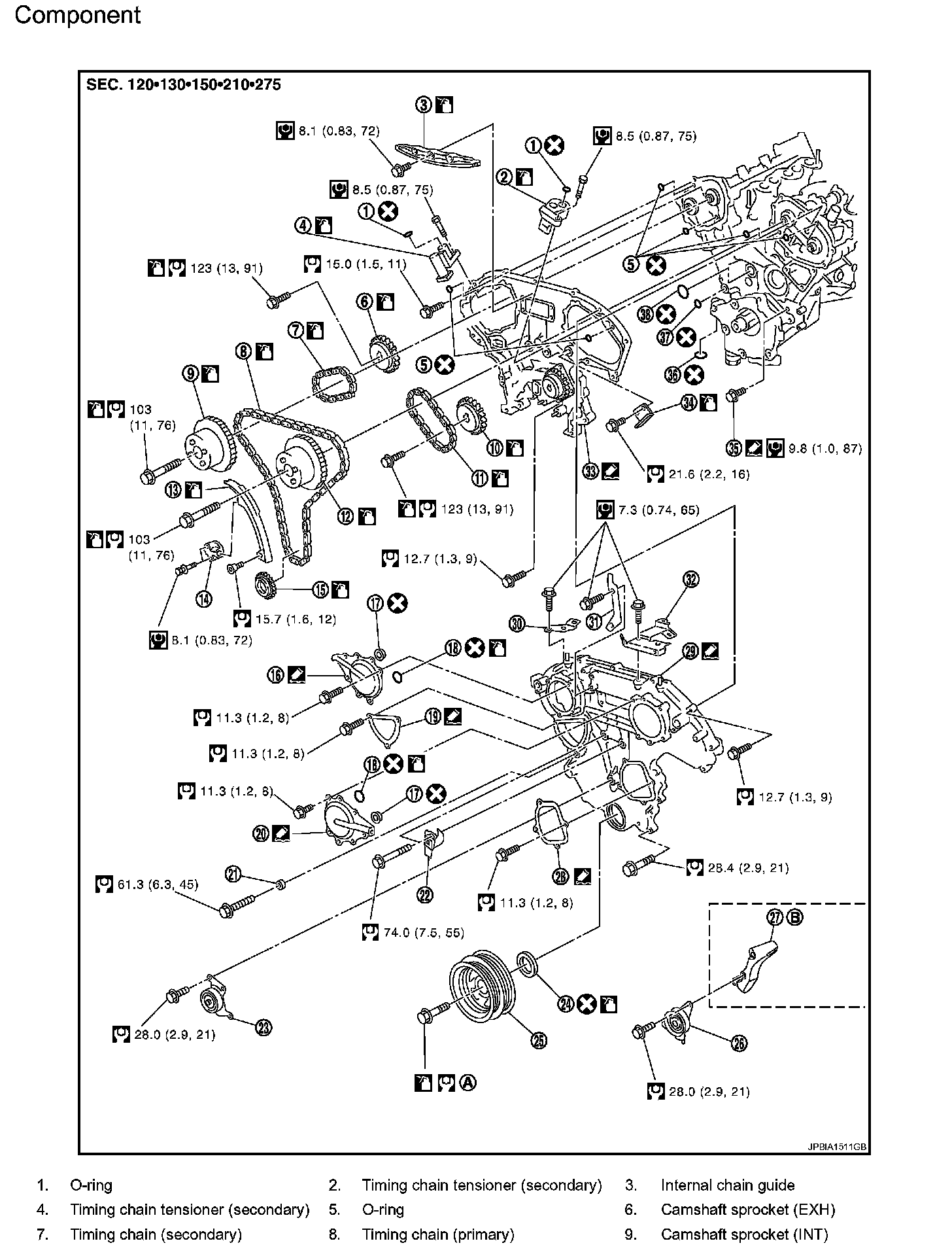

EM-64 Component (Part 1):

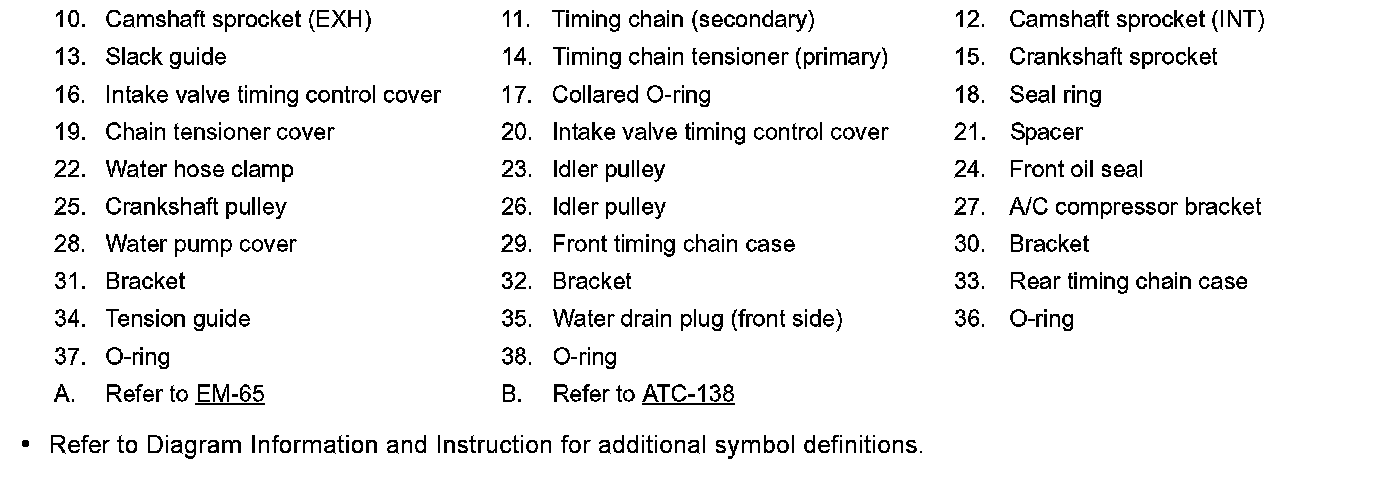

EM-64 Component (Part 2):
