Section 5: Verifying the Update Result

SECTION 5: VERIFYING THE UPDATE RESULT

^ Make sure the CF adapter is disconnected from the navigation system before performing the following steps.

1. Turn the ignition ON.

^ If the ignition is already ON, turn it OFF and then back ON.

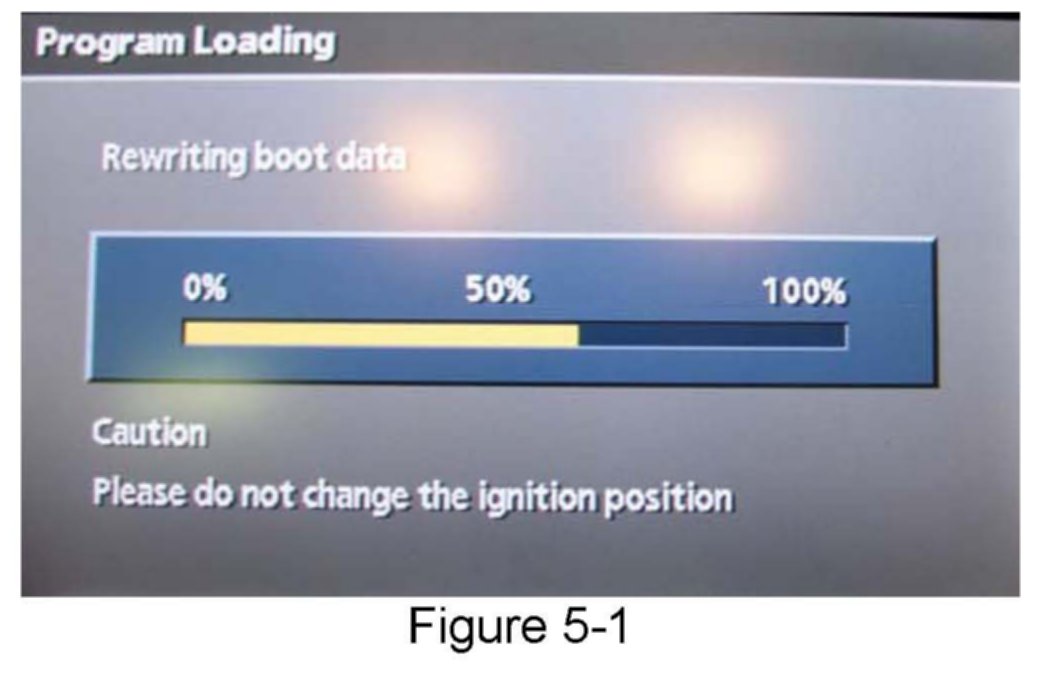

2. The Program Loading screen as shown in Figure 5-1 will display.

^ This process may take only a few seconds to complete or it may take a few minutes.

3. Operate the audio system and confirm it is operating correctly.
