Removal and Replacement

Removal and Installation of Front Wiper Drive Assembly

REMOVAL
1. Operate front wiper motor, and stop at the auto stop position.
2. Remove wiper arms.
3. Remove cowl top cover.
4. Disconnect wiper motor connector and remove connector clips.

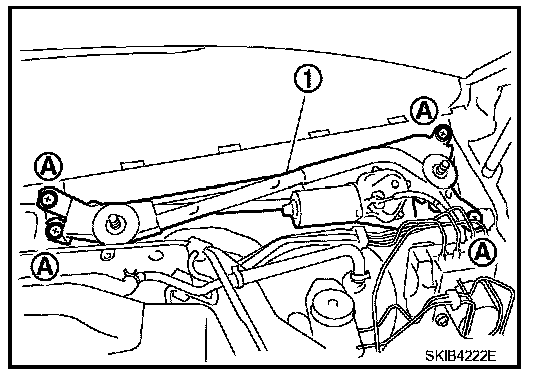

5. Remove front wiper drive assembly mounting bolts (A), and remove front wiper drive assembly (1) from the vehicle.

INSTALLATION
1. Install front wiper drive assembly to the vehicle.

Front wiper drive assembly mounting bolts torque: 4.5 N.m (0.46 kg-m, 40 in-lb)

2. Connect wiper motor connector. Turn wiper switch ON to operate wiper motor, then turn wiper switch OFF (auto stop).
3. Install connector clips to the wiper frame, and install cowl top cover.
4. Attach wiper arms.
5. Adjustment of wiper arm stop location.
6. Install arm caps.
