Windshield Washer Spray Nozzle: Adjustments

Washer Nozzle Adjustment

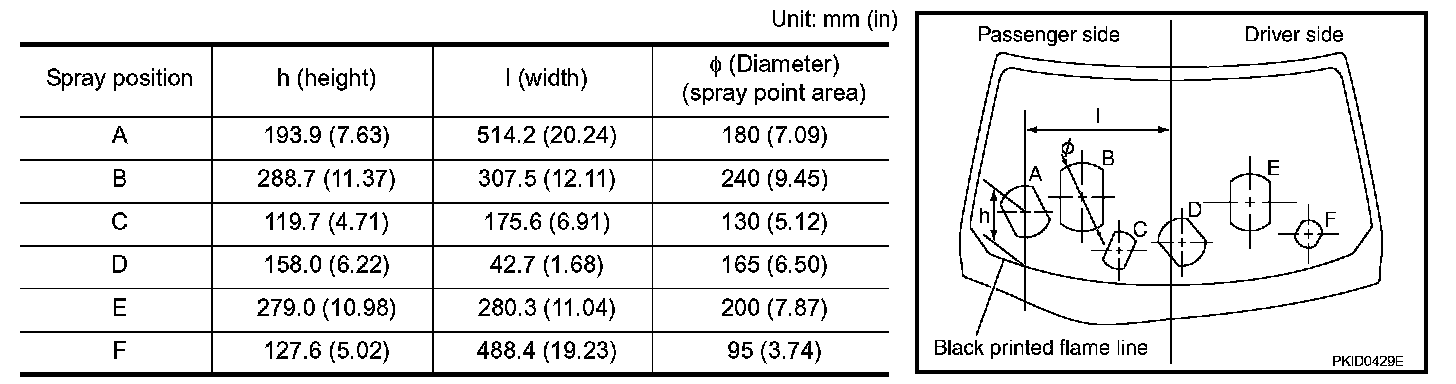

Adjust spray positions to match the positions shown in the figure.

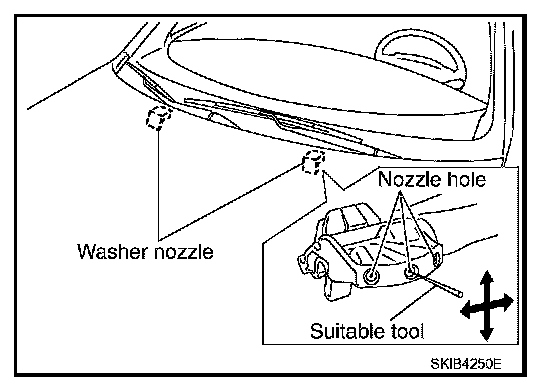

Insert a needle or suitable tool into the nozzle hole and move up/down and left/right to adjust the spray position.
