Rain Sensor: Service and Repair

Removal and Installation of Rain Sensor

CAUTION: When the rain sensor is removed from windshield, the rain sensor cannot be re-used.

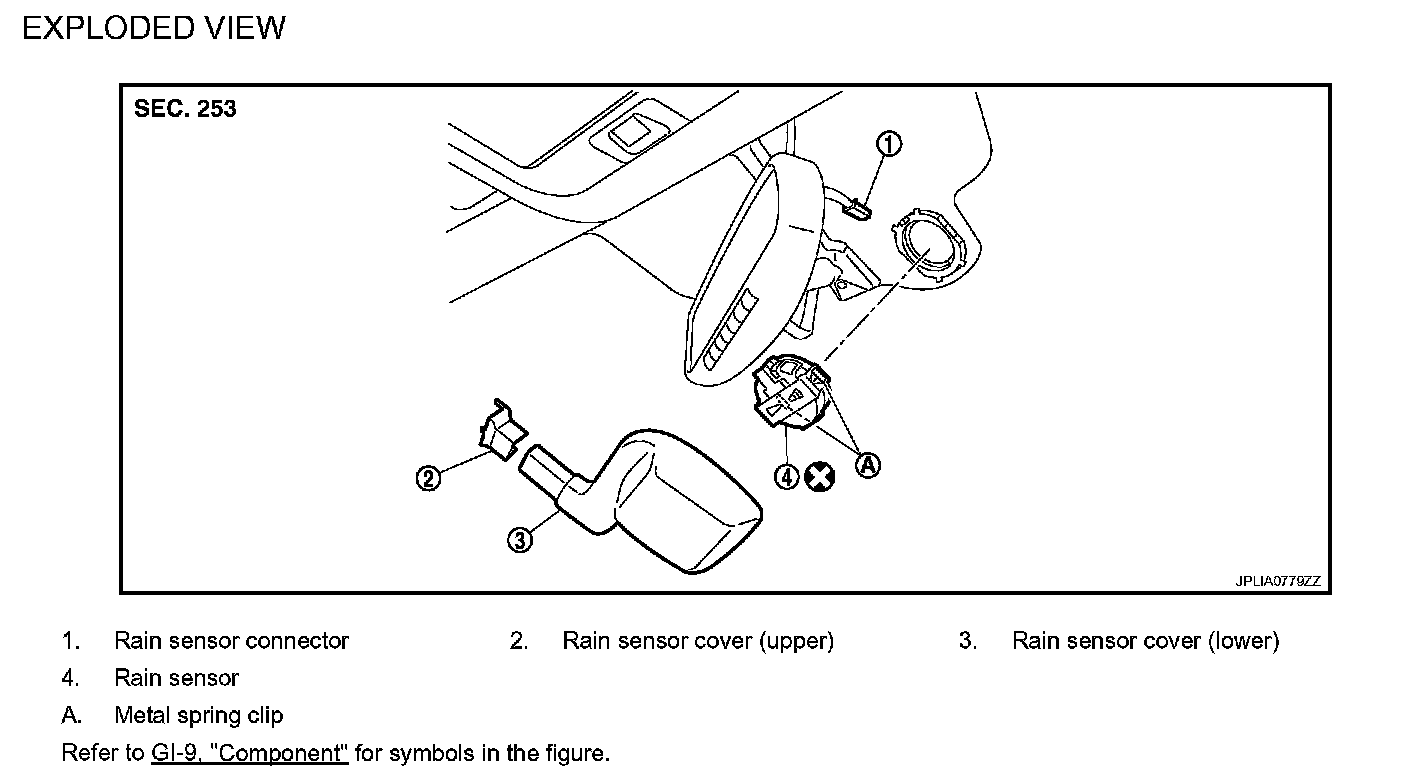

EXPLODED VIEW

WW-36 Exploded View:

REMOVAL
1. Remove the rain sensor cover (upper and lower).
2. Disengage the both sides of metal spring clips, and remove the rain sensor from the windshield.
3. Disconnect rain sensor connector.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Surface of windshield should be cleaned.
- Never touch gel/adhesive of new part.
- Lock the metal spring clips and install the rain sensor securely.
