Turn Signal Switch: Service and Repair

LIGHTING AND TURN SIGNAL SWITCH

Removal and Installation

REMOVAL
1. Remove steering column lower cover.

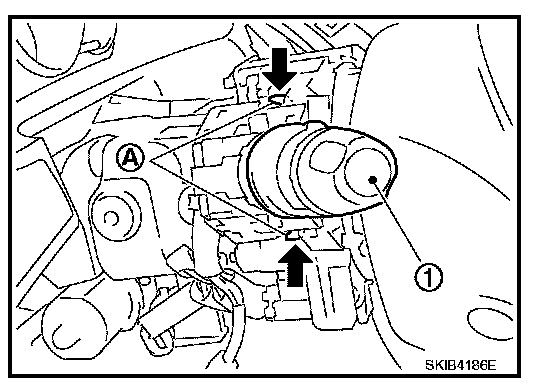

2. While pressing pawls (A) in direction as shown in the figure, pull lighting and turn signal switch (1) toward driver door and disconnect from the base.

INSTALLATION
Installation is the reverse order of removal.
