Rear Turn Signal Lamp Bulb

REAR TURN SIGNAL LAMP BULB

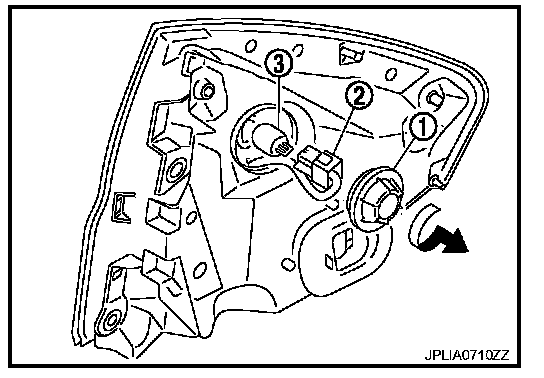

1. Remove rear combination lamp.
2. Rotate the resin cap (1) counterclockwise and unlock it.




3. Turn rear turn signal lamp bulb socket (2) counterclockwise and unlock it.
4. Remove bulb (3).

CAUTION: Seal packing cannot be reused.

Rear turn signal lamp : 12 V - 21 W (amber bulb)
