Headlamp Alignment Sensor: Service and Repair

Removal and Installation of Height Sensor

REMOVAL
1. Disconnect height sensor connector.
2. Remove height sensor link bracket mounting nut. (rear stabilizer side)

CAUTION: Never remove from the installation nut of height sensor link bracket (height sensor link side).

3. Remove bolts, and remove height sensor.

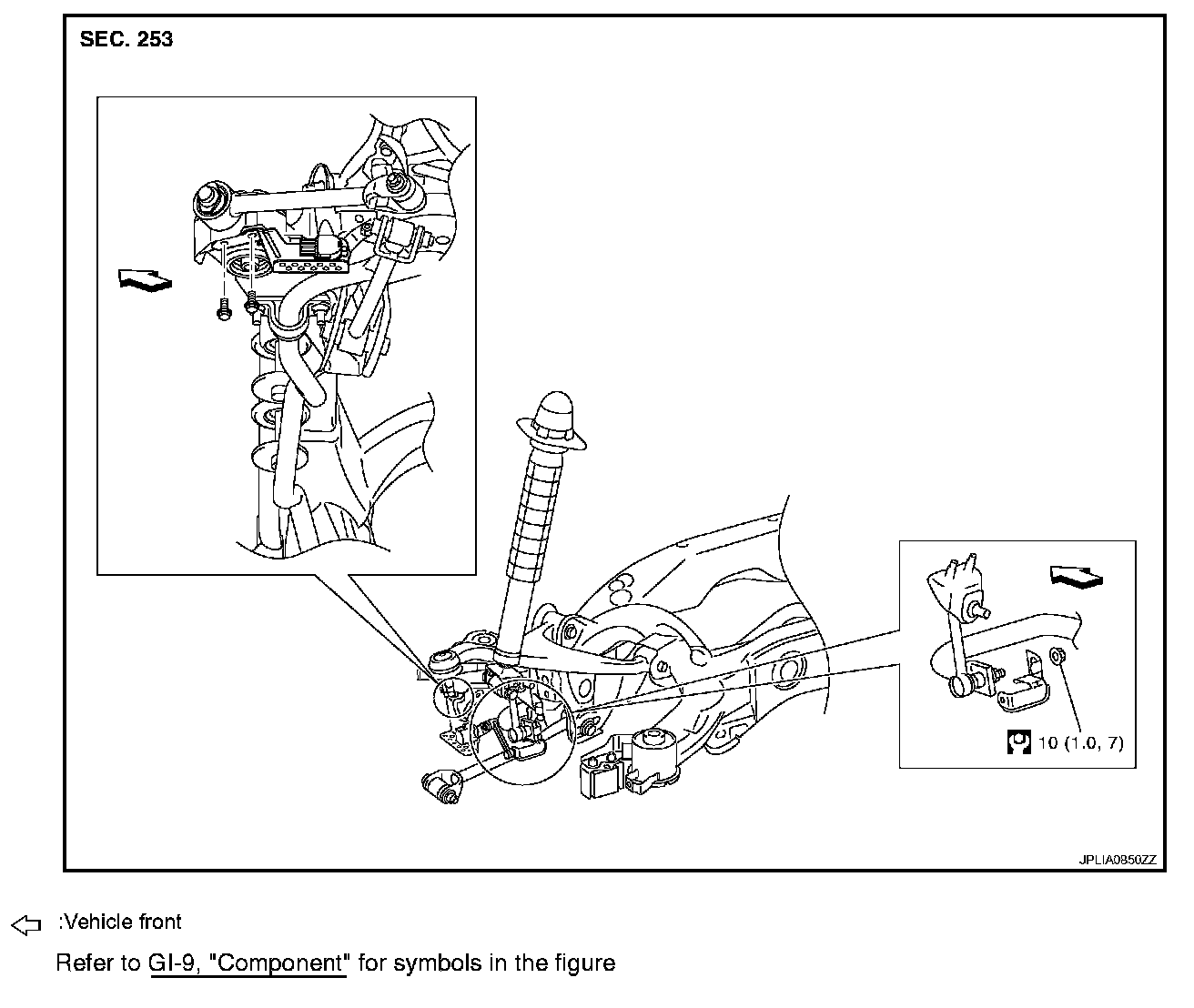

LT-161 Exploded View:

INSTALLATION




Installation is the reverse order of removal.

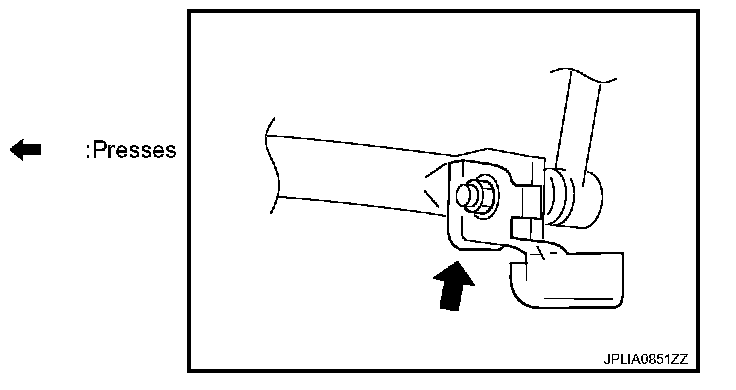

CAUTION: Tighten the bracket while pushing onto rear stabilizer when installing the installation nut of height sensor link bracket (stabilizer side).




NOTE: Adjust levelizer when replacing height sensor. For details, refer to LT-126, "CONSULT-III Function (ADAPTIVE LIGHT)". CONSULT-III Function (Adaptive Light)
